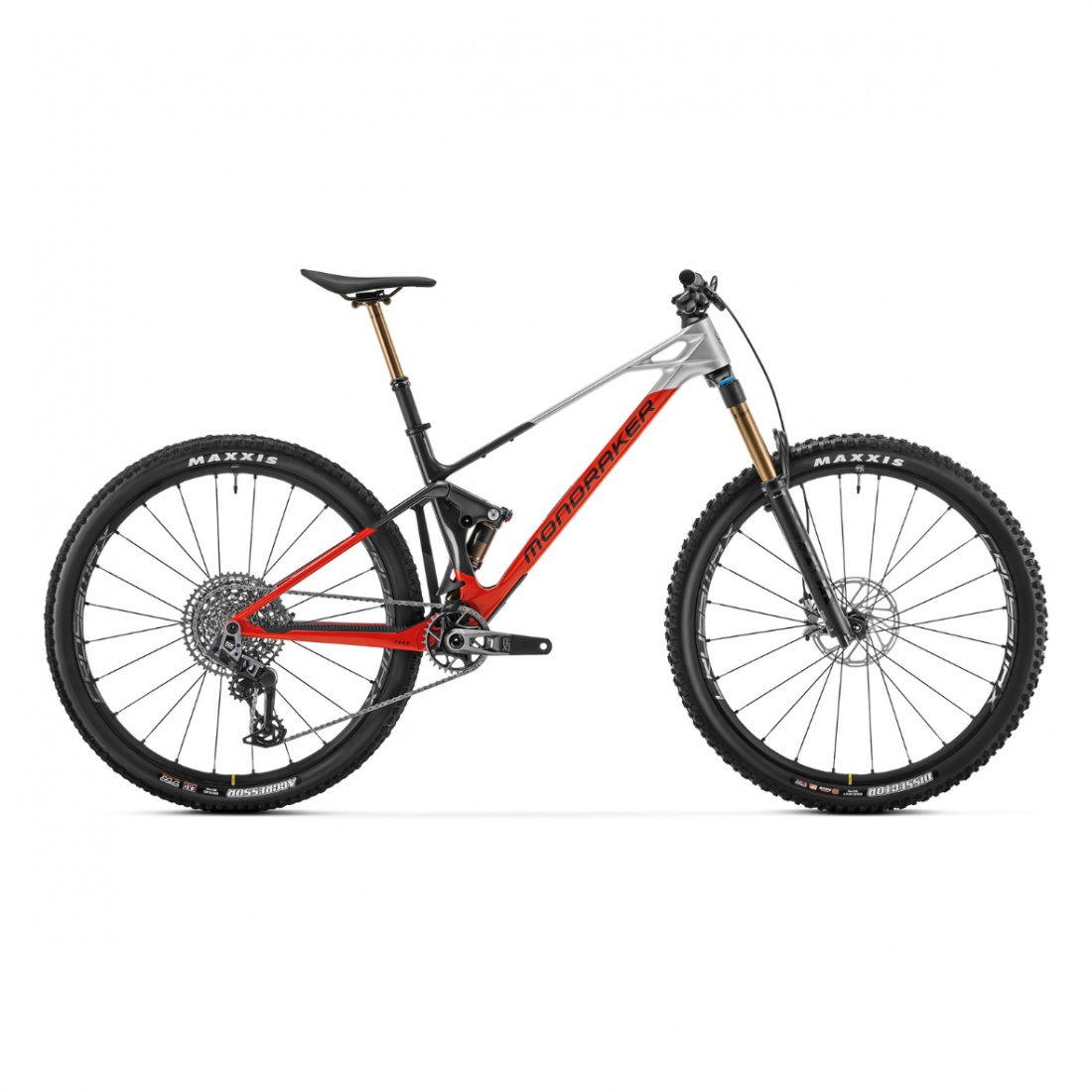

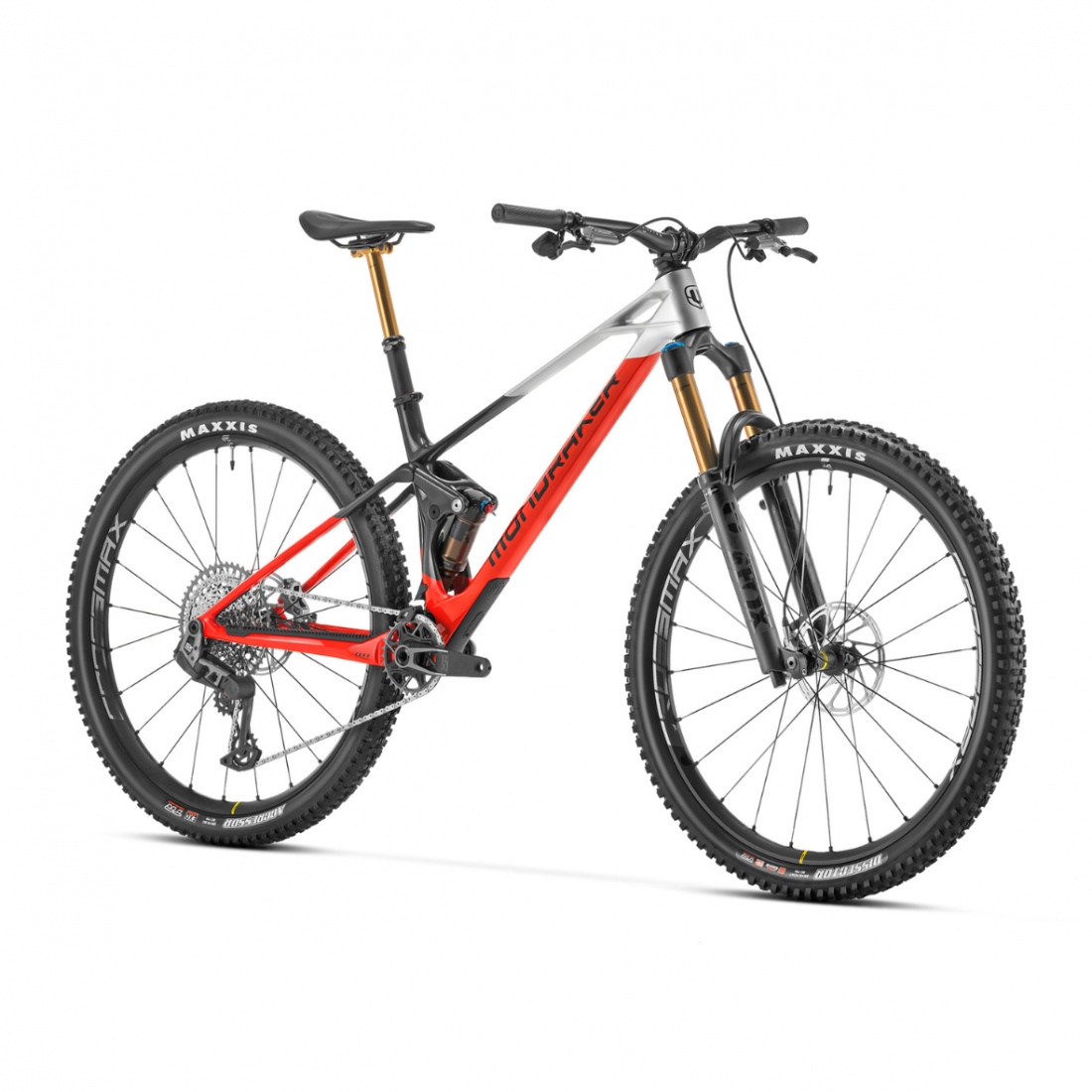

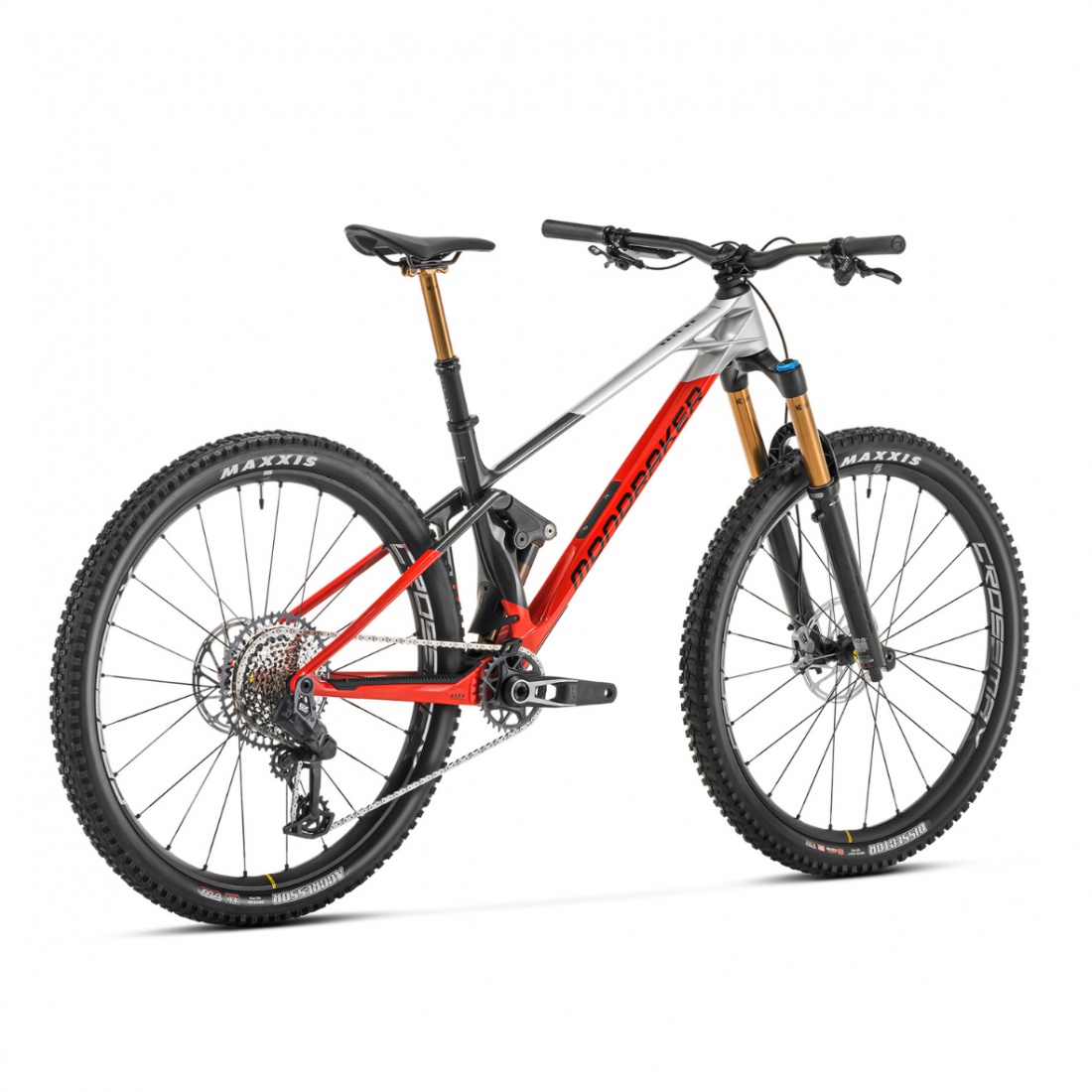

MONDRAKER RAZE CARBON RR 2024

Frame

Raze 29 Stealth Air full Carbon, Zero Suspension System, 130mm travel, Forward Geometry, Carbon Monoblock upper link, Boost 12x148mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, HHG internal cable routing, Enduro MAX sealed bearings, shock mudguard, ISCG 05, custom frame protectors.

Sizes

S: 380mm / M: 420mm / L: 450mm / XL: 500mm

Rear shock

Fox Float Factory Kashima EVOL, 205x57.5mm. Settings: 2-position compression (Open/Firm), rebound, air preload. Trunnion top mount, 30x8mm bottom bushings

Shock settings

Light compression, light rebound, air volume spacer 0.6

Fork

Fox 36 29 Float GRIP2 Factory Kashima, 150mm, tapered steerer tube, Boost 15x110mm Kabolt axle, 44mm offsete. Settings: high and low-speed compression, high and low-speed rebound, air preload

Headset

Acros custom for 1-1/2" head tube, angular contact bearings 40x52x7, Internal cable routing

Stem

Onoff Krypton FG 30mm, CNC, 31.8mm barbore

Handlebar

Onoff Krypton Carbon 1.0, rise: 25mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore

Grips

Onoff Desert, 1lock-on, 135mm

Seatpost

Fox Transfer Factory Kashima internal, diameter 31.6mm, S size: 363.5x125mm, M size: 418.3x150mm, L size: 475.1x175mm, XL size size: 475.1x200mm

Saddle

Fizik Vento Argo X5

Front brake

Sram Level Bronze Stealth, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads

Rear brake

Sram Level Bronze Stealth, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads

Brake lever

Sram Level Bronze, tools-free reach adjust, lever pivot bushings

Rims

Mavic CrossMax XL S, 29 Boost 30mm internal width, hookless, tubeless ready, 24 spokes

Spokes

Mavic 24 straight-pull double butted spokes

Front hub

Mavic Infinity hub, Boost 15x110mm, IS 6 bolts

Rear hub

Mavic Infinity hub, ID360 freewheel technology, Boost 12x148mm, IS 6 bolts, XD freehub

Front tire

Maxxis Dissector 29x2.4 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead

Rear tire

Maxxis Aggressor 29x2.3, tubeless ready, dual compound, Exo protection, 60TPI, folding bead

Crankset

Sram X0 Eagle T-Type, Boost, DUB axle, Direct mount chain ring, S size: 170mm M size: 175mm L size: 175mm XL size: 175mm, CL55

Rings

32T, CNC-machined alloy, T-Type

Chain

Sram GX Eagle T-Type, 12s, Powerlock

Rear derrailleur

Sram GX Eagle AXS, T-Type roller bearing clutch, cage lock, 1x12s

Shift levers

Sram Eagle AXS Pod MMX, 12s

Casette

Sram XS-1275, 10-52T, T-Type, 12s

Weight

13,4 kg
