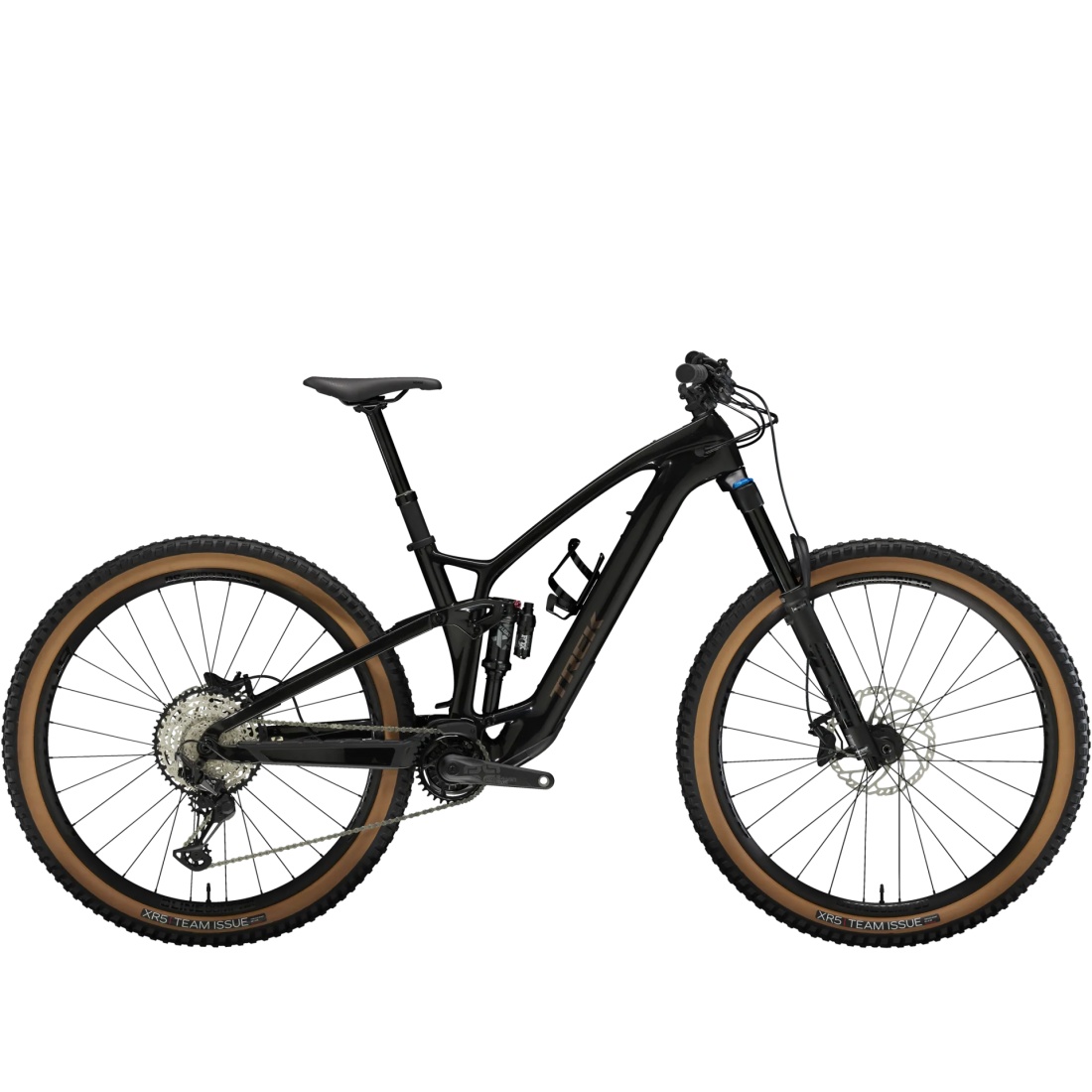

TREK FUEL EXe 9.7 2025

Frame
OCLV Mountain Carbon, removable battery, internal cable routing, alloy rocker link, 34.9 mm seat tube, top chain guide mount, 55 mm chainline, Mino Link, ABP, Boost148, UDH, 140 mm travel.

Fork :

Fox Rhythm 36: Float EVOL air spring, GRIP damper, tapered steerer, 44 mm offset, Boost110, Kabolt 15 mm axle, 150 mm travel.

RockShox Lyrik Select+: DebonAir spring, Charger 2.1 RC damper, tapered steerer, 44 mm offset, Boost110, Maxle Stealth 15 mm axle, 150 mm travel.

Shock :

Fox Performance Float X: 2-position damper, 205 x 60 mm.

RockShox Super Deluxe Select+ RT: 205 x 60 mm.

Maximum Fork Travel: 160 mm.

Wheels

• Front: Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15 mm thru-axle, 29-inch.
• Rear (by size):
  • Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108 or 54, 6-bolt, Boost148, 12 mm thru-axle.
• Rear Axle: Bontrager Switch thru-axle, removable lever.

Tires

• Bontrager XR5 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 60 tpi, 29x2.50 inches.
• Max Size: Frame 29x2.60 inches (XS: 27.5x2.60 inches), Fork: See manufacturer.

Drivetrain

• Shifter: Shimano SLX M7100, 12-speed.
• Rear Derailleur: Shimano XT M8100, long cage.
• Crankset: Ethirteen Espec Plus, 165 mm.
• Chainring: Ethirteen Espec, steel, 32T, 55 mm chainline.
• Cassette: Shimano SLX M7100, 10-51T, 12-speed.
• Chain: Shimano SLX M7100, 12-speed.
• Max Chainring: 1x 34T, min 30T.

Brakes

• Shimano, 4-piston, M6100 lever, M6120 caliper.
• Discs: Shimano RT66, 6-bolt, 203 mm (frame max: 203 mm, min 180 mm).

Components

• Saddle: Bontrager Arvada or Verse P3 (hollow chromoly rails, 138 mm width depending on size).
• Dropper Post: TranzX JD-YSP39 or Bontrager Line Dropper, 100/150/170 mm travel depending on size.
• Handlebar: Bontrager Line (alloy) or Line Pro (carbon), 780 mm width.
• Grips: Bontrager XR Trail Elite.
• Stem: Bontrager Elite, 35 mm clamp, 45 mm length.

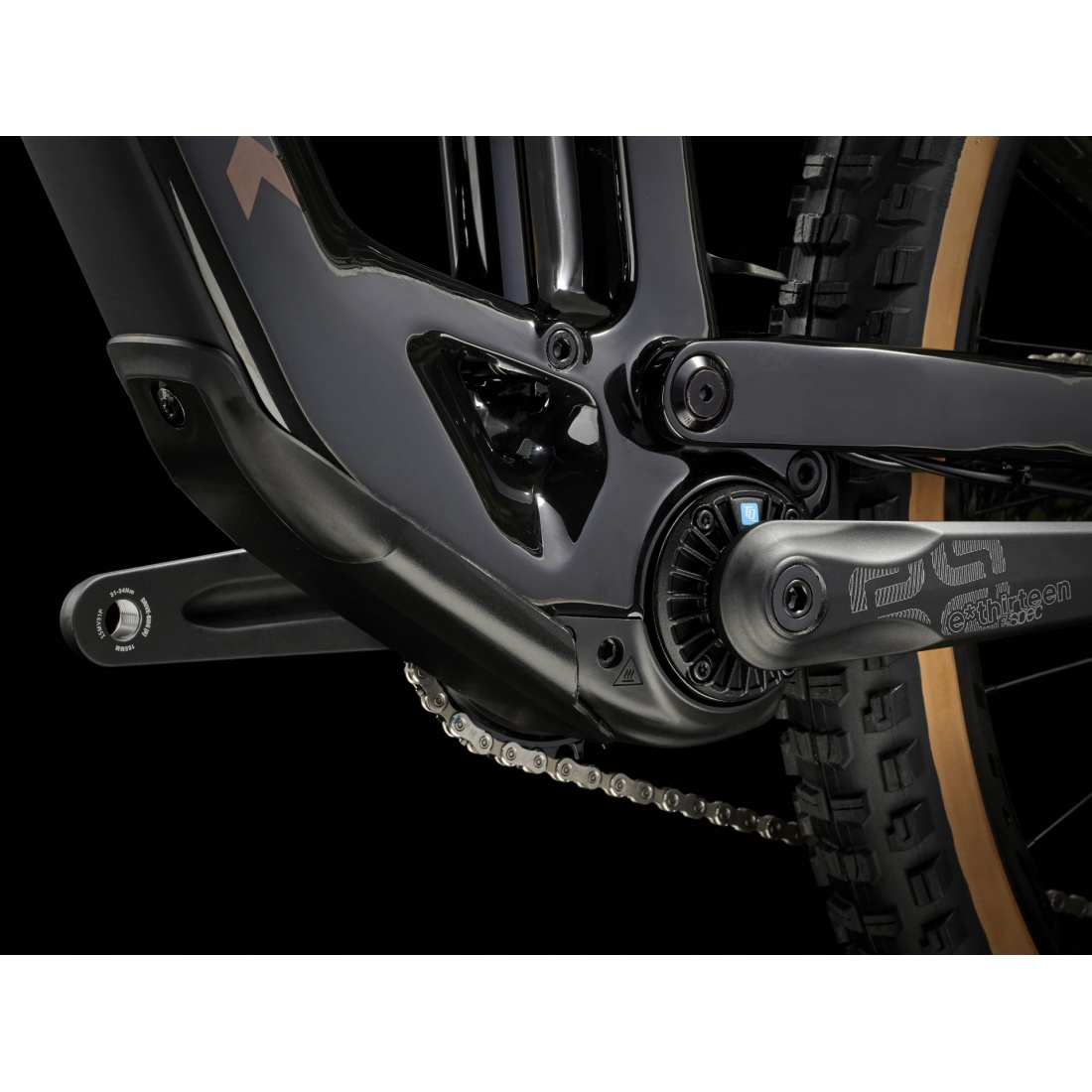

Motor

• Battery: TQ 360 Wh.
• Motor: TQ-HPR50, 50 Nm, 250 W continuous, 300 W peak.
• Charger: TQ 4A.

Weight

• Size M: 19.33 kg (with sealant, no tubes).
• Maximum Total Weight: 136 kg (bike, rider, cargo combined).
