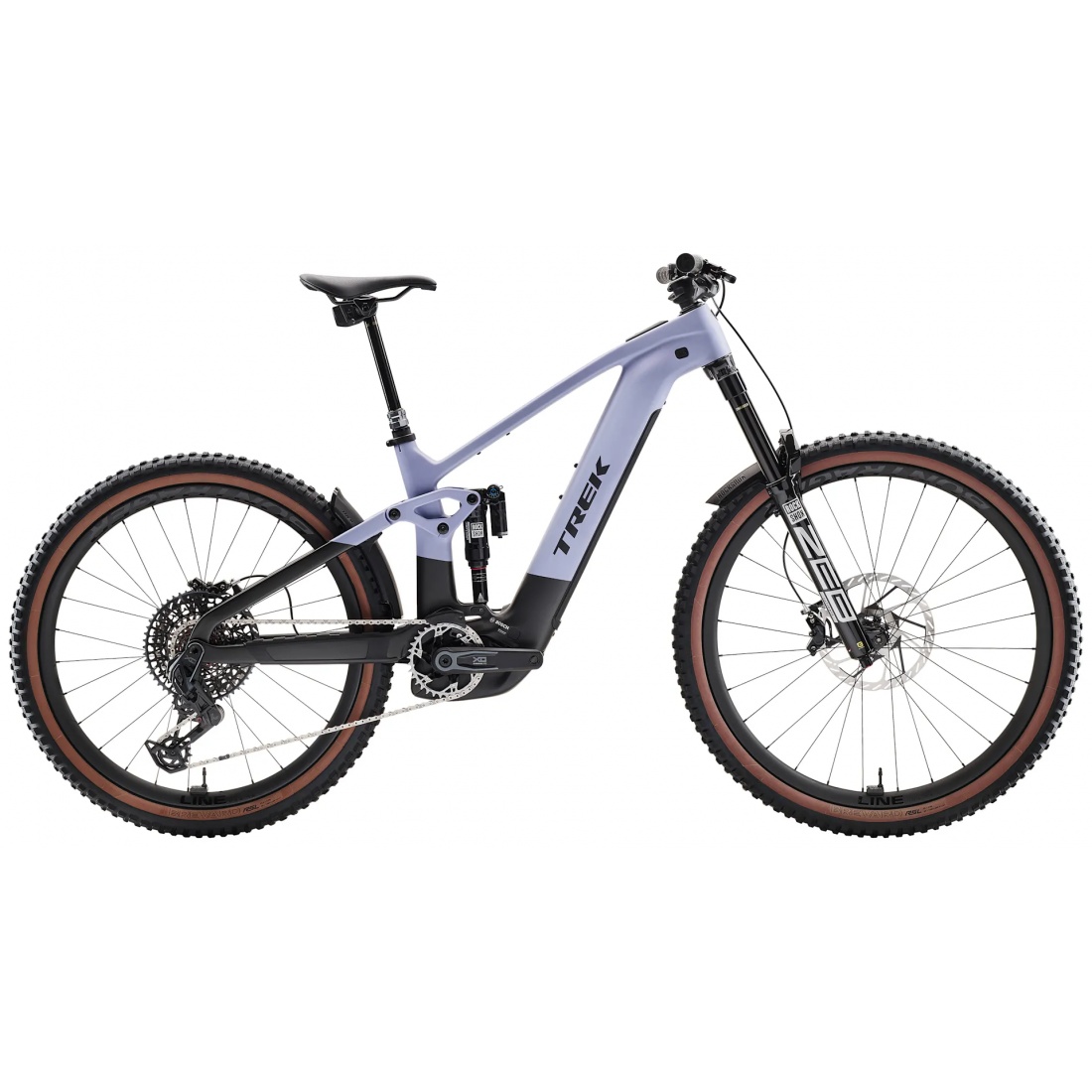

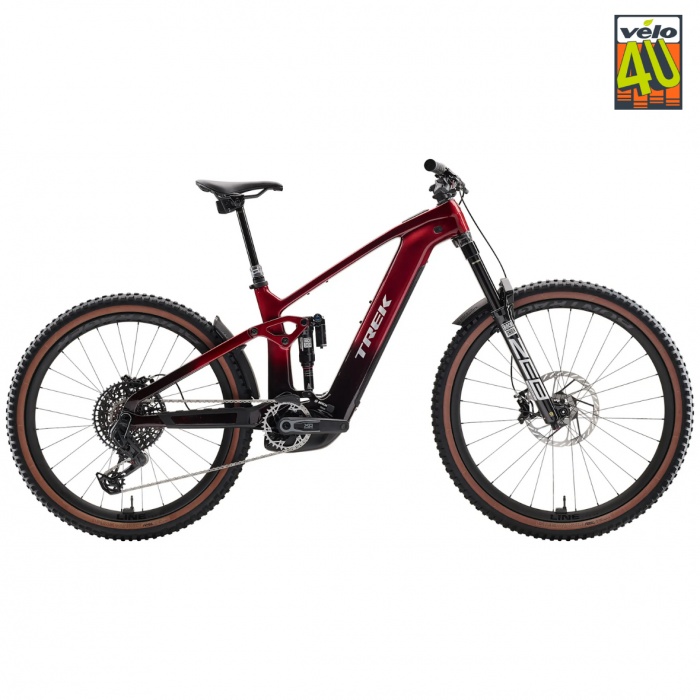

TREK RAIL+ 9.9 X0 AXS T-TYPE 2025

11 999,00 € tax incl.

Color
Frame Size :
Collection

Reference :
Condition: New product

TREK RAIL+ 9.9 X0 AXS T-TYPE 2025 / CARBONE / SRAM X0 EAGLE AXS 12V / ROCKSHOX ZEB ULTIMATE / ROCKSHOX SUPER DELUXE ULTIMATE / BONTRAGER / BOSCH PEROFRMANCE CX 85NM / 800 WH

More details

Quantity

Le prix des vélos complets n'inclut pas le prix du marquage Reco Bike. Le marquage des vélos à l'achat est obligatoire depuis le 1er janvier 2021.

Veuillez ajouter à votre panier l'article Reco Bike. Toute commande de vélo complet sans marquage Reco Bike sera en attente de validation, temps que vous n'ajouterez pas cet article à votre commande.

Livraison 24/48H

Delivery 5/7 daysWe assure the delivery of order between 5 and 7 days after validation of your payment and order before 13:00.

Paiements sécurisés

Secure paymentsEither by bank card CIC (SSL), by Paypal, by bank transfer, in BITCOIN.

Service Client

Customer serviceA problem, a question about your order? Use our contact form. We will respond as soon as possible.

Satisfait ou remboursé

Satisfied or refundedThe product does not suit you and wish you a refund? You have 14 days from the reception of your order to ask us for its return and refund.

Features

Frame

OCLV Mountain Carbon frame, removable integrated battery (RIB 2.0), tapered head tube, guided internal cable routing, Motor Armor, adjustable headset angle, Mino Link adjustable geometry, adjustable suspension ratio, 34.9 mm seat tube, ABP, UDH, Boost148, 12 mm thru-axle, 160 mm rear travel.

Fork

RockShox ZEB Ultimate, DebonAir spring, Charger 3.1 RC2 damper, tapered steerer, 44 mm offset, Boost110, Maxle Stealth 15 mm axle, 170 mm travel.

  • Maximum compatible fork travel: 180 mm.

Shock

RockShox Super Deluxe Ultimate RC2T, 205 x 65 mm.

Wheels and Tires

  • Front Wheel:
    • Size S: Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost110, 15 mm thru-axle, 27.5".
    • Sizes M, L, XL: Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost110, 15 mm thru-axle, 29".
  • Rear Wheel:
    • Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, 6-bolt, Boost148, 12 mm thru-axle, 27.5".
  • Tires:
    • Size S: Bontrager Brevard RSL SE, Tubeless Ready, triple compound, aramid bead, 27.5 x 2.50".
    • Sizes M, L, XL: Bontrager Brevard RSL SE, Tubeless Ready, triple compound, aramid bead, 29 x 2.50".
  • Rim Strip: Bontrager TLR.
  • Sealant: Bontrager TLR, 177 ml.
  • Maximum Tire Size: Frame: 27.5 x 2.60" / Fork: consult manufacturer.

Electrical System

  • Battery: Bosch PowerTube 800 Wh, smart system.
  • Charger: Bosch standard 4 A, 230 V, smart system.
  • Controller: Bosch System Controller BRC3100, smart system.
  • Motor: Bosch Performance Line CX, 25 km/h or 20 mph.

Drivetrain

  • Rear Derailleur: SRAM X0 Eagle AXS, Type T.
  • Crankset: SRAM X0 Eagle, 160 mm length.
  • Cassette: SRAM Eagle XS-1295, Type T, 10-52, 12-speed.
  • Chain: SRAM X0 Eagle, Type T, 12-speed.
  • Maximum Chainring Size: 36T.

Pedals

VP-536, nylon platform.

Components

  • Saddle: Bontrager Verse Short Comp, steel rails, 145 mm width.
  • Dropper Post:
    • Size S: RockShox Reverb AXS, 100 mm travel, wireless, 34.9 mm diameter, 340 mm length.
    • Sizes M, L, XL: RockShox Reverb AXS, 170 mm travel, wireless, 34.9 mm diameter, 480 mm length.
  • Handlebar: Bontrager Line Pro, OCLV Carbon, 35 mm clamp, 27.5 mm rise, 780 mm width.
  • Grips: Bontrager XR Trail Elite, nylon lock-on.
  • Stem: Bontrager Line Pro, 35 mm clamp, Blendr compatible, 0° rise, 45 mm length.

Brakes

  • Type: SRAM Code Silver, hydraulic, 4-piston calipers.
  • Rotors:
    • Sizes S, M, L, XL: SRAM, 6-bolt, 200 mm.
    • Sizes S, M, L, XL: SRAM HS2, 6-bolt, 220 mm.
  • Maximum Rotor Size: Frame: 220 mm / Fork: consult manufacturer.

Additional Features

  • Weight: Size M - 23.98 kg (52.87 lbs) with TLR sealant, tubeless setup.
  • Weight Limit: Maximum total weight (bike + rider + gear): 136 kg.
