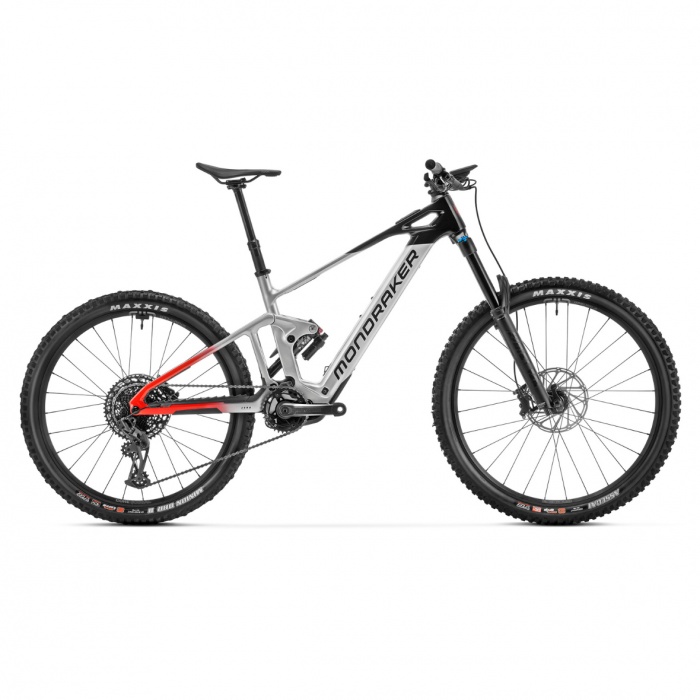

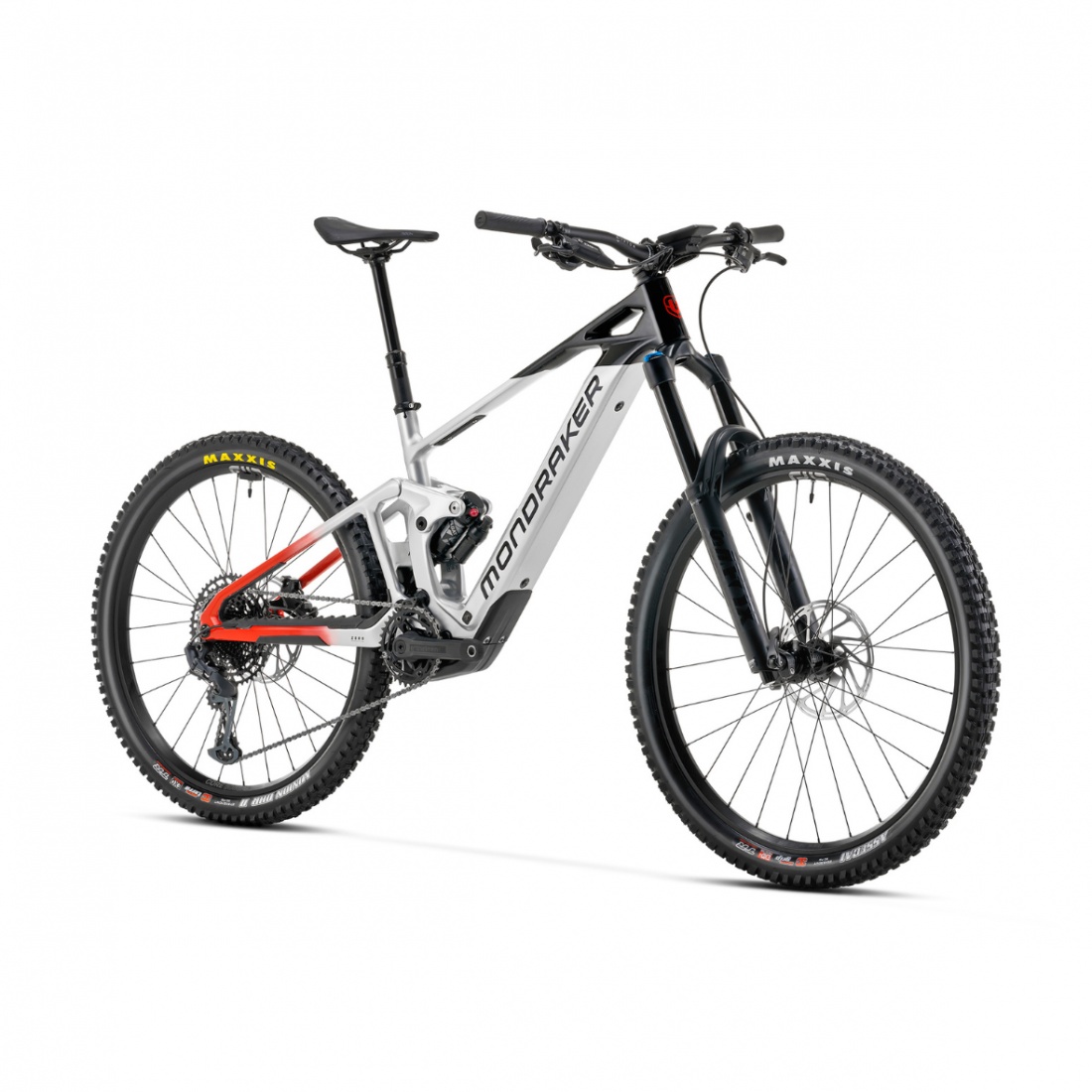

MONDRAKER DUNE R 2024

Frame

Stealth Air full Carbon, e-Bike Optimized Zero Suspension System, Mullet, 165mm travel, Forward Geometry, internal & removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers.

Sizes

S: 380mm / M: 420mm / L: 450mm / XL: 490mm

Rear shock

Fox Float X Performance EVOL, 205x65mm. Settings: 2-position compression (Open/Firm), rebound, air preload. Trunnion top mount, 30x8mm bottom bushings

Shock settings

Medium compression, medium rebound, air volume spacer 0.4

Fork

FOX 38 Float 3P Performance Grip, 170mm, e-bike tuned, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: 3 positions with micro adjust compression, low-speed rebound, air preload

Headset

Acros custom for 1-1/2" head tube, angular contact bearings 40x52x7, Internal cable routing

Stem

Onoff Krypton FG 30mm, CNC, 31.8mm barbore

Handlebar

Onoff Krypton 1.0, rise: 25mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore

Grips

Onoff Desert, 1lock-on, 135mm

Seatpost

Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 405x95-125mm, M size: 458x120-150mm, L size: 498x140-170mm, XL size: 558x170-200mm

Saddle

Fizik Terra Aidon Slim X5

Front brake

Sram DB8, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads

Rear brake

Sram DB8, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads

Brake lever

Sram DB8, tool reach adjust, lever pivot bushings

Rims

e*thirteen Grappler Core, Hookless 6066 Welded Aluminum 30mm internal width, tubeless ready, 28F spokes 29 front, 27''5 rear

Spokes

e*thirteen custom J-bend, triple-butted steel, alloy nipples, nipple washers

Front hub

e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts

Rear hub

e*thirteen Boost 12x148mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts

Front tire

Maxxis Assegai 29x2.5WT, tubeless ready, MAXX GRIP compound, EXO+ casing, 60TPI, folding bead

Rear tire

Maxxis Minion DHR II 27’5x2.4 WT, tubeless ready, 3C MaxxTerra compound, DD protection, 2x120TPI, folding bead

Crankset

E.13 E*Spec Plus,, S size: 165mm M size: 165mm L size: 170mm XL size: 170mm

Rings

Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD

Chain

Sram NX Eagle, 12s, Powerlock

Rear derrailleur

Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1

Shift levers

Sram Trigger NX Eagle, 12s, X-Actuation 1:1, single click

Casette

Sram PG-1230, 11-50T, 12s

Derailleur hanger

Sram UDH

Weight

19,9 kg

Display

Bosch Kiox 500 / Bosch Mini Remote / Bosch System Controller

Motor

Bosch Performance Line SX (25Km/h) GEN4 SMART SYSTEM Diagonal, Wide

Battery

Bosch Compact Powertube 400Wh
