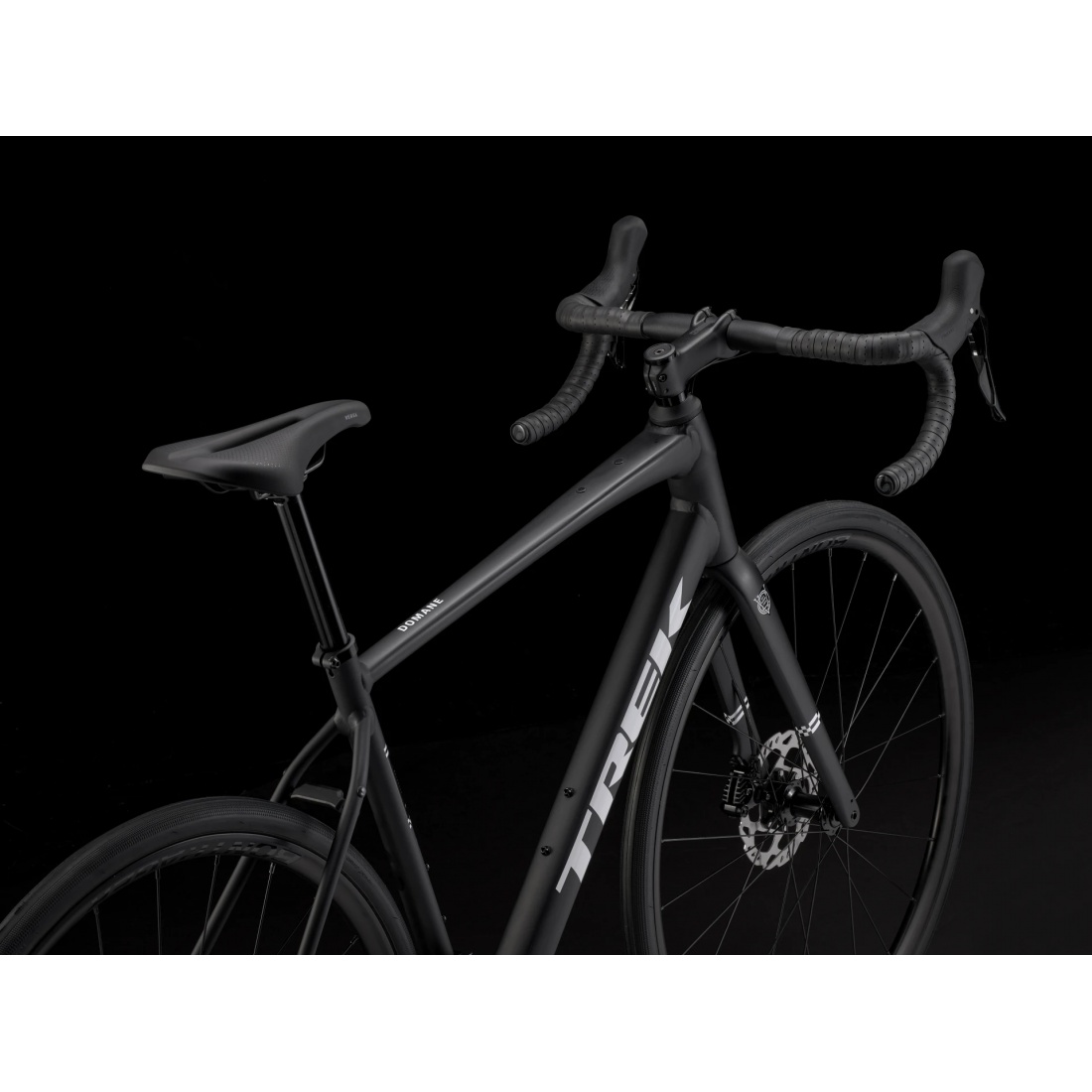

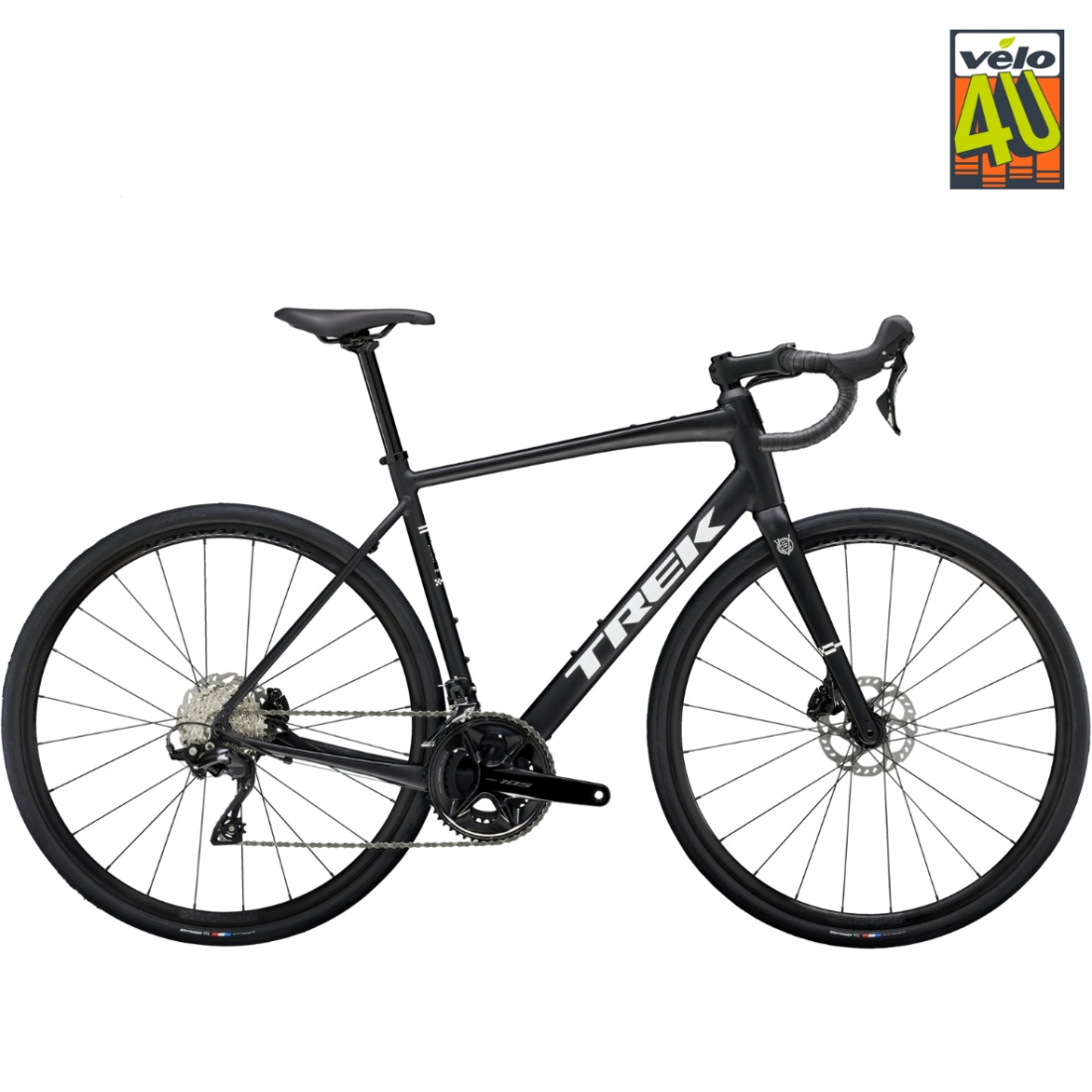

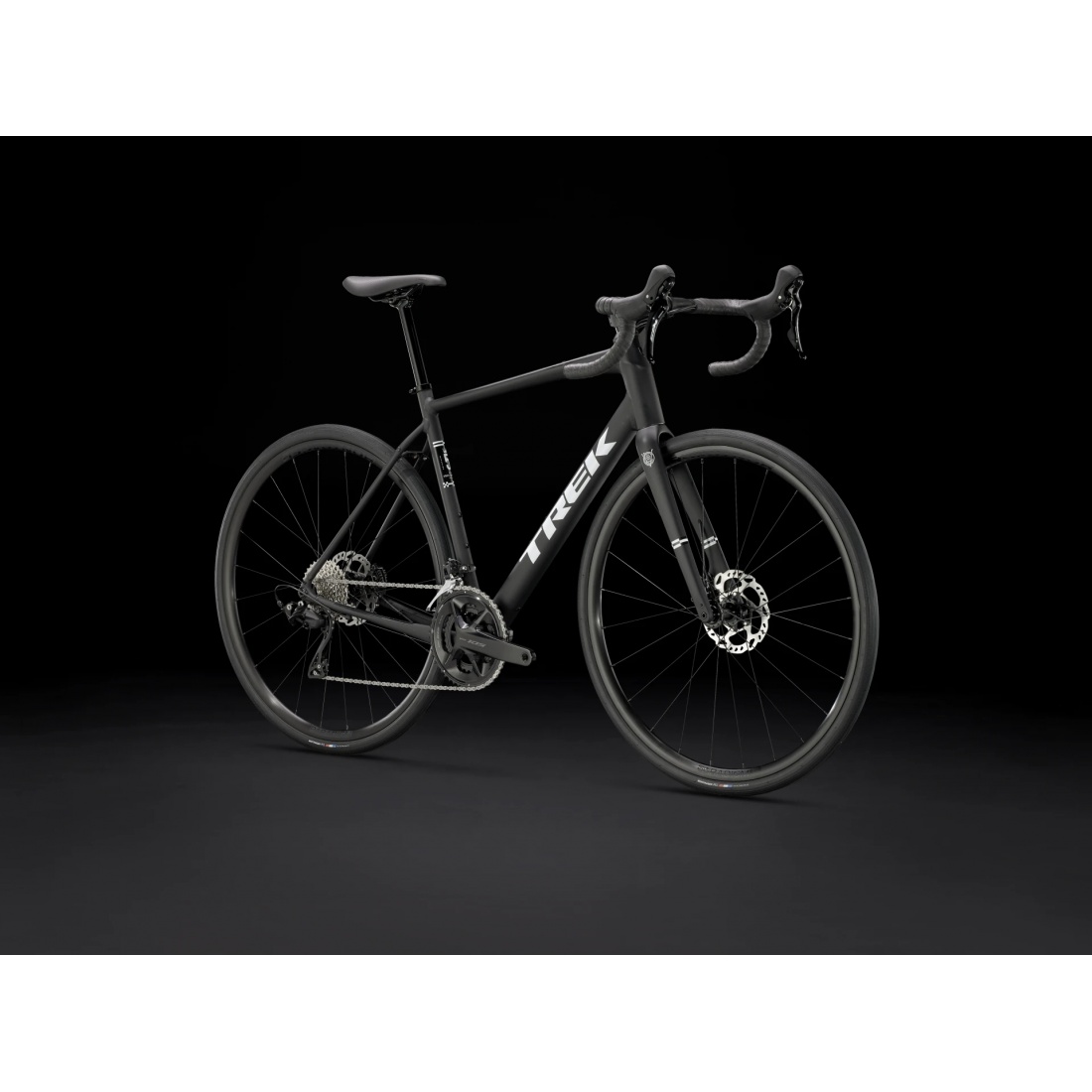

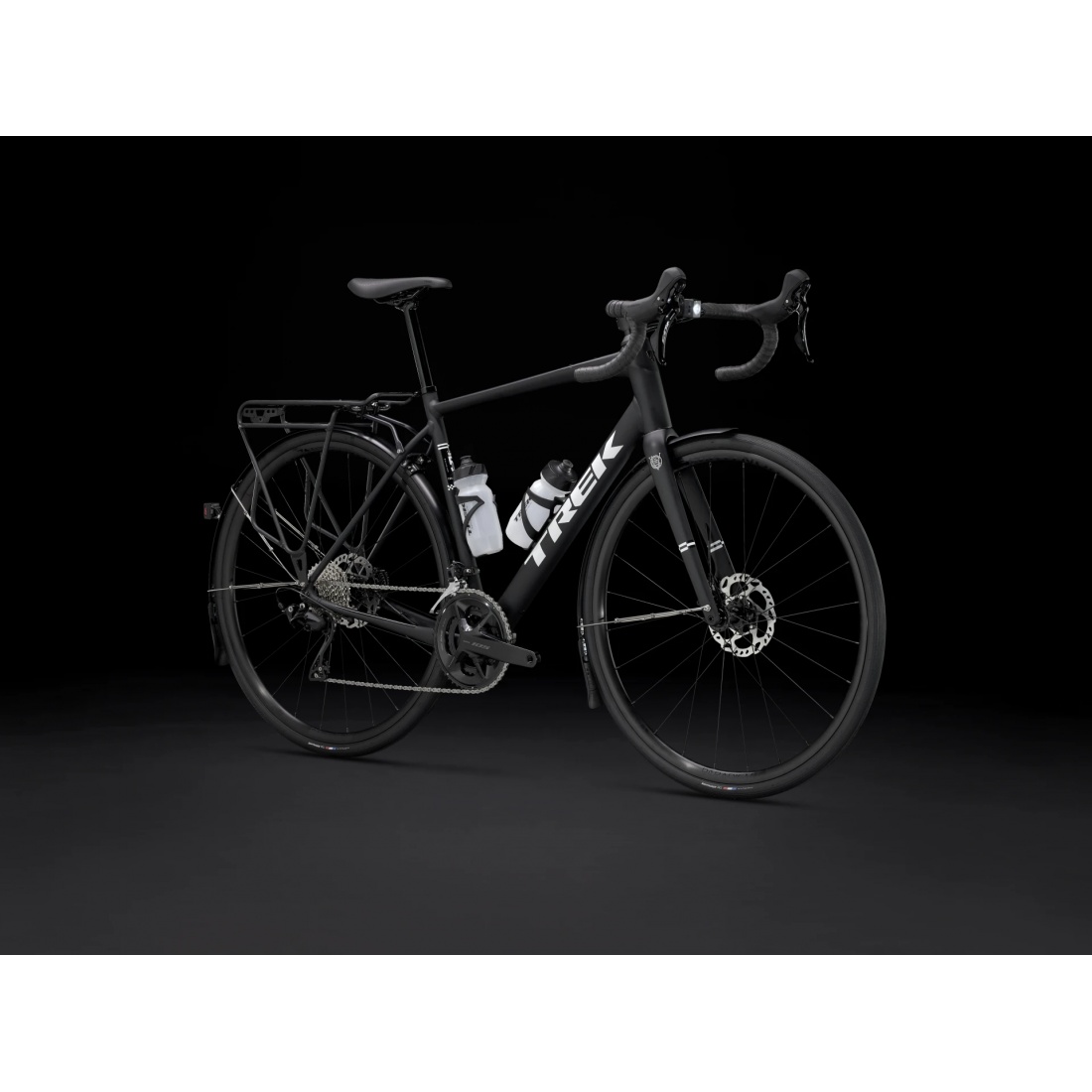

TREK DOMANE AL 5 2025

Frame:

• Alpha Series 100 Aluminum
• Tapered head tube
• Internal cable routing
• Fender mounts
• Flat Mount disc brake
• Universal Derailleur Hanger (UDH)
• 142x12 mm thru-axle

Fork:

• Domane AL carbon
• Tapered carbon steerer
• Internal brake cable routing
• Fender mounts
• Flat Mount disc brake
• 12x100 mm thru-axle

Weight:

• Size 56: 9.95 kg

Maximum Weight Limit:

• This bike has a maximum total weight limit (bike, rider, and cargo) of 125 kg (275 lbs)

Shift Levers:

• Shimano 105 R7120, 12-speed

Front Derailleur:

• Shimano 105 R7100, 31.8 mm clamp, down swing

Rear Derailleur:

• Shimano 105 R7100, max 36T

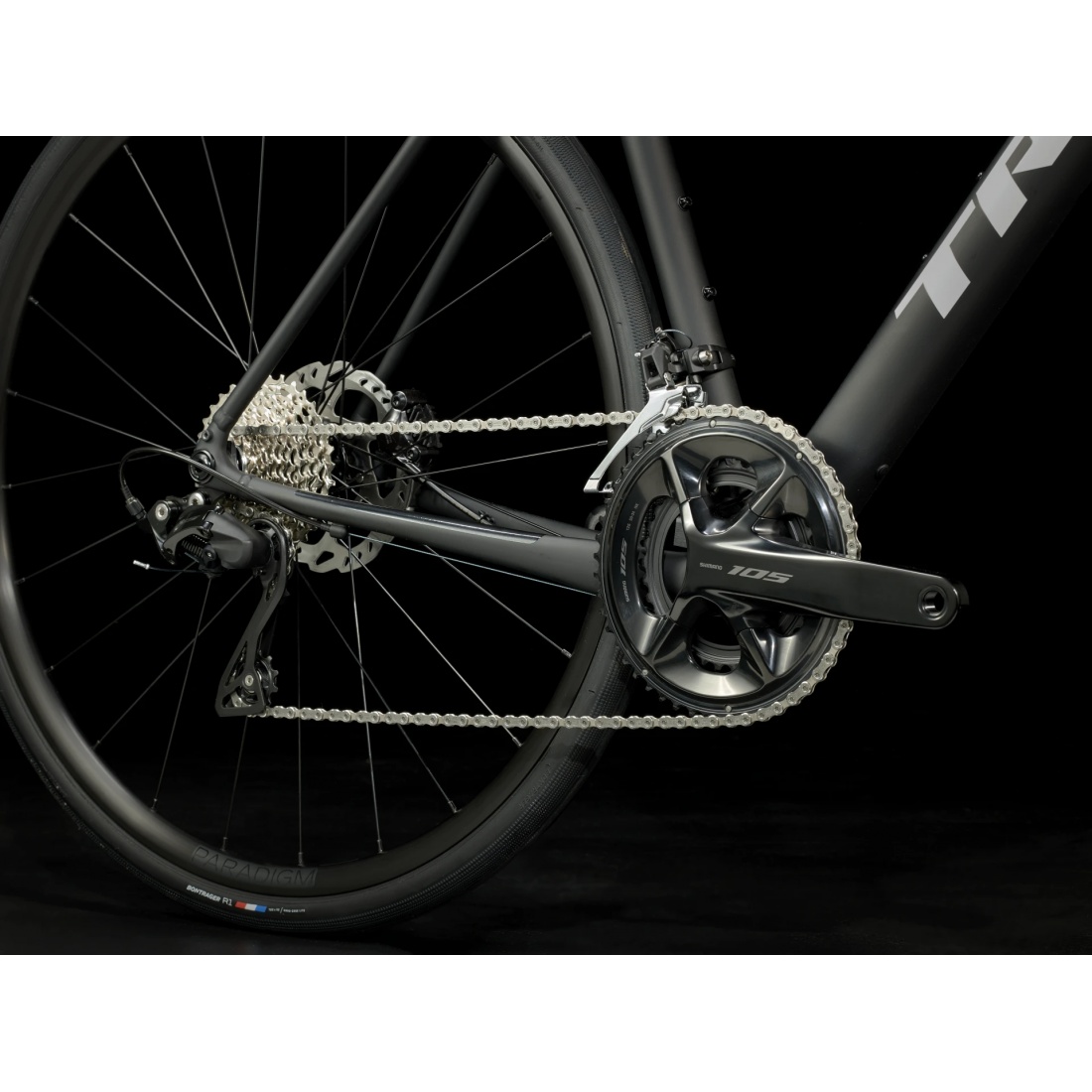

Crankset:

• Size 44: Shimano 105 R7100, 50/34, 165 mm crank length
• Sizes 49, 52: Shimano 105 R7100, 50/34, 170 mm crank length
• Sizes 54, 56: Shimano 105 R7100, 50/34, 172.5 mm crank length
• Sizes 58, 61: Shimano 105 R7100, 50/34, 175 mm crank length

Bottom Bracket:

• Shimano RS501 BSA

Cassette:

• Shimano 105 7101, 11-34, 12-speed

Chain:

• Shimano SLX M7100, 12-speed

Max Chainring Size:

• 1x: 50T, 2x: 50/34

Hubs:

• Front Hub: Bontrager alloy, sealed bearings, centerlock disc, 12x100 mm thru-axle
• Rear Hub: Bontrager alloy, sealed bearings, centerlock disc, Shimano 11-speed freehub, 142x12 mm thru-axle

Wheel Axles:

• Front: Bontrager Switch thru-axle, removable lever
• Rear: Bontrager Switch thru-axle, removable lever

Rims:

• Bontrager Paradigm SL, Tubeless Ready, 24-hole, 21 mm internal width, Presta valve

Spokes:

• 14g stainless steel, black

Tires:

• Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x32 mm

Max Tire Size:

• 38 mm without fenders, 35 mm with fenders

Saddle:

• Bontrager Verse Short, steel rails, 145 mm width

Seatpost:

• Sizes 44, 49: Bontrager Comp, 6061 alloy, 27.2 mm diameter, 8 mm offset, 250 mm length
• Sizes 52, 54, 56, 58, 61: Bontrager Comp, 6061 alloy, 27.2 mm diameter, 8 mm offset, 330 mm length

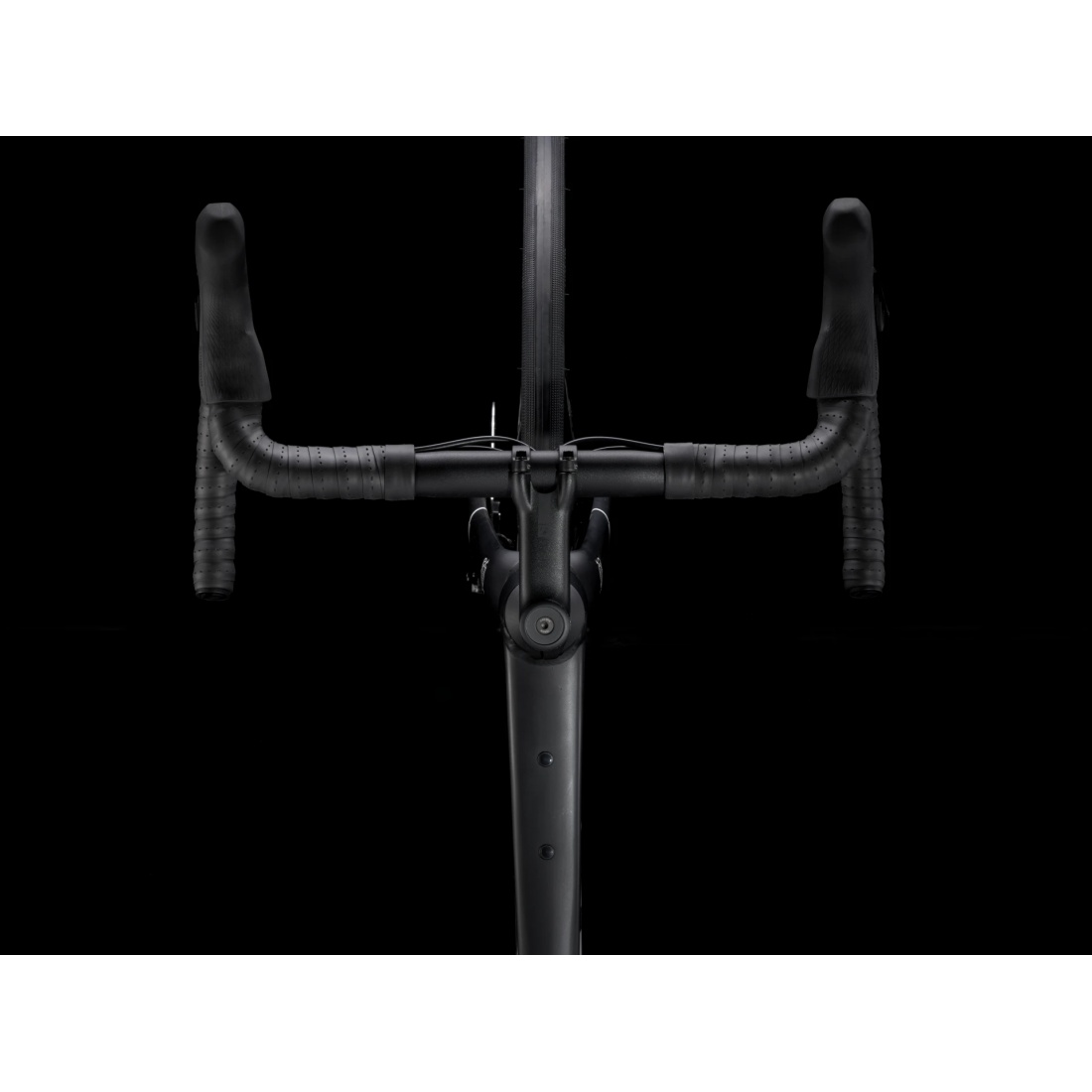

Handlebar:

• Sizes 44, 49: Bontrager Elite IsoZone VR-SF, alloy, 31.8 mm clamp, internal Di2 routing, 75 mm reach, 128 mm drop, 38 cm width
• Size 52: Bontrager Elite IsoZone VR-SF, alloy, 31.8 mm clamp, internal Di2 routing, 75 mm reach, 128 mm drop, 40 cm width
• Sizes 54, 56: Bontrager Elite IsoZone VR-CF, alloy, 31.8 mm clamp, internal Di2 routing, 93 mm reach, 123 mm drop, 42 cm width
• Sizes 58, 61: Bontrager Elite IsoZone VR-CF, alloy, 31.8 mm clamp, internal Di2 routing, 93 mm reach, 123 mm drop, 44 cm width

Bar Tape:

• Bontrager Supertack Perf bar tape

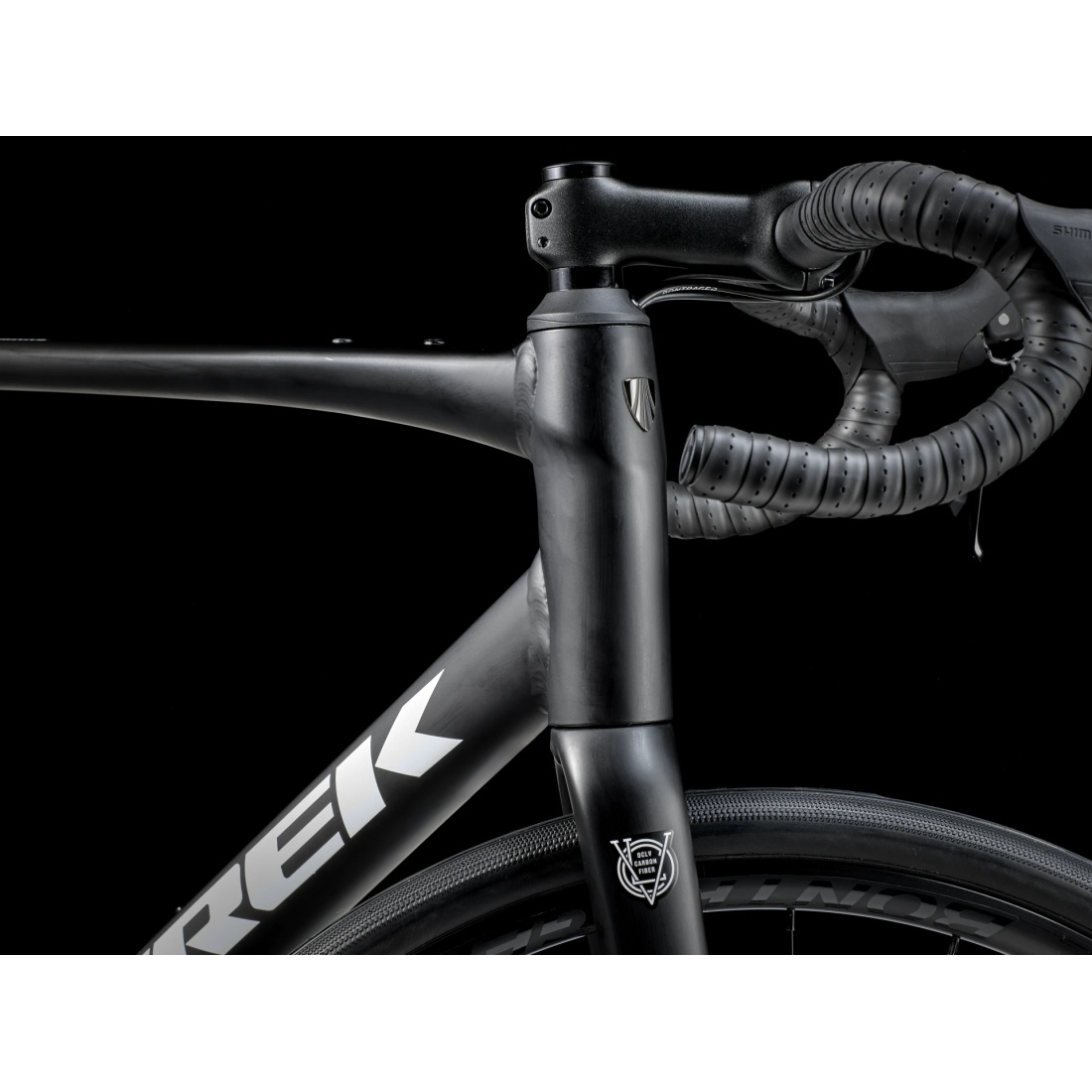

Stem:

• Size 44: Bontrager Elite, 31.8 mm, Blendr compatible, 7-degree, 70 mm length
• Size 49: Bontrager Elite, 31.8 mm, Blendr compatible, 7-degree, 80 mm length
• Sizes 52, 54: Bontrager Elite, 31.8 mm, Blendr compatible, 7-degree, 90 mm length
• Sizes 56, 58: Bontrager Elite, 31.8 mm, Blendr compatible, 7-degree, 100 mm length
• Size 61: Bontrager Elite, 31.8 mm, Blendr compatible, 7-degree, 110 mm length

Brakes:

• Shimano 105 hydraulic disc brakes

Brake Rotors:

• Shimano RT70, centerlock, 160 mm

Max Rotor Size:

• 160 mm front and rear
