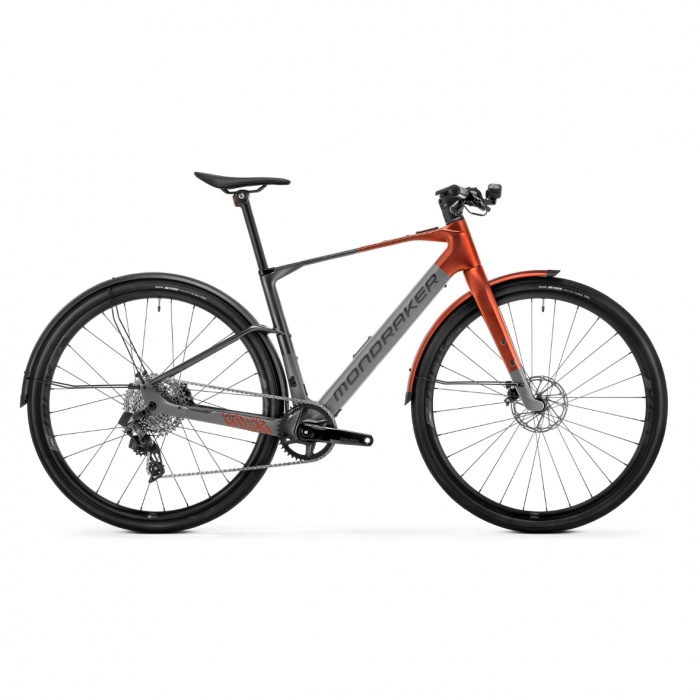

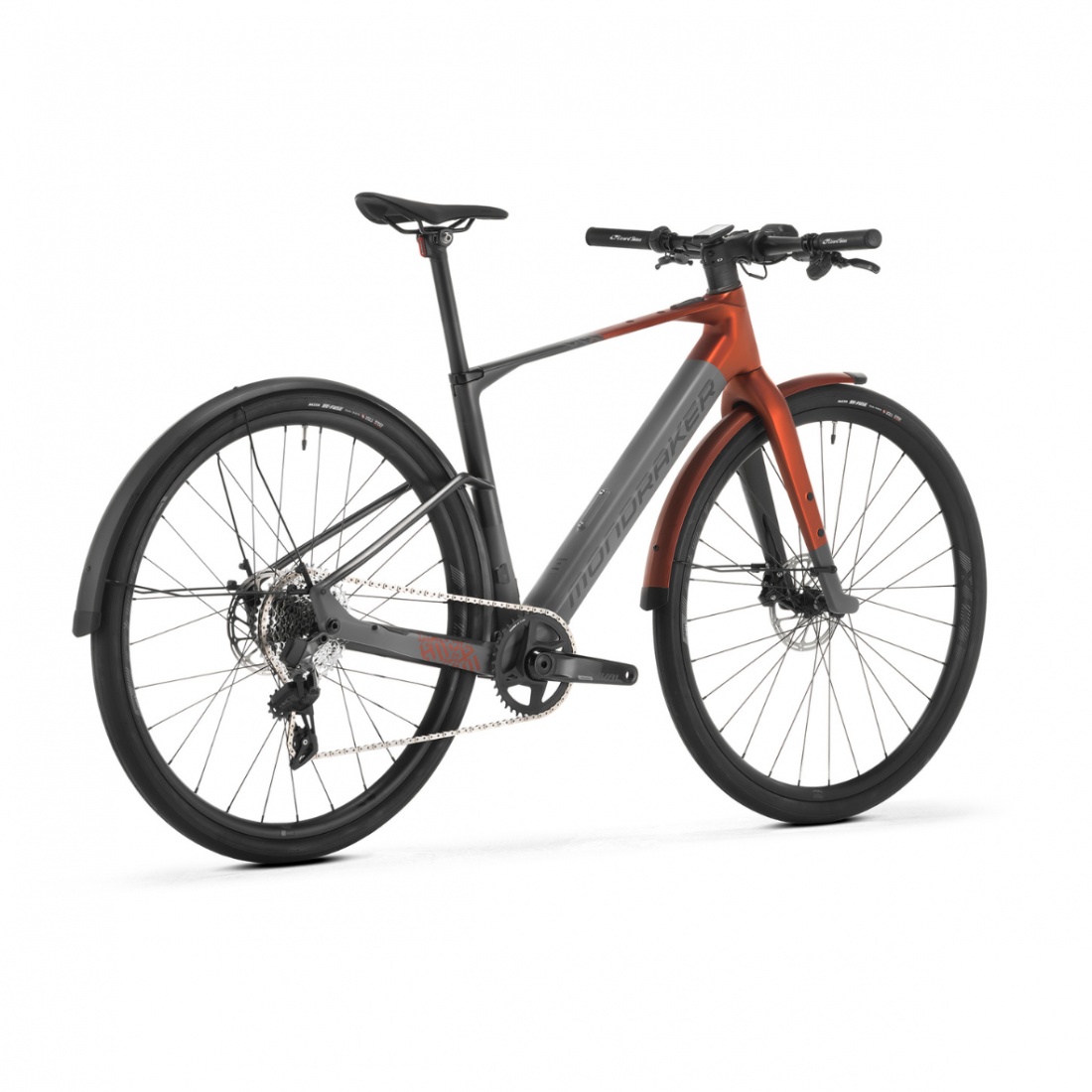

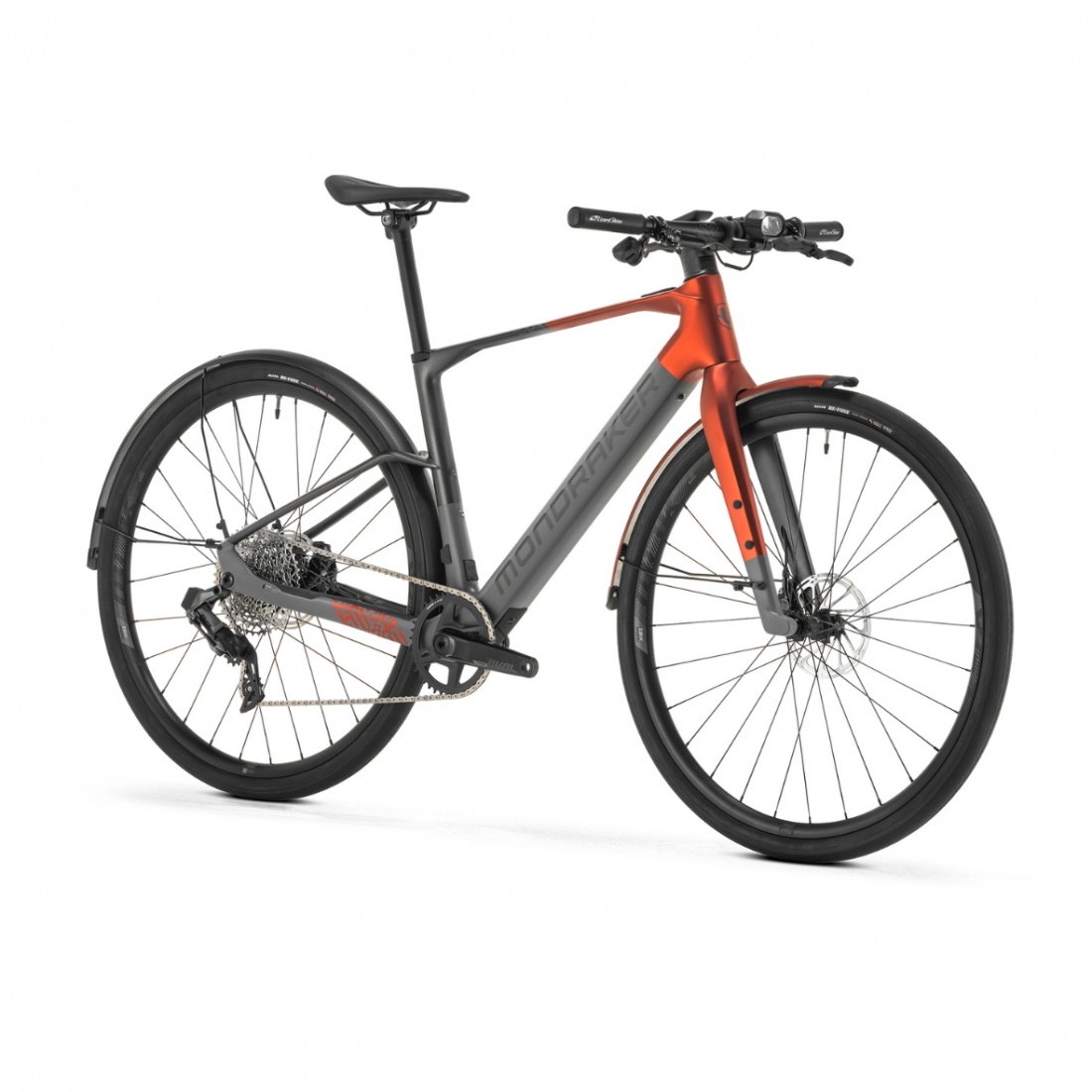

MONDRAKER DUSTY RX 2025

Frame

Dusty Stealth Air Carbon, pressfit 386 EVO bottom bracket, tapered head tube, HHG internal cable routing, integrated internal non-removable battery, 12x142mm rear axle, 1X or 2X drivetrain design, Flatmount brake compatible, integrated dropout speed sensor.

Sizes

S: 440mm / M: 460mm / L: 500mm / XL: 530mm

Fork

Steatlh Air Carbon tapered steerer tube, HHG, fllat mount integrated fork

Headset

OnOff gravel tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º

Stem

OnOff gravel 6061 T6 Alloy, 31.8mm barbore, rise: +/-7º, length: sizes S/M: 70mm, size L: 80mm, XL: 90mm

Handlebar

MDK Urban 1.0 double butted 6061 alloy, rise: 0mm, width: 640mm, 9º backsweep, 0º upsweep, 31.8mm barbore

Grips

Lizard Skins DSP 30.3

Seatpost

Seatpost with integrated Supernova led rear light, diameter 27.2mm, length 400mm

Saddle

Selle Royal Prestige 139mm

Front brake

Sram Level Silver 2P Stealth, 2 piece flatmount caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad

Rear brake

Sram Level Silver 2P Stealth, 2 piece flatmount caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad

Brake lever

Sram Level Silver, tools-free reach adjust, lever pivot bearings

Rims

MDK-XG1, 25mm internal width, tubeless ready, 28 spokes

Spokes

CN round stainless steel

Front hub

Novatec D041, Boost 12x100mm, sealed bearings, IS 6 bolts

Rear hub

Mahle X20 Drive Unit, XDR freehub

Front tire

Maxxis Re-fuse 700x40, tubeless ready, dual compound, MaxxShield EXO protection, 60 TPI, folding bead

Rear tire

Maxxis Re-fuse 700x40, tubeless ready, dual compound, MaxxShield EXO protection, 60 TPI, folding bead

Crankset

SRAM Rival 1 GLS Wide, size S: 170mm, size M: 172,5mm, size L: 172,5mm, size XL: 175mm.

Rings

Sram X-Sync Eagle 40T direct mount, alloy, narrow-wide,

Bottom bracket

Mahle DUB pressfit, sealed bearings, w/ torque sensor

Chain

Sram Rival, 12s, Powerlock

Rear derrailleur

Sram Rival XPLR Etap AXS 12s

Shift levers

Sram Rival Etap AXS 12s, X-Actuation 1:1, single click

Casette

Sram XG-1251 10-44T, 12s

Derailleur hanger

Mondraker M076

Others

Front light: 150LUX output DC 6-12V, waterproof Alloy cage. Optional external battery: Mahle e185Wh

Weight

14,0 kg

Display

Pulsar One Wireless

Motor

Mahle X20 Drive Unit

Battery

Mahle X20 IX350Wh
