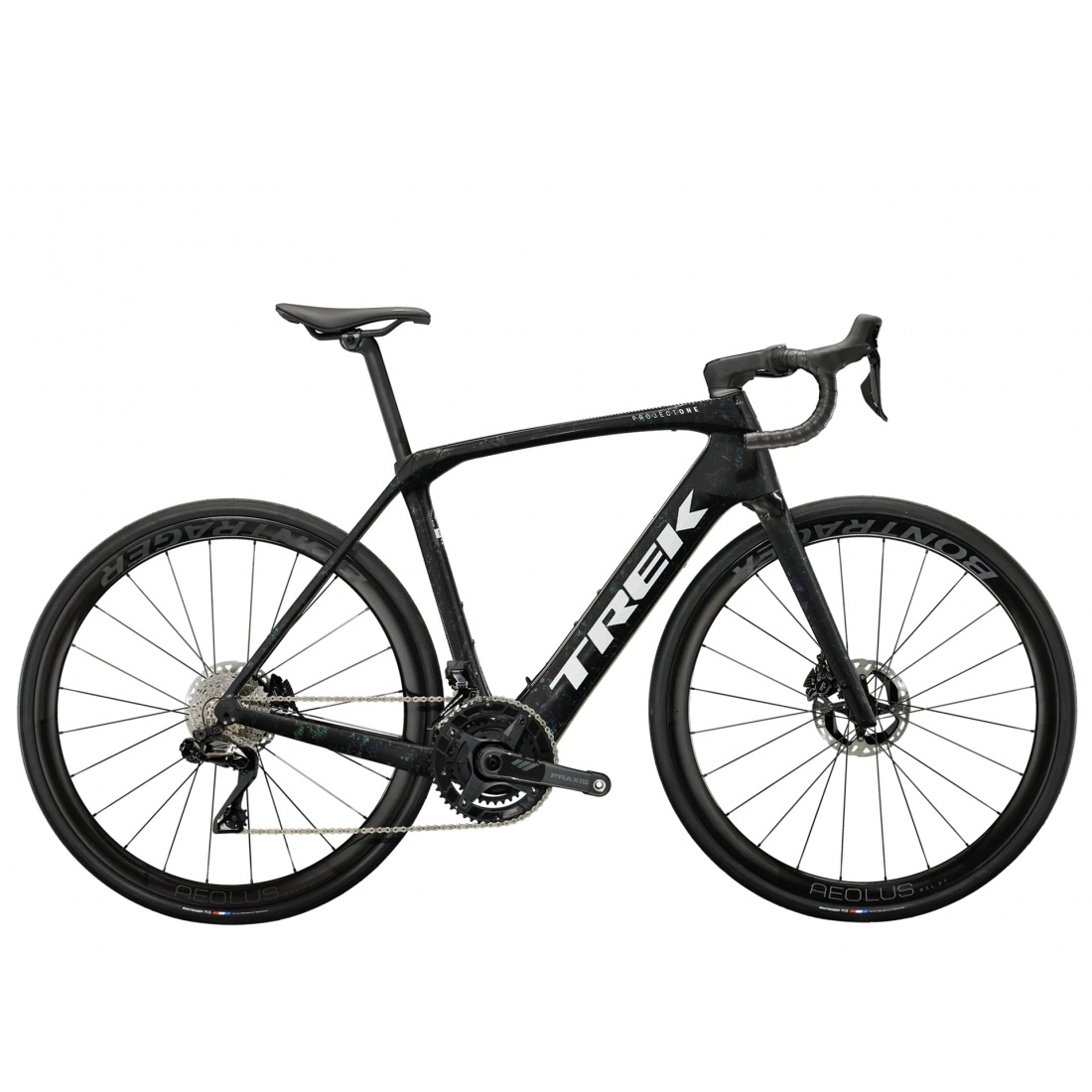

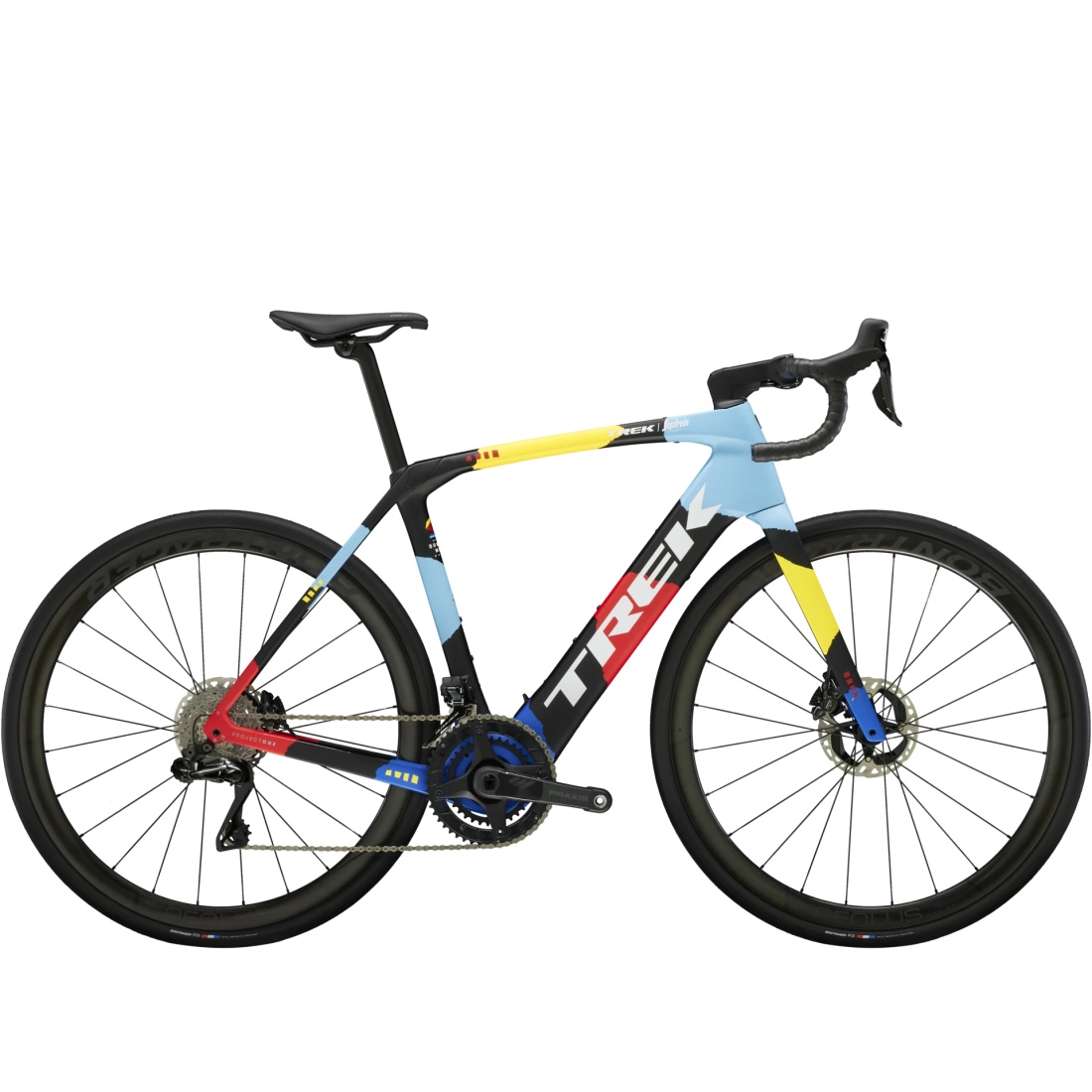

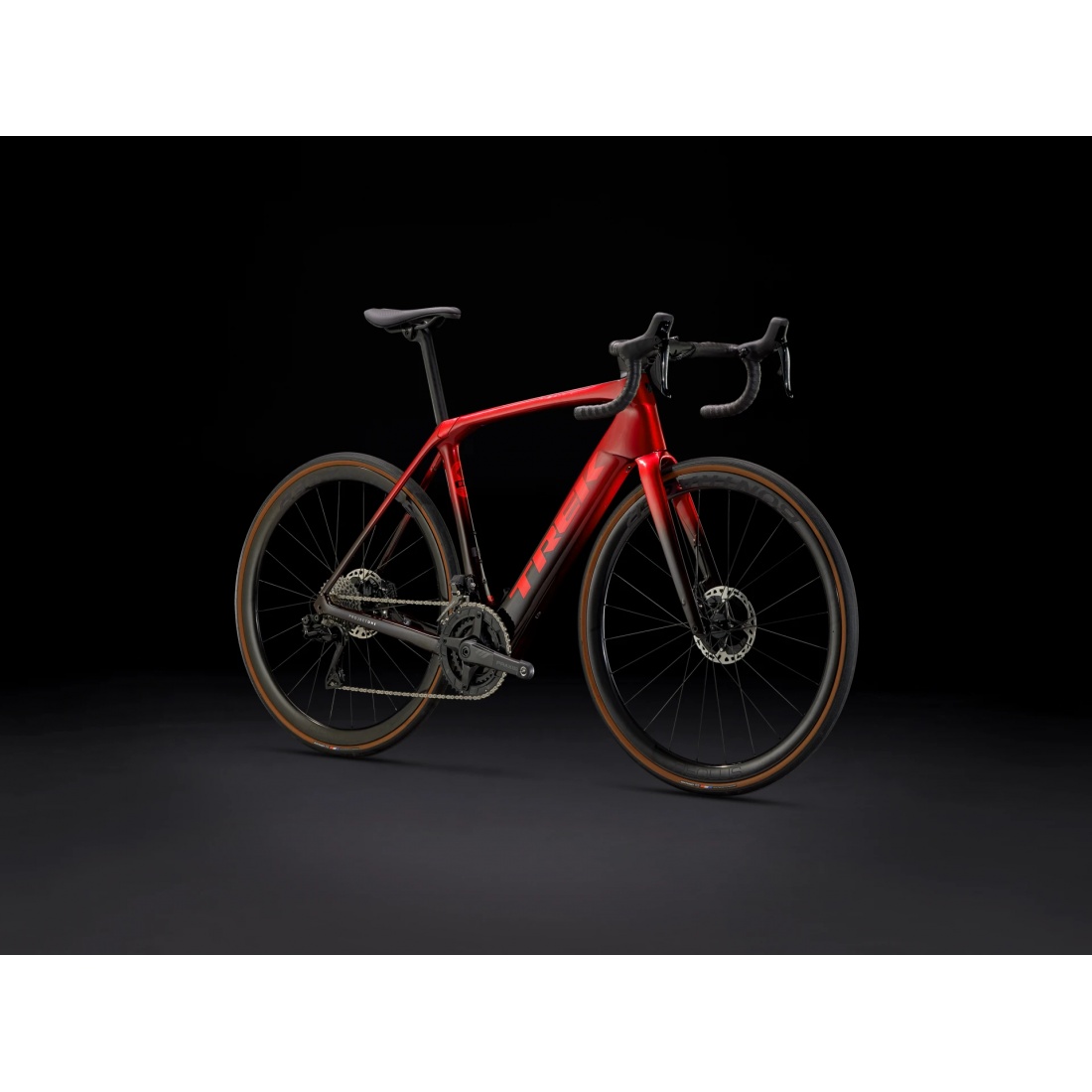

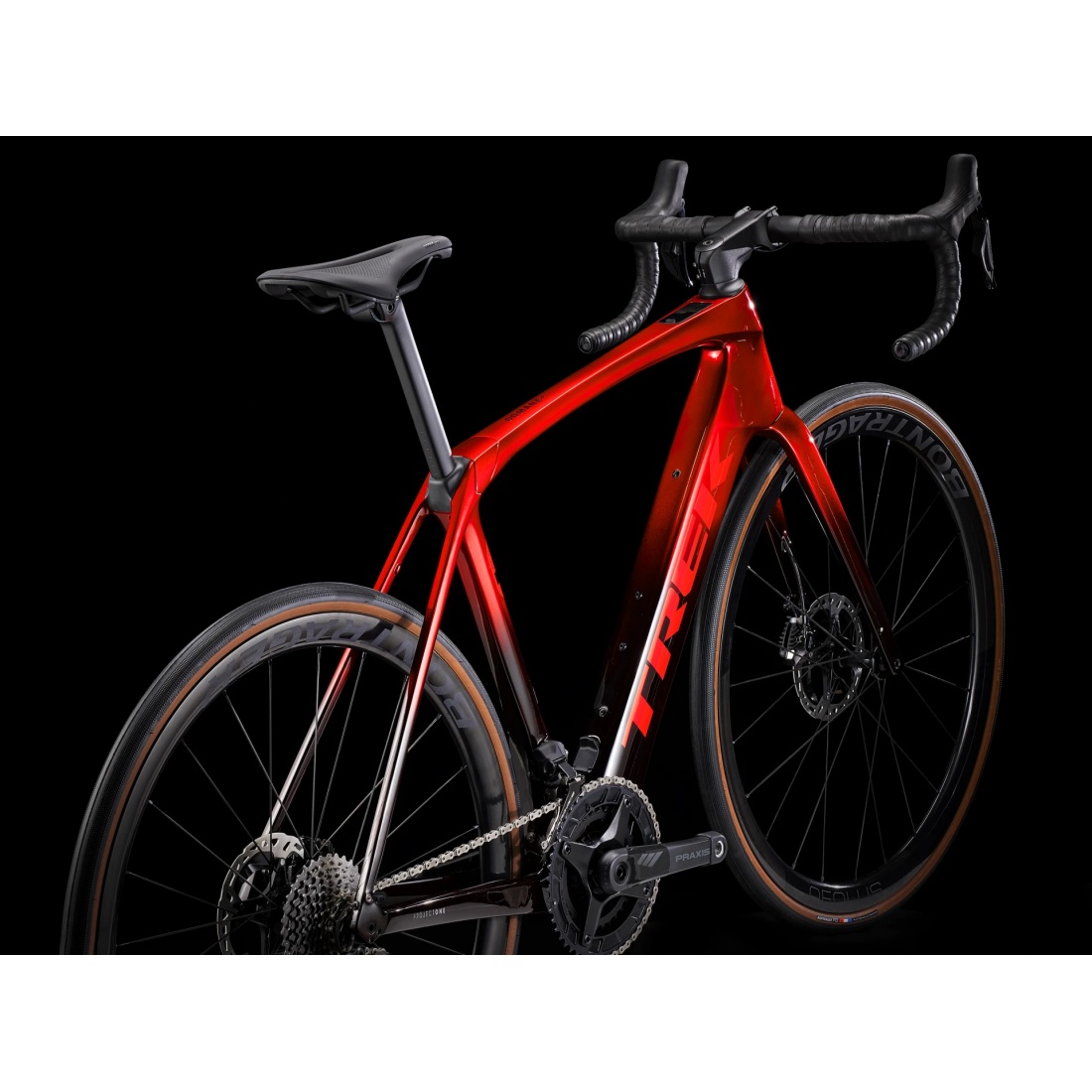

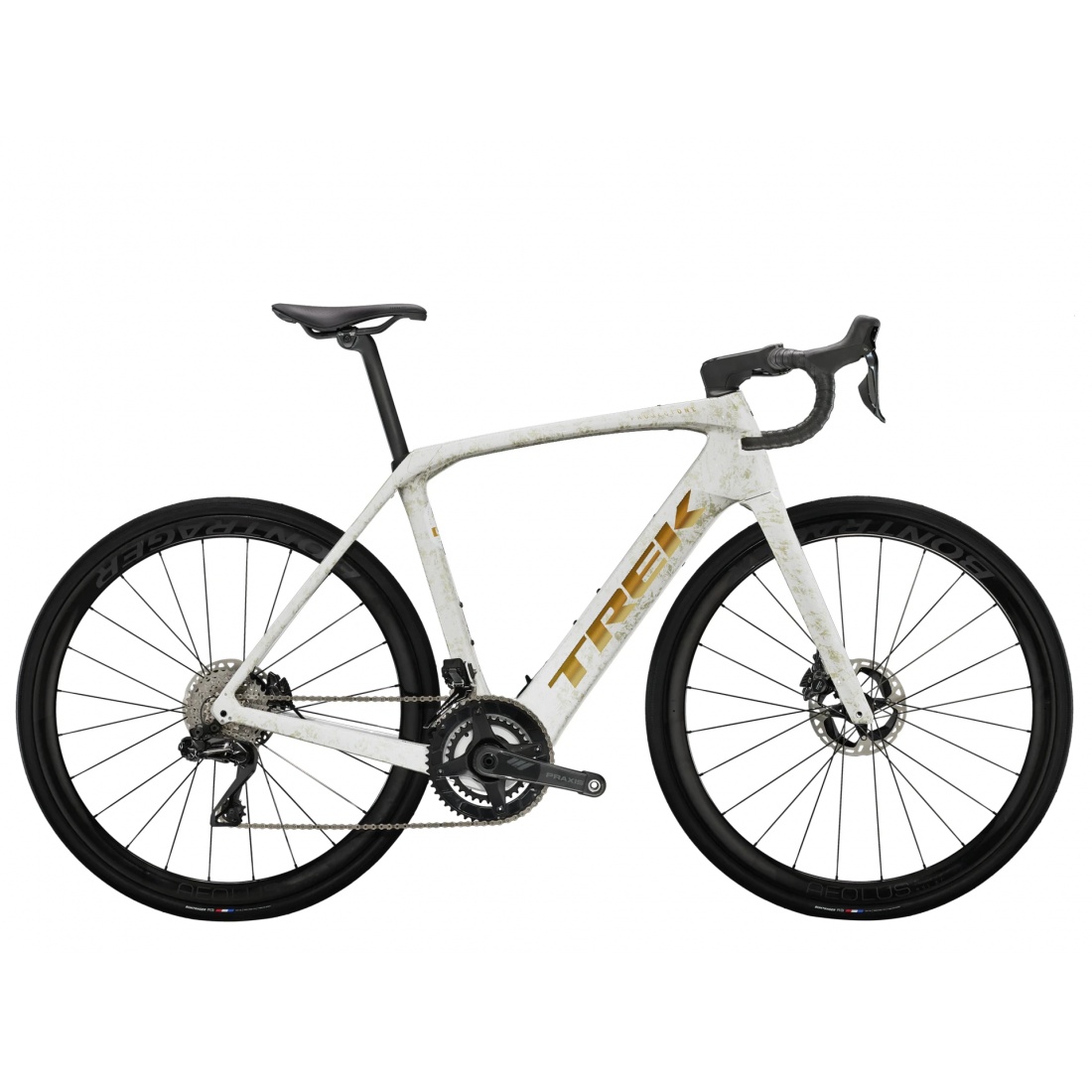

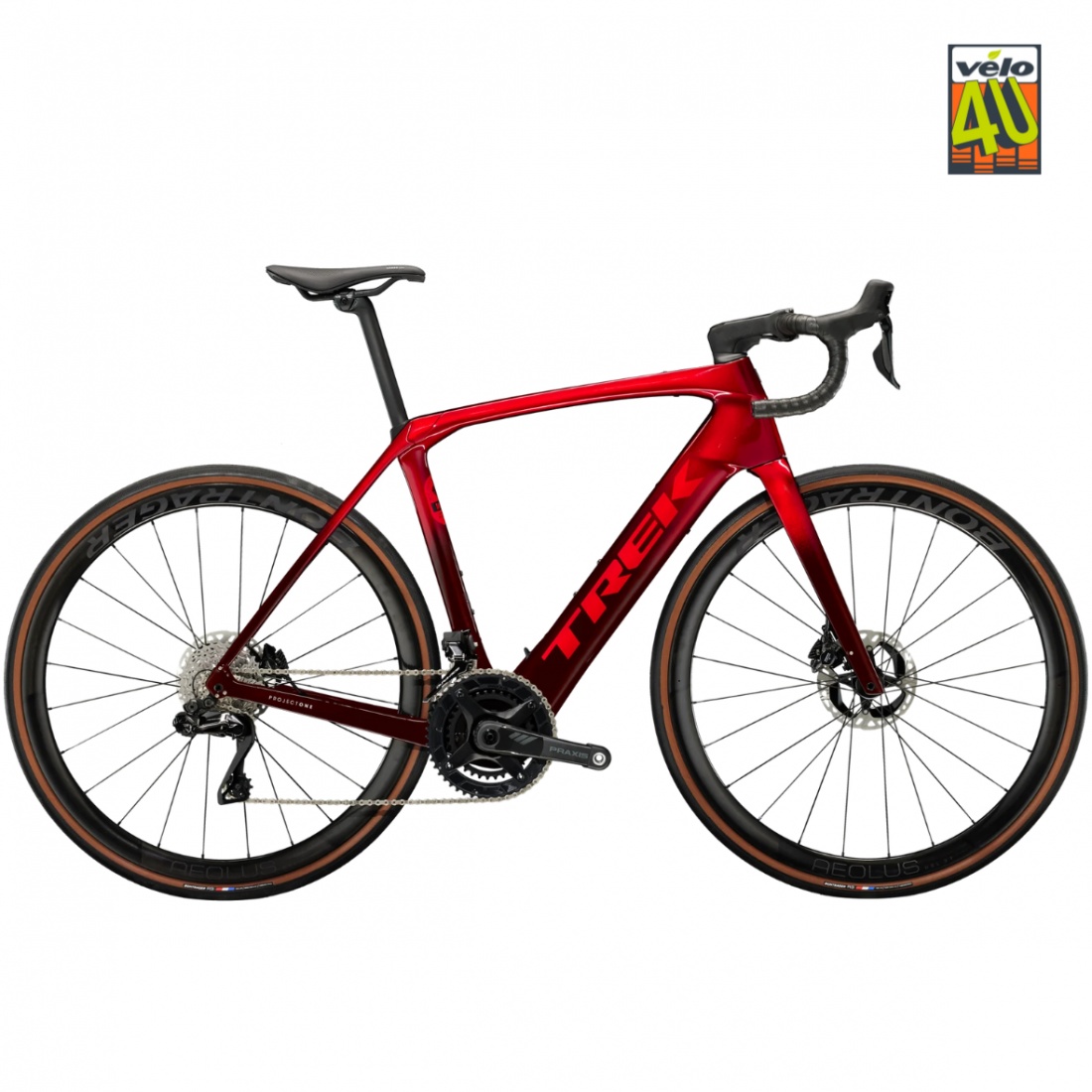

TREK DOMANE+ SLR9 2025

Frame: 800 Series OCLV Carbon with TQ transmission, tapered head tube, IsoSpeed rear system, internal cable routing, Flat-Mount disc brakes, fender mounts, 142x12 mm thru axle.

Fork: Domane+ carbon fork, tapered carbon steerer, internal brake cable routing, fender mounts, Flat-Mount disc brakes, 12x100 mm thru axle.

Frame Fit: Endurance

Weight: Size 56 - 11.75 kg (with TLR sealant, tubeless-ready)

Maximum Weight: Total weight limit (bike, rider, and cargo) of 125 kg.

Battery: TQ 360 Wh, Shimano BT-DN300, available in sizes 50, 52, 54, 56, 58, 60, 62

Charger: TQ 4A charger with included charging cable, available for all sizes

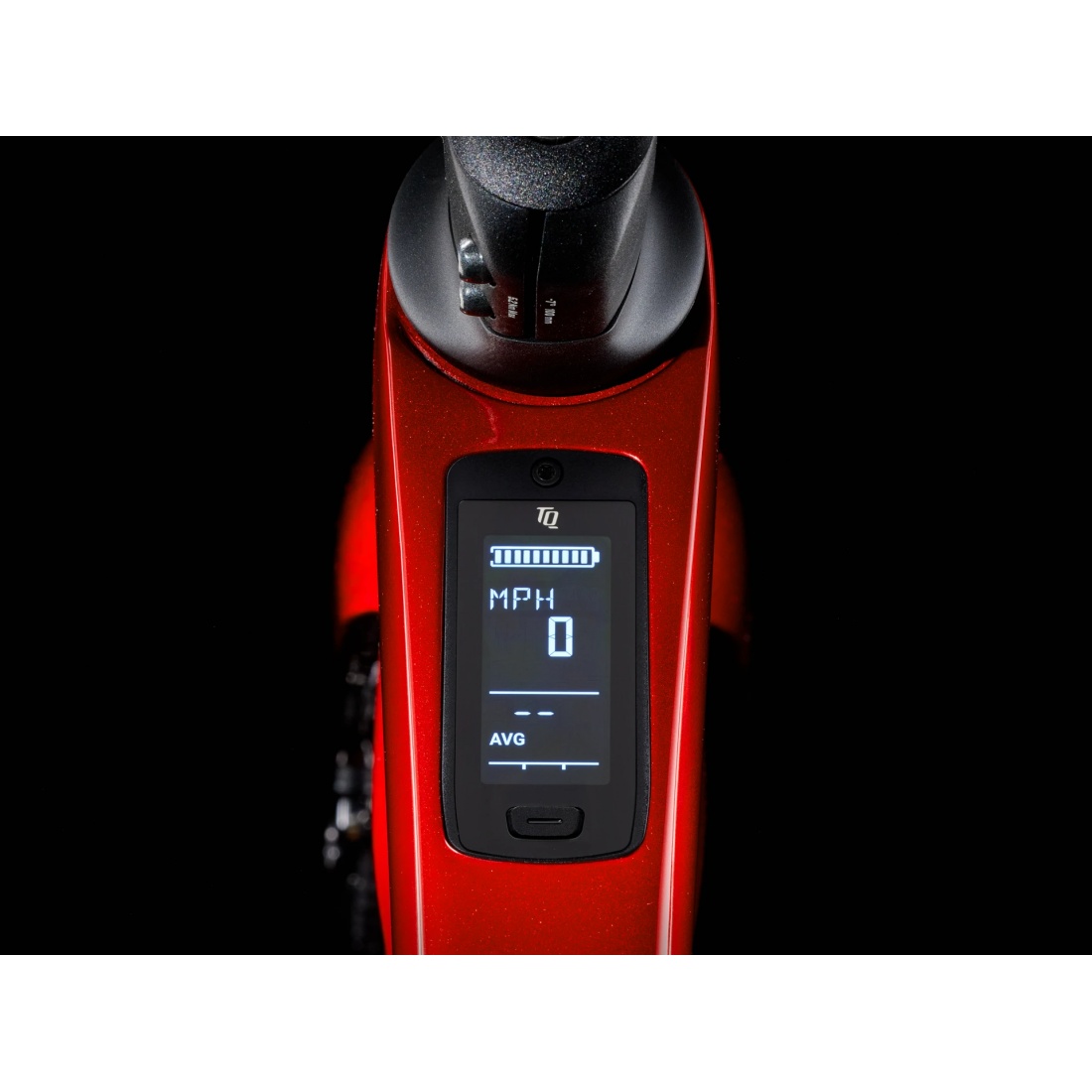

Display: TQ LED screen with Bluetooth and ANT+ connectivity

Motor: TQ-HPR50, 50 Nm of torque, 250 W continuous power, 300 W peak power

Shift Levers: Shimano Dura-Ace R9270 Di2, 12-speed

Derailleurs: Front - Shimano Dura-Ace R9250 Di2, Rear - Shimano Dura-Ace R9250 Di2, compatible with up to 34T cassette

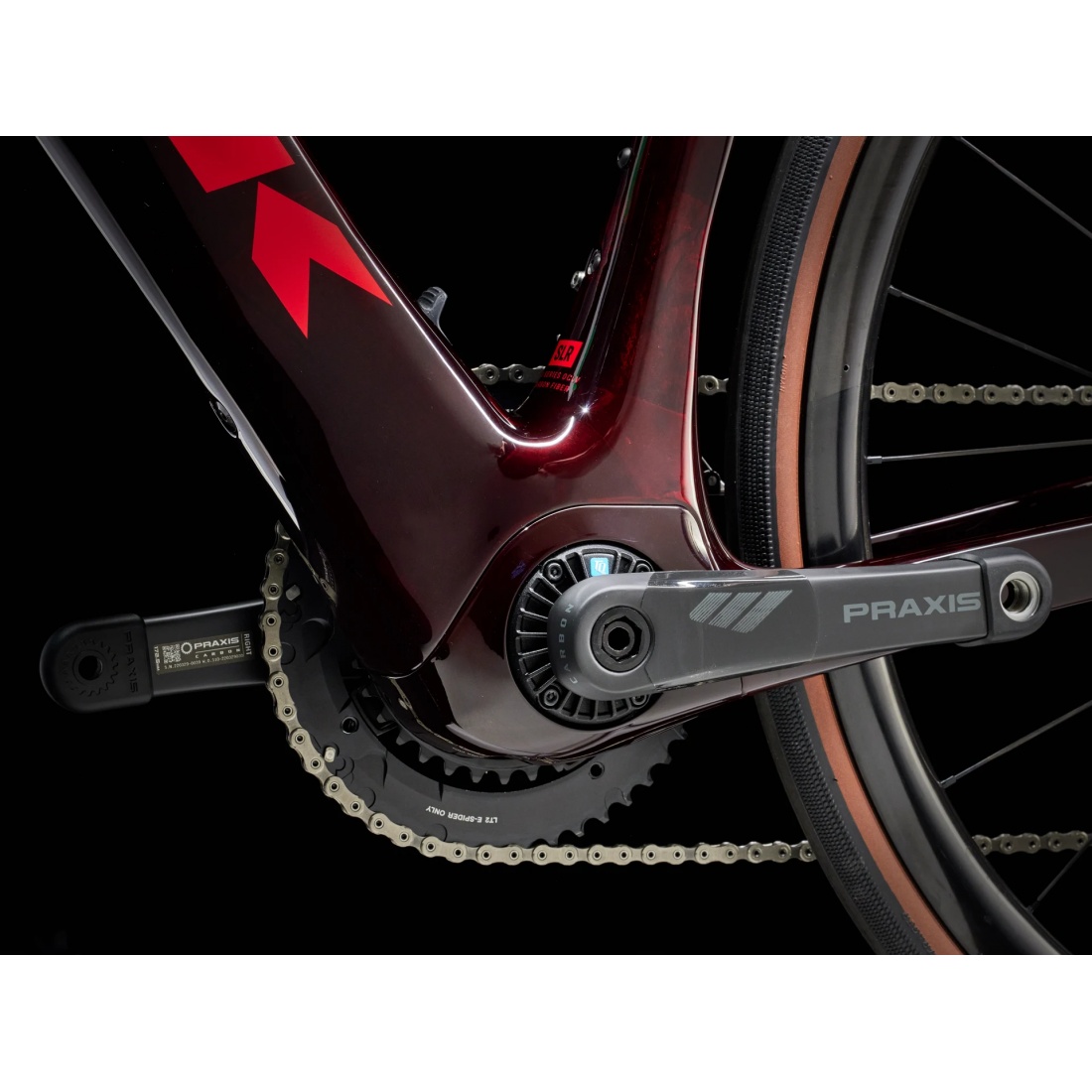

Crankset: Praxis carbon, length by size (50-52: 170 mm; 54-56: 172.5 mm; 58-62: 175 mm)

Chainring: Praxis 50/34T, 12-speed

Cassette: Shimano Dura-Ace R9200, 11-34T, 12-speed

Chain: Shimano Dura-Ace/XTR M9100, 12-speed

Front/Rear Wheels: Bontrager Aeolus RSL 37, OCLV Carbon, Tubeless Ready, 37 mm rim height, 100x12 mm front and 142x12 mm rear thru axles

Tires: Bontrager R3 Hard-Case Lite, tubeless-ready, 120 tpi, 700x32 mm

Max Tire Size: 40 mm without fenders, 35 mm with fenders

Saddle: Verse Short Pro, width by size (50-52: 155 mm; 54-62: 145 mm)

Seatpost: Aerodynamic KVF carbon seatpost, 20 mm offset, length by size (50-56: 280 mm; 58-62: 320 mm)

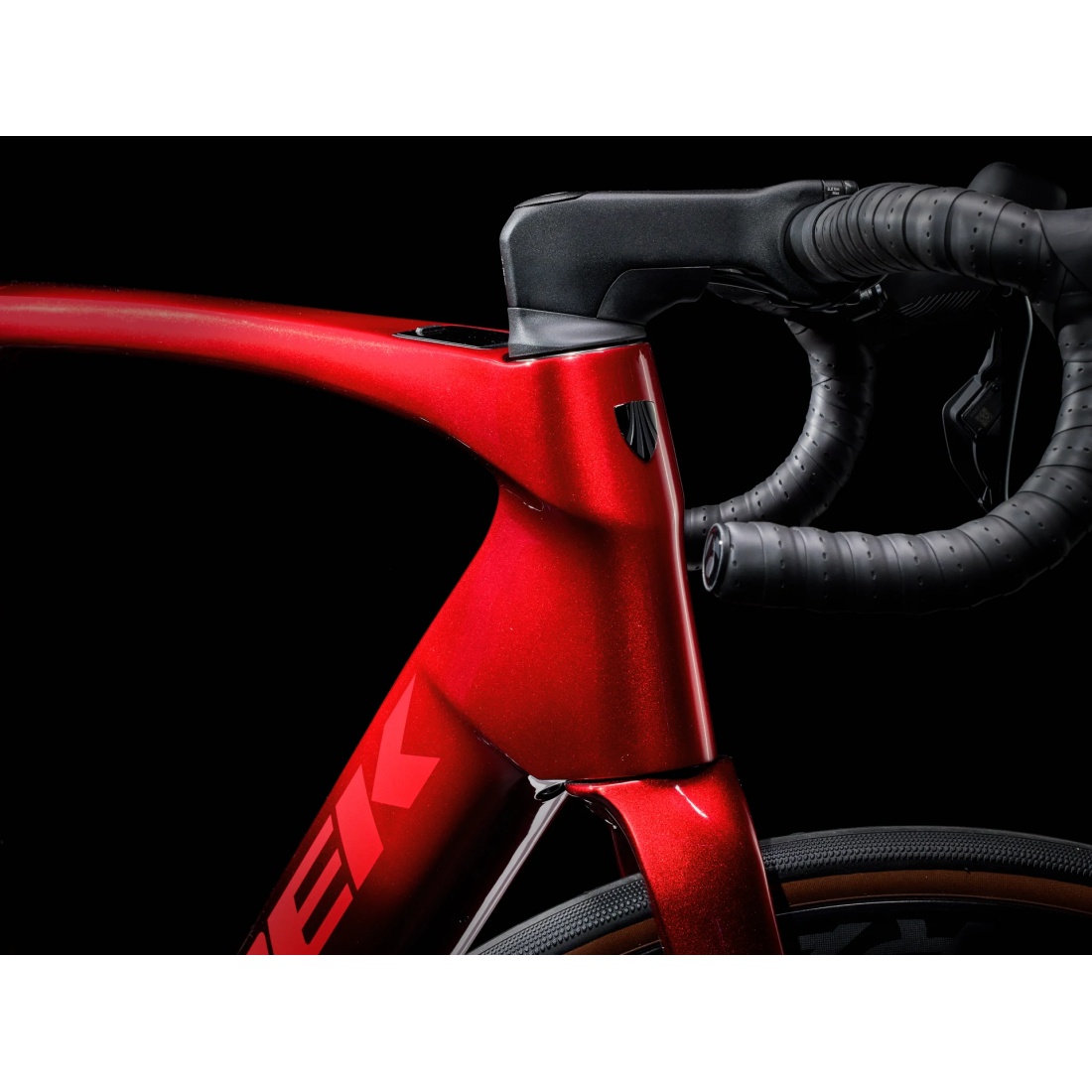

Handlebar: Bontrager Pro IsoCore VR-SF, width by size (50-52: 40 cm; 54-56: 42 cm; 58-62: 44 cm)

Stem: Trek RCS Pro, -7°, length by size (50: 80 mm; 52-54: 90 mm; 56-58: 100 mm; 60-62: 110 mm)

Brakes: Shimano Dura-Ace BR-9270 hydraulic disc brakes with Flat Mount caliper and resin pad with fin

Brake Discs: Shimano CL900, 160 mm, for all sizes; maximum disc size of 180 mm front, 160 mm rear.
