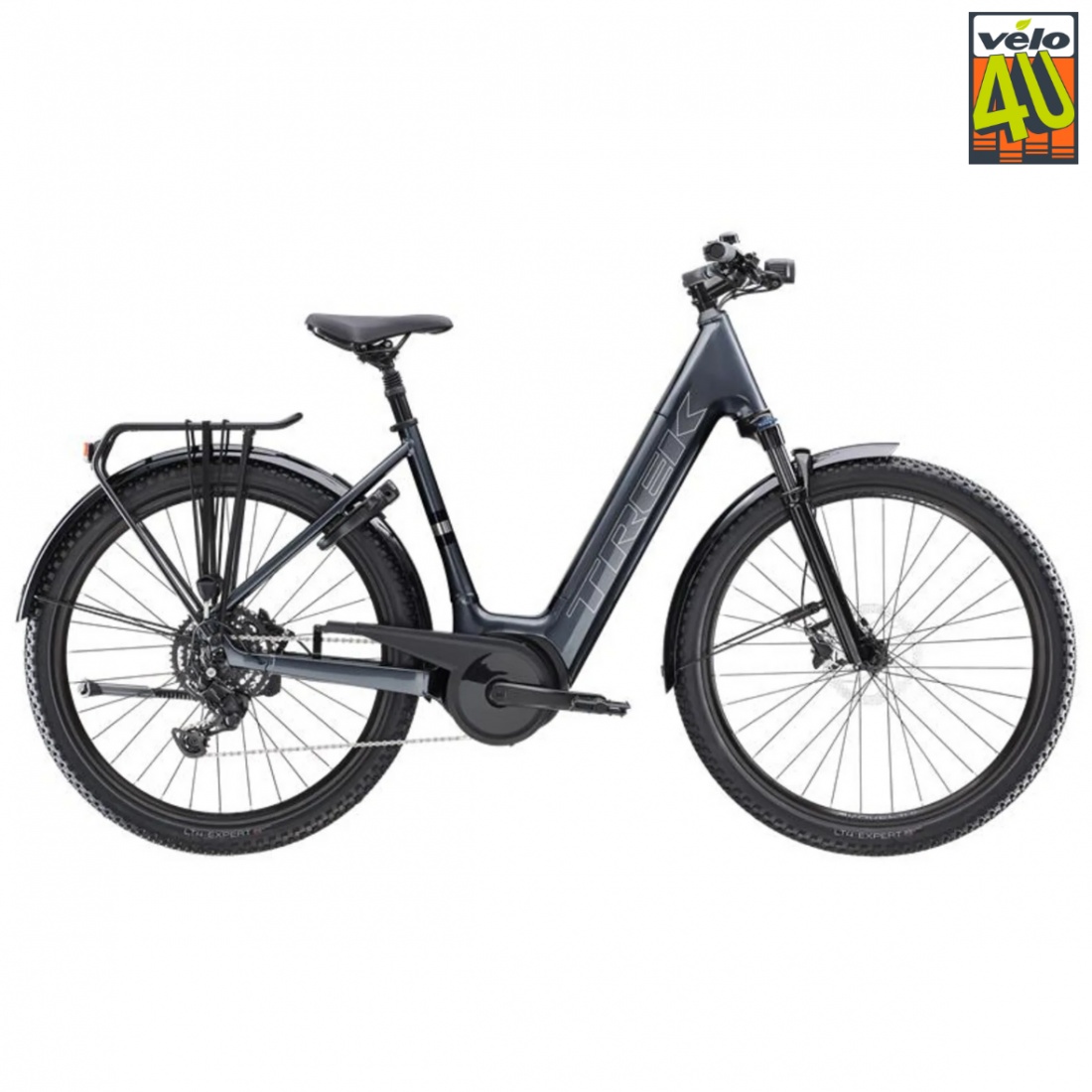

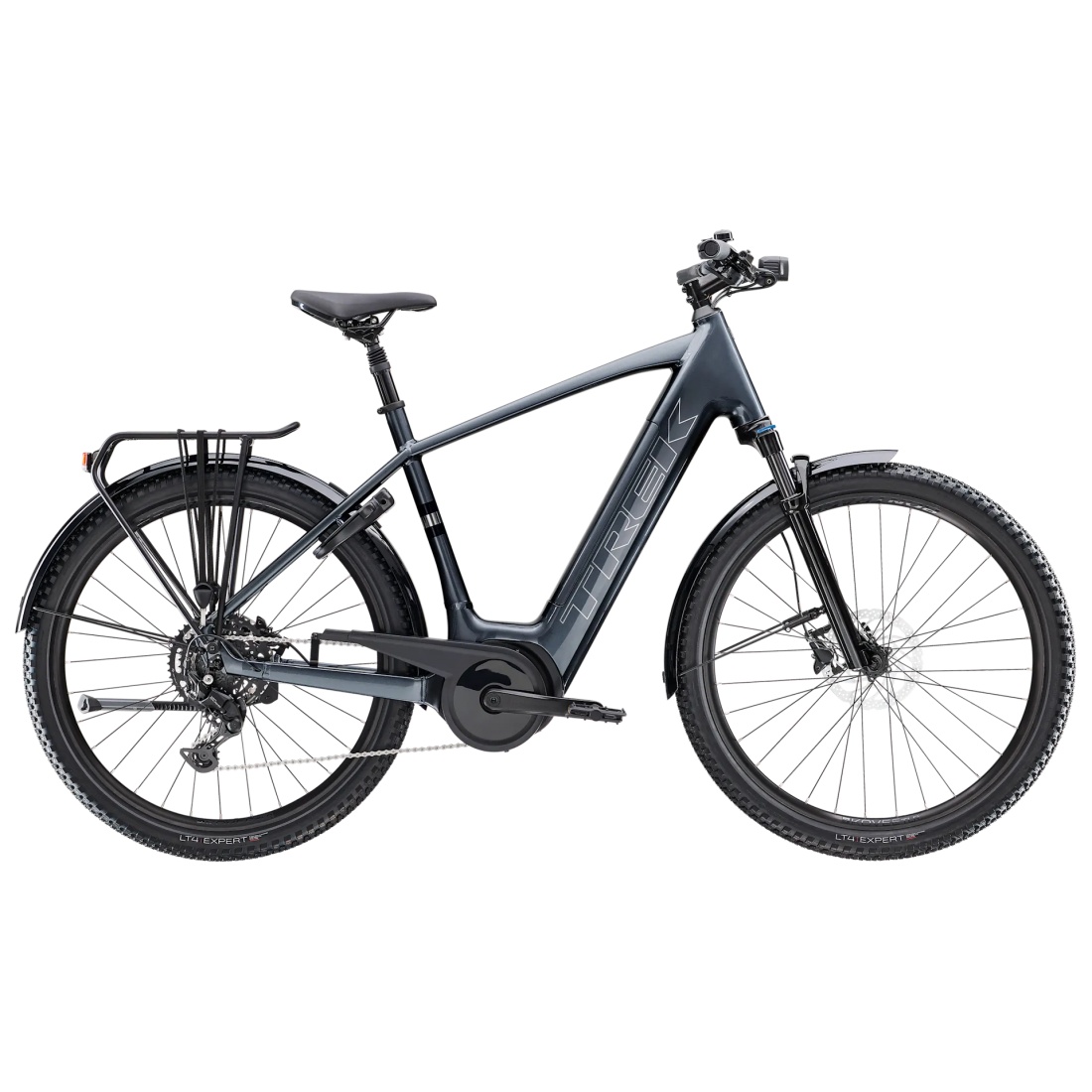

TREK VERVE+ 4 2025

Frame
Alpha Smooth Aluminum, integrated removable battery, internal cable routing, Motor Armour, Post-Mount disc brake, QR 135x5 mm.

Fork
SR Suntour XCR32, coil spring, preload adjustment, lockout, QR 100 mm, 63 mm travel.

Hubs

• Front: Shimano TX505, centerlock.
• Rear: Shimano FH-QC300-HM, 32 holes, centerlock, 8/9/10/11 speeds, quick release 135x5 mm.

Rims
Bontrager Kovee, double wall, Tubeless Ready, 28 holes, 23 mm width, Presta valve.

Tires
Bontrager LT4 Expert, reflective sidewall, wire bead, 60 TPI, 27.5x2.40 inches.

Charger
Bosch standard 4 A, 230 V, smart system.

Display
Bosch Purion 200.

Motor
Bosch Performance Line, 250 W, 75 Nm, assistance up to 25 km/h.

Drivetrain

• Shifter: Shimano CUES U4000 with optical gear indicator, 9-speed.
• Rear Derailleur: Shimano CUES U4000.
• Crankset:
  • XS, S, M: ProWheel Aluminum, 170 mm.
  • L, XL: ProWheel Aluminum, 175 mm.
  • Chainring: ProWheel 38T narrow/wide steel with alloy guard.
• Cassette: Shimano LINKGLIDE LG300, 11-46T, 9-speed.
• Chain: Shimano LG500, 9/10/11-speed compatible.

Pedals
VP-536 platform pedals, nylon.

Saddle
Selle Royal Vivo Moderate Ergo.

Seatpost
Alloy suspension, 31.6 mm diameter, 300 mm length.

Handlebar
Alloy lowriser, 690 mm width, 25 mm rise, 11° backsweep, 31.8 mm clamp.

Grips
Bontrager XR Trail Comp, nylon lock-on.

Stem

• XS: 60 mm.
• S: 70 mm.
• M: 80 mm.
• L: 90 mm.
• XL: 100 mm.
  Bontrager Comp, 31.8 mm clamp, Blendr compatible, 7° angle.

Brakes
Shimano MT200 hydraulic disc brakes.

• Rotors: Shimano RT30 (180 mm) and Shimano EM300 (180 mm).
• Maximum rotor size: 180 mm front and rear.

Lights

• Spanninga SOLO for e-bikes.
• Herrmans H-Black MR5-E, 140 Lumen, 40 Lux, LED front light.

Kickstand
Pletscher Comp Flex 18.

Rack
Aluminum alloy, MIK compatible, 25 kg capacity.

Fenders
SKS plastic front and rear.

Weight

• Size M: 23.50 kg (without battery).
• Maximum total weight (bike, rider, luggage): 136 kg.
