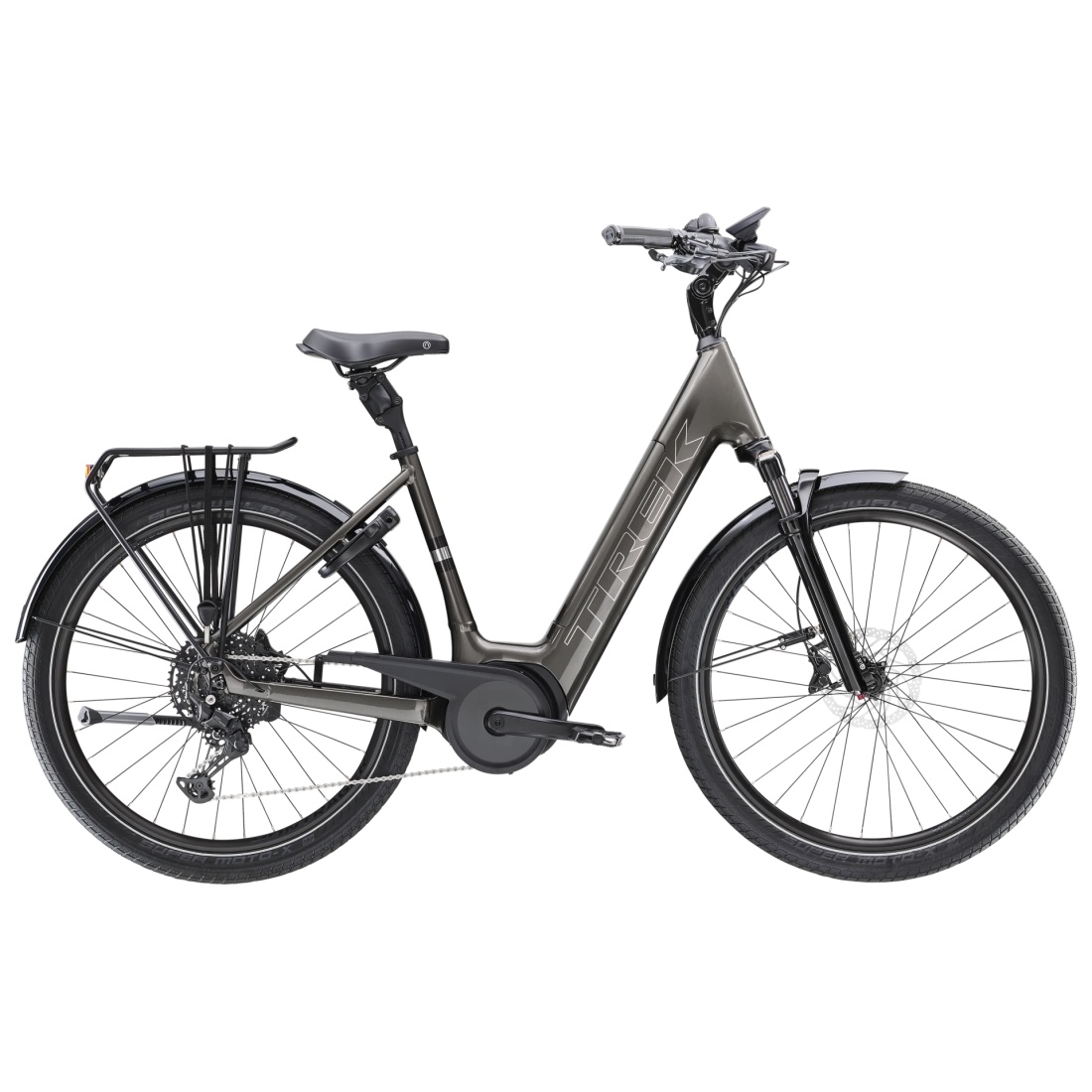

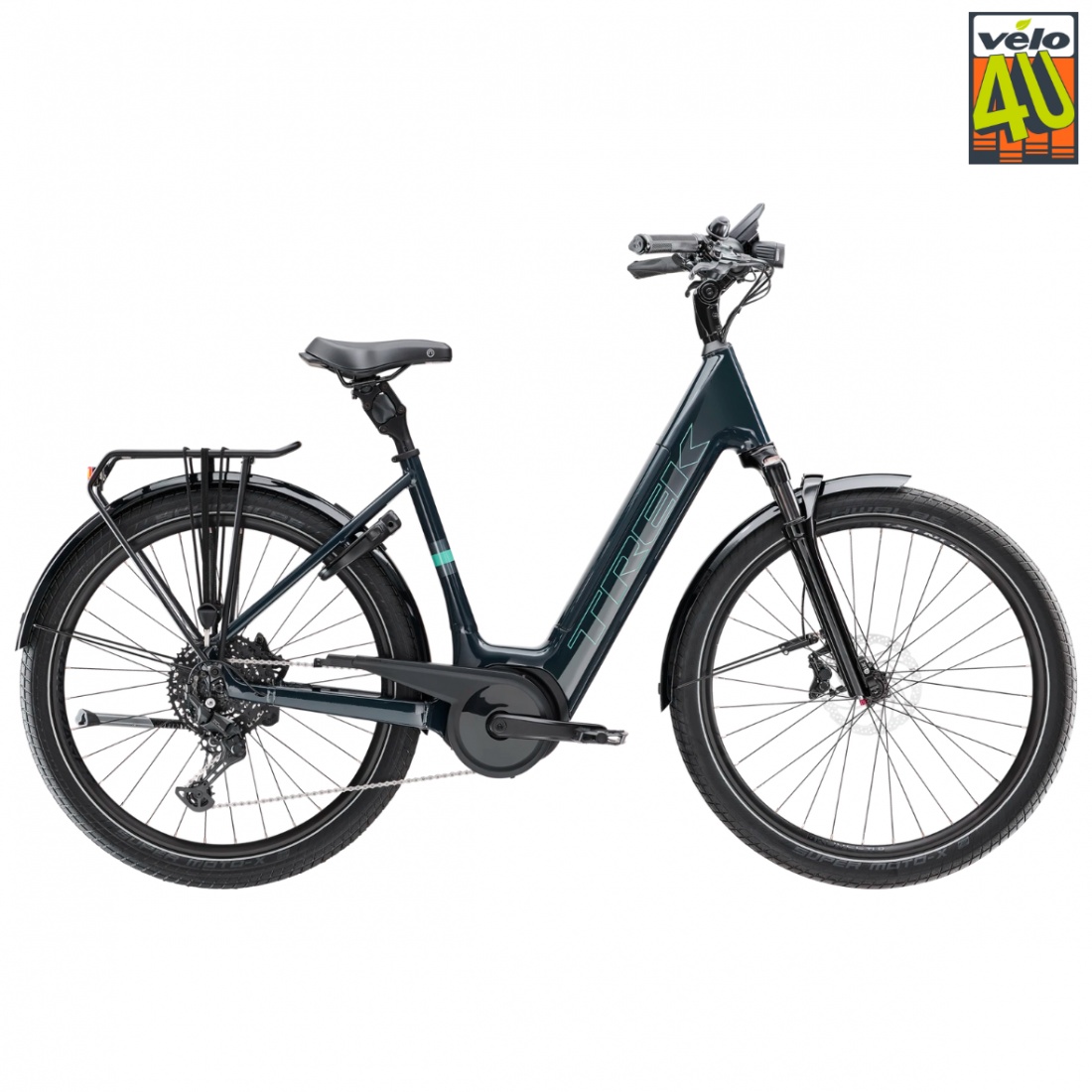

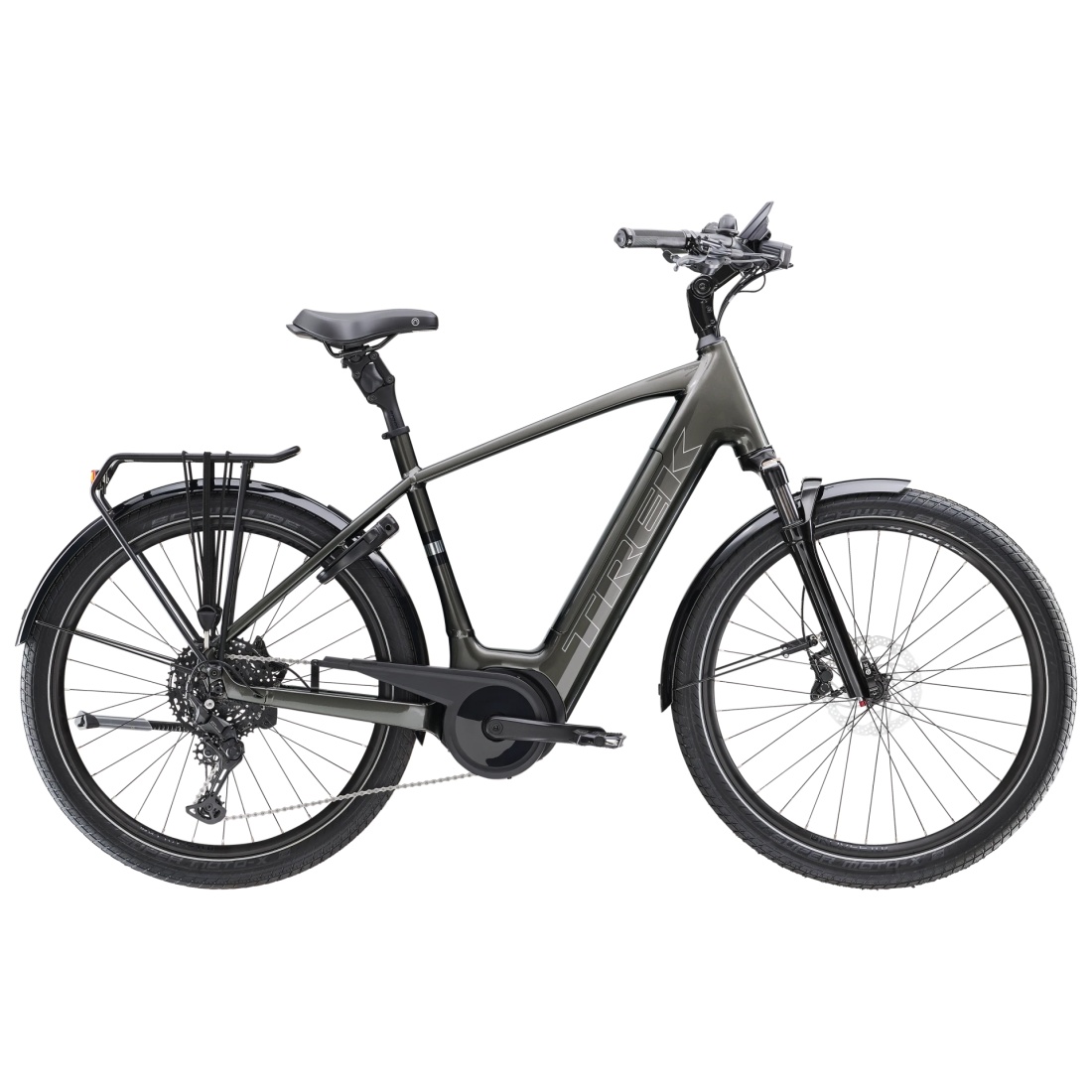

TREK VERVE+ 5 2025

Frame
Alpha Smooth Aluminium, integrated removable battery, internal cable routing, Motor Armour, Post-Mount disc brake mount, QR 135x5 mm

Fork
SR Suntour Mobie 34, coil spring, rebound and compression adjustment, aluminum tapered steerer, 15x100 mm thru axle, 60 mm travel

Front Hub
Bontrager, sealed bearing, 32 holes, 15 mm thru axle

Rear Hub
Formula CL-52 alloy, QR 5x135 mm

Rear Skewer
Quick release 161x5 mm

Rims
Bontrager Kovee, double wall, Tubeless Ready, 28 holes, 23 mm width, Presta valve

Tires
Schwalbe Super Moto-X, reflective sidewall, wire bead, GreenGuard protection, size: 650x62 mm

Charger
Bosch standard 4 A, 230 V, smart system

Controller
Bosch Kiox 500, smart system

Display
Bosch LED remote, smart system

Motor
Bosch Performance Line, 250 W, 75 Nm, 25 km/h

Shifter
Shimano CUES U6000 with optical gear display, 10-speed

Rear Derailleur
Shimano CUES U6000 GS

Crankset

• Sizes S, M: ProWheel aluminum, 170 mm length
• Sizes L, XL: ProWheel aluminum, 175 mm length

Chainring
ProWheel 38T narrow/wide steel with alloy guard

Cassette
Shimano CUES LG300, LINKGLIDE, 11-48T, 10-speed

Chain
Shimano LG500, 9/10/11-speed compatible

Pedals
Bontrager City

Saddle
Selle Royal ON Relaxed

Seatpost
Ergotec PM705-N suspension

Handlebar
Alloy, 31.8 mm clamp, 25 mm rise, 630 mm width

Grips
Bontrager Satellite Elite, lock-on

Stem

• Sizes S, M: adjustable aluminum, 31.8 mm clamp, 90 mm length
• Sizes L, XL: adjustable aluminum, 110 mm length

Brakes

• Sizes S, M, L, XL: Shimano MT401 / MT420 hydraulic disc, 180 mm rotor

Brake Rotors

• Shimano RT30, centerlock, 180 mm
• Shimano EM300, centerlock, 180 mm
• Maximum rotor size: 180 mm front and rear

Lighting

• Spanninga SOLO for e-bike
• Herrmans H-Black MR9-E, 60 lux, LED, front light

Kickstand
Pletscher Comp Flex 18

Cargo Rack
Aluminum alloy, max capacity: 25 kg

Fenders

• Rear: SKS plastic
• Front: SKS plastic

Weight

• Size M: 24.70 kg (without battery)

Maximum Weight
Total weight limit (bike, rider, cargo): 160 kg
