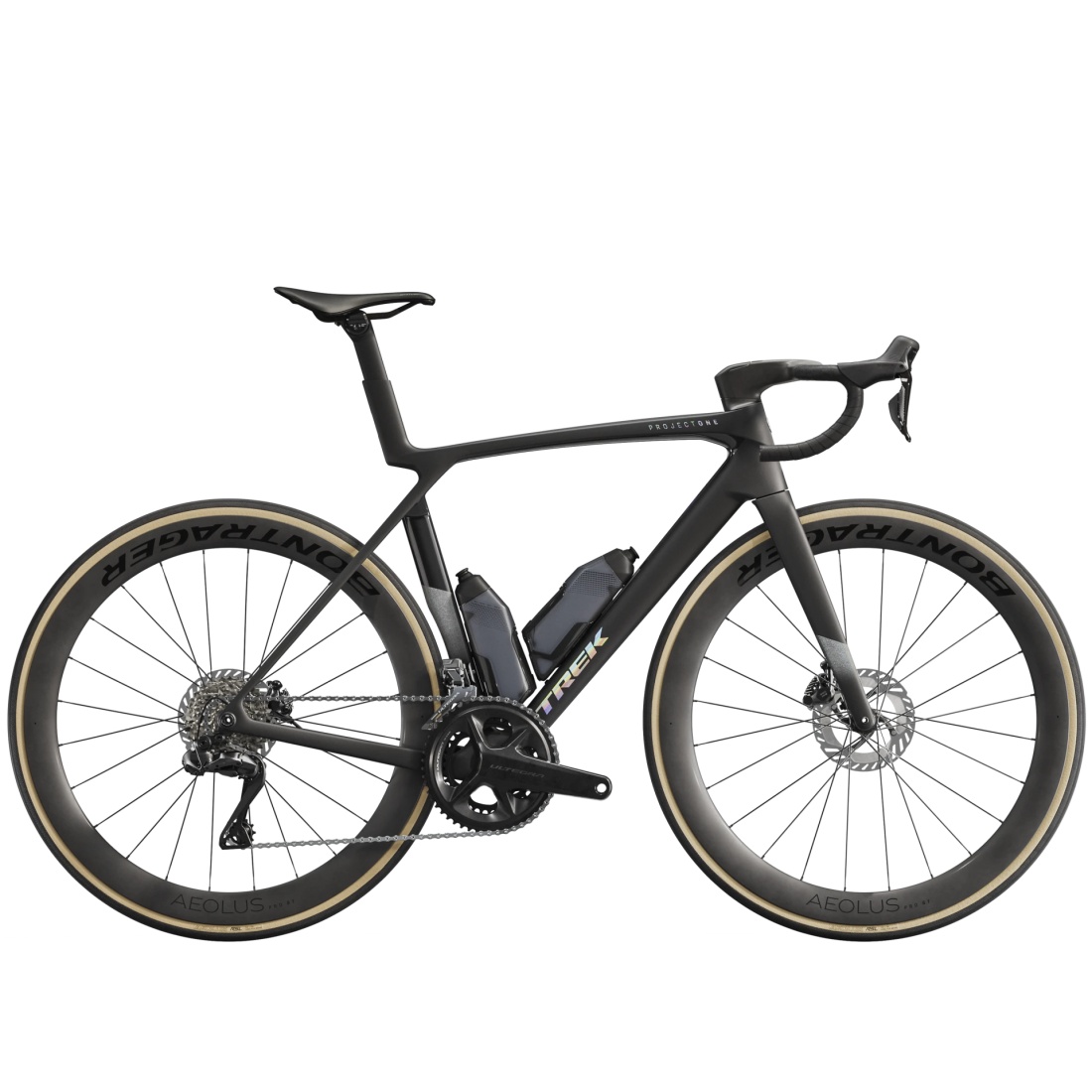

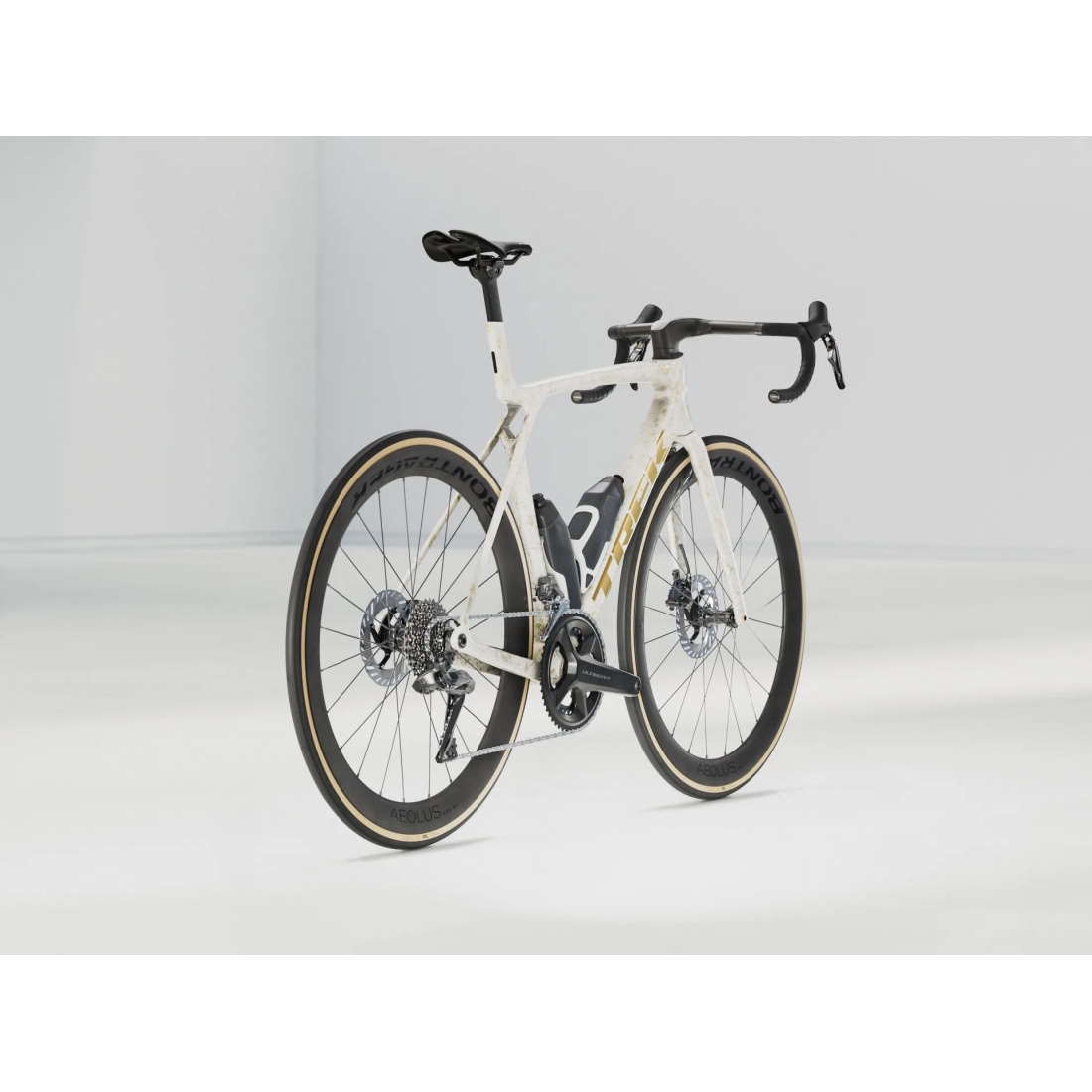

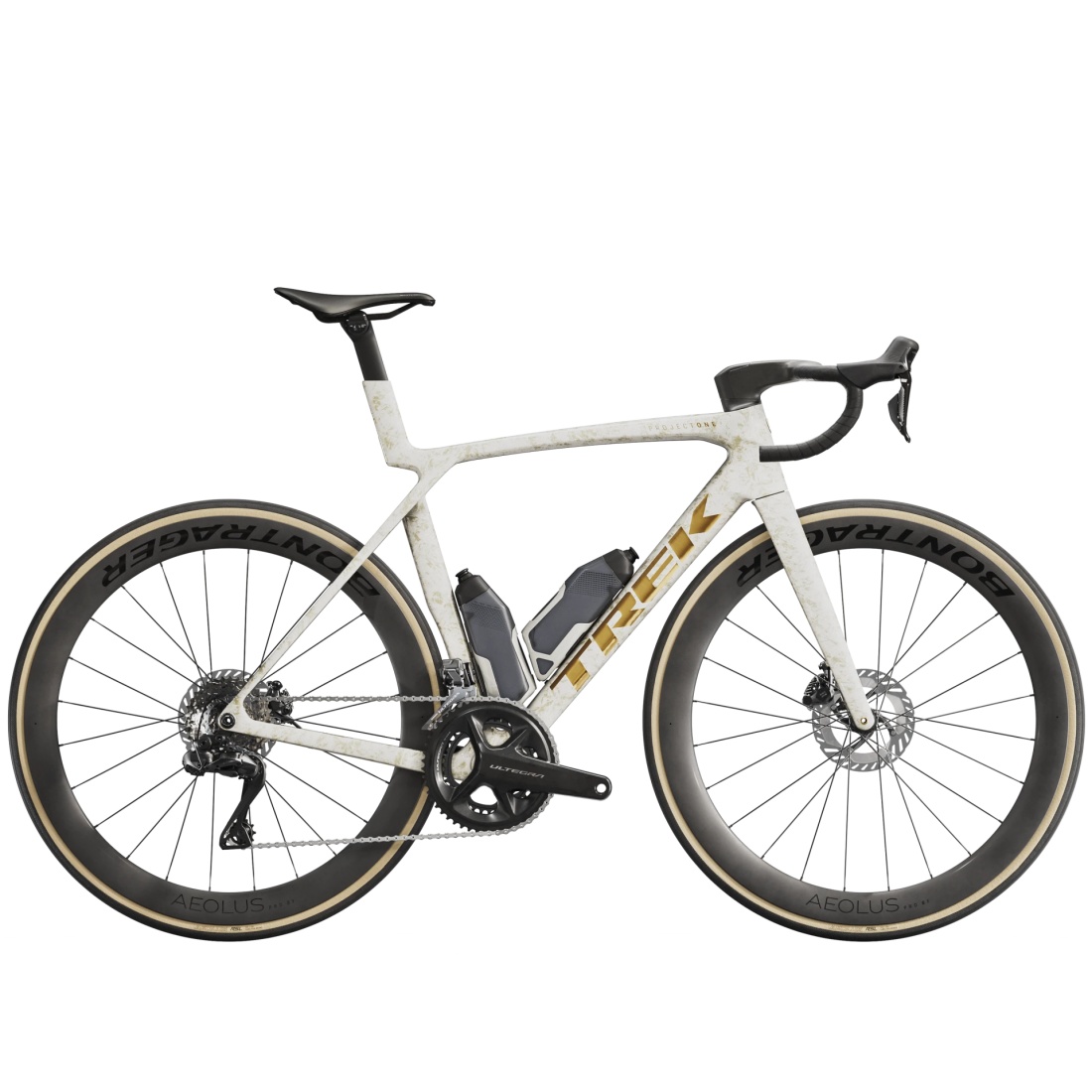

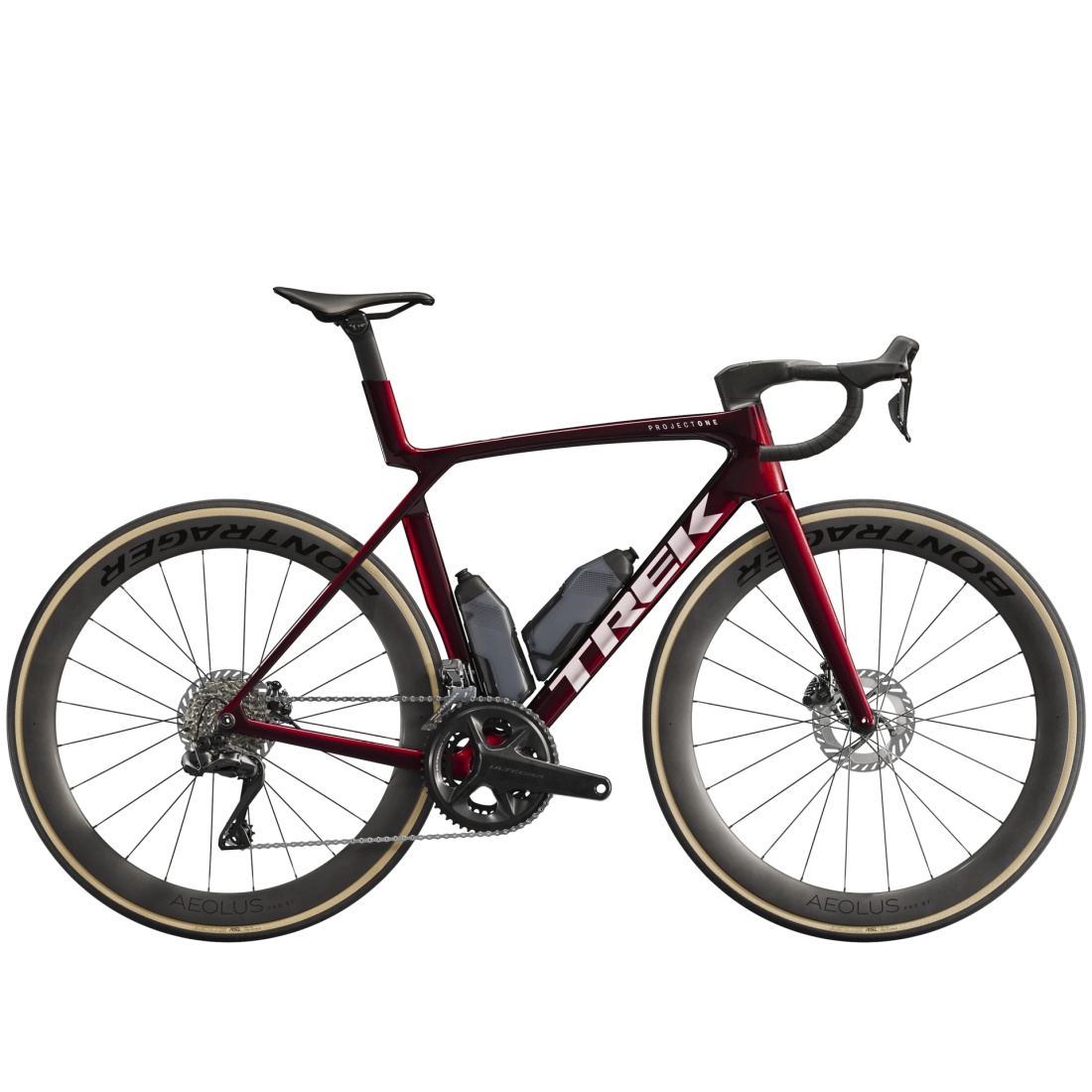

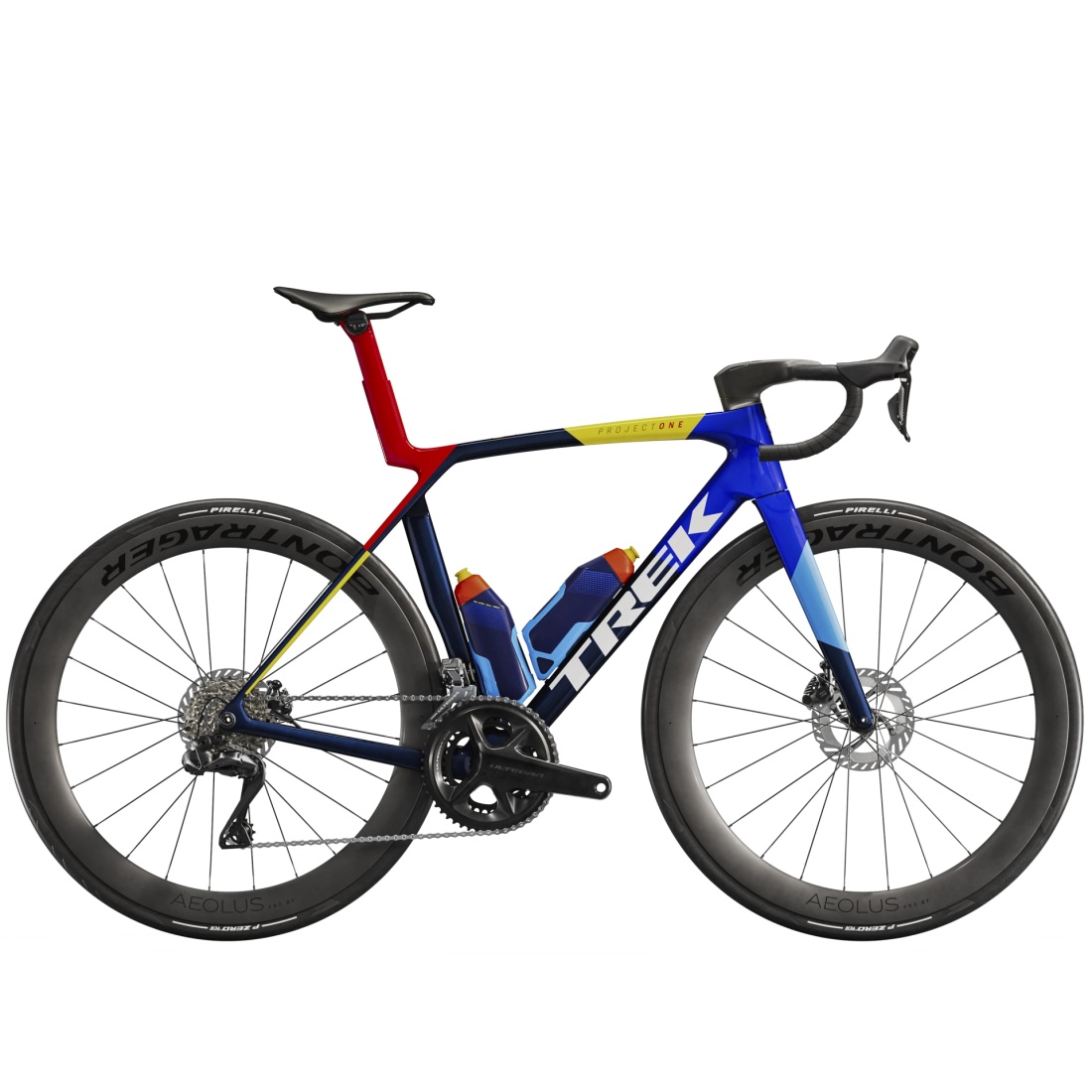

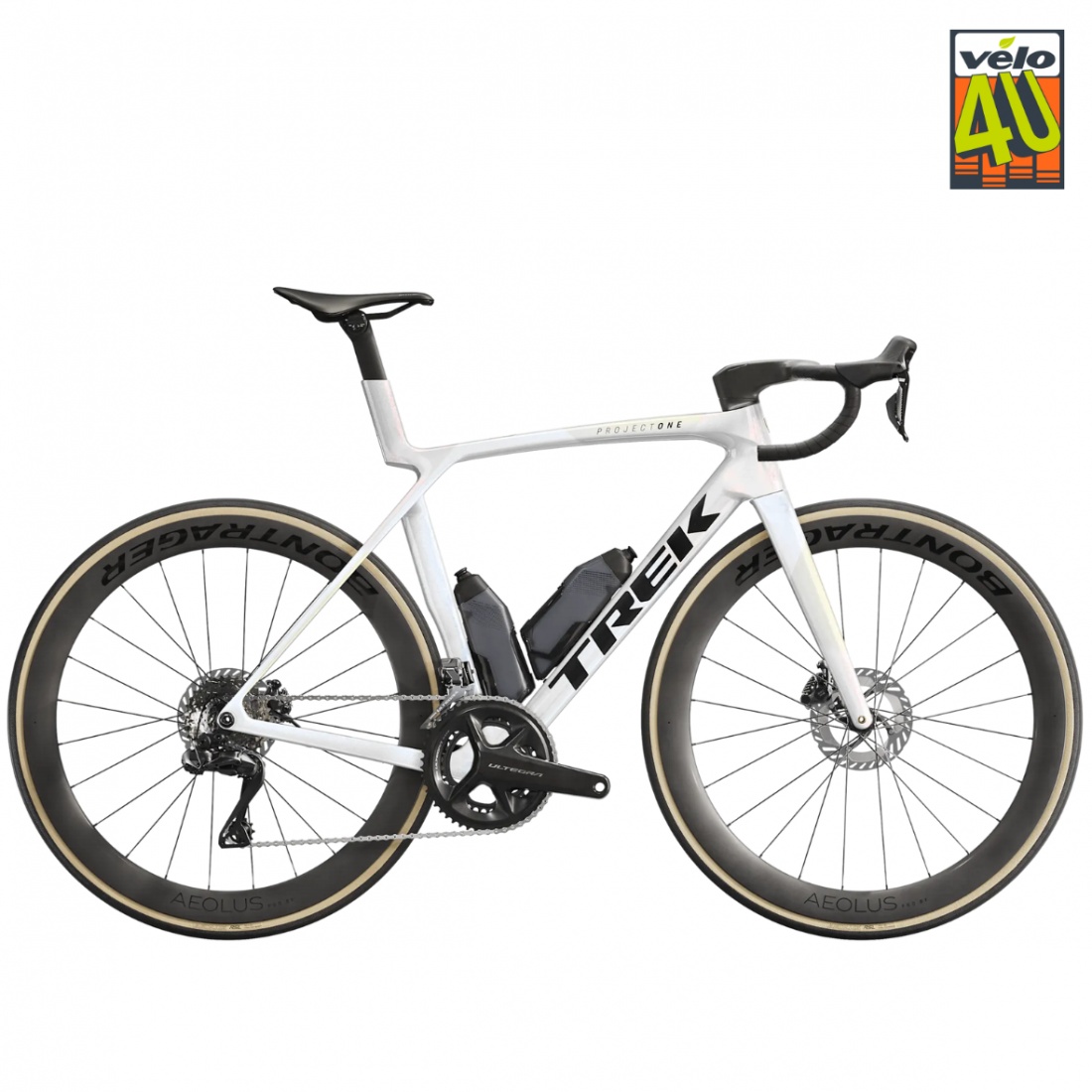

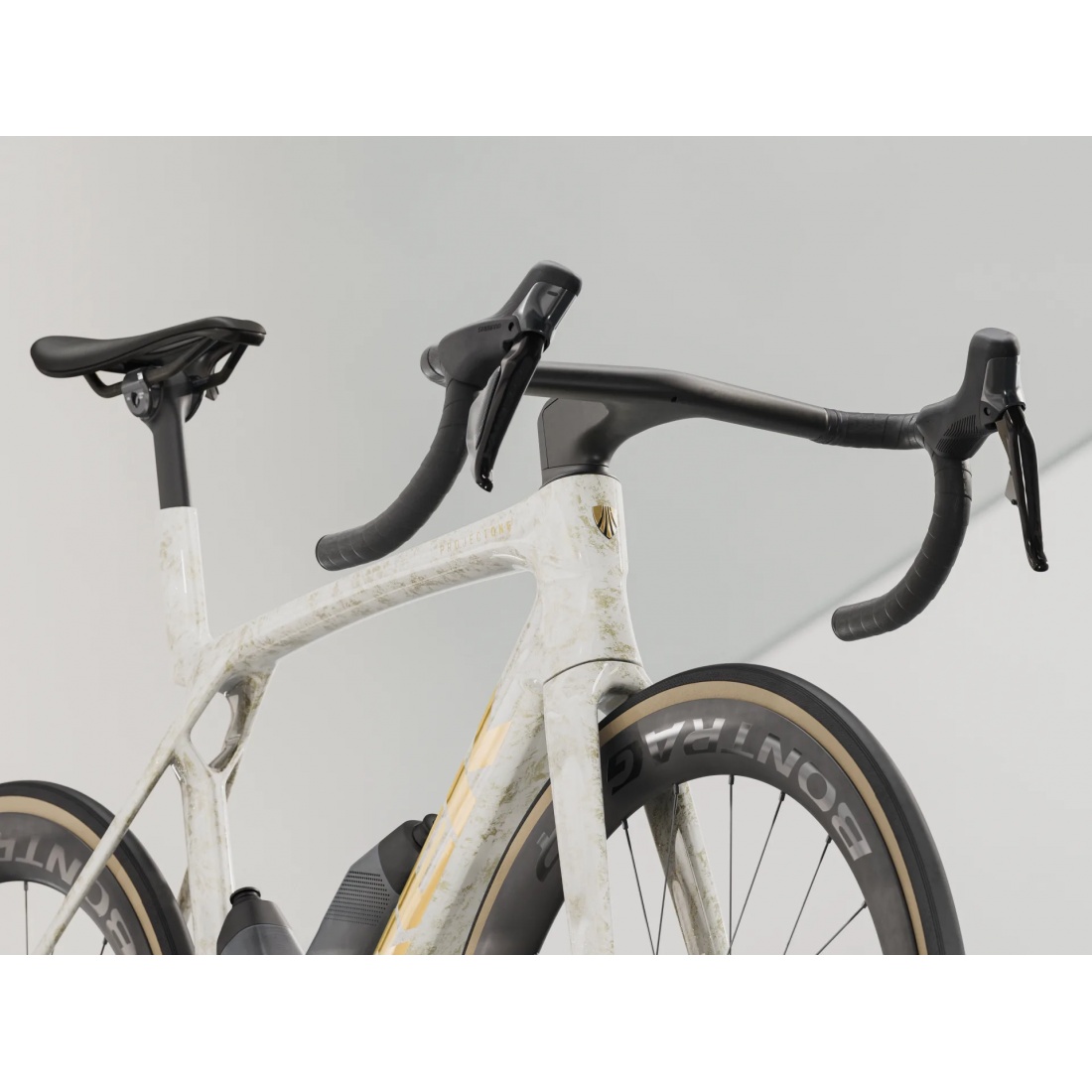

TREK MADONE SLR 7 2025

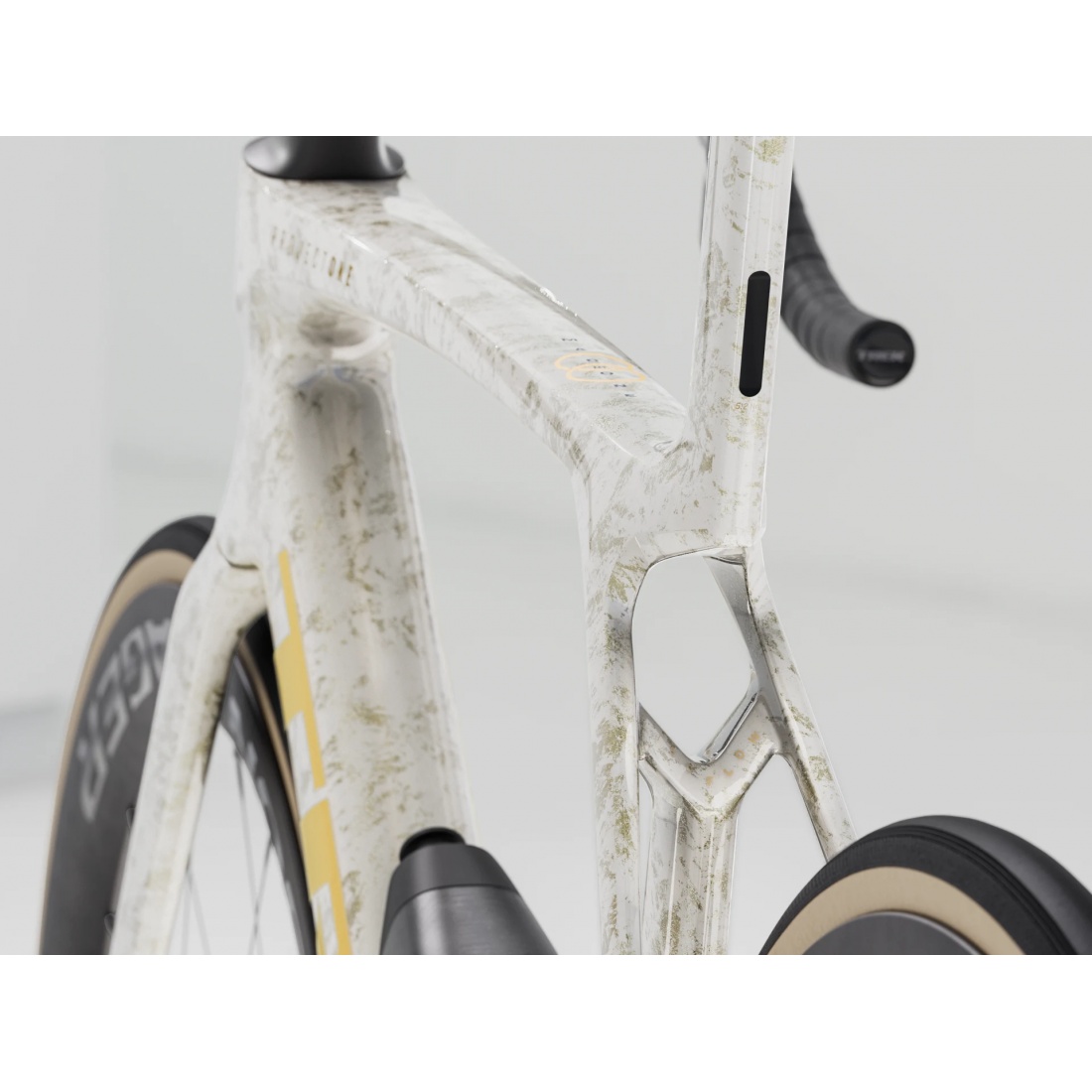

Frame:

• OCLV Carbon 900 Series, Full System Foil tube shape
• IsoFlow seat tube
• RCS headset
• Electronic cable routing only
• Removable aerodynamic chain keeper
• T47 bottom bracket
• Flat mount disc brakes
• Universal derailleur hanger (UDH)
• 142 x 12 mm thru-axle

Fork:

• Madone 8th Gen full carbon
• Tapered carbon steerer
• Internal brake cable routing
• Flat mount disc brakes
• 12 x 100 mm knurled thru-axles

Weight:

• Size ML: 7.31 kg (16.12 lbs) with TLR sealant, without tubes, bottles, or cages

Maximum Weight:

• This bike has a maximum total weight limit of 125 kg (including bike, rider, and cargo)

Battery:

• Shimano BT-DN300

Charger:

• Charging cable included

Transmission:

• Shifters (Sizes XS, S, M, ML, L, XL): Shimano Ultegra R8170 Di2, 12-speed
• Front Derailleur: Shimano Ultegra R8150 Di2, braze-on, down swing
• Rear Derailleur: Shimano Ultegra R8150 Di2, max cog 34T
• Crankset:
  • Size XS, S: Shimano Ultegra R8100, 52/36, 165 mm crank length
  • Size M: Shimano Ultegra R8100, 52/36, 170 mm crank length
  • Size ML, L: Shimano Ultegra R8100, 52/36, 172.5 mm crank length
  • Size XL: Shimano Ultegra R8100, 52/36, 175 mm crank length
• Bottom Bracket: Praxis, T47 threaded, internal bearings
• Cassette: Shimano Ultegra R8101, 11-30, 12-speed
• Chain: Shimano Ultegra/XT M8100, 12-speed
• Max Chainring Size: 1x: 54T, 2x: 56/43

Wheels:

• Front Wheel: Bontrager Aeolus Pro 51, OCLV Carbon, Tubeless Ready, 100 x 12 mm thru-axle
• Rear Wheel: Bontrager Aeolus Pro 51, OCLV Carbon, tubeless-ready, Shimano 11/12-speed freehub, 142 x 12 mm thru-axle
• Front Wheel Locking: Bontrager Switch knurled thru-axle, removable lever
• Rear Wheel Locking: Bontrager Switch knurled thru-axle, removable lever

Tires:

• Size: XS, S, M, ML, L, XL
• Pirelli P Zero Race, 120 TPI, tubeless compatible, 700 x 28 mm
• Bontrager Aeolus RSL RD, Tubeless Ready, cotton construction, aramid bead, 170 TPI, 700 x 28 mm

Tire Sealant:

• Bontrager TLR sealant, 177 ml

Max Tire Size:

• 32 mm (as measured, see manual for details)

Saddle:

• Size XS, S: Bontrager Aeolus P2 Pro, carbon rails, 155 mm width
• Size M, ML, L, XL: Bontrager Aeolus Pro, carbon rails, 145 mm width

Seatpost:

• Size XS, S, M, XL: Madone aero seatpost, 0 mm offset, short
• Size ML, L: Madone aero seatpost, 0 mm offset, long

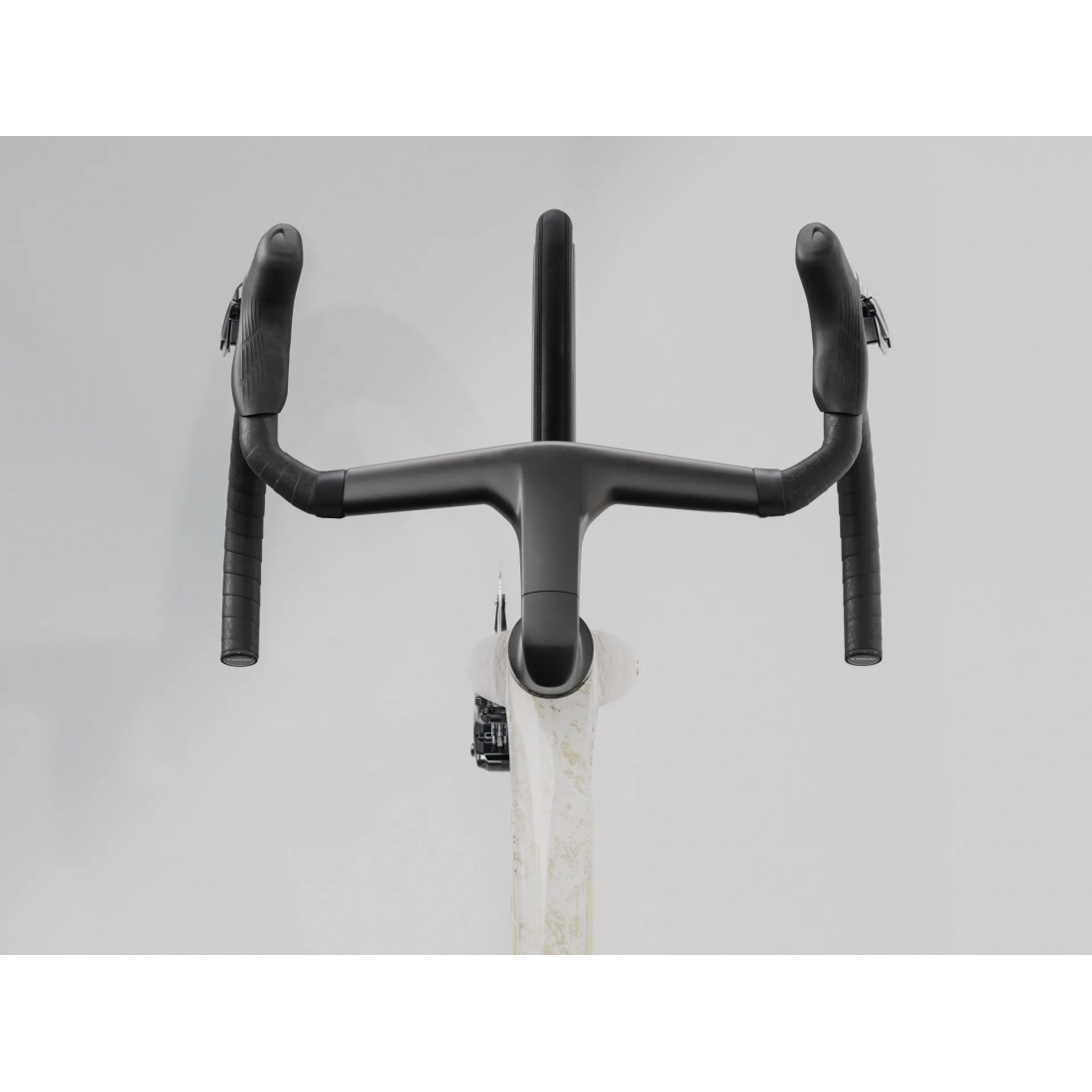

Integrated Handlebars and Stem:

• Size XS: Trek Aero RSL Road, OCLV Carbon, Race Fit, 80 mm drop, 124 mm rise, 35 cm width at hoods, 38 cm width in drops, 80 mm stem length
• Size S: Trek Aero RSL Road, OCLV Carbon, Race Fit, 80 mm drop, 124 mm rise, 37 cm width at hoods, 40 cm width in drops, 90 mm stem length
• Size M: Trek Aero RSL Road, OCLV Carbon, Race Fit, 80 mm drop, 124 mm rise, 39 cm width at hoods, 42 cm width in drops, 90 mm stem length
• Size ML, L: Trek Aero RSL Road, OCLV Carbon, Race Fit, 80 mm drop, 124 mm rise, 39 cm width at hoods, 42 cm width in drops, 100 mm stem length
• Size XL: Trek Aero RSL Road, OCLV Carbon, Race Fit, 80 mm drop, 124 mm rise, 41 cm width at hoods, 44 cm width in drops, 110 mm stem length

Brakes:

• Brake Rotor: Shimano CL800, centerlock, 160 mm
• Rotor Characteristics: Maximum brake rotor size: 180 mm front, 160 mm rear
