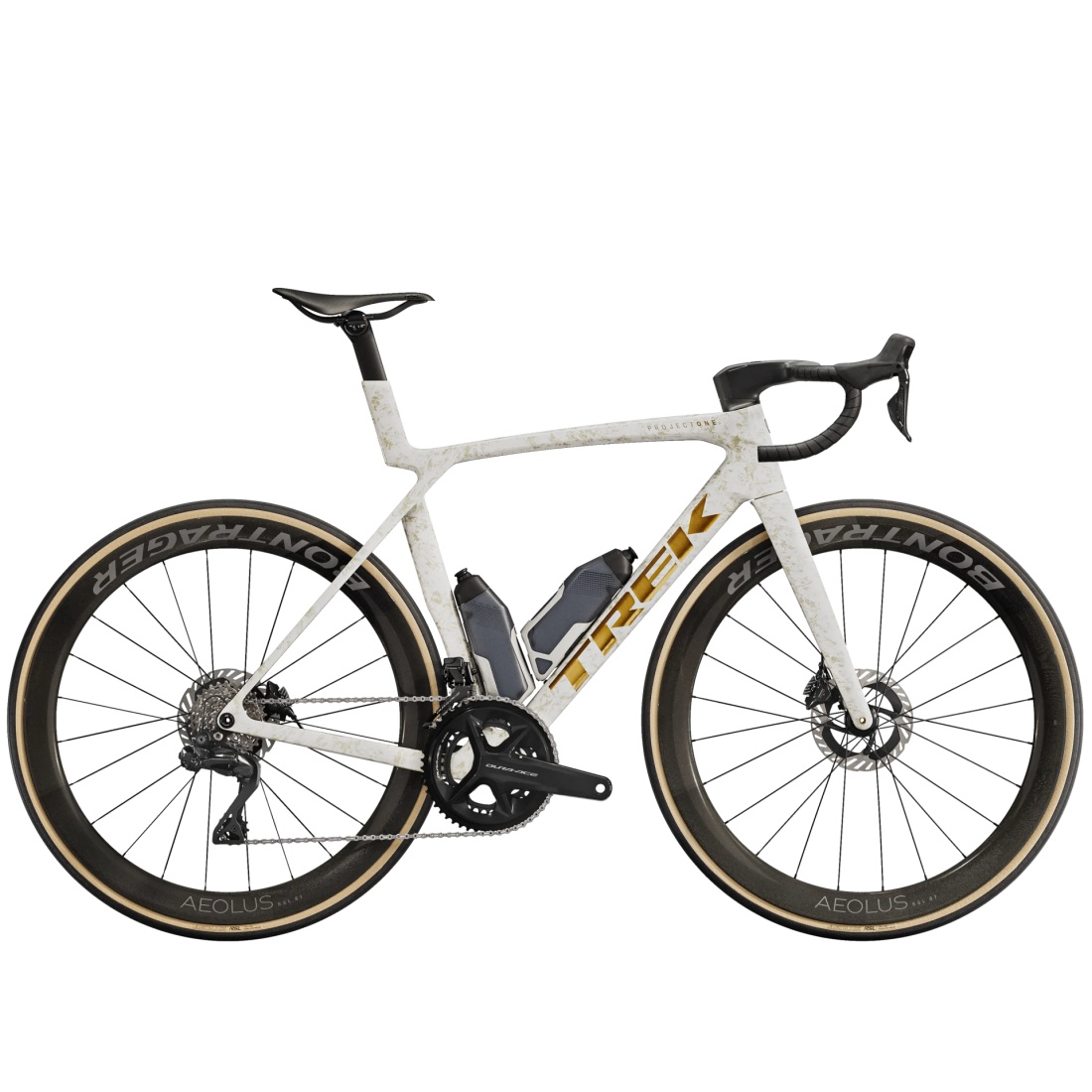

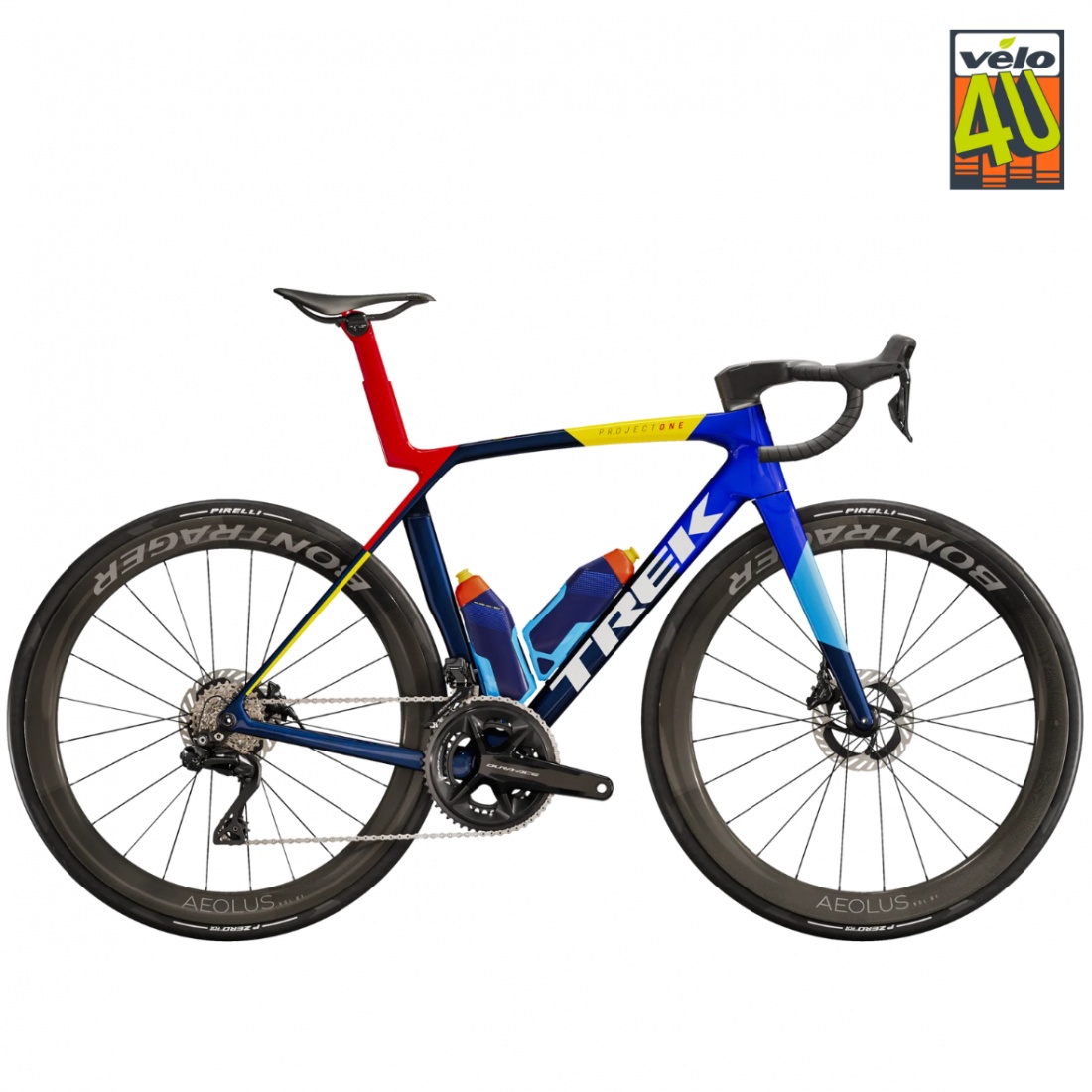

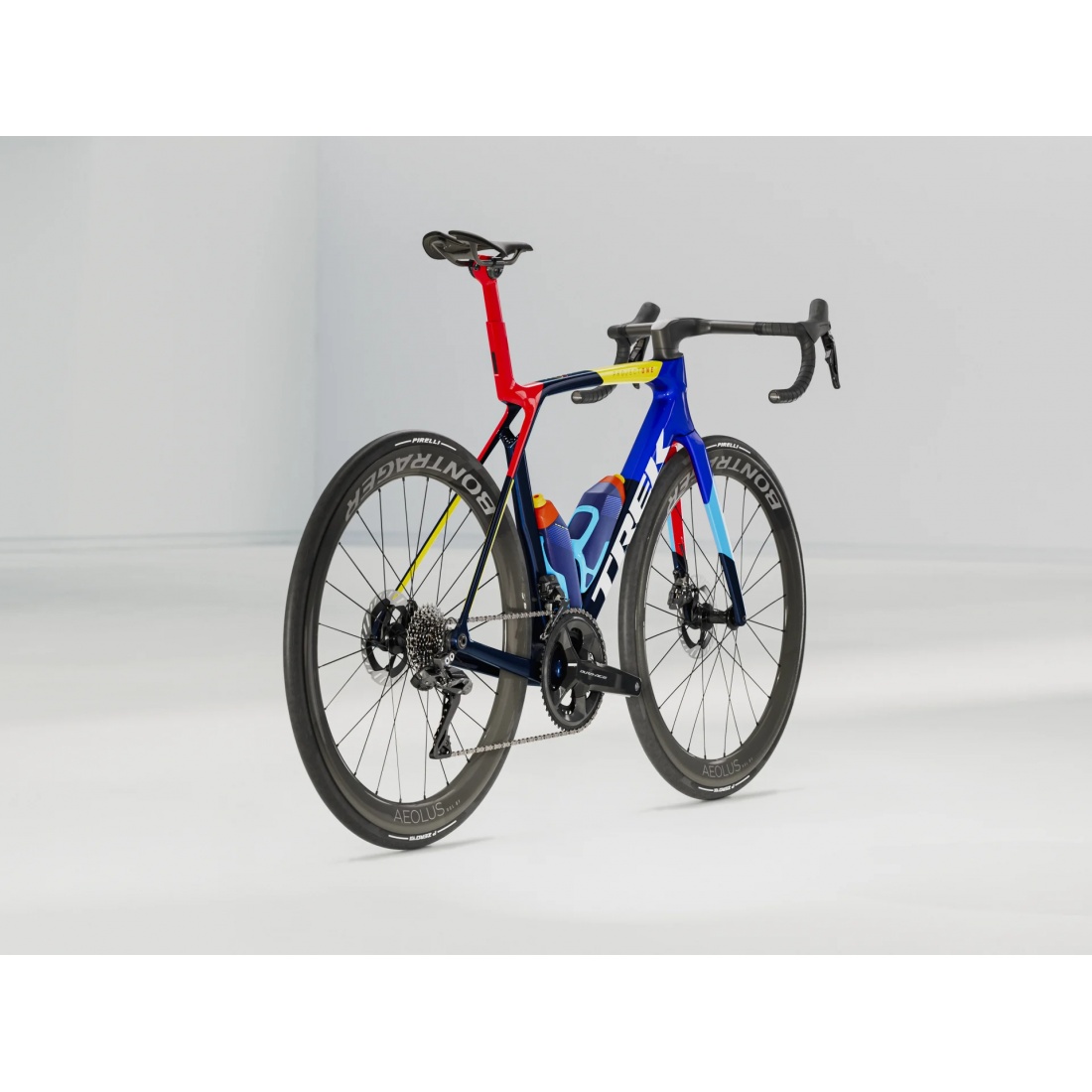

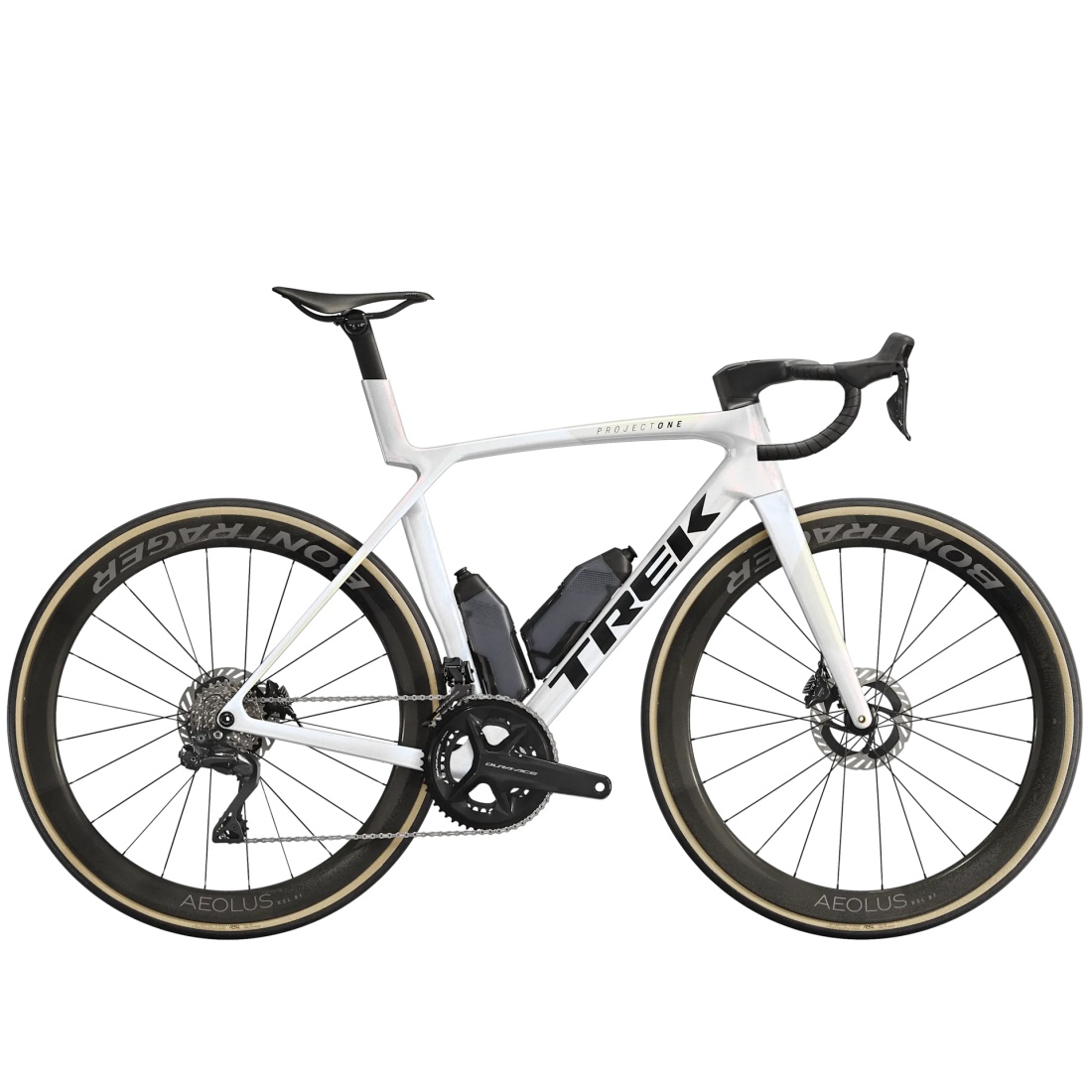

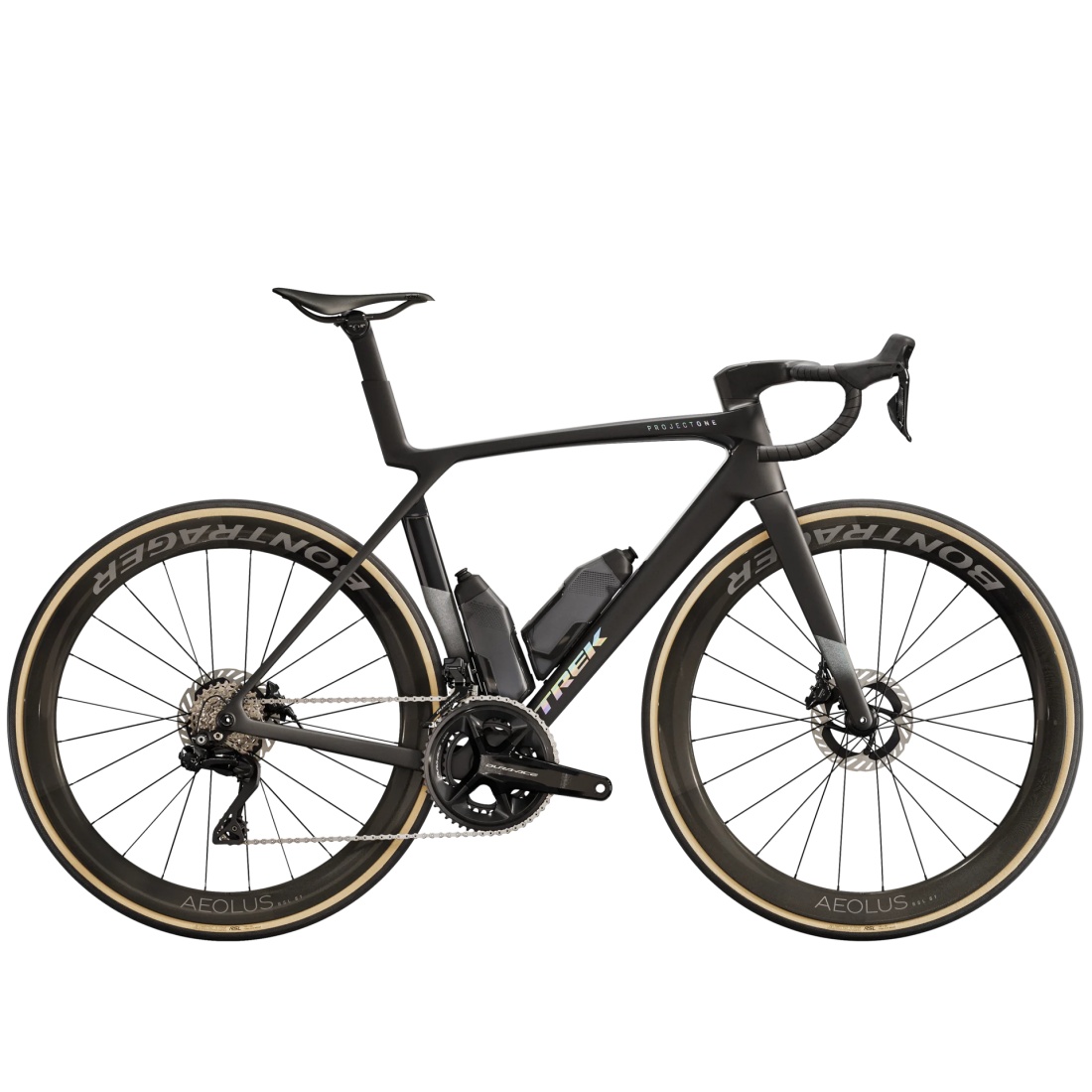

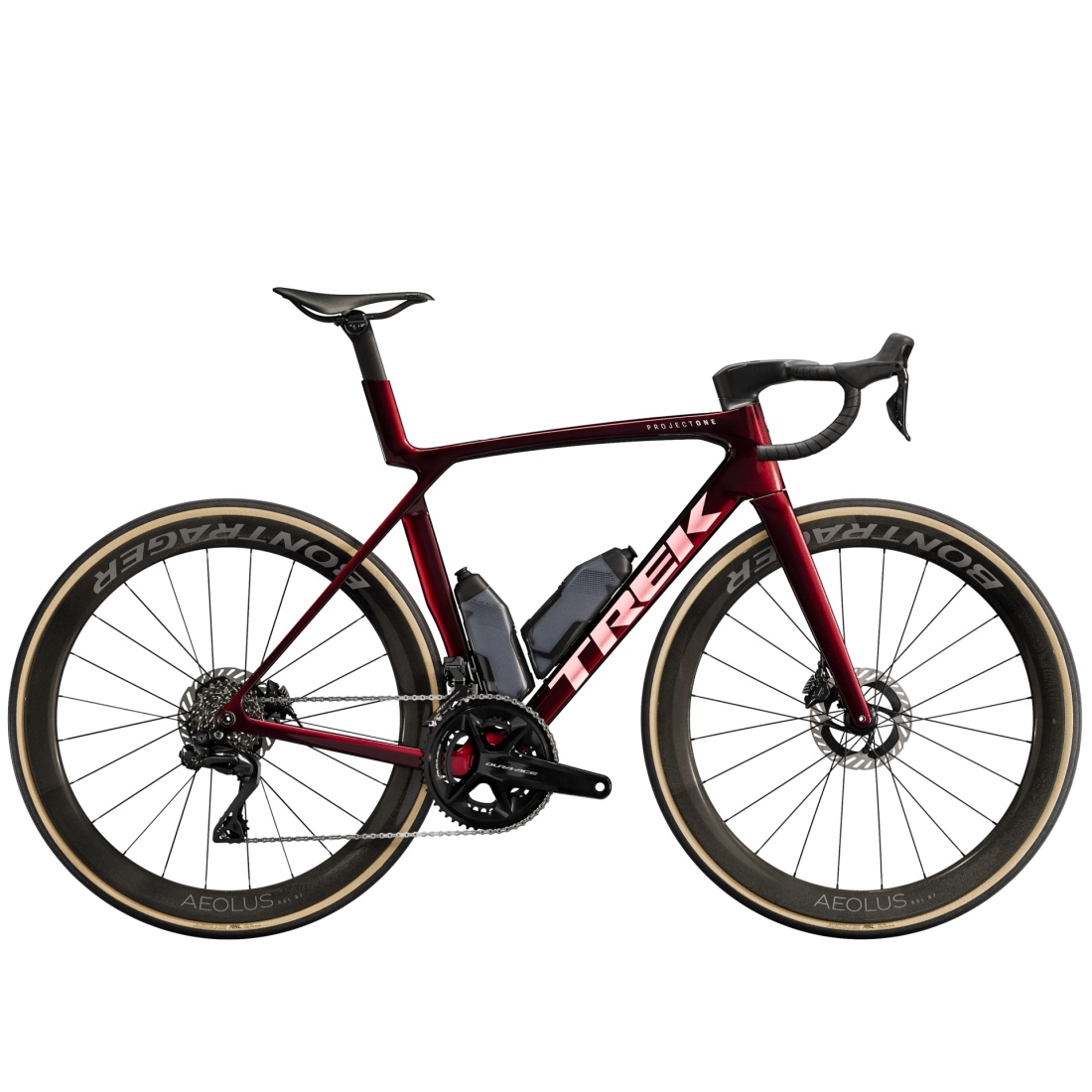

TREK MADONE SLR 9 2025

Frame:

• OCLV Carbon 900 Series, Full System Foil tube shape

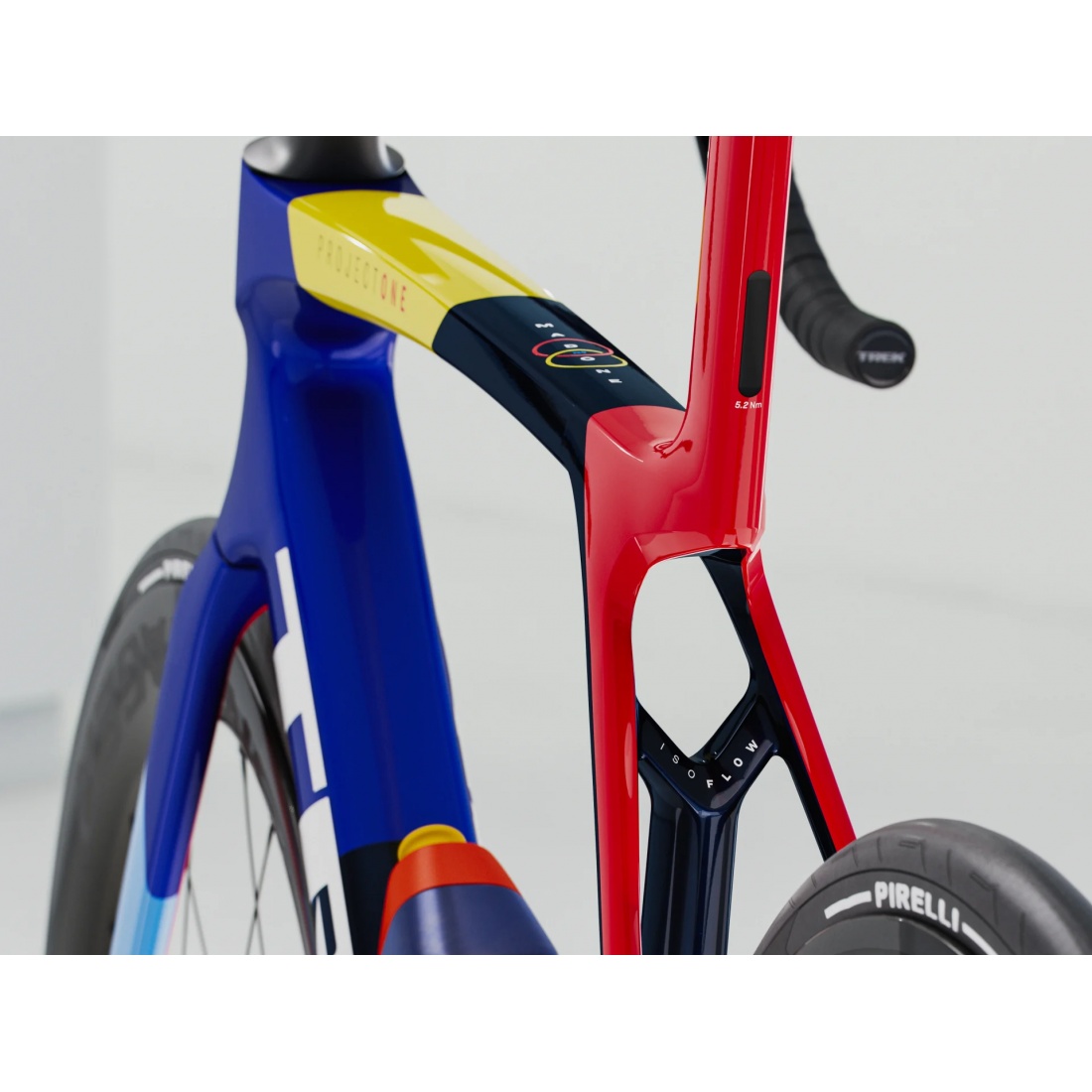

• IsoFlow seat tube
• RCS headset
• Electronic cable routing only
• Removable aerodynamic chain keeper
• T47 bottom bracket
• Flat mount disc brakes
• Universal derailleur hanger (UDH)
• 142 x 12 mm thru-axle

Fork:

• Madone 8th Gen full carbon
• Tapered carbon steerer
• Internal brake cable routing
• Flat mount disc brakes
• 12 x 100 mm knurled thru-axles

Weight:

• Size ML: 7.05 kg (15.55 lbs) with TLR sealant, without tubes, bottles, or cages

Maximum Weight:

• This bike has a maximum total weight limit of 125 kg (including bike, rider, and cargo)

Battery:

• Shimano BT-DN300

Charger:

• Charging cable included

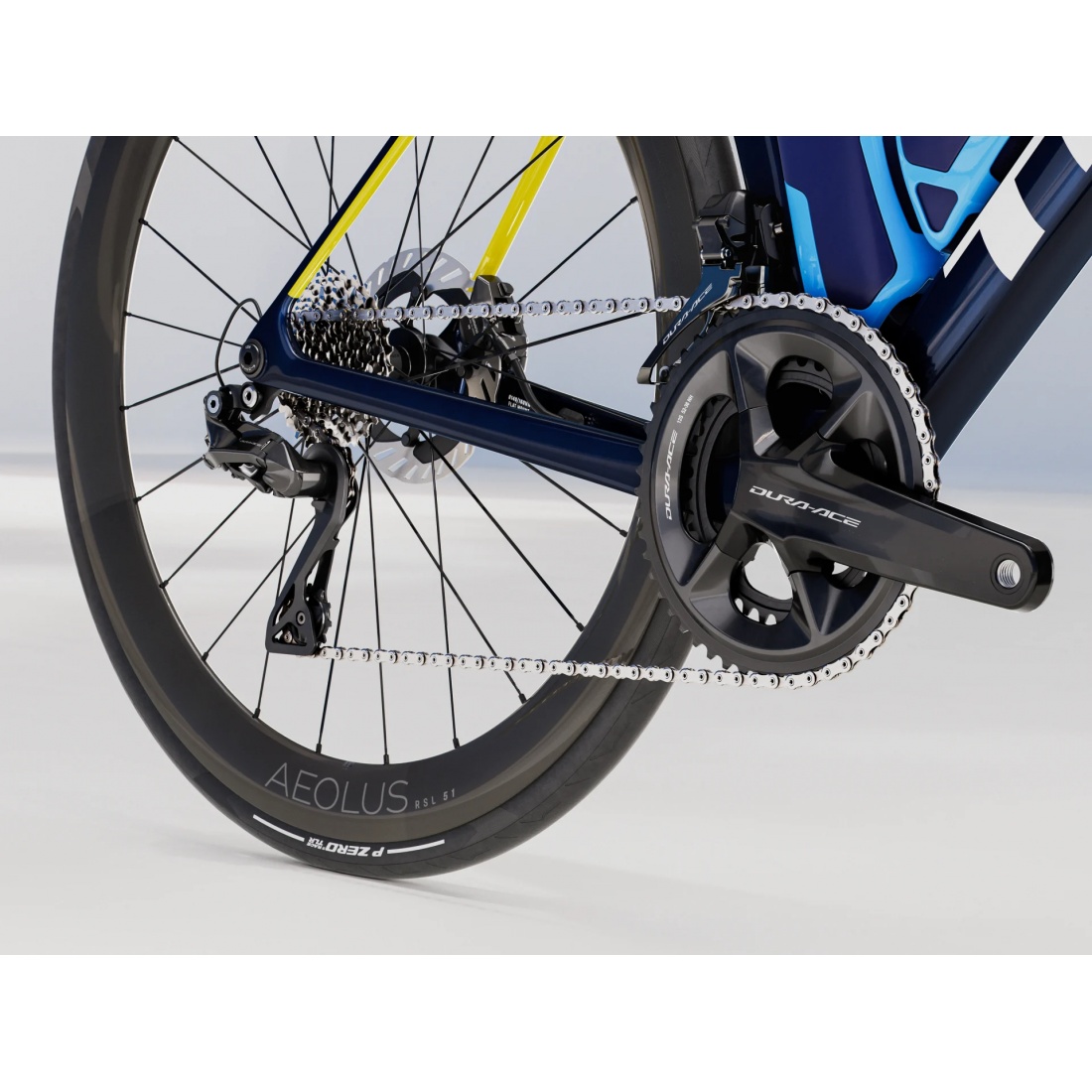

Transmission:

• Shifters: Shimano Dura-Ace R9270 Di2, 12-speed
• Front Derailleur: Shimano Dura-Ace R9250 Di2, braze-on, down swing
• Rear Derailleur: Shimano Dura-Ace R9250 Di2, max cog 34T
• Crankset:
  • Size XS, S: Shimano Dura-Ace R9200, 52/36, 165 mm crank length
  • Size M: Shimano Dura-Ace R9200, 52/36, 170 mm crank length
  • Size ML, L: Shimano Dura-Ace R9200, 52/36, 172.5 mm crank length
  • Size XL: Shimano Dura-Ace R9200, 52/36, 175 mm crank length
• Bottom Bracket: Praxis, T47 threaded, internal bearings
• Cassette: Shimano Dura-Ace R9200, 11-30, 12-speed
• Chain: Shimano Dura-Ace/XTR M9100, 12-speed
• Max Chainring Size: 1x: 54T, 2x: 56/43

Wheels:

• Front Wheel: Bontrager Aeolus RSL 51, OCLV Carbon, Tubeless Ready, 51 mm rim height, 100 x 12 mm thru-axle
• Rear Wheel: Bontrager Aeolus RSL 51, OCLV Carbon, Tubeless Ready, 51 mm rim height, Shimano 11/12-speed freehub, 142 x 12 mm thru-axle
• Front Wheel Locking: Bontrager Switch knurled thru-axle, removable lever
• Rear Wheel Locking: Bontrager Switch knurled thru-axle, removable lever

Tires:

• Size: XS, S, M, ML, L, XL
• Bontrager Aeolus RSL RD, Tubeless Ready, cotton construction, aramid bead, 170 TPI, 700 x 28 mm
• Pirelli P Zero Race, 120 TPI, tubeless compatible, 700 x 28 mm

Tire Sealant:

• Bontrager TLR sealant, 177 ml

Max Tire Size:

• 32 mm (as measured, see manual for details)

Saddle:

• Size XS, S: Aeolus RSL, carbon rails, 155 mm width
• Size M, ML, L, XL: Aeolus RSL, carbon rails, 145 mm width

Seatpost:

• Size XS, S, M, XL: Madone aero seatpost, 0 mm offset, short
• Size ML, L: Madone aero seatpost, 0 mm offset, long

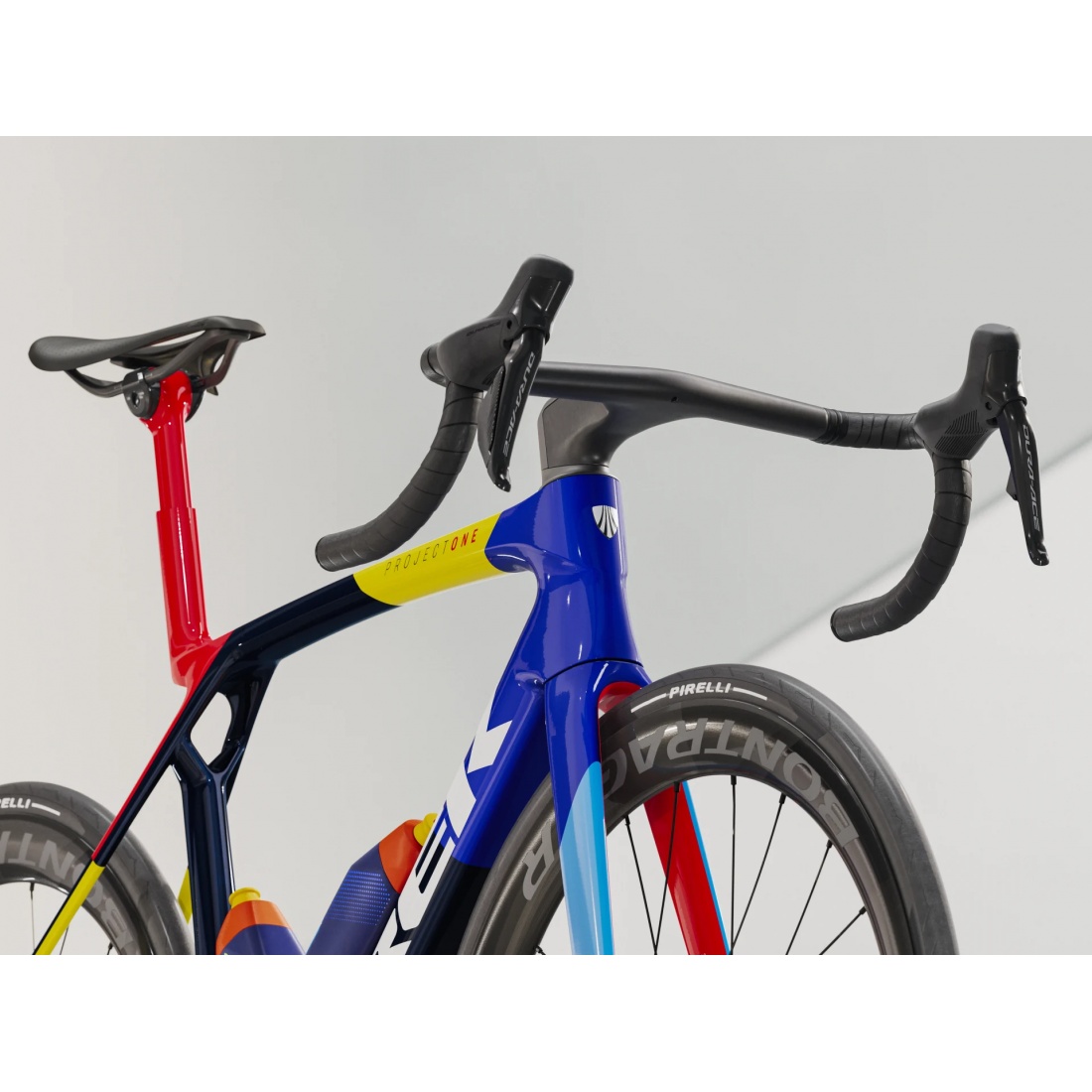

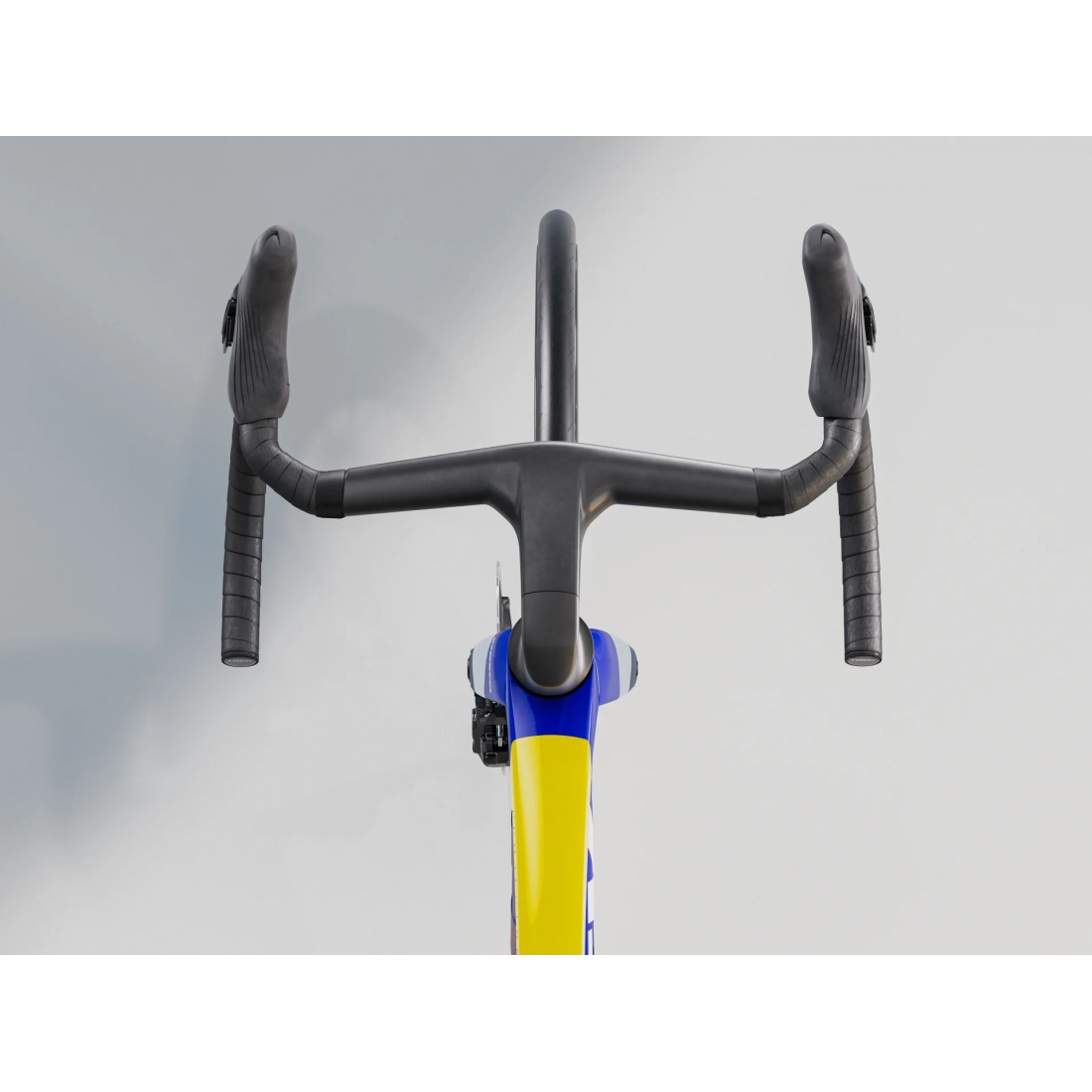

Integrated Handlebars and Stem:

• Size XS: Trek Aero RSL Road, OCLV Carbon, Race Fit, 80 mm drop, 124 mm rise, 35 cm width at hoods, 38 cm width in drops, 80 mm stem length
• Size S: Trek Aero RSL Road, OCLV Carbon, Race Fit, 80 mm drop, 124 mm rise, 37 cm width at hoods, 40 cm width in drops, 90 mm stem length
• Size M: Trek Aero RSL Road, OCLV Carbon, Race Fit, 80 mm drop, 124 mm rise, 39 cm width at hoods, 42 cm width in drops, 90 mm stem length
• Size ML, L: Trek Aero RSL Road, OCLV Carbon, Race Fit, 80 mm drop, 124 mm rise, 39 cm width at hoods, 42 cm width in drops, 100 mm stem length
• Size XL: Trek Aero RSL Road, OCLV Carbon, Race Fit, 80 mm drop, 124 mm rise, 41 cm width at hoods, 44 cm width in drops, 110 mm stem length

Brake Disc Specifications:

• Maximum brake rotor size: 180 mm front, 160 mm rear
