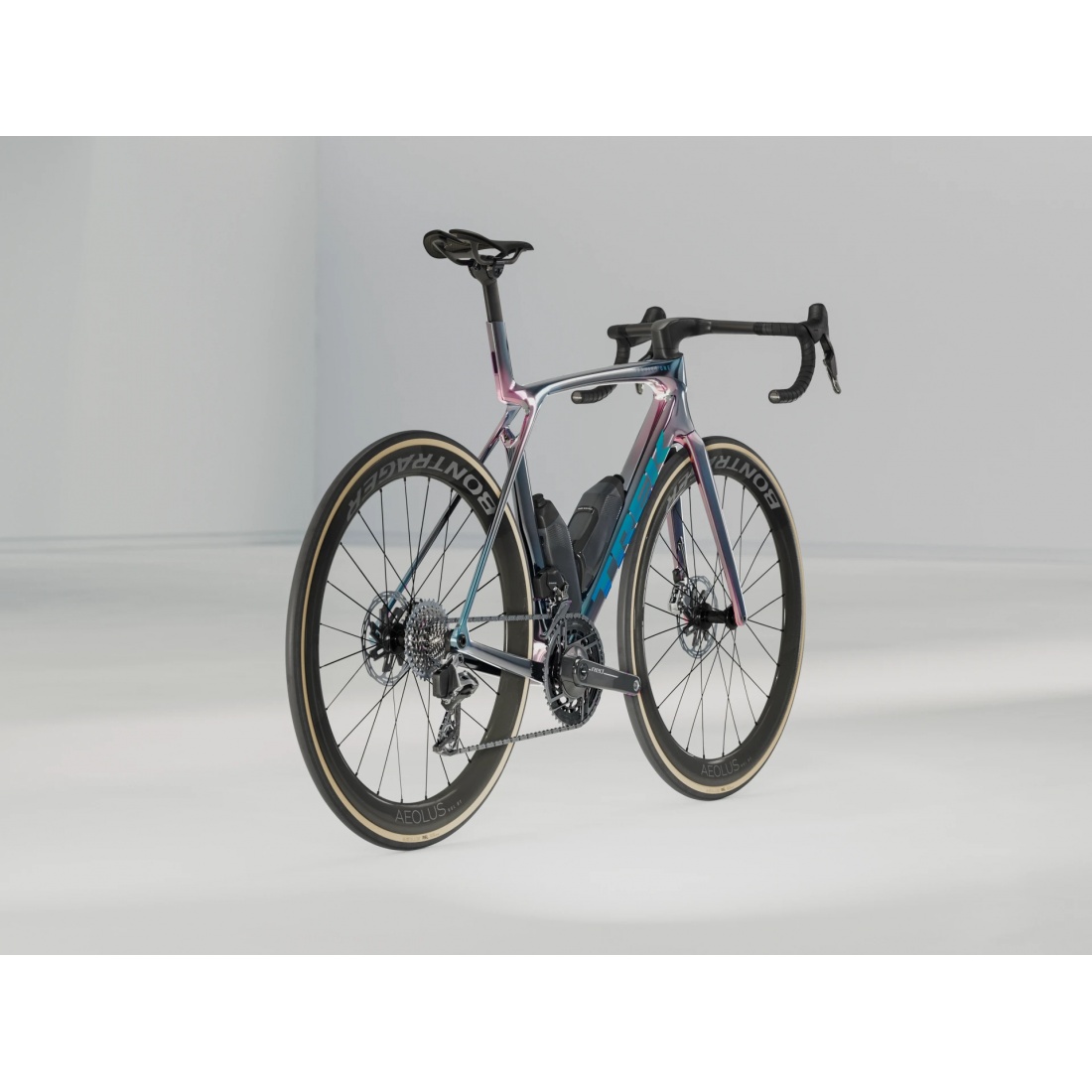

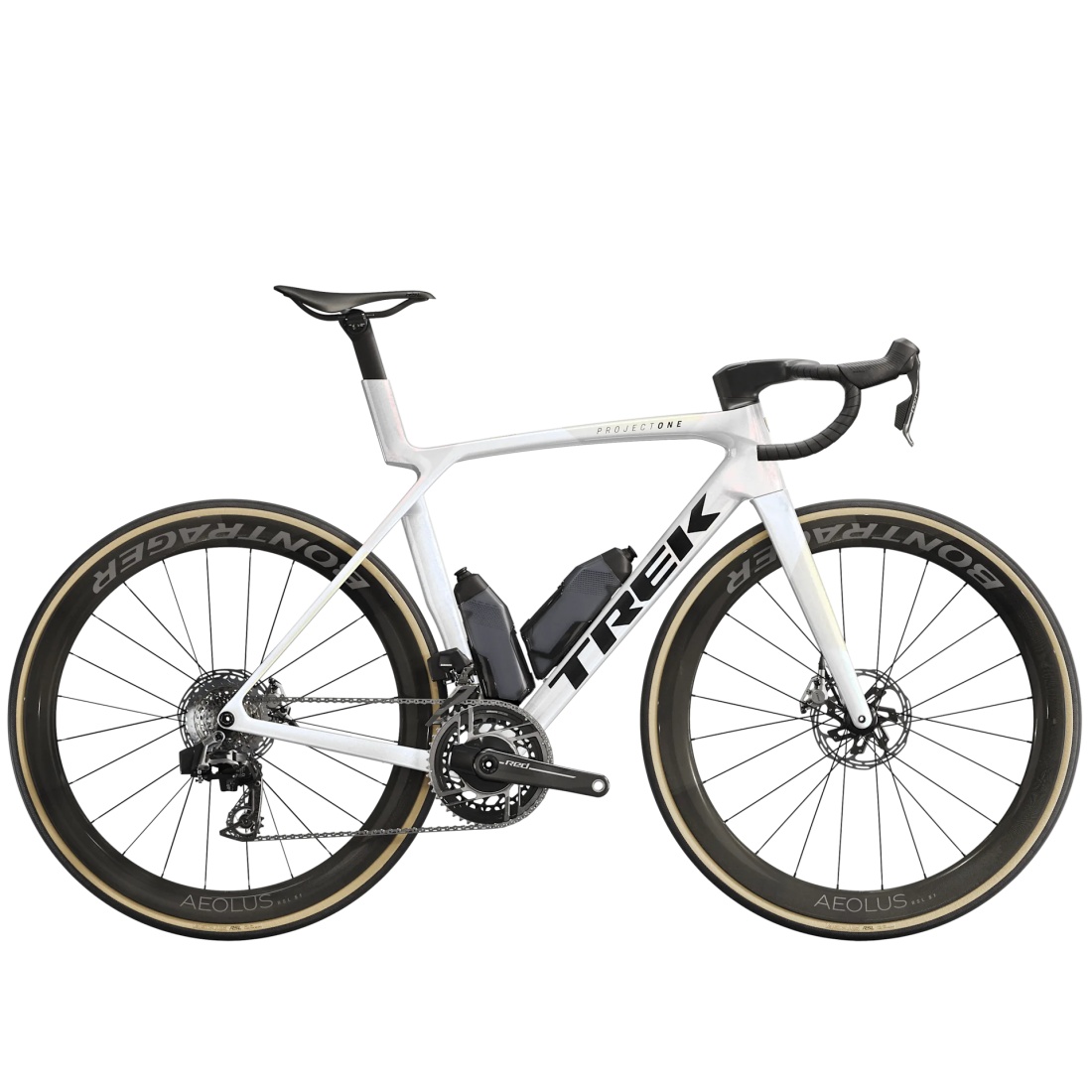

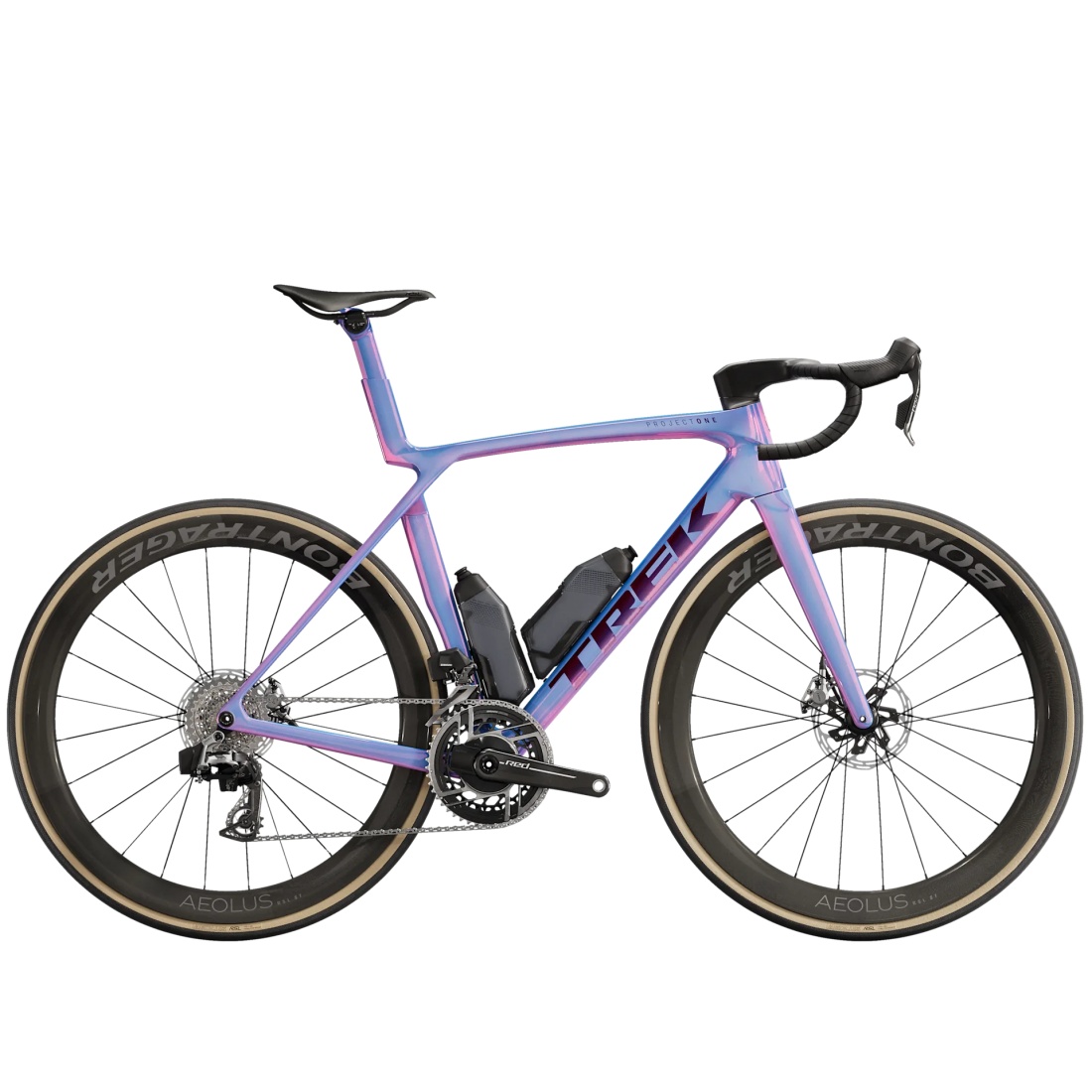

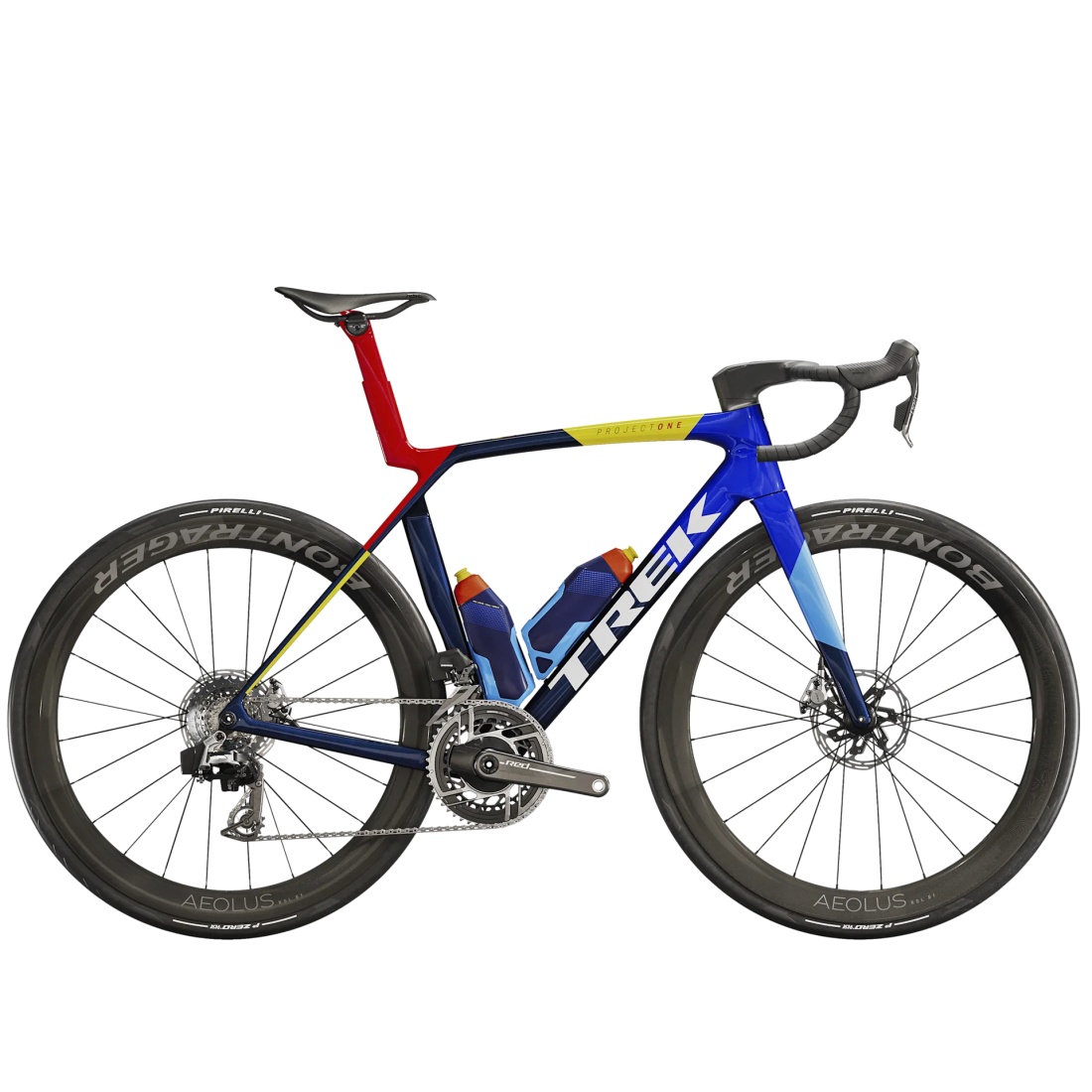

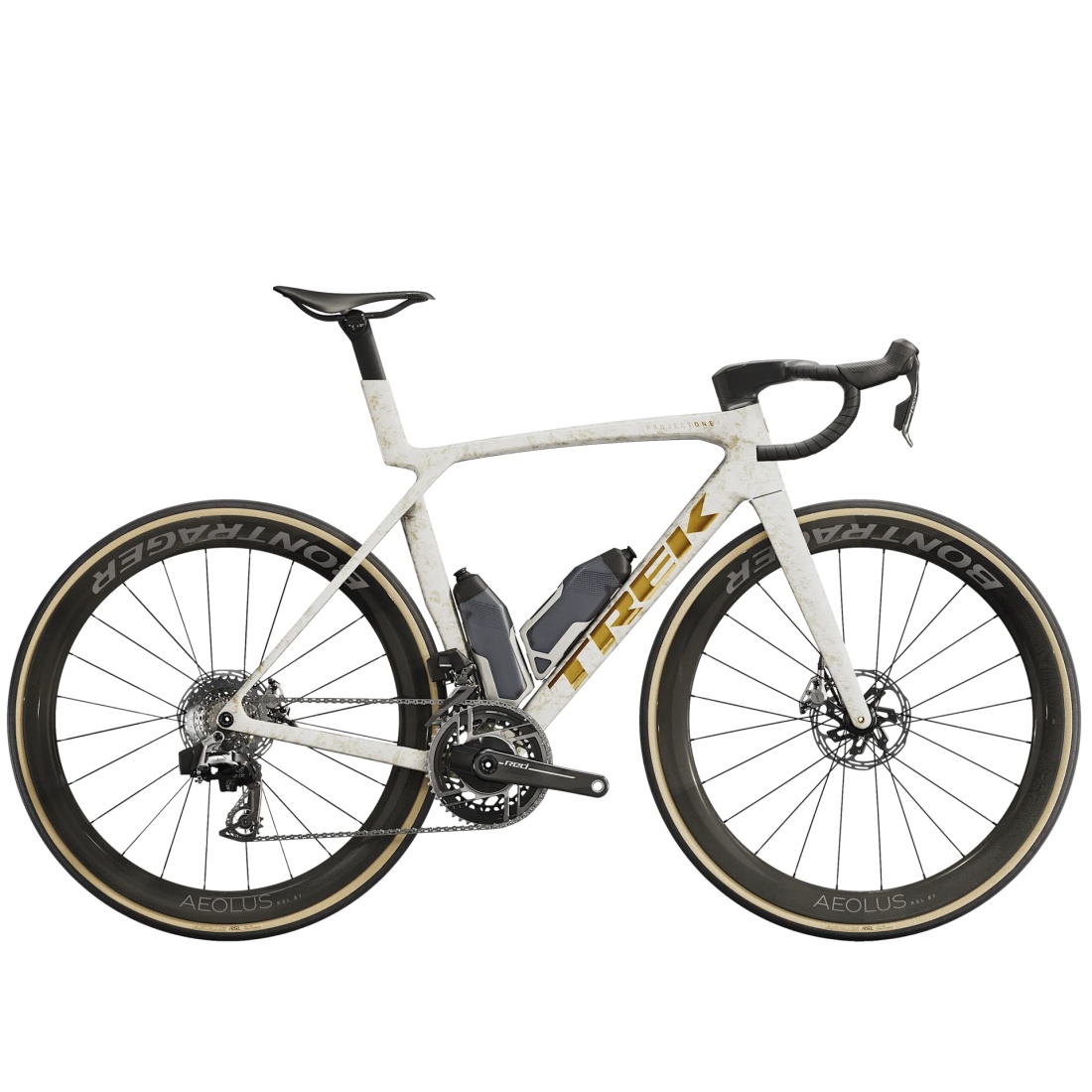

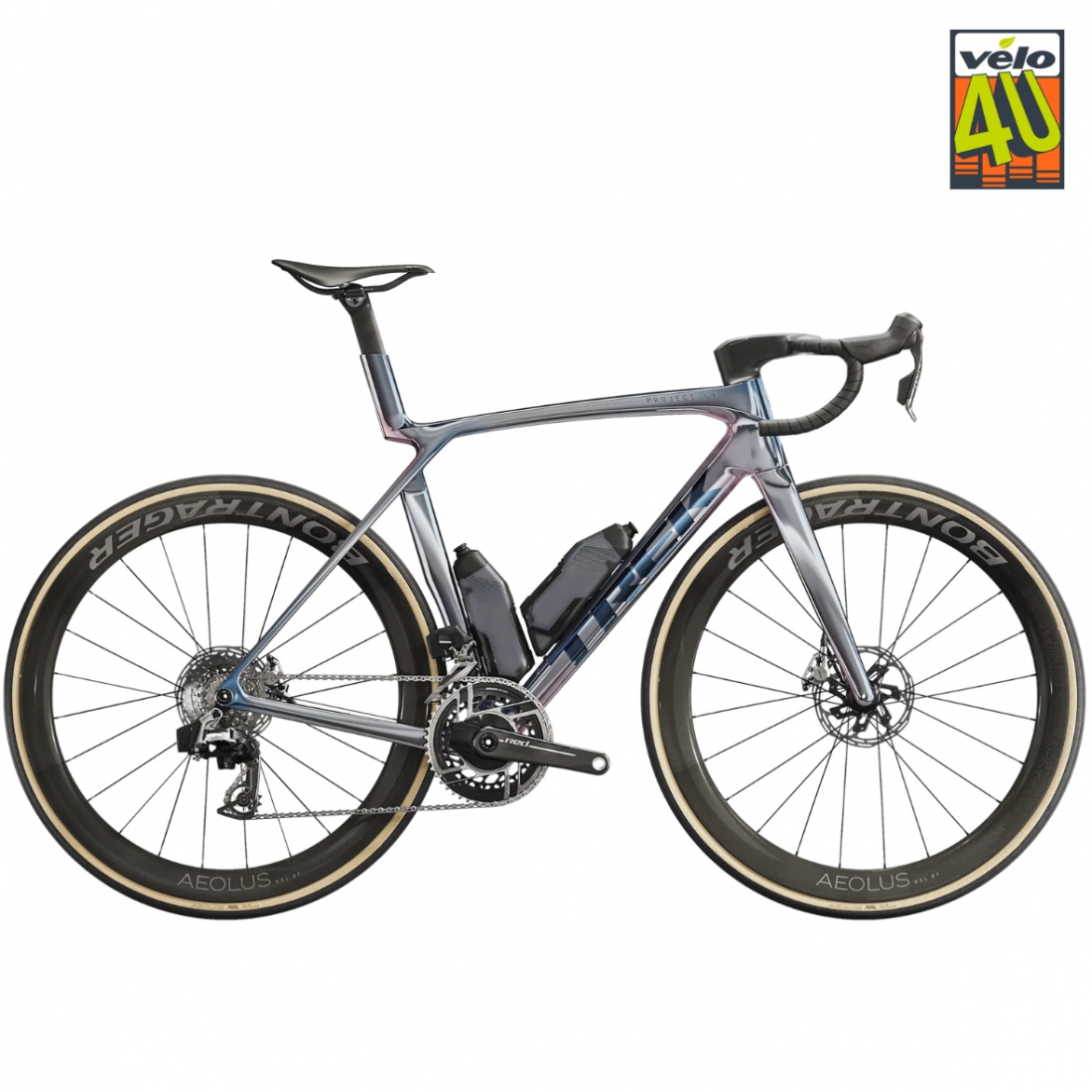

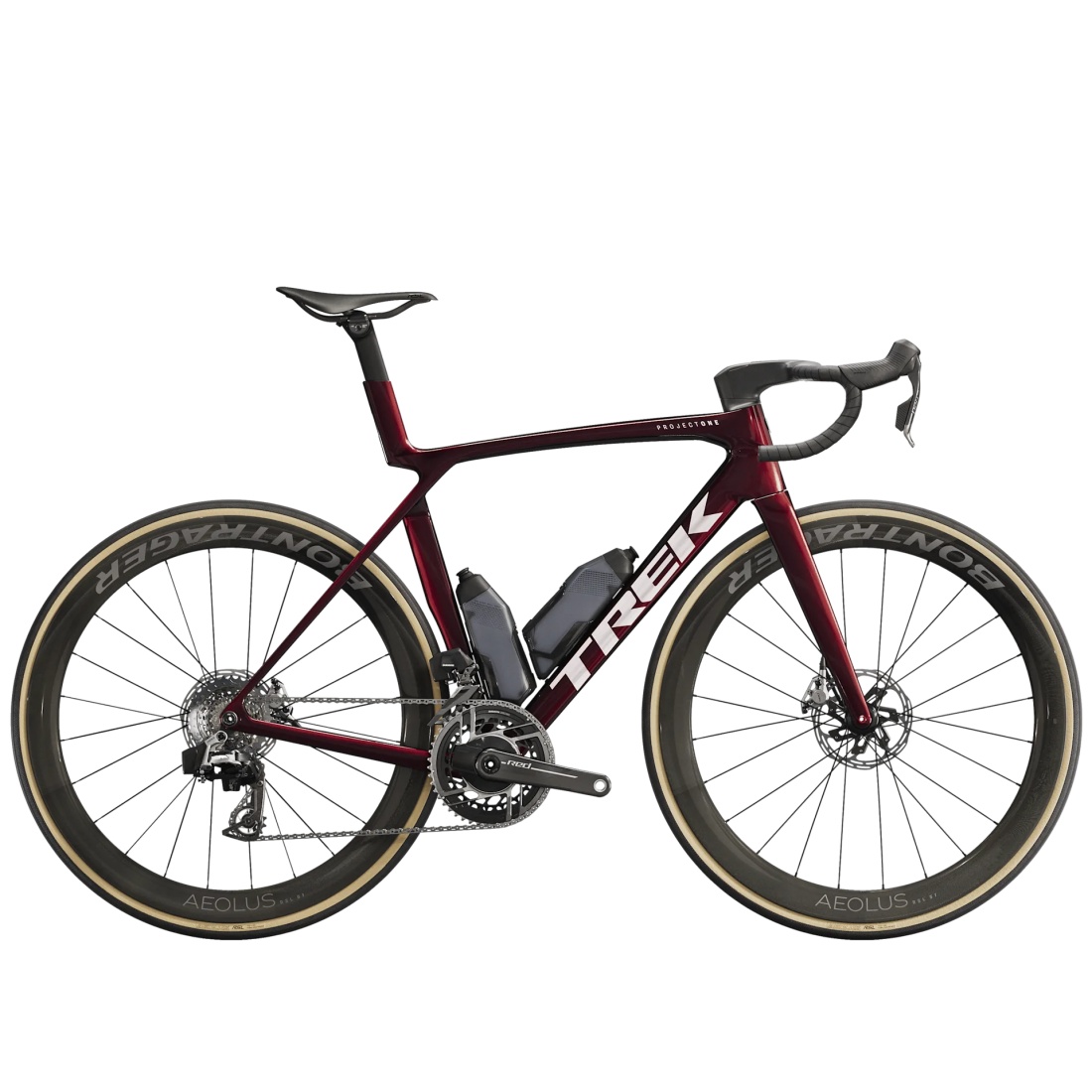

TREK MADONE SLR 9 AXS 2025

Frame:

• OCLV Carbon 900 Series, Full System Foil tube shape

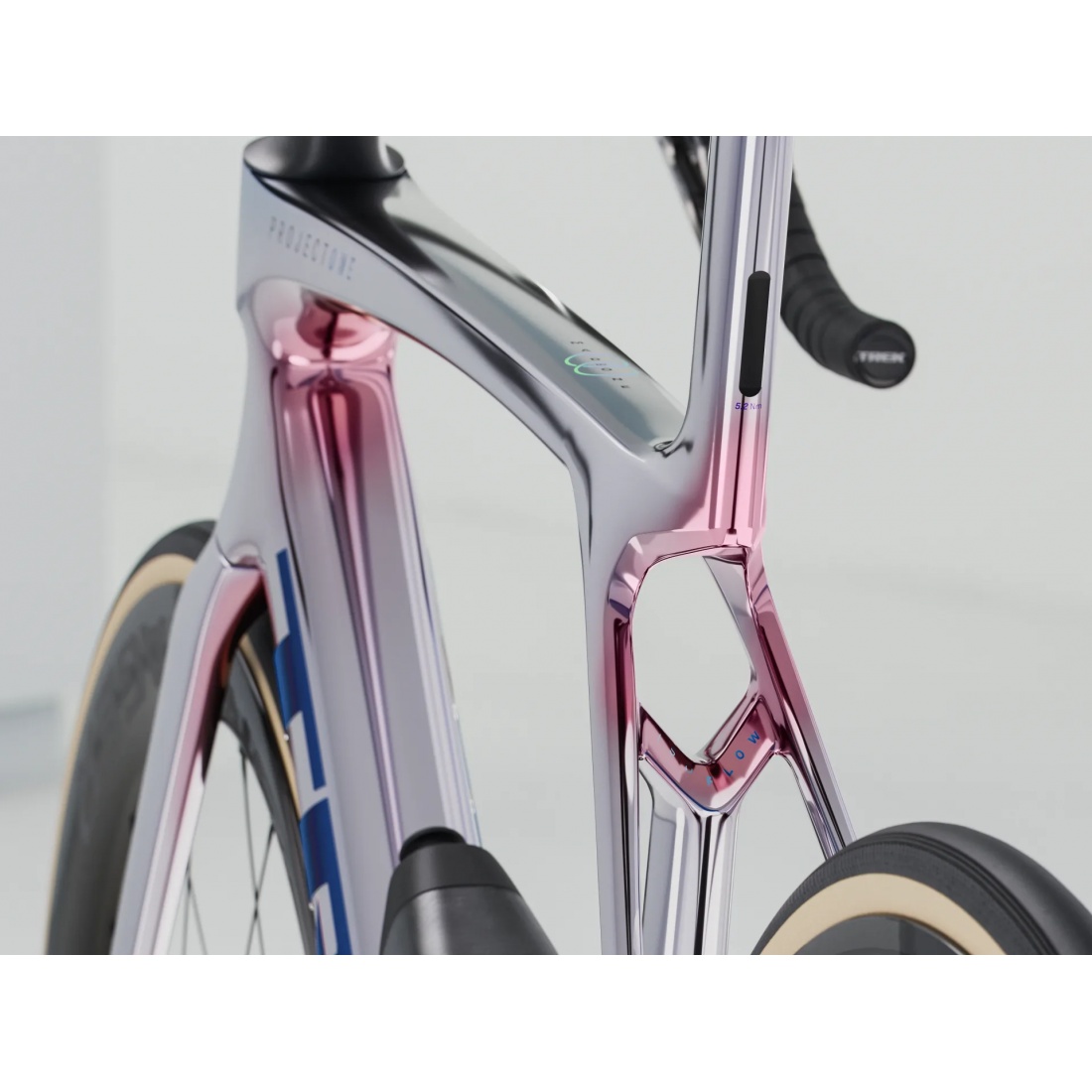

• IsoFlow seat tube
• RCS headset
• Electronic-only routing
• Removable aerodynamic chain guard
• T47 bottom bracket
• Flat-mount disc brakes
• Universal derailleur hanger (UDH)
• 142 x 12 mm thru-axle

Fork:

• 8th generation Madone full carbon
• Tapered carbon steerer
• Internal brake cable routing
• Flat-mount disc brakes
• 12 x 100 mm splined thru-axles

Weight:

• Size ML: 7.00 kg (15.44 lbs) with TLR sealant, tubeless setup, without bottles/bottle cages

Maximum Weight Limit:

• This bike has a maximum total weight limit of 125 kg (including bike, rider, and luggage)

Battery:

• SRAM eTap battery (with charger)

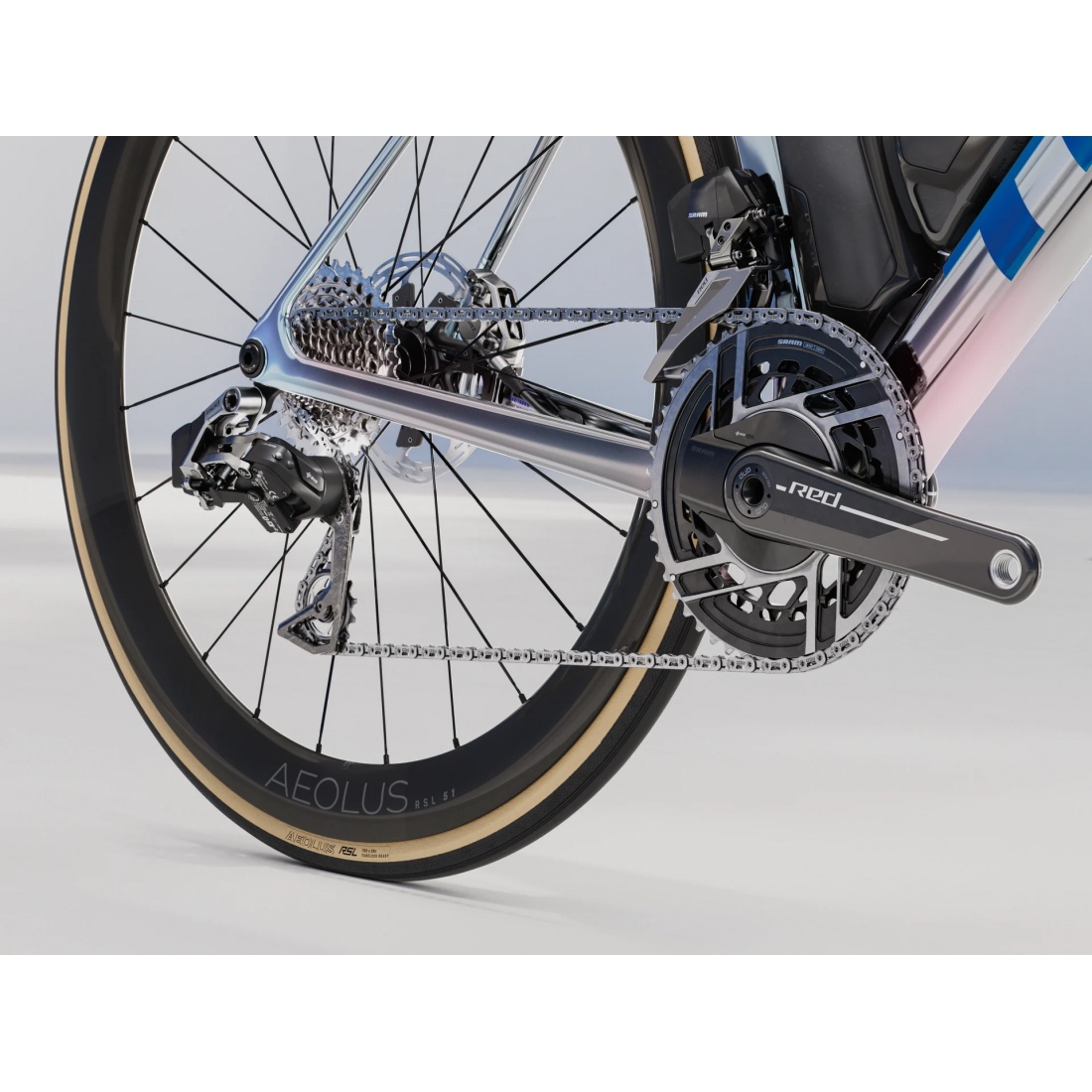

Drivetrain:

• Shifters: SRAM RED AXS E1
• Front Derailleur: SRAM RED AXS E1, braze-on
• Rear Derailleur: SRAM RED AXS E1, max 36T
• Crankset:
  • Size XS, S: SRAM RED AXS E1, power meter, 48/35, DUB spindle, 165 mm crank length
  • Size M: SRAM RED AXS E1, power meter, 48/35, DUB spindle, 170 mm crank length
  • Size ML, L: SRAM RED AXS E1, power meter, 48/35, DUB spindle, 172.5 mm crank length
  • Size XL: SRAM RED AXS E1, power meter, 48/35, DUB spindle, 175 mm crank length
• Bottom Bracket: SRAM DUB, threaded T47, internal bearing
• Cassette: SRAM RED XG-1290 E1, 10-33, 12-speed
• Chain: SRAM RED E1, 12-speed
• Max Chainring Size: 1x: 54T, 2x: 56/43

Wheels:

• Front Wheel: Bontrager Aeolus RSL 51, OCLV Carbon, Tubeless Ready, 51 mm rim depth, 100 x 12 mm thru-axle
• Rear Wheel: Bontrager Aeolus RSL 51, OCLV Carbon, Tubeless Ready, 51 mm rim depth, SRAM XD-R freehub body, 142 x 12 mm thru-axle
• Front Axle: Bontrager Switch splined thru-axle, removable lever
• Rear Axle: Bontrager Switch splined thru-axle, removable lever

Tires:

• Sizes XS, S, M, ML, L, XL: Bontrager Aeolus RSL RD, Tubeless Ready, cotton casing, aramid bead, 170 TPI, 700 x 28 mm
• Sizes XS, S, M, ML, L, XL: Pirelli P Zero Race, 120 TPI, tubeless-ready, 700 x 28 mm

Tire Sealant:

• Bontrager TLR sealant, 177 ml

Max Tire Size:

• 32 mm (as measured, see manual for details)

Saddle:

• Sizes XS, S: Aeolus RSL, carbon rails, 155 mm width
• Sizes M, ML, L, XL: Aeolus RSL, carbon rails, 145 mm width

Seatpost:

• Sizes XS, S, M, XL: Madone aero seatpost, 0 mm offset, short version
• Sizes ML, L: Madone aero seatpost, 0 mm offset, long version

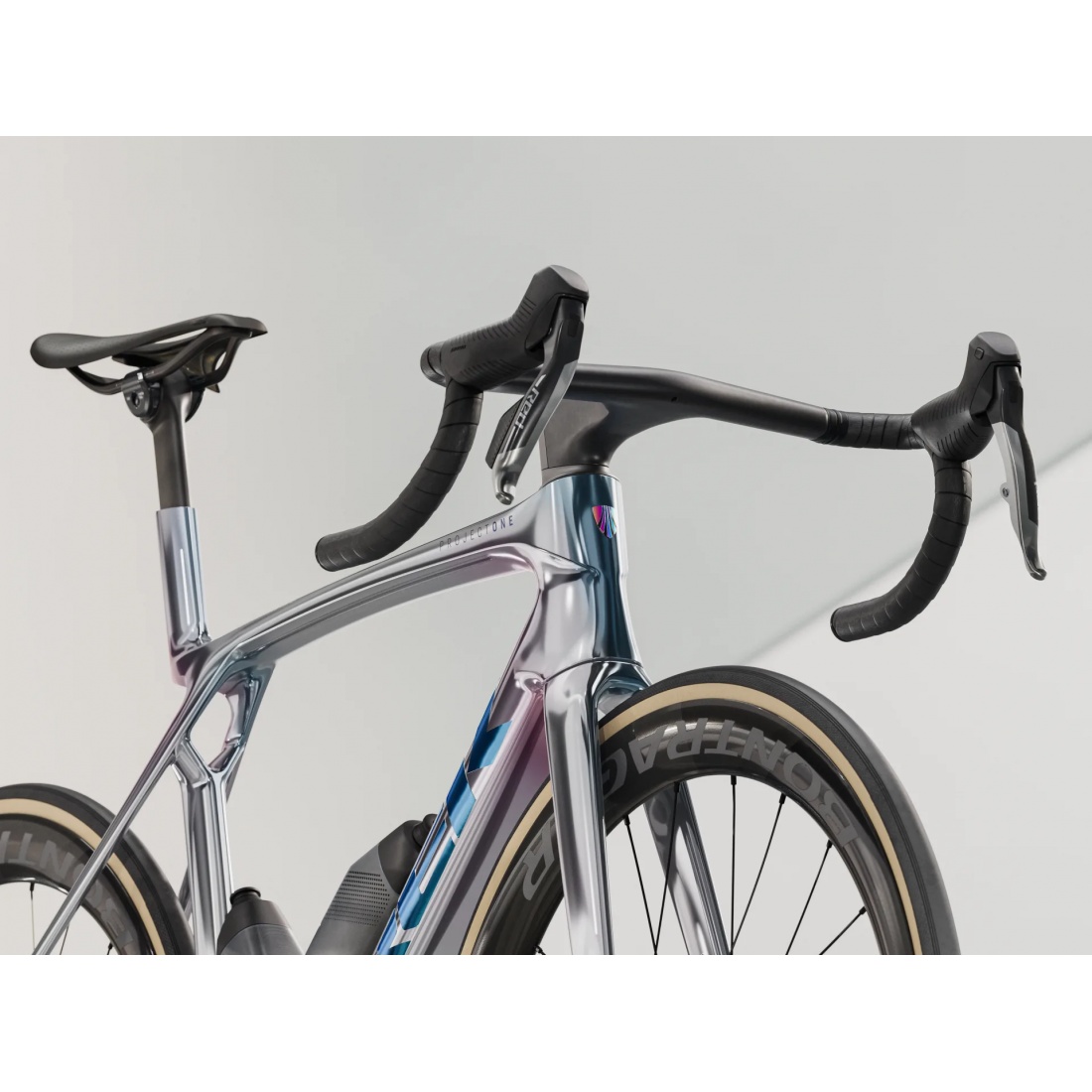

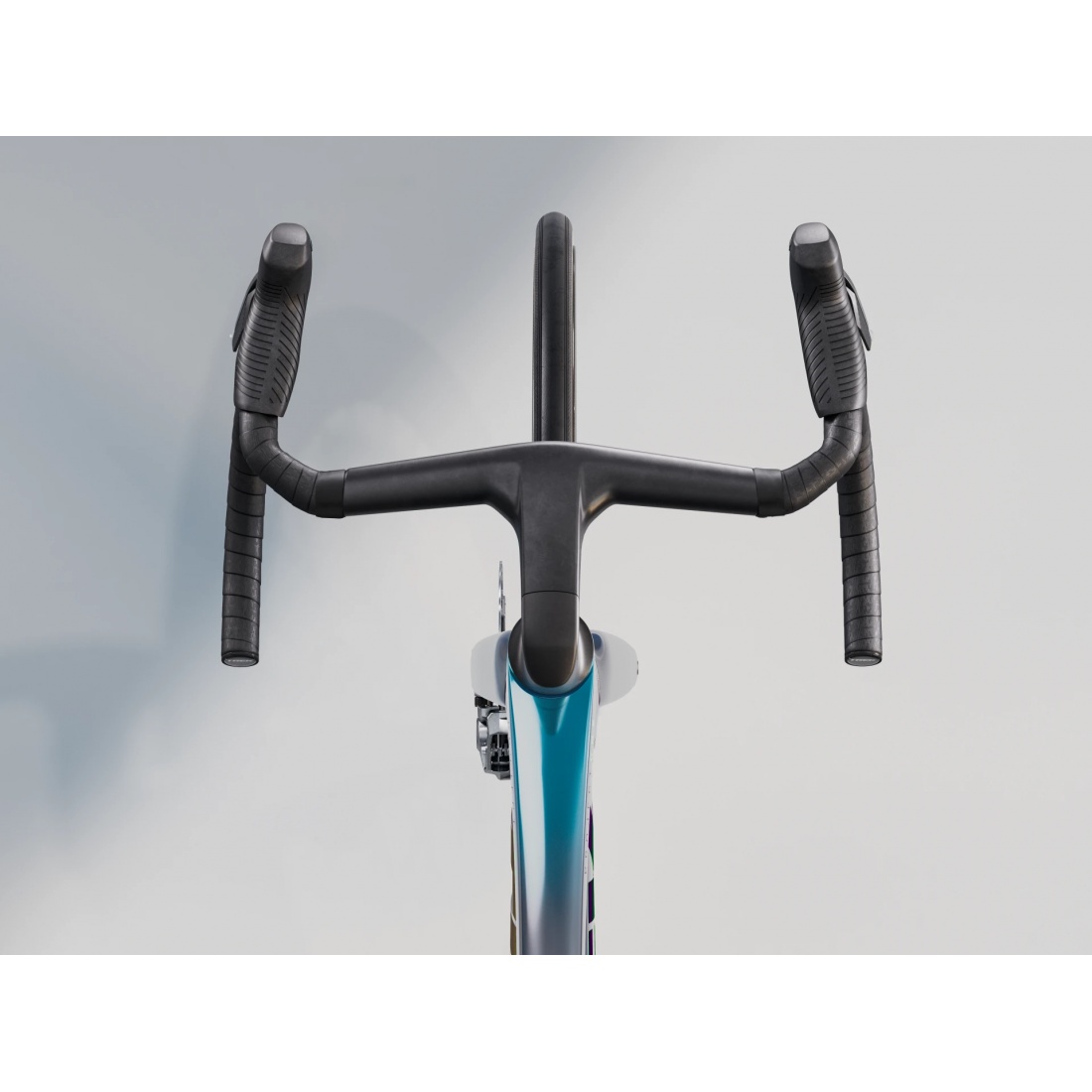

Integrated Handlebar and Stem:

• Size XS: Trek Aero RSL Integrated Bar/Stem, OCLV Carbon, Race Fit, 80 mm reach, 124 mm drop, 35 cm hoods width, 38 cm drops width, 80 mm stem length
• Size S: 37 cm hoods width, 40 cm drops width, 90 mm stem length
• Size M: 39 cm hoods width, 42 cm drops width, 90 mm stem length
• Size ML, L: 39 cm hoods width, 42 cm drops width, 100 mm stem length
• Size XL: 41 cm hoods width, 44 cm drops width, 110 mm stem length

Brake Disc Size:

• Maximum brake disc size: 180 mm front, 160 mm rear
