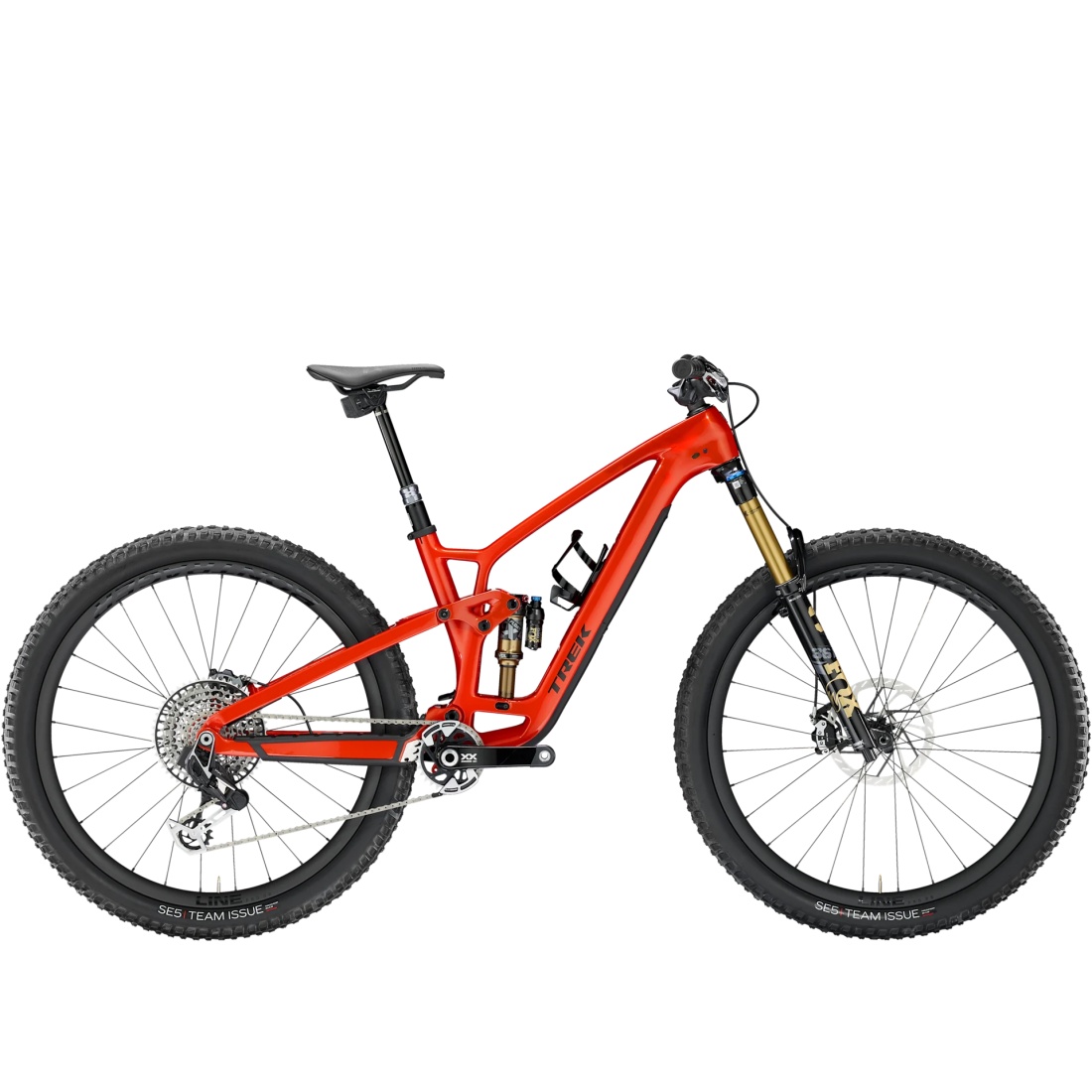

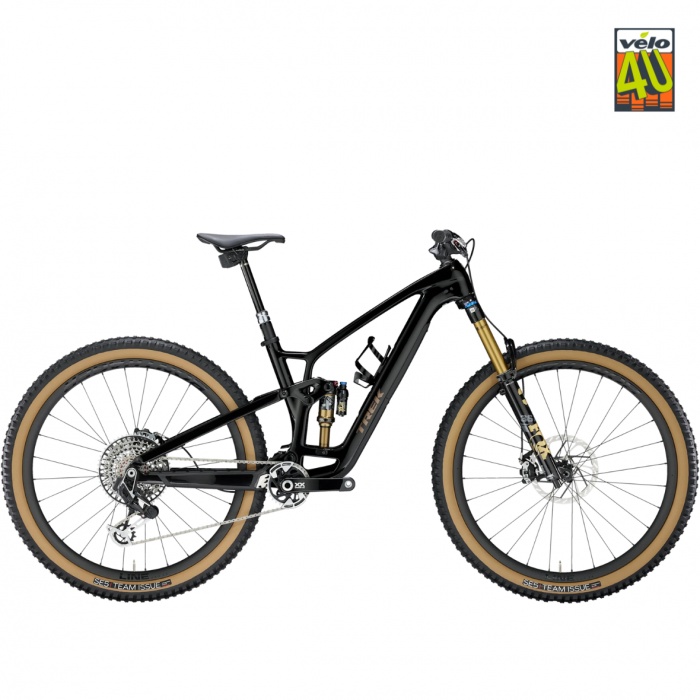

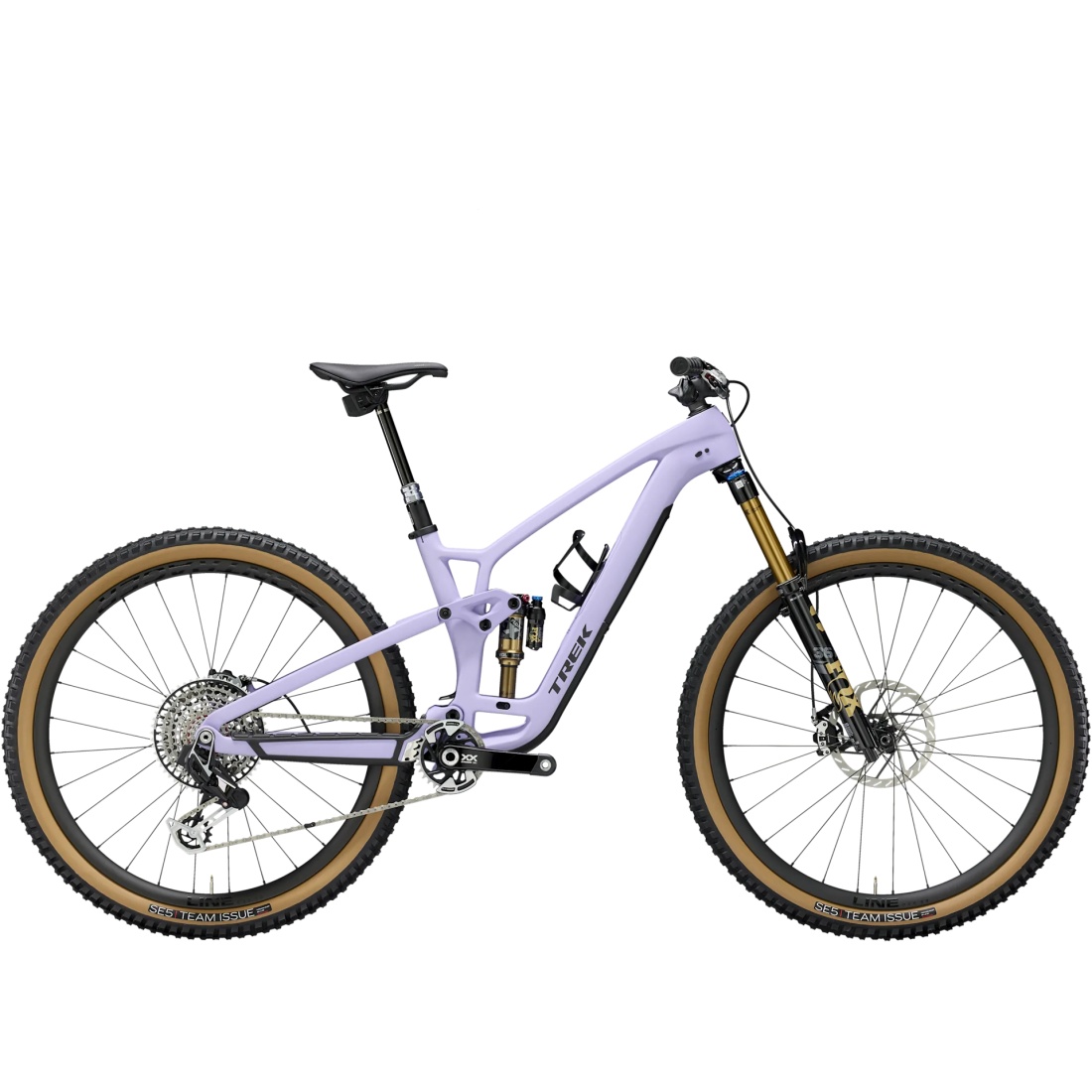

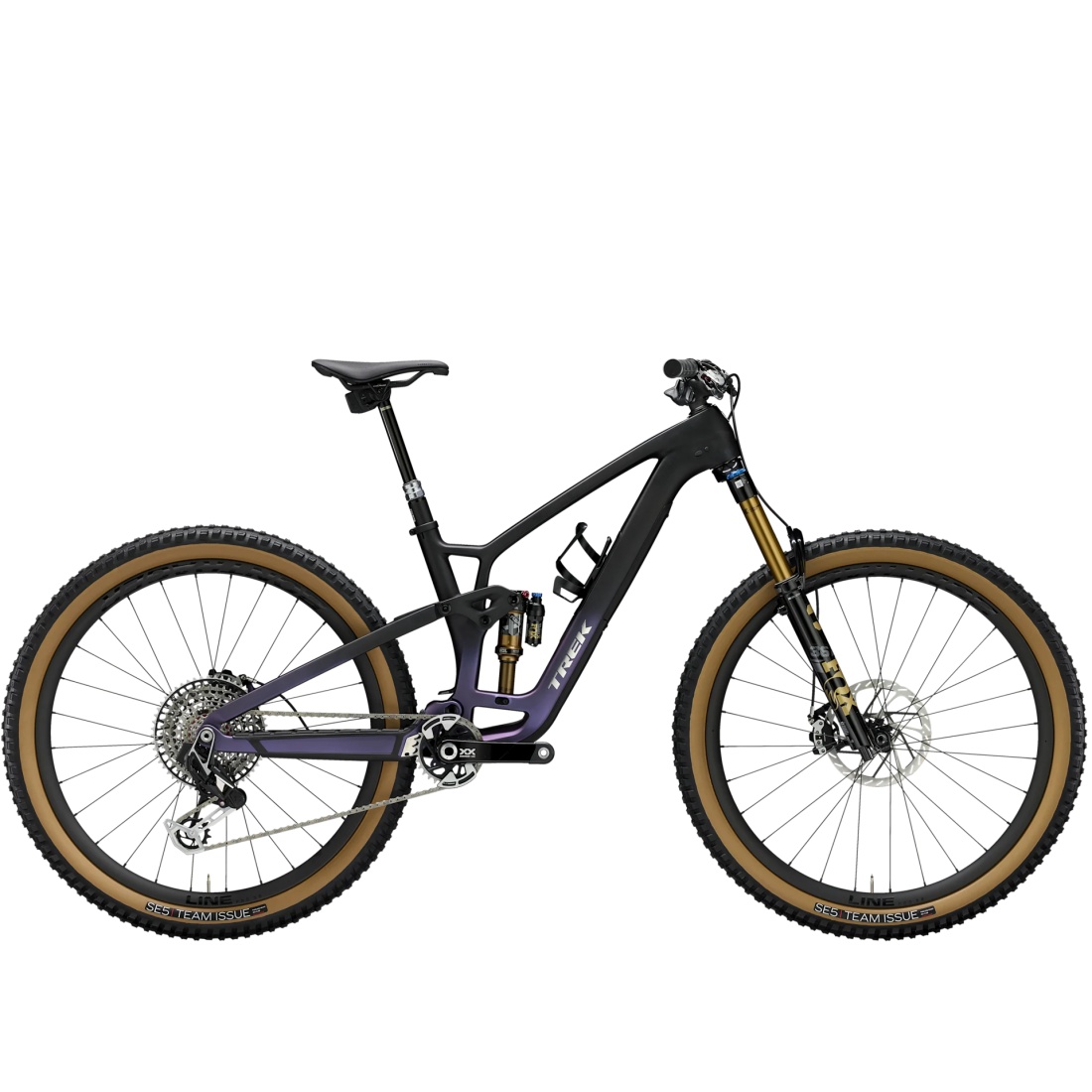

TREK FUEL EX 9.9 XX AXS T-TYPE 2025

Frame
OCLV Mountain Carbon, internal storage space, angle-adjustable headset, variable geometry via Mino Link, adjustable leverage ratio, internally guided cable routing, magnesium rocker, 34.9 mm seat tube, ISCG 05, 55 mm chainline, BSA 73, diagonal tube protection, ABP, UDH, Boost148, 140 mm travel.

Fork
Size: XS, S
Fox Factory 36, Float EVOL air spring, GRIP X2 damper, tapered steerer, 44 mm offset, Boost110, Kabolt 15 mm axle, direct-mount brake tab, 180 mm travel.

Size: M, ML, L, XL
Fox Factory 36, Float EVOL air spring, GRIP X2 damper, tapered steerer, 44 mm offset, Boost110, Kabolt 15 mm axle, direct-mount brake tab, 150 mm travel.

Shock
Fox Factory Float X, 2-position shock, 185 x 55 mm.

Maximum compatible fork travel
160 mm, XS/S: 150 mm.

Front Wheel
Size: XS, S
Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost110, 15 mm thru-axle, 27.5-inch.

Size: M, ML, L, XL
Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost110, 15 mm thru-axle, 29-inch.

Rear Wheel
Size: XS, S
Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, 6-bolt, Boost148, 12 mm thru-axle, 27.5-inch.

Size: M, ML, L, XL
Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, 6-bolt, Boost148, 12 mm thru-axle, 29-inch.

Rear Wheel Locking
Bontrager Switch thru-axle, removable lever.

Tires
Size: XS, S
Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 120 tpi, 27.5x2.50 inches.

Size: XS, S
Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 60 tpi, 27.5x2.50 inches.

Size: M, ML, L, XL
Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 120 tpi, 29x2.50 inches.

Size: M, ML, L, XL
Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 60 tpi, 29x2.50 inches.

Tire Sealant
Bontrager TLR Sealant, 177 ml.

Rim Tape
Bontrager TLR.

Maximum Tire Size
Frame: 29x2.60 inches (XS: 27.5x2.60 inches), Fork: Check manufacturer.

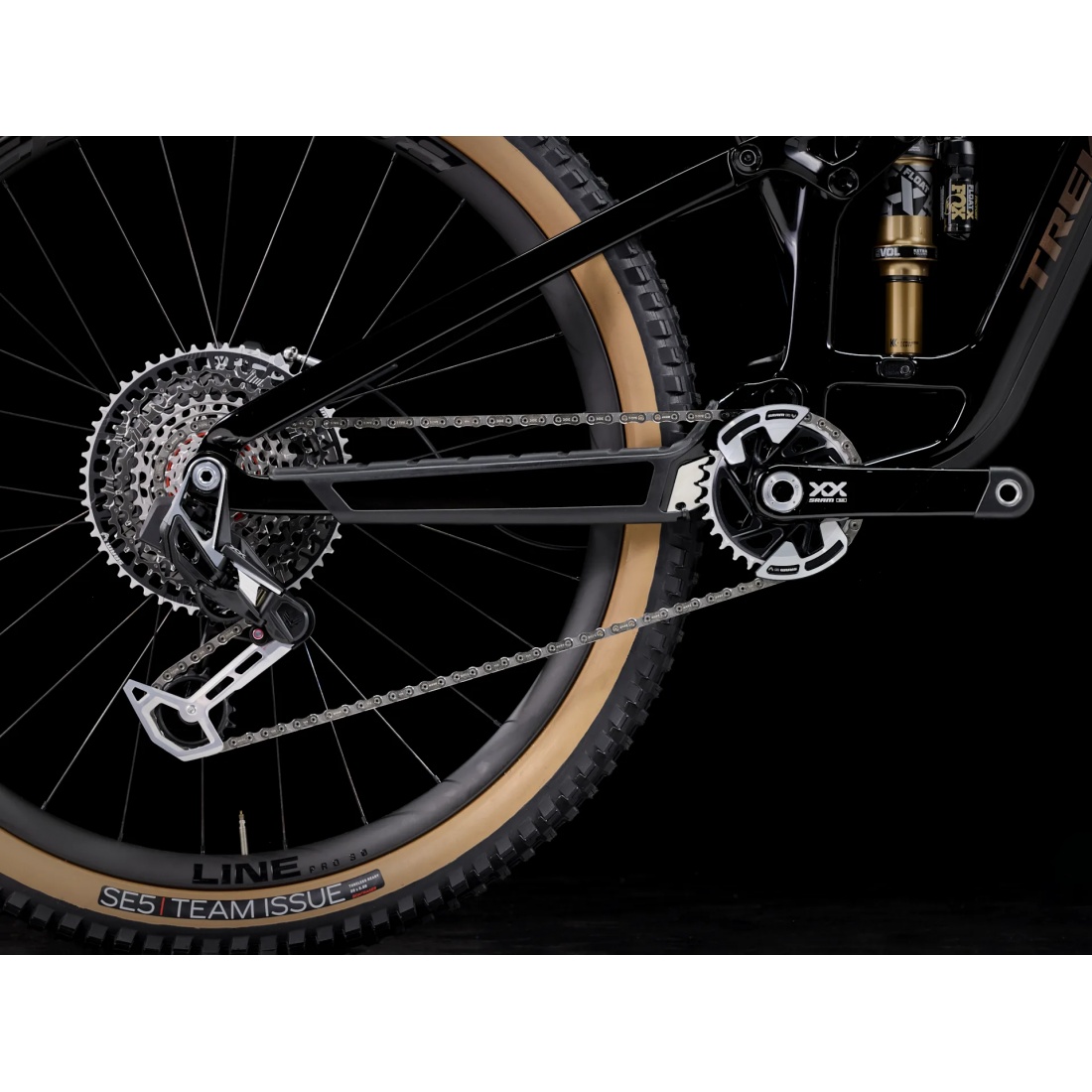

Rear Derailleur
SRAM XX Eagle AXS, Type T.

Crankset
SRAM XX Eagle, DUB axle, 30 dts, Type T, 55 mm chainline, 170 mm length.

Bottom Bracket
SRAM DUB MTB wide, 73 mm BSA threaded.

Cassette
SRAM Eagle XS-1297, Type T, 10-52, 12-speed.

Chain
Size: XS, S, M, ML, L
SRAM XX Eagle, Type T, 12-speed.

Size: XL
SRAM XX Eagle, T-Type, 12-speed.

Maximum Chainring Size
1x: 36 dts, min 32 dts.

Saddle
Verse Short Pro, carbon rails, 145 mm width.

Seatpost
Size: XS, S
RockShox Reverb AXS, 100 mm travel, wireless, 34.9 mm, 340 mm length.

Size: M, ML
RockShox Reverb AXS, 150 mm travel, wireless, 34.9 mm, 440 mm length.

Size: L, XL
RockShox Reverb AXS, 170 mm travel, wireless, 34.9 mm, 480 mm length.

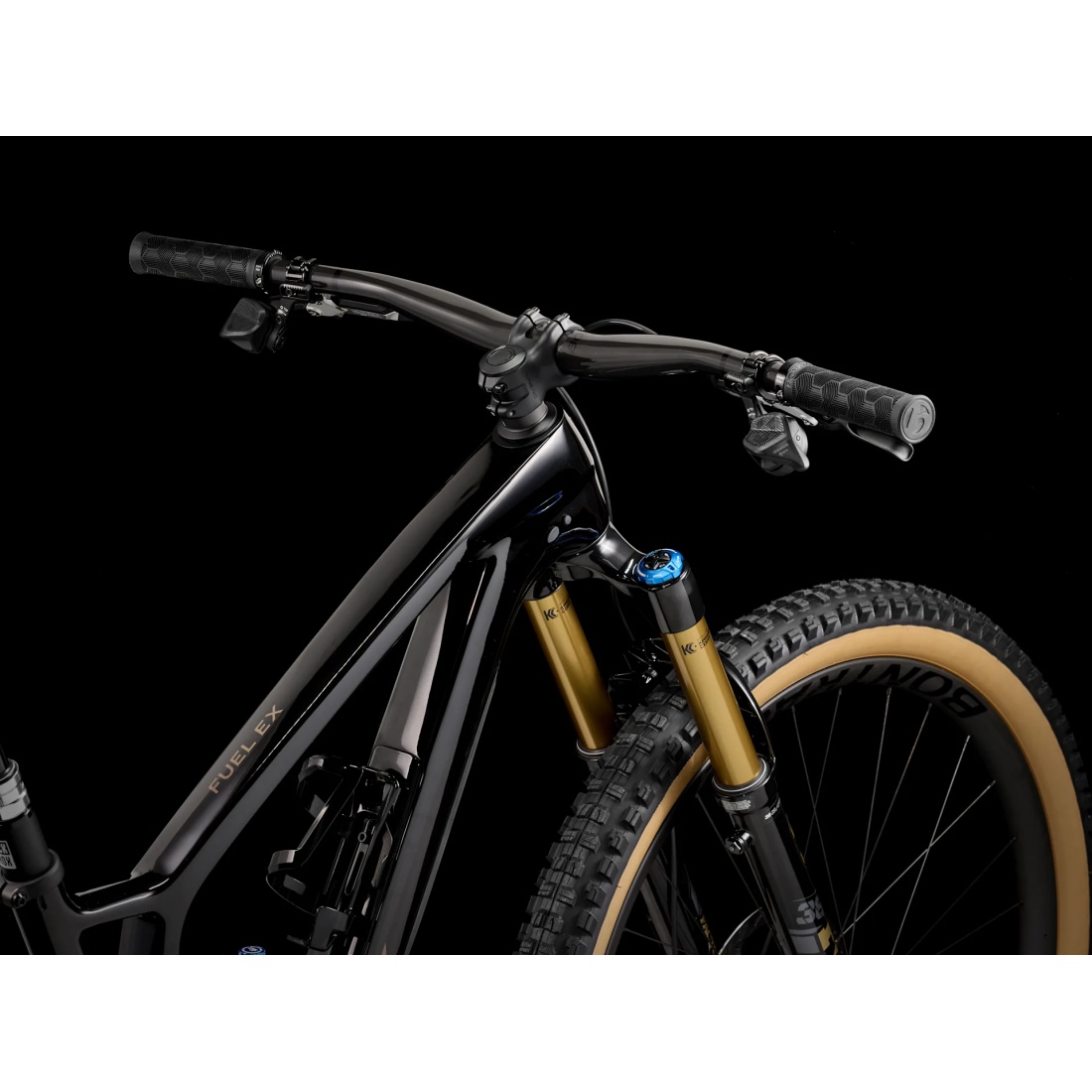

Handlebar
Bontrager Line Pro, OCLV Carbon, 35 mm, 27.5 mm rise, 780 mm width.

Grips
Bontrager XR Trail Elite, nylon lock-on.

Stem
Bontrager Line Pro, 35 mm, Blendr compatible, 0-degree rise, 35 mm length.

Headset
Integrated cartridge bearings, 1-1/8" top, 1.5" bottom, compatible with adjustable-angle cup.

Brakes
Size: XS, S, M, ML, L, XL
SRAM Maven Ultimate hydraulic, 4-piston disc.

Brake Discs
Size: XS, S, M, ML, L, XL
SRAM HS2, 6-bolt, 180 mm.

Size: M, ML, L, XL
SRAM 6-bolt, 200 mm.

Disc Specifications
Maximum brake disc size:
Frame: 203 mm, minimum 180 mm.
Fork: Check fork manufacturer.

Tool
Bontrager BITS integrated multi-tool.

Weight
M - 14.48 kg / 31.93 lbs (with TLR sealant, no inner tubes).

Maximum Weight
This bike has a maximum total weight limit (including the weight of the bike, rider, and luggage) of 136 kg (300 lbs).
