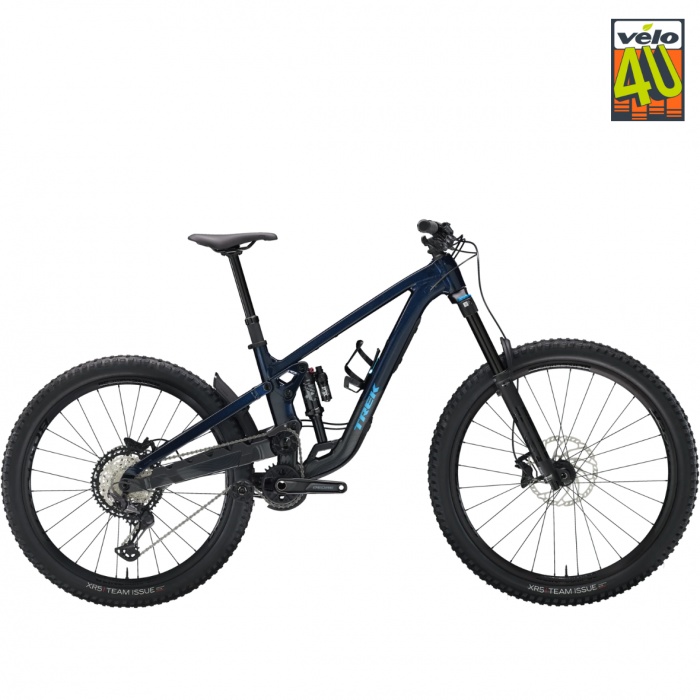

TREK SLASH 8 2025

Frame: Alpha Platinum Aluminum, high main pivot, idler pulley, internal storage, adjustable-angle headset, adjustable compliance level, integrated frame protection, internal cable routing, alloy rocker link, ISCG 05, Active Braking Pivot, UDH, 148x12 mm thru-axle, 170 mm travel.

Fork: Fox Rhythm 36, Float EVOL air spring, GRIP damper, tapered steerer, 44 mm offset, Boost110, Kabolt-X 15 mm axle, 170 mm travel.

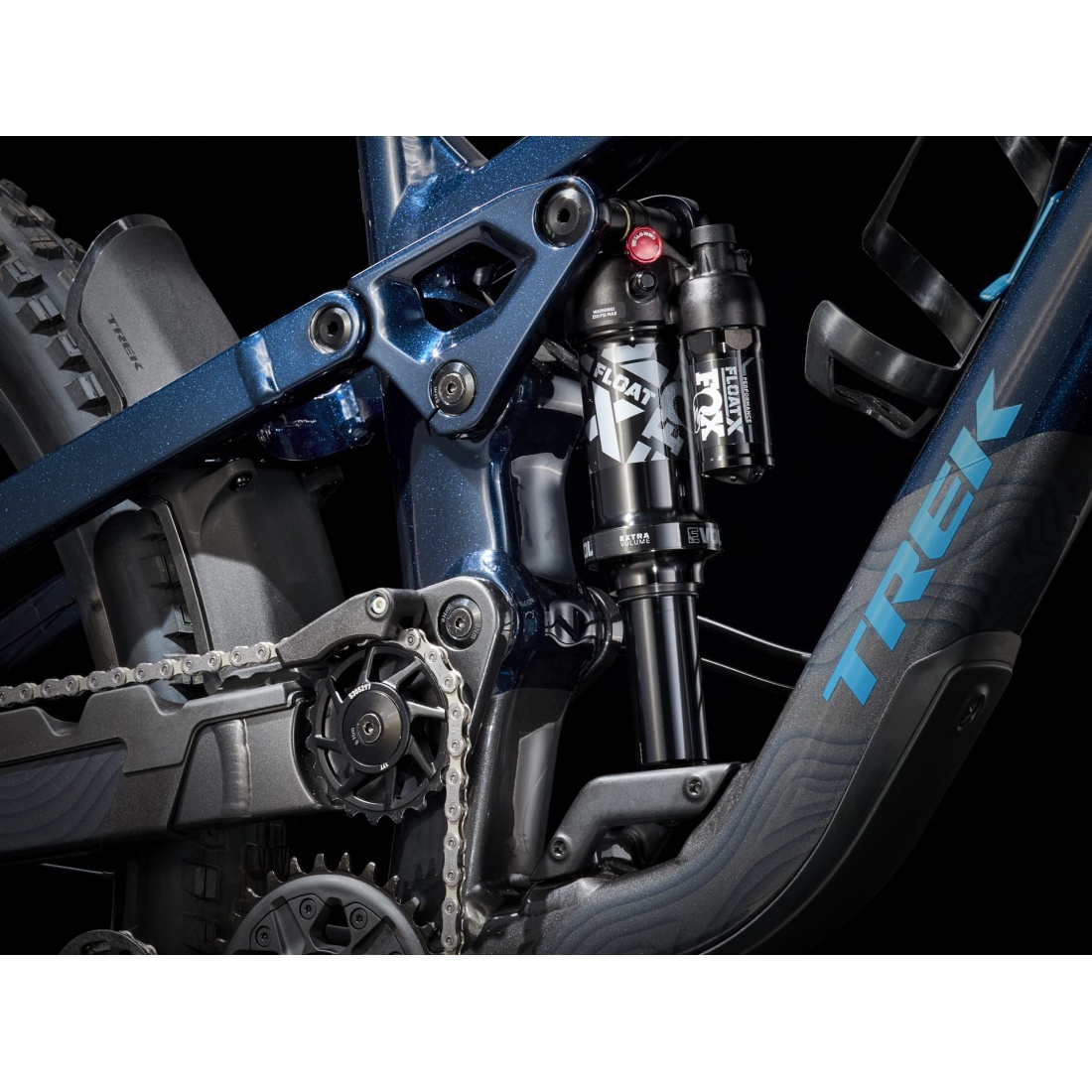

Shock: Fox Performance Float X, 2-position damper, 230x65 mm dimensions.
Maximum compatible fork travel: 190 mm (fork height of 606 mm), S: 190 mm (587 mm fork height).

Wheels:

• Front Wheel:
  • Size S: Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15 mm thru-axle, 27.5 inches.
  • Sizes M, ML, L, XL: Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15 mm thru-axle, 29 inches.
• Rear Wheel: Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, Boost148, 12 mm thru-axle, 27.5 inches.
• Rear Axle: Bontrager Switch thru-axle, removable lever.

Tires:

• Sizes S, M, ML, L, XL: Bontrager XR5 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 60 tpi, 27.5x2.50 inches.
• Sizes M, ML, L, XL: Bontrager XR5 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 60 tpi, 29x2.50 inches.
  Tire Sealant: Bontrager TLR sealant, 177 ml.
  Rim Tape: Bontrager TLR.
  Maximum Tire Size: Frame: 2.50 inches, Fork: See manufacturer.

Drivetrain:

• Shifter: Shimano XT M8100, 12-speed.

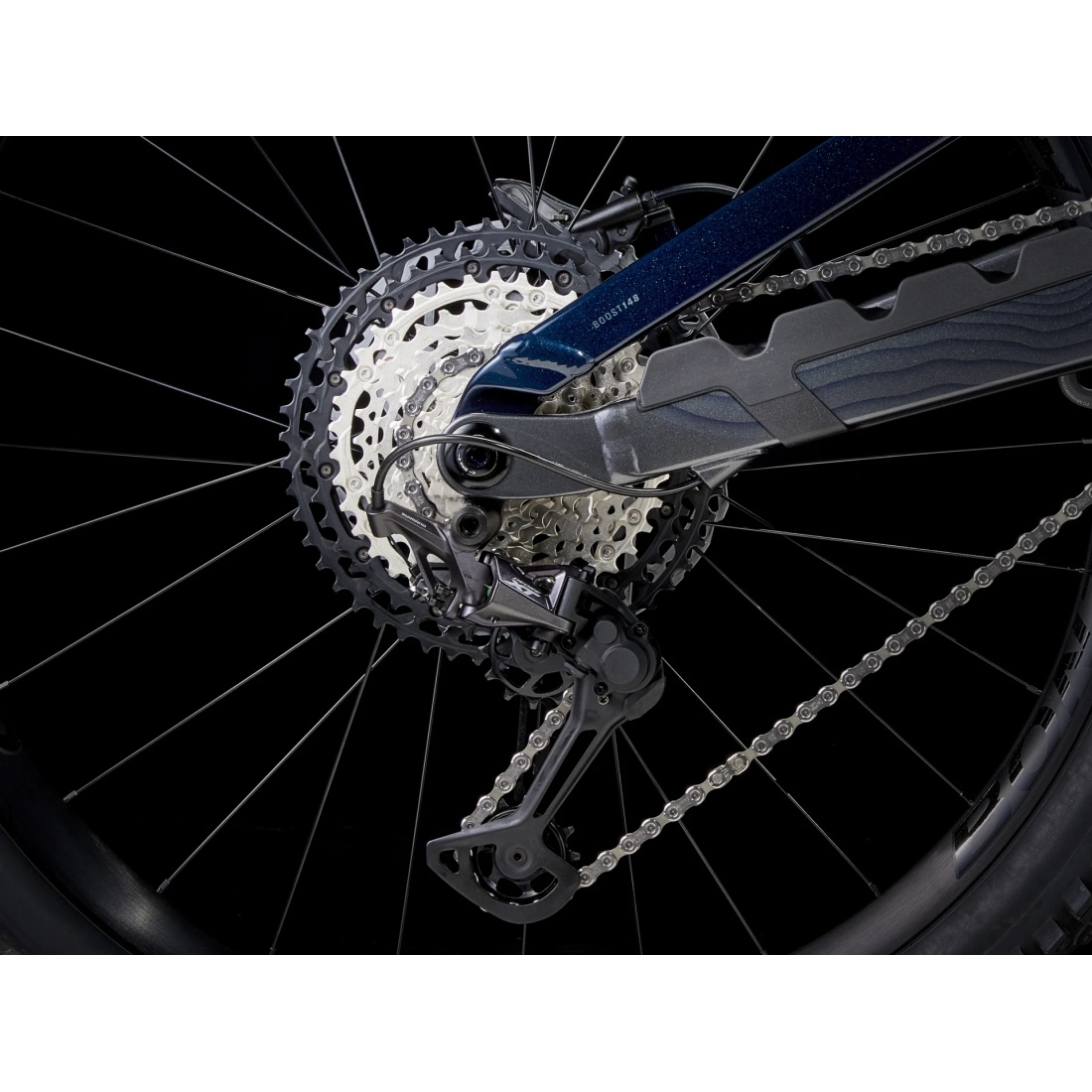

• Rear Derailleur: Shimano XT M8100, long cage.

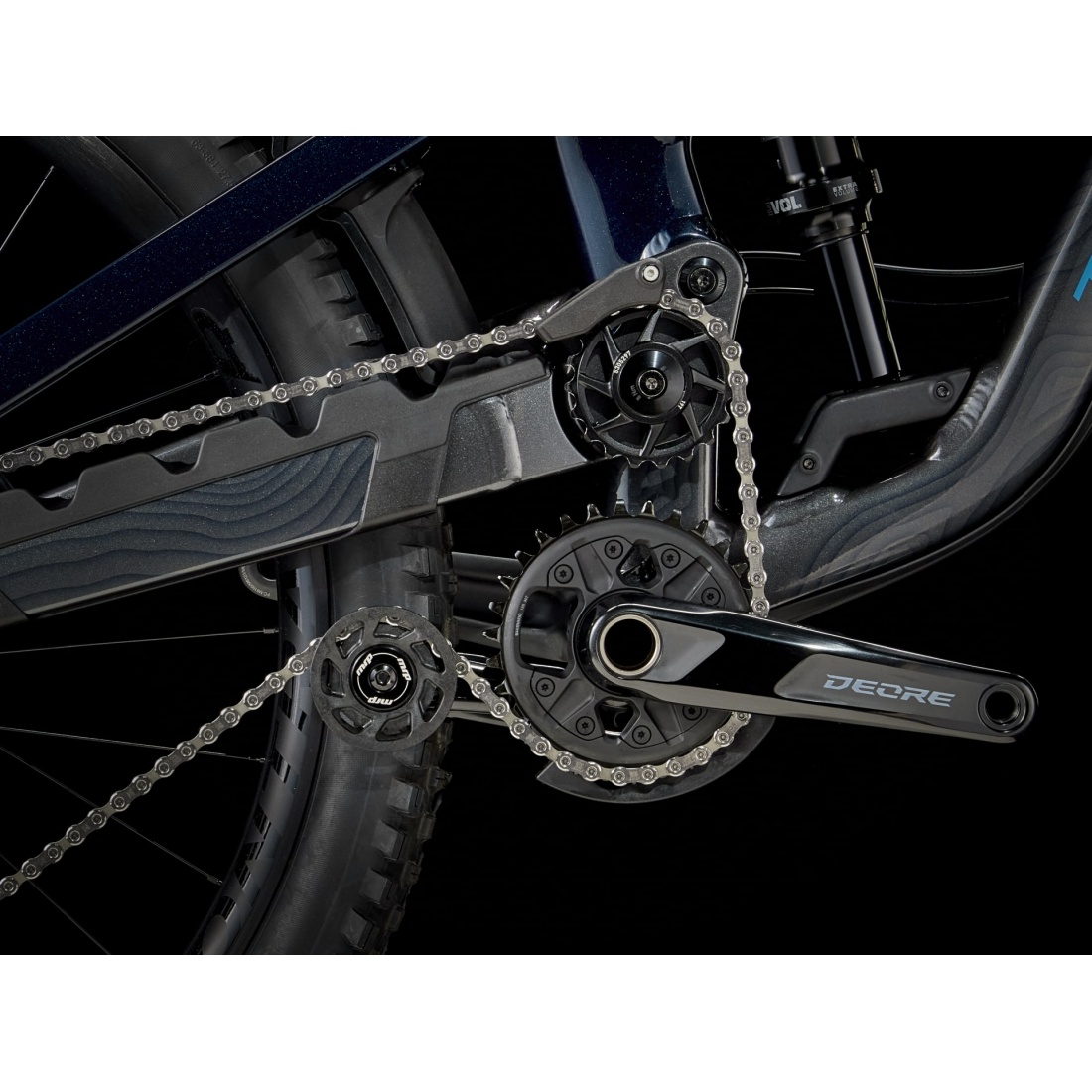

• Crankset: Shimano Deore M6120, 30T chainring, 55 mm chainline, 165 mm length.
• Bottom Bracket: Shimano BB-MT501 BSA.
• Cassette: Shimano XT M8100, 10-51, 12-speed.
• Chain: Shimano SLX M7100, 12-speed.
• Maximum Chainring Size: 1x: 34T (round), 32T (oval); Min: 28T.

Saddle: Bontrager Arvada, hollow chromoly rails, 138 mm width.
Seatpost:

• Size S: Bontrager Line Dropper, 100 mm travel, MaxFlow, internal routing, 34.9 mm diameter, 310 mm length.
• Sizes M, ML, L, XL: Bontrager Line Dropper, 170 mm travel, MaxFlow, internal routing, 34.9 mm diameter, 450 mm length.

Components:

• Handlebar: Bontrager Line, alloy, 35 mm clamp, 27.5 mm rise, 820 mm width.
• Grips: Bontrager XR Trail Pro, lock-on alloy clamp.
• Stem: Bontrager Elite, 35 mm clamp, 0° angle, 35 mm length.

Brakes: Shimano hydraulic, M6100 lever, M6120 4-piston caliper.

• Brake Rotors: Shimano RT66, 6-bolt, 203 mm.
• Maximum Rotor Size: Frame: 220 mm, Fork: See manufacturer.

Accessories: Bontrager BITS integrated frame storage bag.

Weight: Size M - 16.68 kg / 36.78 lbs (with TLR sealant, tubeless setup).
Maximum Total Weight: 136 kg (including bike, rider, and gear).
