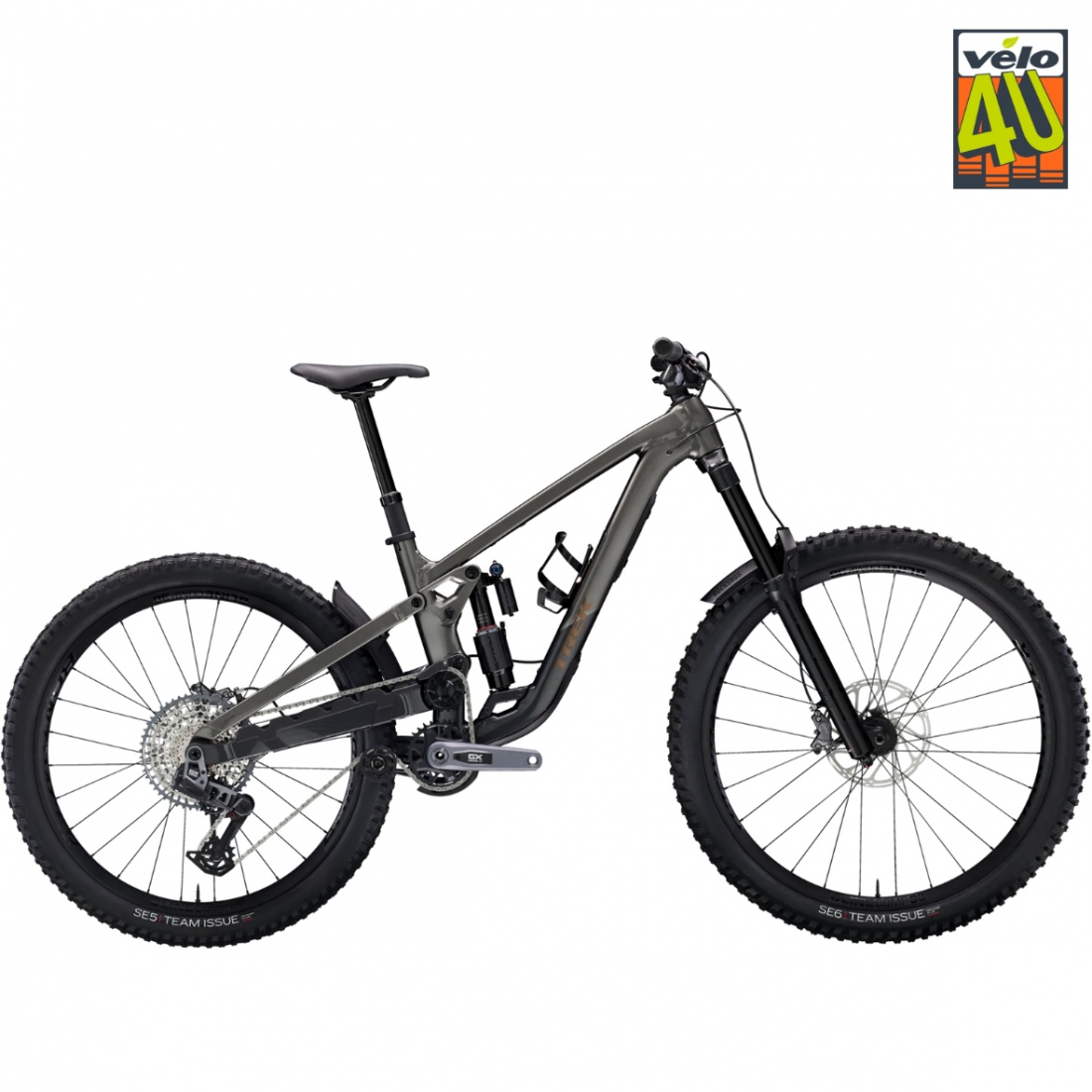

TREK SLASH 9 GX AXS 2025

Frame: Alpha Platinum Aluminum, high main pivot, chain guide roller, internal storage, adjustable angle headset, adjustable stiffness, integrated frame protection, internal cable routing, alloy rocker, ISCG 05, Active Braking Pivot, UDH, thru-axle 148x12 mm, 170 mm travel.

Fork:

• Size S: RockShox ZEB Select+, DebonAir spring, Charger 3.1 RC2 damper, tapered steerer, 44 mm offset, Boost110, Maxle Stealth, 170 mm travel.
• Size S (version 2): RockShox ZEB Select+, DebonAir spring, Charger 3 RC2 damper, tapered steerer, 44 mm offset, Boost110, Maxle Stealth, 170 mm travel.
• Sizes M, ML, L, XL: RockShox ZEB Select, DebonAir spring, Charger RC damper, tapered steerer, 44 mm offset, Boost110, Maxle Stealth, 170 mm travel.

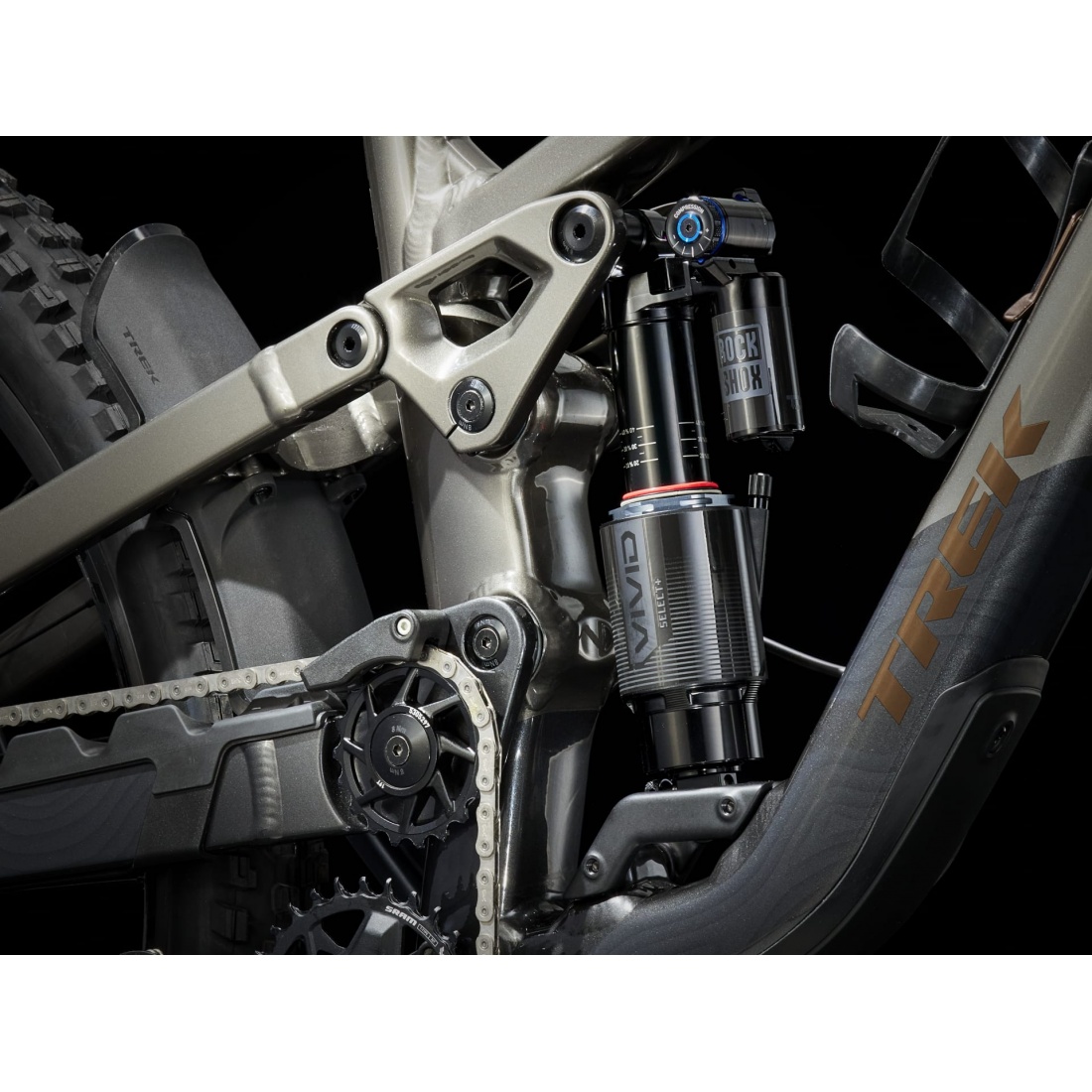

Shock: RockShox Vivid Select+, 230 mm x 65 mm.
Maximum Compatible Fork Travel: 190 mm (fork height 606 mm), S: 190 mm (fork height 587 mm).

Wheels:

• Front Wheel:
  • Size S: Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, thru-axle 15 mm, 27.5 inches.
  • Sizes M, ML, L, XL: Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, thru-axle 15 mm, 29 inches.
• Rear Wheel: Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, Boost148, thru-axle 12 mm, 27.5 inches.
• Rear Wheel Locking: Bontrager Switch thru-axle, removable lever.

Tires:

• Size S: Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 120 tpi, 27.5x2.50 inches.
• Sizes M, ML, L, XL: Bontrager SE6 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 120 tpi, 29x2.50 inches.
  Tire Sealant: Bontrager TLR sealant, 177 ml.
  Rim Tape: Bontrager TLR.
  Maximum Tire Size: Frame: 2.50 inches; Fork: See fork manufacturer.

Drivetrain:

• Shift Lever: SRAM AXS POD.
• Rear Derailleur: SRAM GX Eagle AXS, Type T.

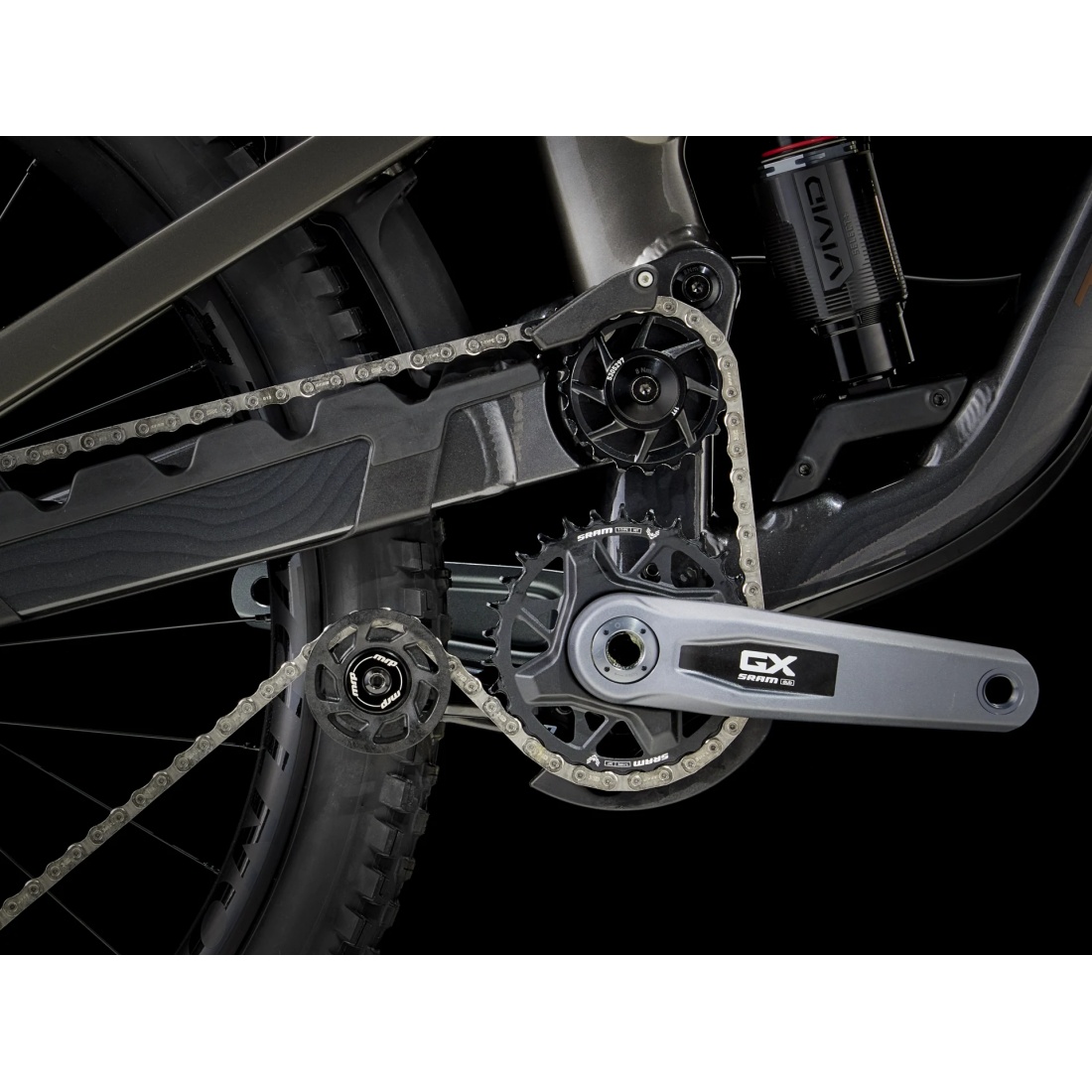

• Crankset: SRAM GX Eagle, DUB MTB Wide, Type T, 30T chainring, 55 mm chainline, 165 mm crank length.
• Bottom Bracket: SRAM DUB MTB Wide, 73 mm, BSA threaded.
• Chain: SRAM GX Eagle, Type T, 12-speed.
• Max Chainring Size: 1x: 34T (round), 32T (oval); Min: 28T.

Saddle: Bontrager Arvada, hollow chromoly rails, 138 mm width.
Dropper Post:

• Size S: Bontrager Line Dropper, 100 mm travel, MaxFlow, internal cable routing, 34.9 mm diameter, 310 mm length.
• Sizes M, ML, L, XL: Bontrager Line Dropper, 170 mm travel, MaxFlow, internal cable routing, 34.9 mm diameter, 450 mm length.

Brakes: SRAM CODE Bronze, 4-piston hydraulic disc brakes.

• Brake Rotor: SRAM CenterLine, 6-bolt, rounded edges, 200 mm.
• Max Disc Rotor Size: Frame: 220 mm; Fork: See fork manufacturer.

Accessories: Bontrager BITS pouch for integrated frame storage.

Weight: Size M - 17.47 kg (with TLR sealant, no tubes).
Maximum Recommended Weight: 136 kg (bike, rider, and gear).
