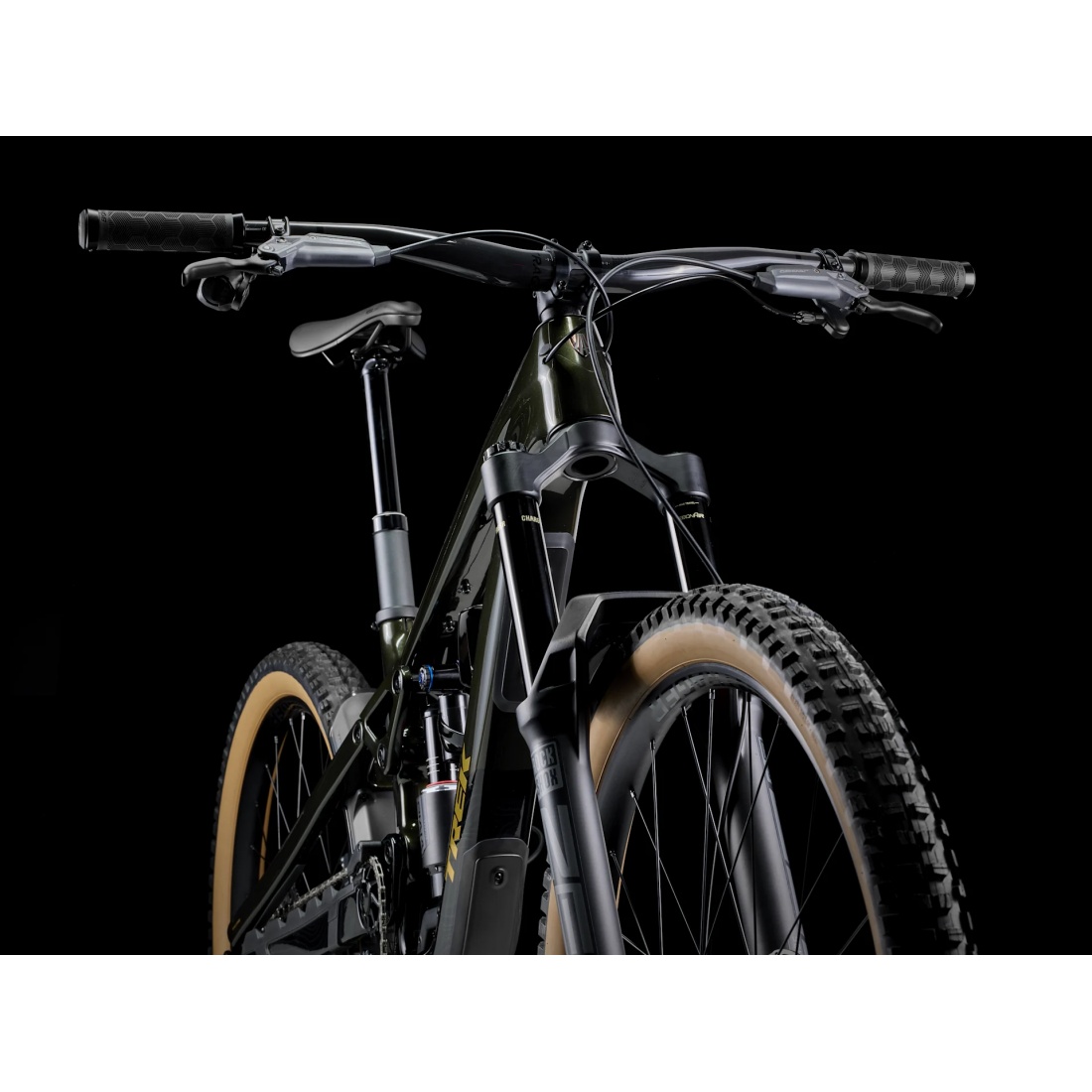

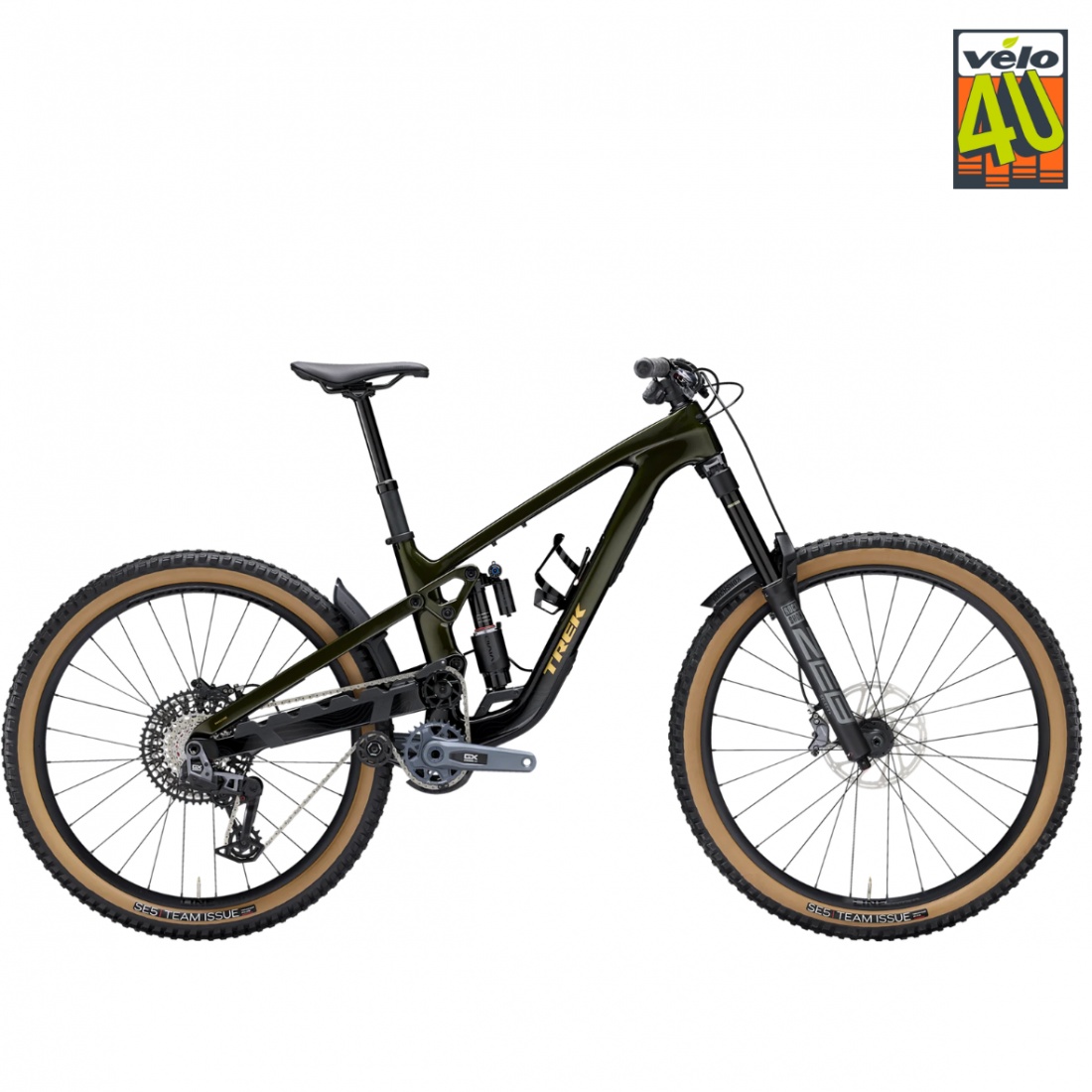

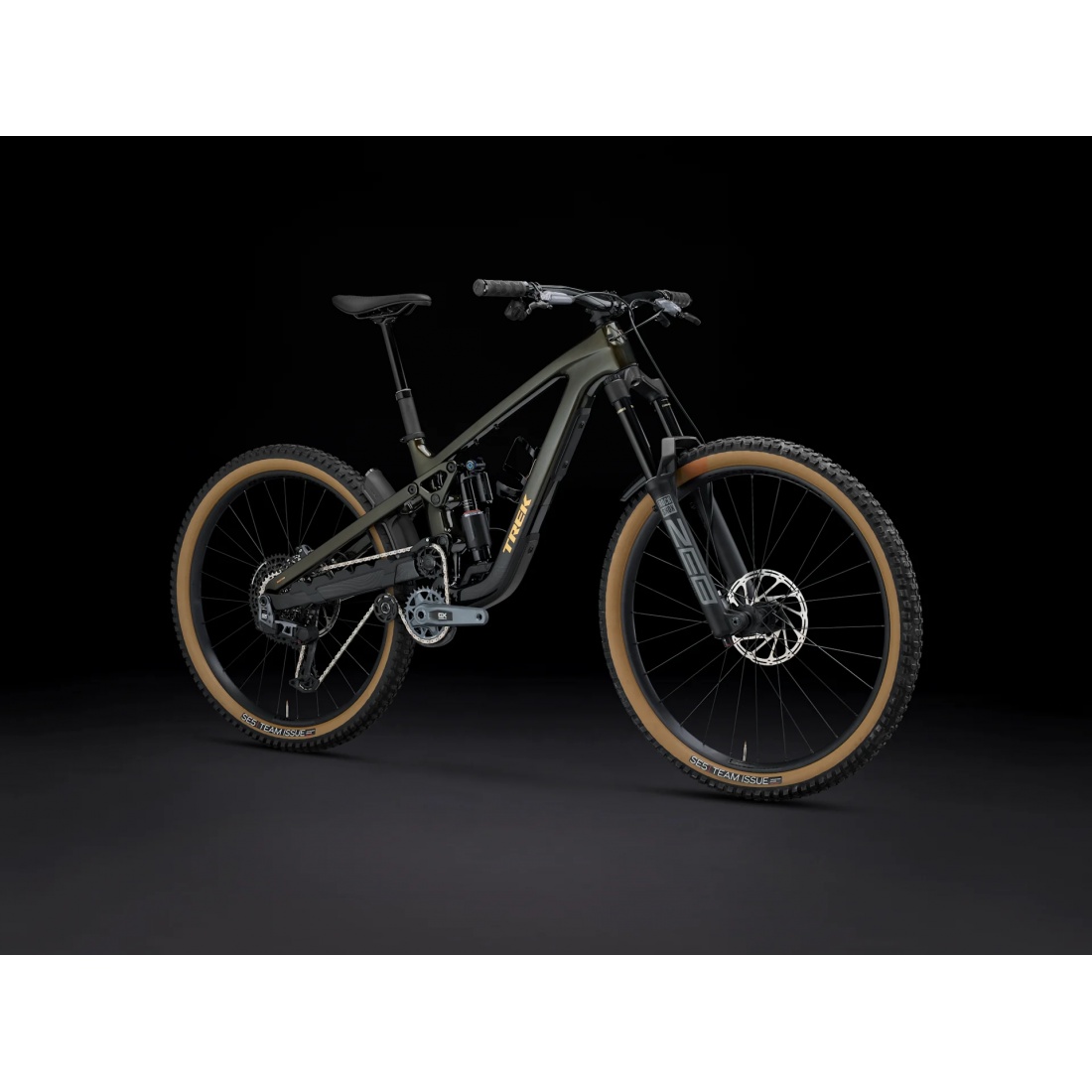

TREK SLASH 9.8 GX AXS T-TYPE 2025

Frame:
OCLV Mountain Carbon, high main pivot, tensioner pulley, internal storage, adjustable angle headset, adjustable flex level, integrated frame protection, internal cable routing, alloy rocker link, ISCG 05, Active Braking Pivot, UDH, 148x12 mm thru-axle, 170 mm travel.

Fork:
RockShox ZEB Select+, DebonAir spring, Charger 3.1 RC2 damper, tapered steerer, 44 mm offset, Boost110, Maxle Stealth, 170 mm travel.

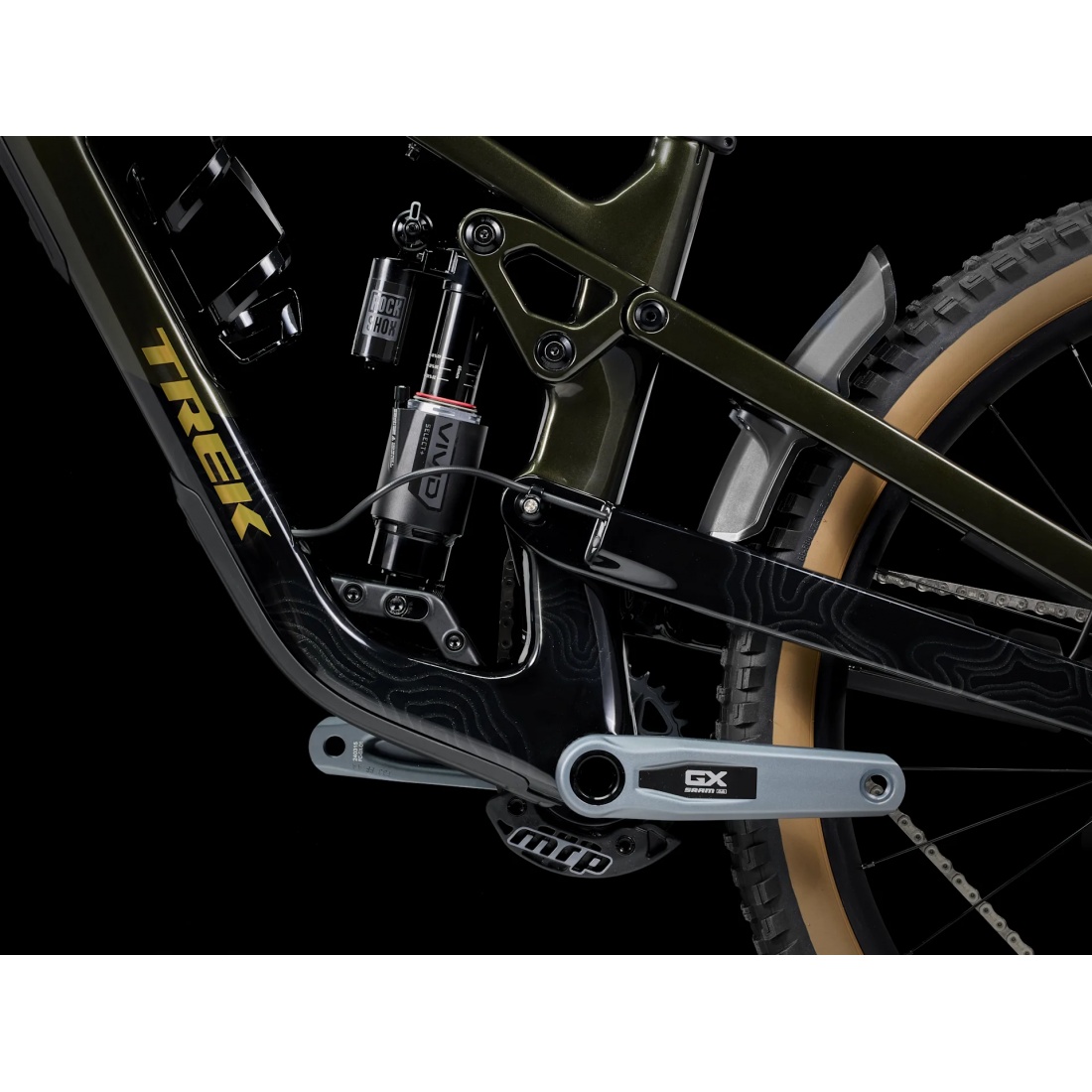

Shock:
RockShox Vivid Select+, 230 mm x 65 mm.

Maximum Fork Travel Compatibility:
190 mm (606 mm fork height); Size S: 190 mm (587 mm fork height).

Wheels:

• Front Wheel:
  • Size S: Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15 mm thru-axle, 27.5 inches.
  • Sizes M, ML, L, XL: Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15 mm thru-axle, 29 inches.
• Rear Wheel:
  Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, Boost148, 12 mm thru-axle, 27.5 inches.

Tires:

• Size S, M, ML, L, XL: Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 60 tpi, 27.5x2.50”.
• Sizes M, ML, L, XL: Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 60 tpi, 29x2.50”.

Tire Sealant:
Bontrager TLR sealant, 177 ml.

Max Tire Size:
Frame: 29x2.50 inches; Fork: See fork manufacturer.

Battery:
SRAM eTap battery (with charger).

Shifter:
SRAM AXS POD.

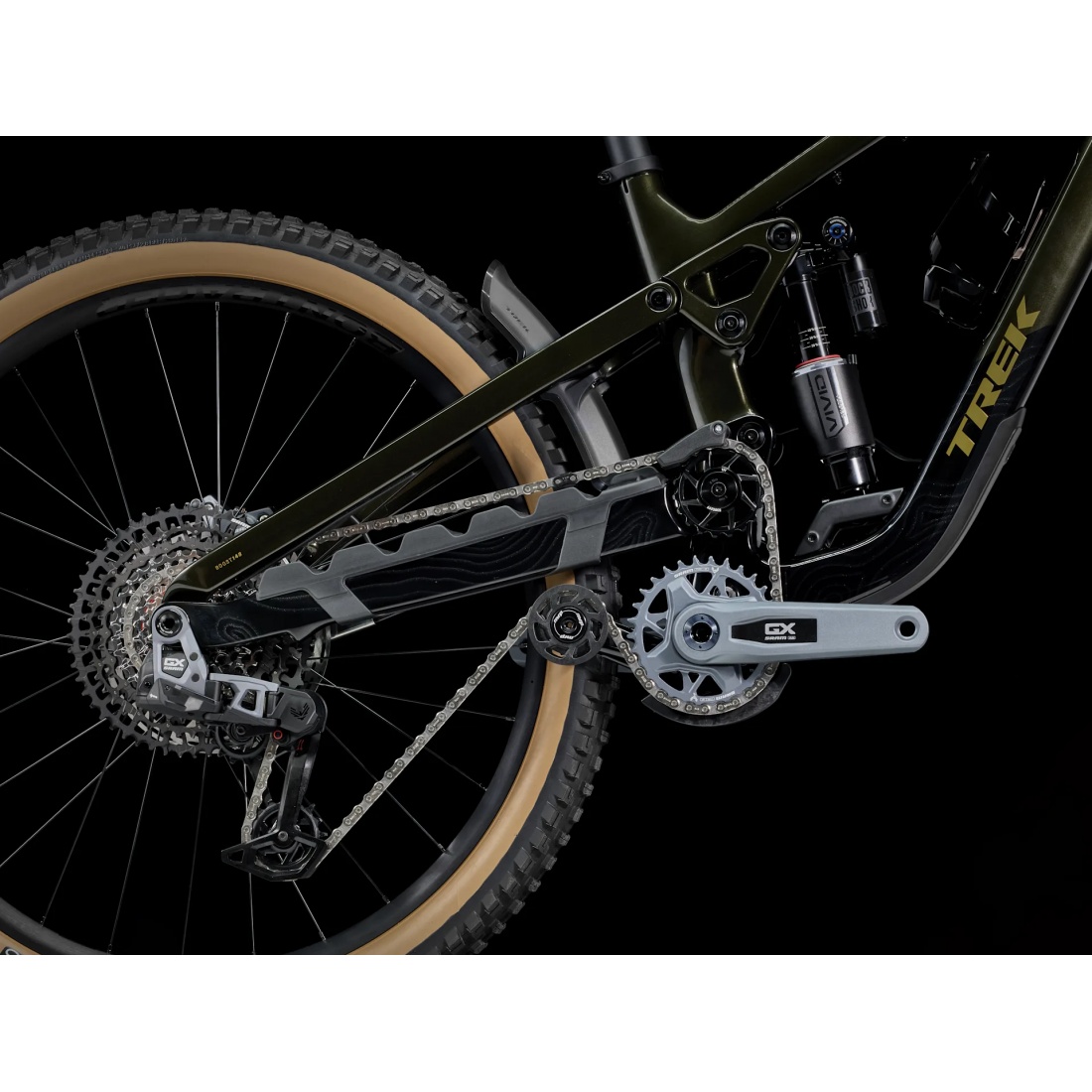

Rear Derailleur:
SRAM GX Eagle AXS, Type T.

Crankset:
SRAM GX Eagle, DUB Wide MTB, Type T, 30T, 55 mm chainline, 165 mm crank length.

Bottom Bracket:
SRAM DUB Wide MTB, 73 mm, BSA threaded.

Cassette:
SRAM Eagle XS-1275, Type T, 10-52, 12-speed.

Chain:
SRAM GX Eagle, Type T, 12-speed.

Max Chainring Size:
1x: 34T round, 32T oval; Min: 28T.

Saddle:
Verse Short Comp, steel rails, 145 mm width.

Dropper Post:

• Size S: Bontrager Line Dropper, 100 mm travel, MaxFlow, internal cable routing, 34.9 mm diameter, 310 mm length.
• Sizes M, ML, L, XL: Bontrager Line Elite Dropper Post, 150 mm travel, MaxFlow, internal cable routing, 34.9 mm diameter, 440 mm length.

Handlebar:
Bontrager Line Pro, OCLV Carbon, 35 mm, 27.5 mm rise, 820 mm width.

Grips:
Bontrager XR Trail Pro, alloy lock-on.

Stem:
Bontrager Line Pro, 35 mm, Blendr-compatible, 0-degree, 35 mm length.

Brakes:
SRAM CODE Bronze, 4-piston hydraulic disc brakes.

Brake Rotors:
SRAM CenterLine, 6-bolt, rounded edge, 200 mm.

Brake Rotor Maximum Size:

• Frame: 220 mm;
• Fork: See fork manufacturer.

Weight:
M - 15.83 kg / 34.9 lbs (with TLR sealant, no tubes).

Maximum Weight:
This bike has a maximum weight limit (bike, rider, and gear) of 136 kg (300 lbs).
