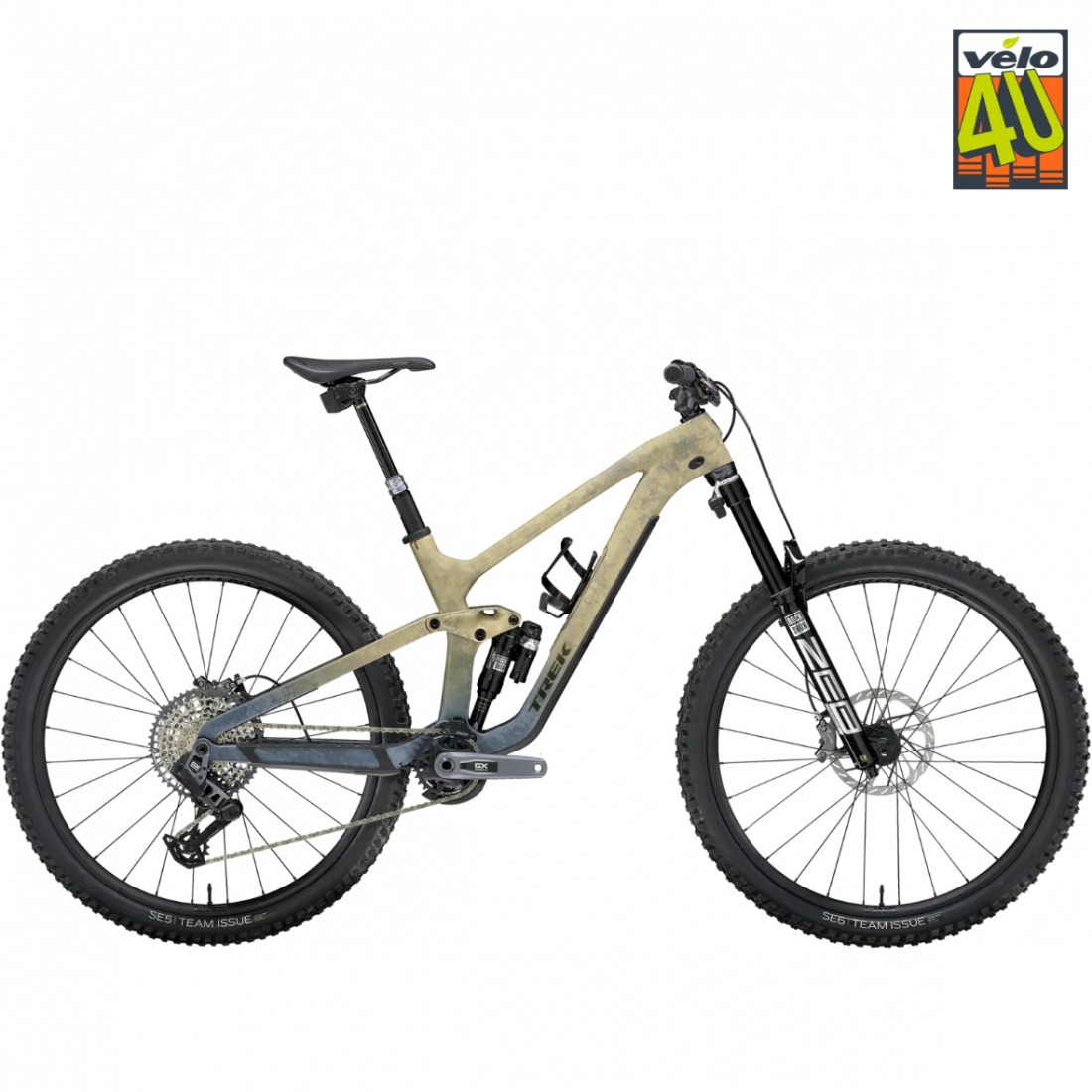

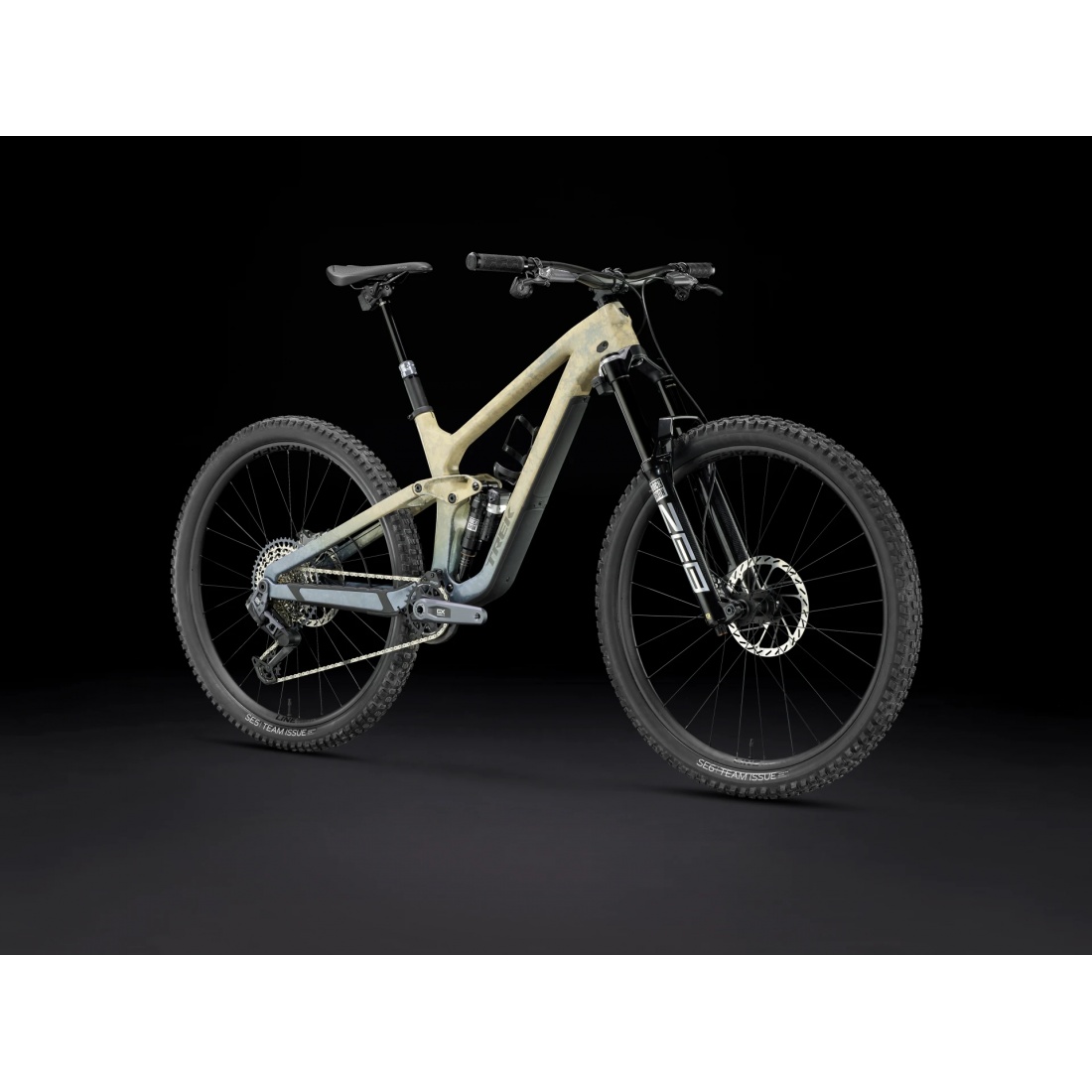

TREK SLASH SE 2025

Frame:
Main frame, stays, and seatstays in OCLV Mountain Carbon, internal storage compartment, tapered head tube, Knock Block 2.0, Control Freak internal cable routing, Carbon Armor, shuttle guard protection, threaded bottom bracket, ISCG 05, 34.9 mm seat tube, magnesium rocker link, Mino Link, ABP, Boost148, 160 mm travel.

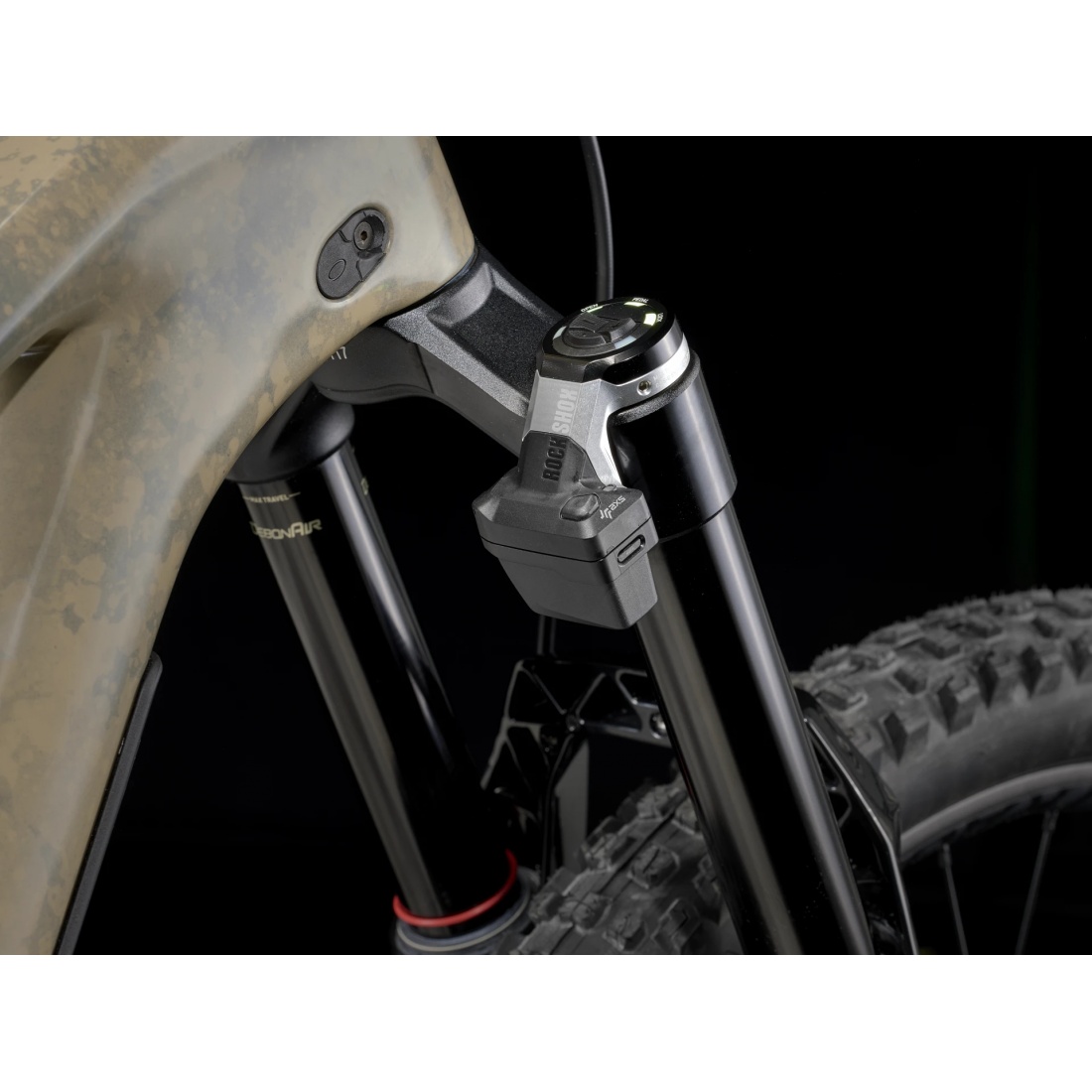

Fork:
RockShox ZEB Ultimate, Flight Attendant, DebonAir spring, Charger 2.1 RCT3 AXS damper, 1.5-inch tapered steerer, 44 mm offset, Boost110, Maxle Stealth 15 mm axle, 170 mm travel.

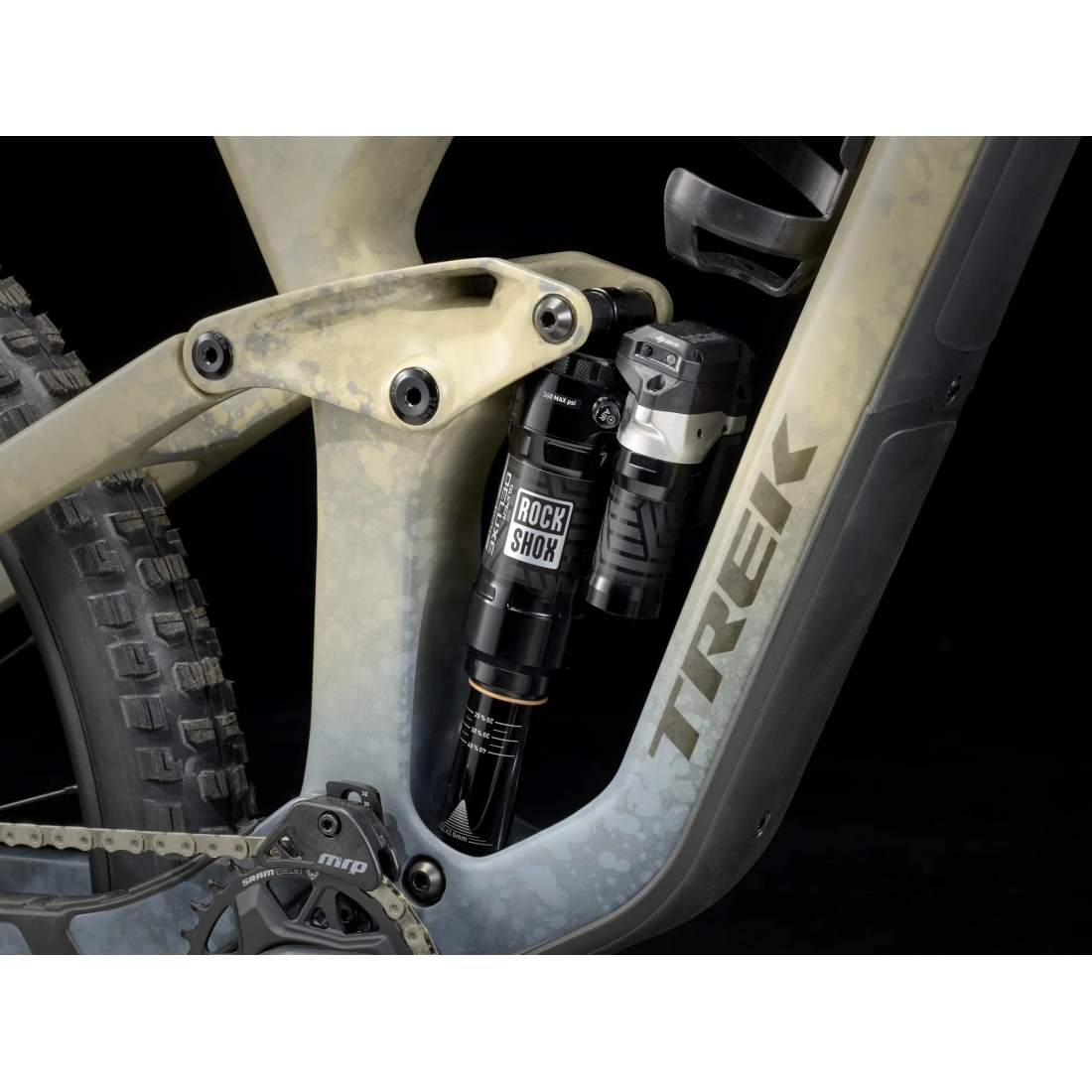

Shock:
RockShox Super Deluxe Ultimate Flight Attendant, 230 x 62.5 mm.

Maximum compatible fork travel:
180 mm (596 mm fork axle-to-crown).

Wheels:

• Front Wheel:
  Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15 mm thru-axle, 29 inches.
• Rear Wheel:
  Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 54, 6-bolt, Boost148, 12 mm thru-axle.

Rear Wheel Thru-Axle:
Bontrager Switch thru-axle, removable lever.

Tires:

• All Sizes (S, M, ML, L, XL):
  Bontrager SE5 Team Issue, Tubeless Ready, Core Strength casing, aramid bead, 120 tpi, 29x2.5 inches.
  Bontrager SE6 Team Issue, Tubeless Ready, Core Strength casing, aramid bead, 120 tpi, 29x2.5 inches.

Sealant:
Bontrager TLR Sealant, 177 ml.

Rim Tape:
Bontrager TLR.

Maximum Tire Size:

• Frame: 29x2.50 inches.
• Fork: Refer to manufacturer.

Battery:
SRAM eTap Battery (with charger).

Shifter:

• All Sizes: SRAM AXS POD (linked to dropper post control).

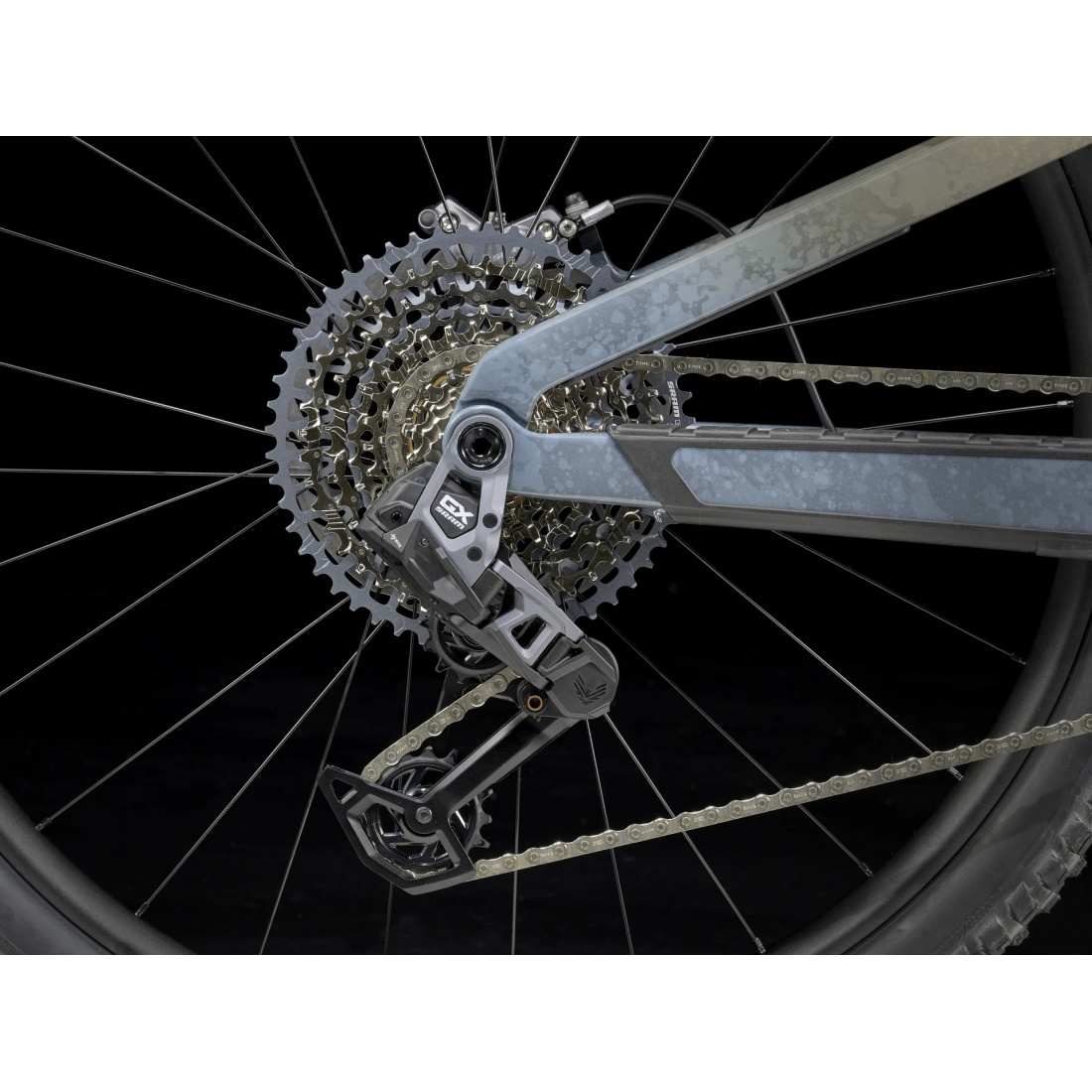

Rear Derailleur:
SRAM GX Eagle AXS, Type T.

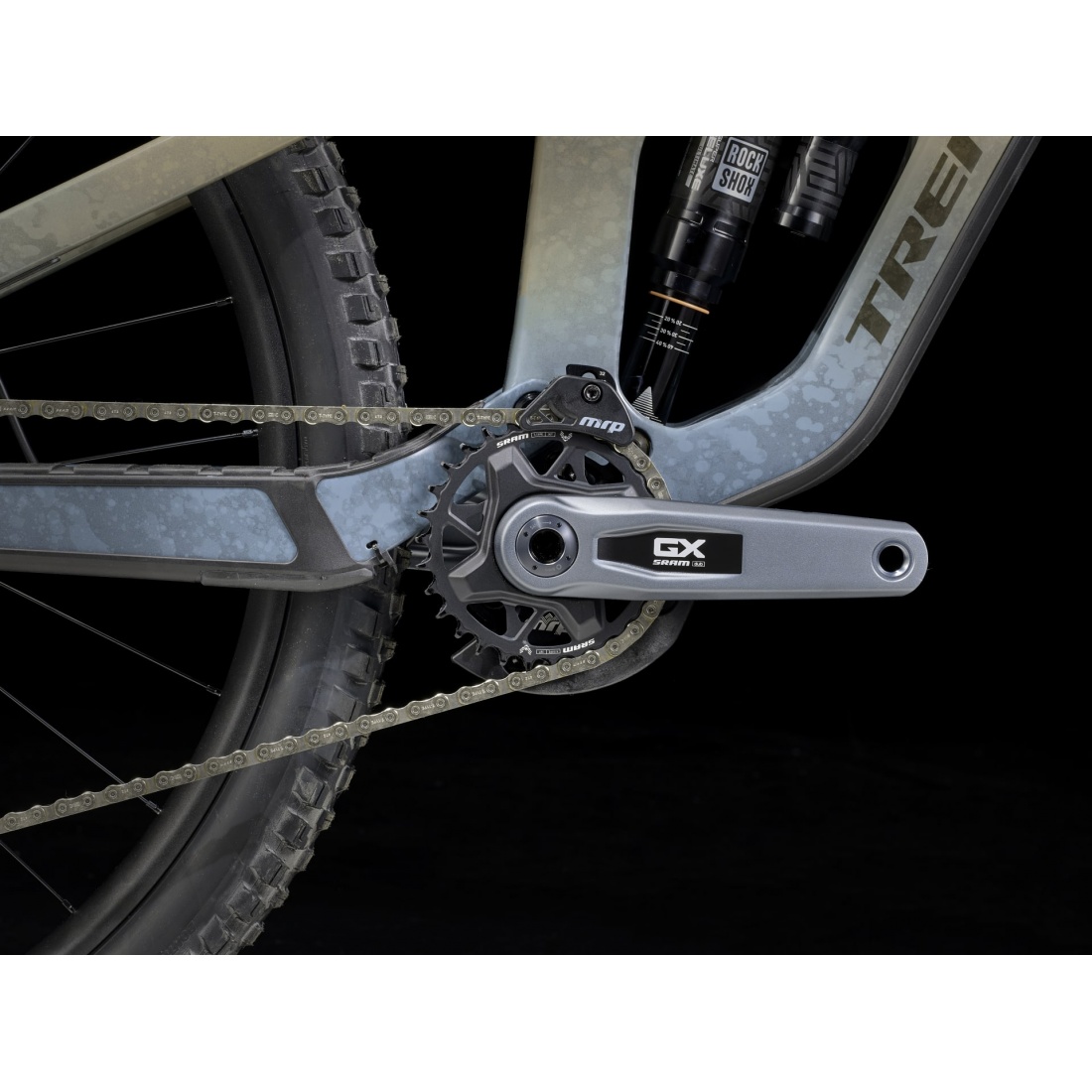

Crankset:
SRAM GX Eagle, DUB MTB Wide, Type T, 30T chainring, 55 mm chainline, 165 mm length.

Bottom Bracket:
SRAM DUB MTB Wide, 73 mm, threaded BSA.

Cassette:
SRAM Eagle XS-1275, Type T, 10-52, 12-speed.

Chain:
SRAM GX Eagle, Type T, 12-speed.

Maximum Chainring Size:
1x: 34T, minimum: 28T.

Saddle:
Bontrager Arvada Elite, stainless steel rails, 138 mm width.

Dropper Seatpost:

• Size S: RockShox Reverb AXS, 100 mm travel, wireless, 34.9 mm, 340 mm length.
• Sizes M, ML: RockShox Reverb AXS, 150 mm travel, wireless, 34.9 mm, 440 mm length.
• Sizes L, XL: RockShox Reverb AXS, 170 mm travel, wireless, 34.9 mm, 480 mm length.

Handlebar:
Bontrager Line Pro, OCLV Carbon, 35 mm clamp, 27.5 mm rise, 780 mm width.

Grips:
Bontrager XR Trail Pro, alloy lock-on.

Stem:
Bontrager Line Pro, 35 mm, Blendr compatible, 0-degree, 35 mm length.

Headset:
Knock Block 2.0 integrated, 72-degree radius (unlimited rotation option), sealed cartridge bearings, 1.125-inch top, 1.5-inch bottom.

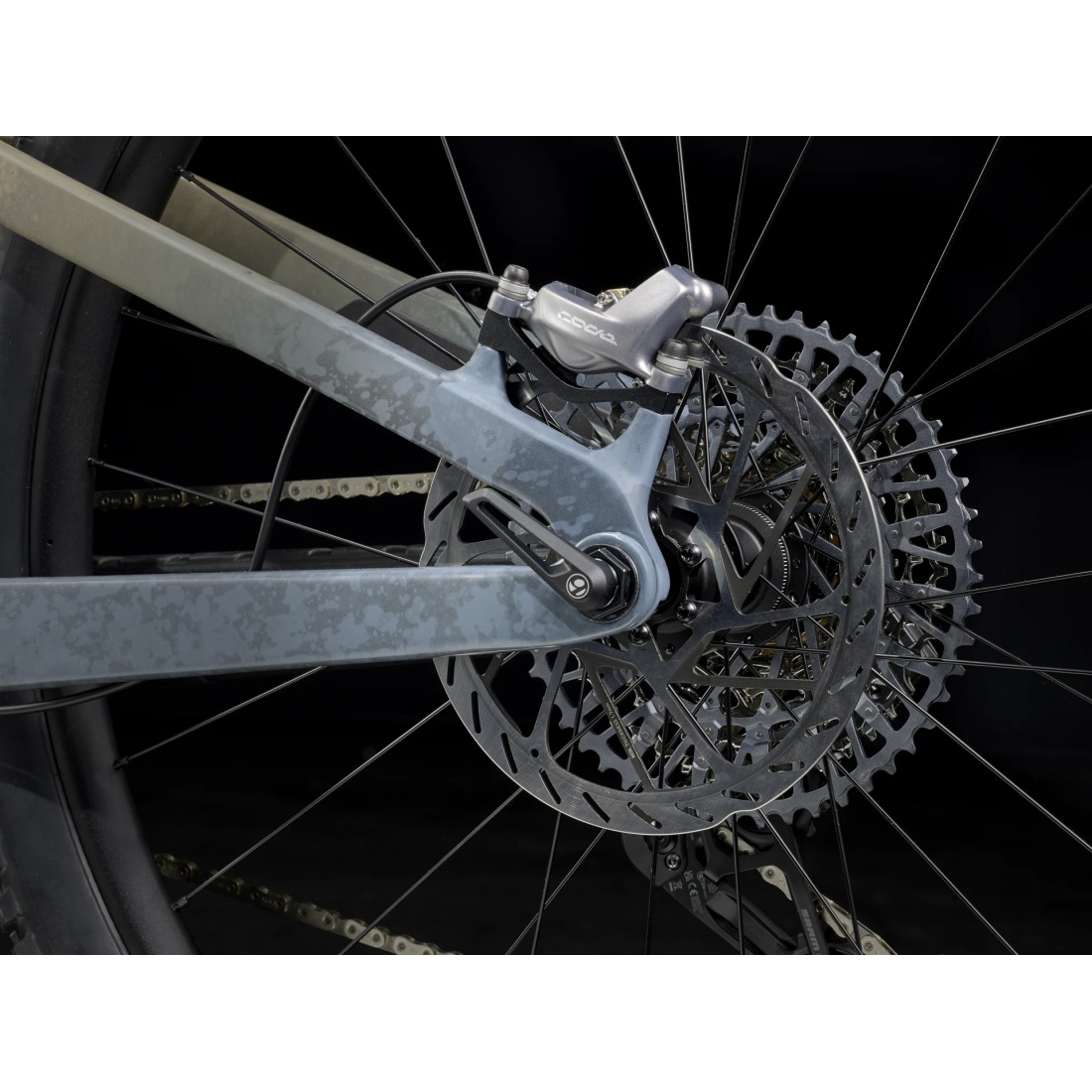

Brakes:
SRAM CODE Bronze 4-piston hydraulic disc brakes.

Brake Rotors:
SRAM 6-bolt, 200 mm.

Maximum Rotor Size:

• Frame: 220 mm.
• Fork: Refer to the manufacturer.

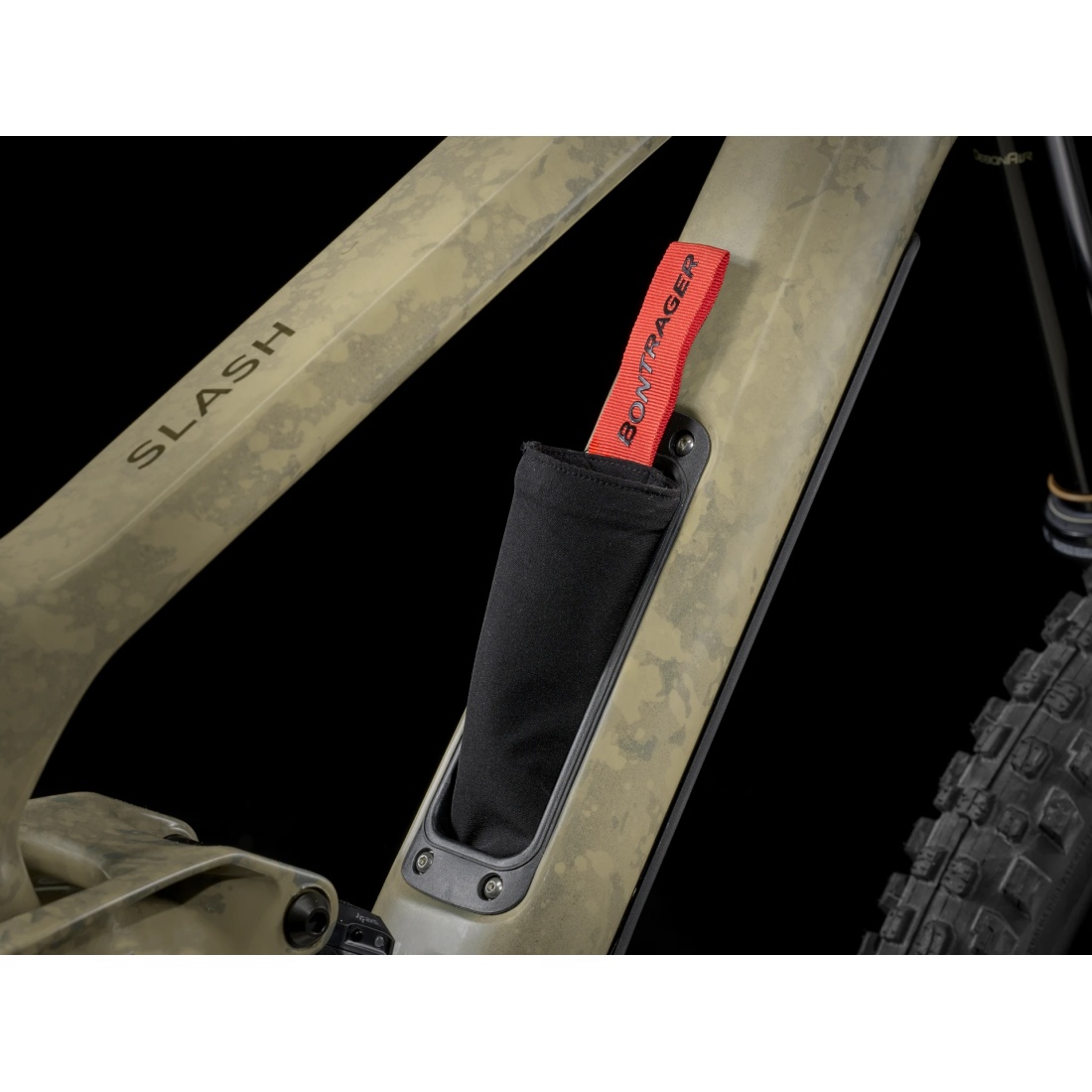

Accessory:
Bontrager BITS internal frame storage bag.

Weight:
M - 15.53 kg / 34.24 lbs (with TLR sealant, no inner tubes).

Maximum Weight:
This bike has a maximum total weight limit (including bike, rider, and gear) of 136 kg (300 lbs).
