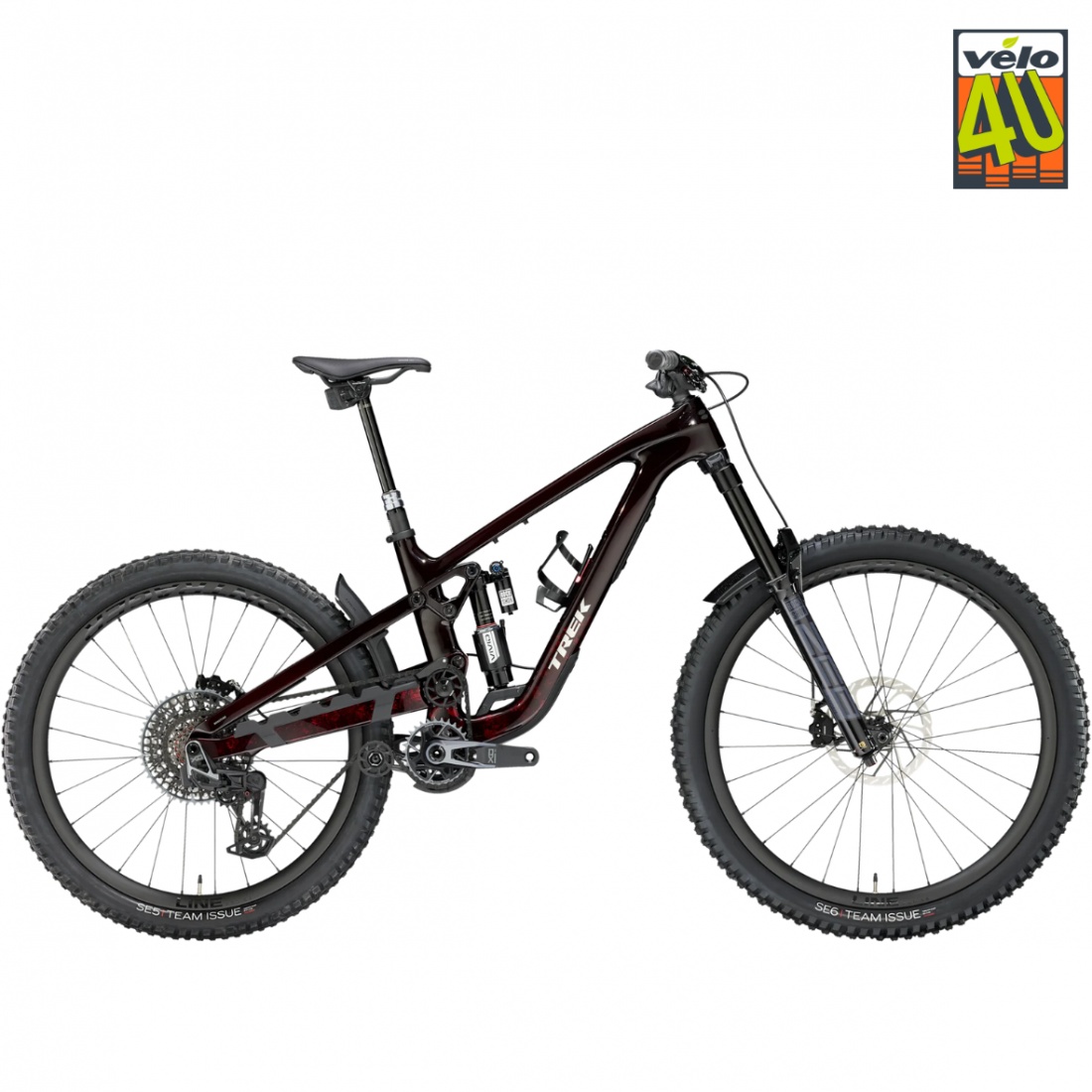

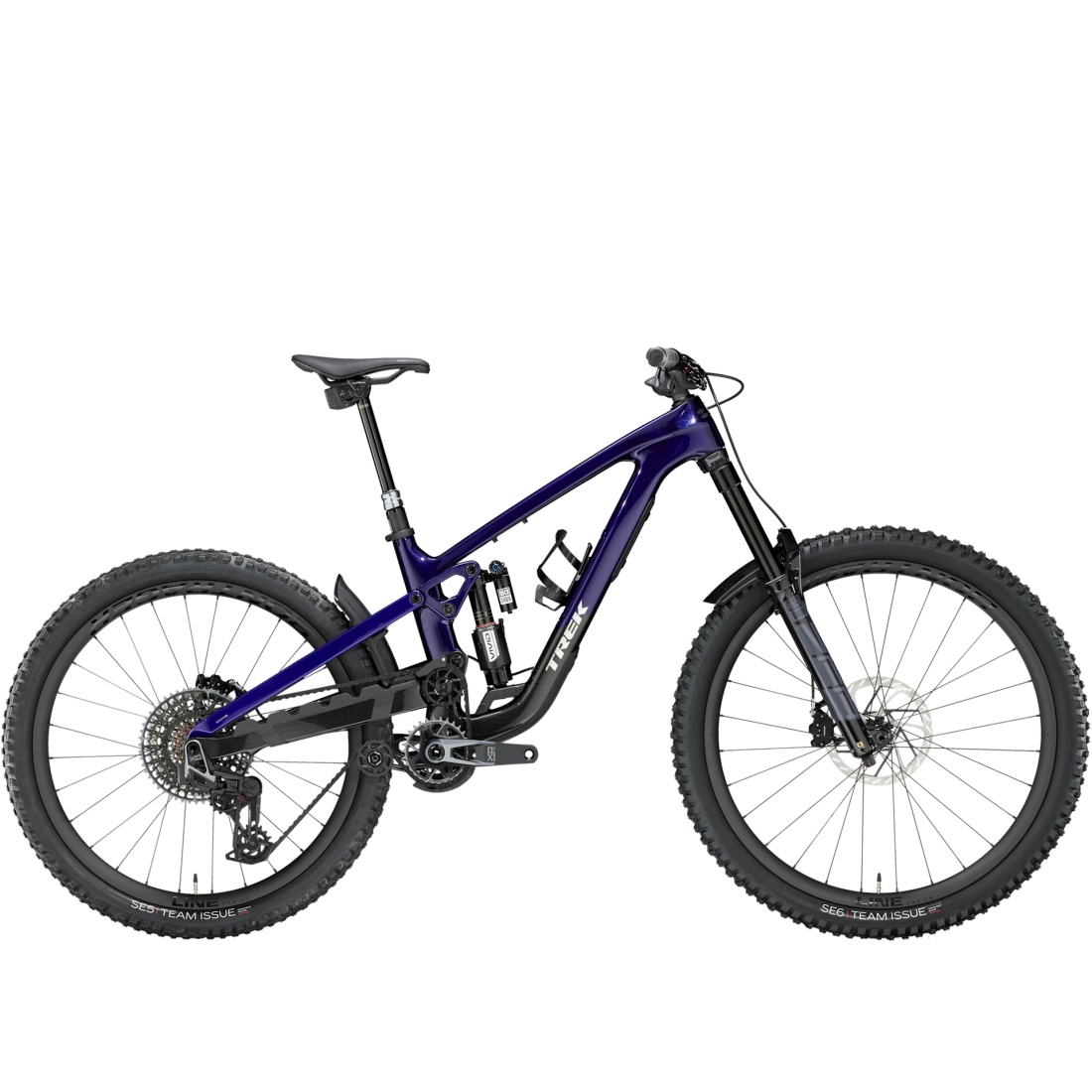

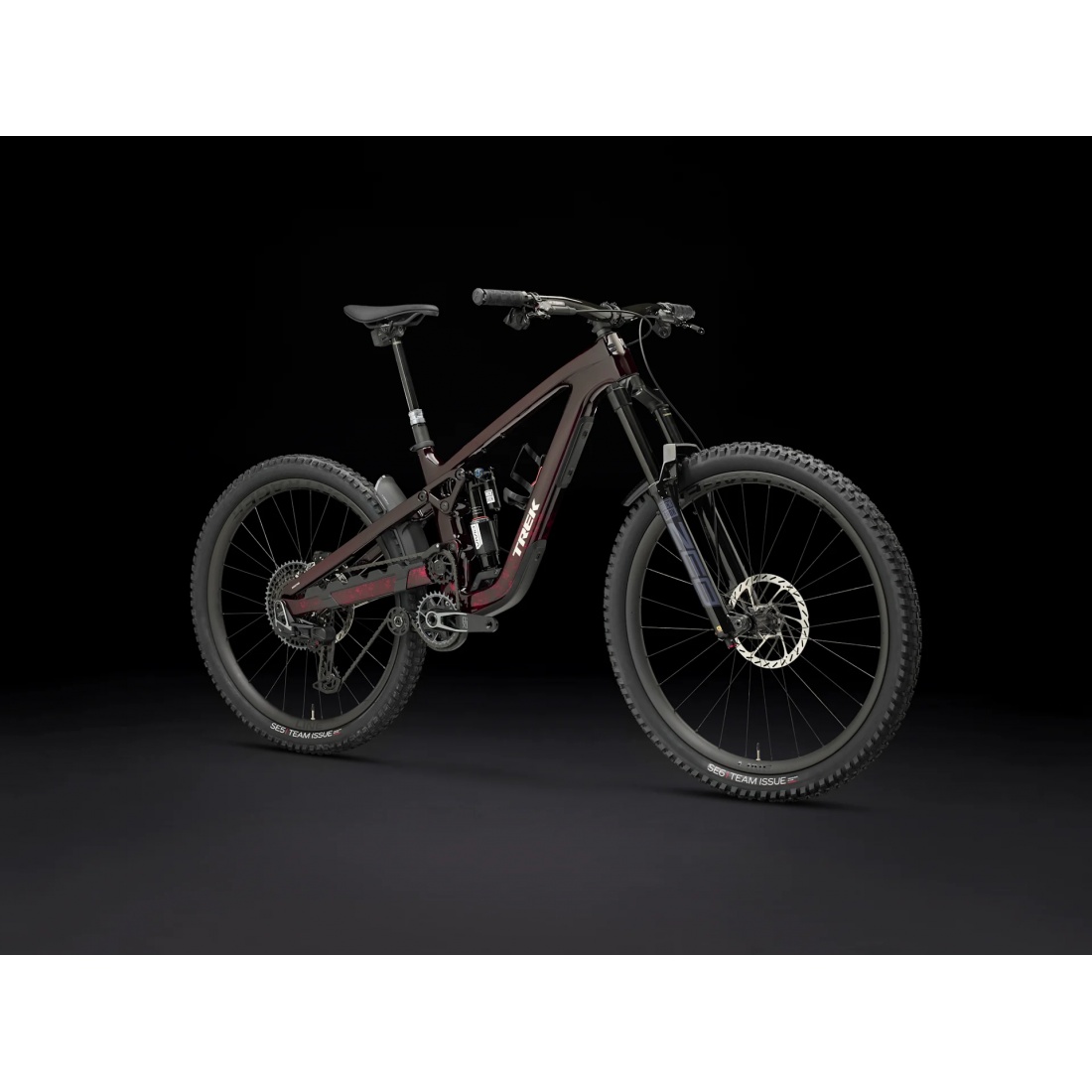

TREK SLASH 9.9 X0 AXS T-TYPE 2025

Frame:
OCLV Mountain Carbon, high pivot main suspension, idler pulley, internal storage, adjustable headset angle, adjustable suspension compliance, integrated frame protection, internal cable routing, alloy rocker link, ISCG 05, Active Braking Pivot (ABP), UDH, 12x148 mm thru-axle, 170 mm rear travel.

Fork:
RockShox ZEB Ultimate, DebonAir spring, Charger 3.1 RC2 damper, tapered steerer, 44 mm offset, Boost110, Maxle Stealth, 170 mm travel.

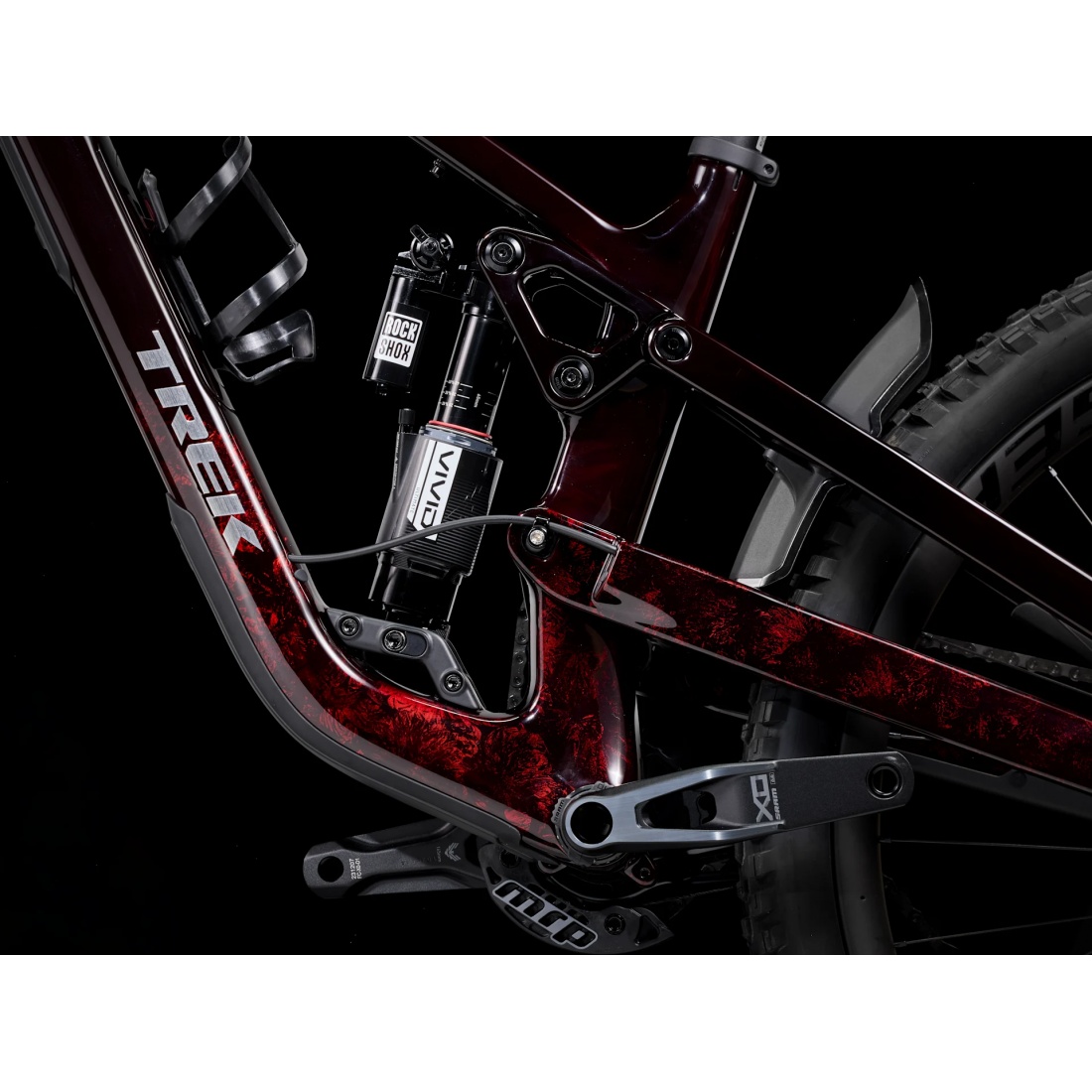

Shock:
RockShox Vivid Ultimate, 230 mm x 65 mm.

Maximum Fork Travel:
190 mm (606 mm axle-to-crown height), Size S: 190 mm (587 mm axle-to-crown height).

Wheels:

• Front Wheel:
  • Size S: Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost110, 15 mm thru-axle, 27.5 inches.
  • Sizes M, ML, L, XL: Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost110, 15 mm thru-axle, 29 inches.
• Rear Wheel:
  Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, 6-bolt, SRAM XD freehub body, Boost148, 12 mm thru-axle, 27.5 inches.

Rear Wheel Axle:
Bontrager Switch thru-axle with removable lever.

Tires:

• Sizes S, M, ML, L, XL:
  Bontrager SE5 Team Issue, Tubeless Ready, Core Strength casing, aramid bead, 120 tpi, 27.5x2.50 inches.
• Sizes M, ML, L, XL:
  Bontrager SE6 Team Issue, Tubeless Ready, Core Strength casing, aramid bead, 120 tpi, 29x2.5 inches.

Sealant:
Bontrager TLR Sealant, 177 ml.

Rim Tape:
Bontrager TLR.

Maximum Tire Size:

• Frame: 2.50 inches.
• Fork: Refer to fork manufacturer.

Battery:
SRAM eTap Battery (with charger).

Rear Derailleur:
SRAM X0 Eagle AXS, Type T.

Crankset:
SRAM X0 Eagle, Type T, DUB, 30T chainring, 55 mm chainline, 165 mm crank arm length.

Bottom Bracket:
SRAM DUB MTB Wide, 73 mm, threaded BSA.

Cassette:
SRAM Eagle XS-1295, Type T, 10-52, 12-speed.

Chain:
SRAM X0 Eagle, Type T, 12-speed.

Maximum Chainring Size:
1x: 34T, oval: 32T, minimum: 28T.

Saddle:
Verse Short Elite, hollow magnesium rails, 145 mm width.

Dropper Seatpost:

• Size S: RockShox Reverb AXS, 150 mm travel, wireless, 34.9 mm diameter, 440 mm length.
• Sizes M, ML, L, XL: RockShox Reverb AXS, 170 mm travel, wireless, 34.9 mm diameter, 480 mm length.

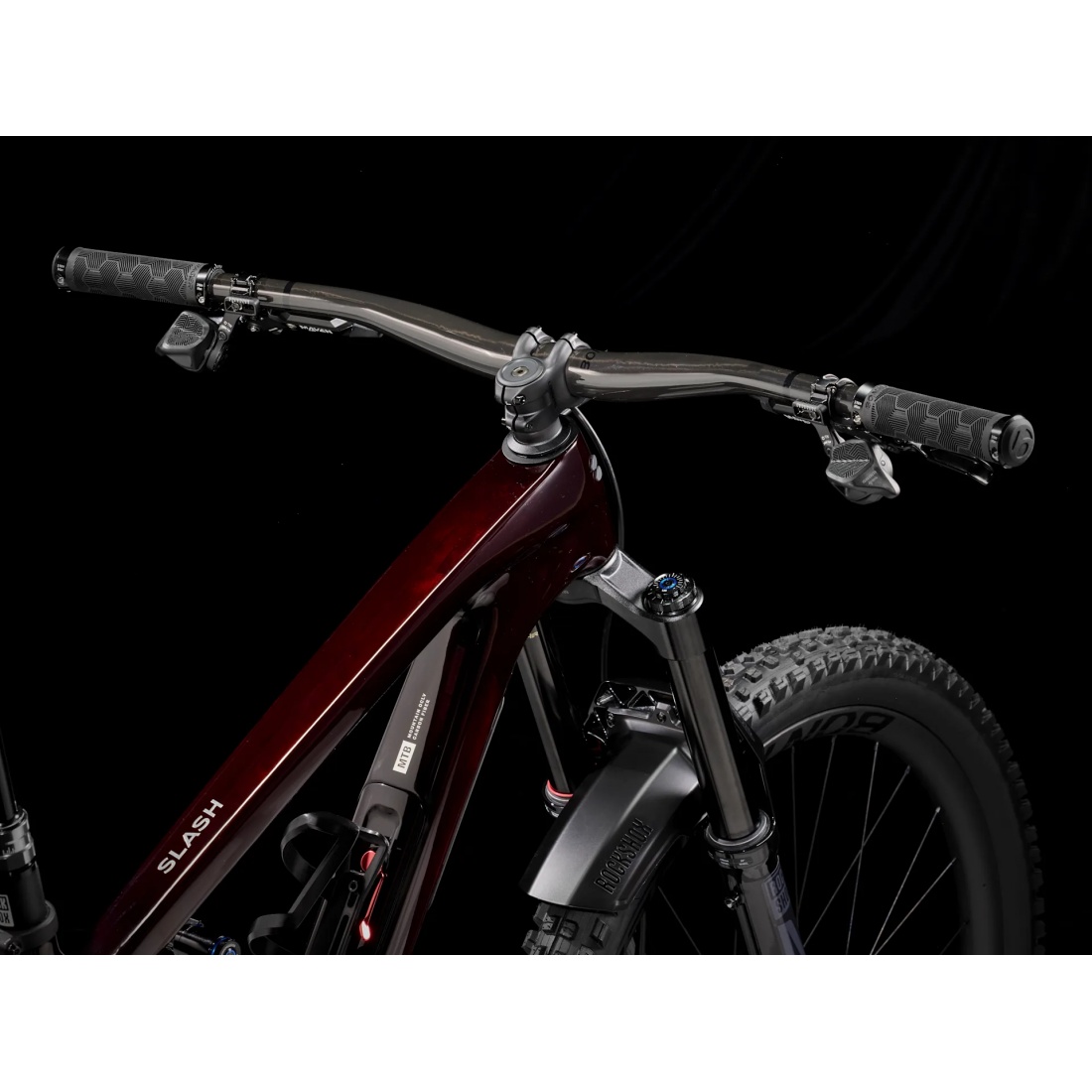

Handlebar:
Bontrager Line Pro, OCLV Carbon, 35 mm clamp, 27.5 mm rise, 820 mm width.

Grips:
Bontrager XR Trail Pro, lock-on alloy.

Stem:
Bontrager Line Pro, 35 mm, Blendr compatible, 0-degree rise, 35 mm length.

Headset:
Integrated sealed cartridge bearings, 1-1/8 inch top, 1.5 inch bottom, adjustable angle compatible.

Brakes:
SRAM Maven Silver, 4-piston hydraulic disc brakes.

Brake Rotors:
SRAM 6-bolt, 200 mm.

Maximum Rotor Size:

• Frame: 220 mm.
• Fork: Refer to fork manufacturer.

Weight:
M - 15.93 kg / 35.12 lbs (with TLR sealant, no inner tubes).

Maximum Total Weight:
This bike has a maximum total weight limit (including bike, rider, and gear) of 136 kg (300 lbs).
