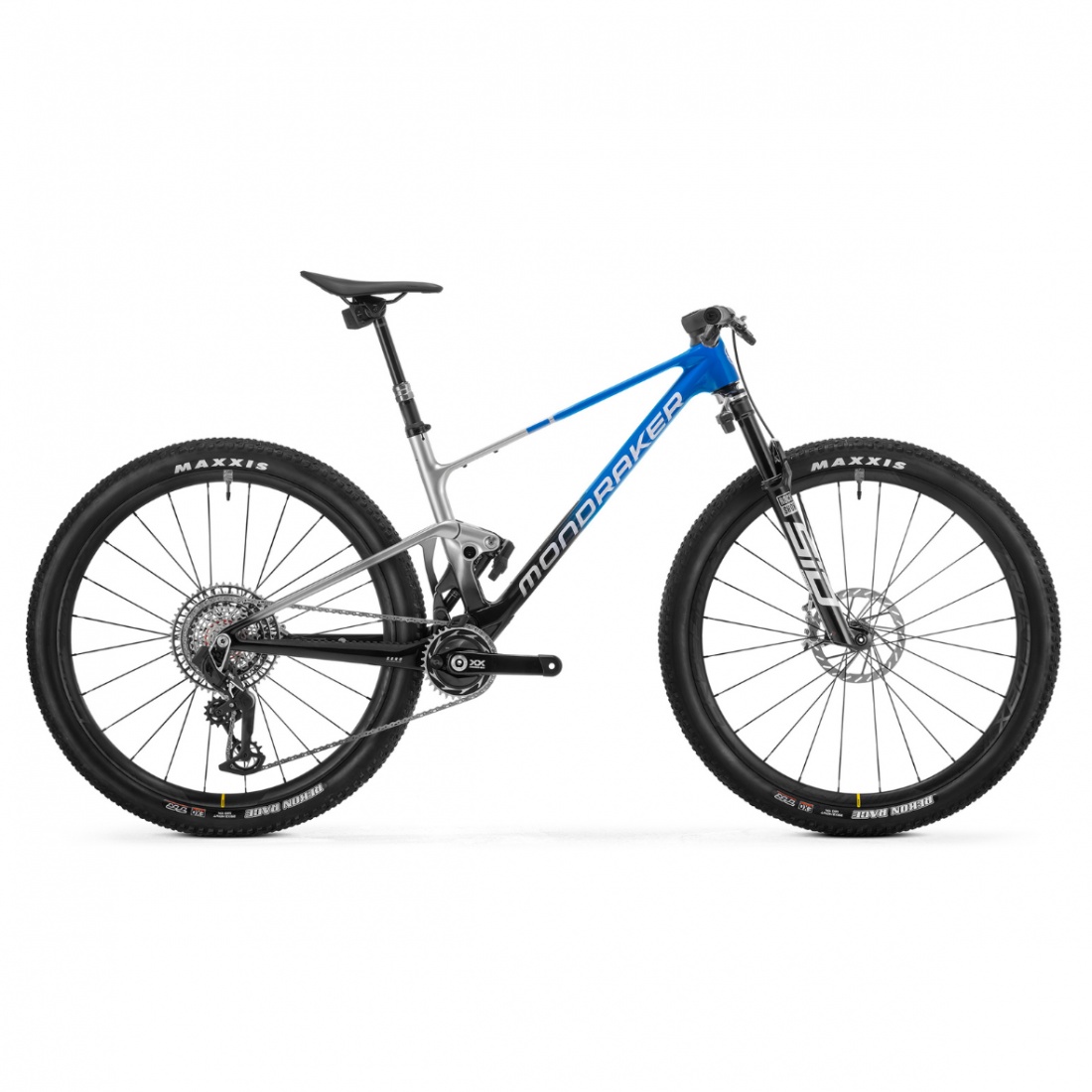

MONDRAKER F-PODIUM RR SL 2025

Frame

F-Podium 29 Stealth Air Full Carbon, XCO Optimized Zero Suspension System, 110mm, XC Forward Geometry, Carbon Monoblock upper link, BSA bottom bracket, tapered head tube, HHG internal cable routing, dedicated 1X drivetrain design, Boost 12x148mm rear axle, shock mudguard, postmount rear brake mount. MIND System V2

Sizes

S: 410mm / M: 440mm / L: 470mm / XL: 500mm

Rear shock

Rockshox SID Luxe Ultimate Flight Attendant, 165x45mm. Settings: Extl rebnd, E-cont. 3 pos comp (open/pedal/lock). Trunnion top mount, 30x8mm bottom bushings

Shock settings

R57 rebound, C30 compression, 1 Token

Fork

Rockshox SID Ultimate Flight Attendant, 120mm, Debon Air+, tapered steerer tube, Boost 15x110mm axle, 35mm tapered aluminum stanchions, offset 44mm. Settings: Extl rebnd, E-cont. 3 pos comp (open/pedal/lock)

Fork remote

AXS controlled

Headset

Acros custom IS52/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs with blocklock

Stem

OnOff S9 Integrated Carbon Handlebar, width: 760mm, 8º Backsweep, 0º Upsweep, S size: 55mm length -12º rise, M size: 55mm length -12º L size: 65mm length -14º rise, XL size: 75mm length -15º rise

Grips

Onoff Foam lightweight 135mm

Seatpost

RockShox Reverb Stealth AXS, diameter 31.6mm S size: 340x100mm M size: 390x125mm L size: 440x150mm XL size: 440x170mm

Saddle

Fizik Vento Argo X5

Front brake

Sram Level Ultimate 4P Stealth, 2 piece caliper, HS2 180mm IS 6 bolts one-piece rotor, steel-backed organic pad

Rear brake

Sram Level Ultimate 4P Stealth, 2 piece caliper, HS2 160mm IS 6 bolts one-piece rotor, steel-backed organic pad

Brake lever

Sram Level Ultimate, tools-free reach adjust, lever pivot bearings, carbon lever

Rims

Mavic CrossMax Carbon SL Ultimate 29 Boost 30mm internal width, hookless, tubeless ready, 24 spokes

Spokes

Mavic 24 straight-pull double butted spokes

Front hub

Mavic Infinity hub, Boost 15x110mm, IS 6 bolts

Rear hub

Mavic Infinity hub, ID360 freewheel technology, Boost 12x148mm, IS 6 bolts, XD freehub

Front tire

Maxxis Rekon Race 29x2.4, EXO protection, tubeless ready, 120TPI, folding bead

Rear tire

Maxxis Rekon Race 29x2.4, EXO protection, tubeless ready, 120TPI, folding bead

Crankset

Sram XX SL Carbon Eagle T-Type, Power Meter, Boost, DUB axle, Direct mount chain ring, S size: 170mm M size: 170mm L size: 175mm XL size: 175mm, CL 55

Rings

34T, CNC-machined alloy, T-Type

Bottom bracket

Sram DUB BSA, sealed bearings, 73mm

Chain

Sram XX SL Eagle T-Type, 12s, Powerlock

Rear derrailleur

Sram XX SL Eagle AXS, T-Type, 12s

Shift levers

Sram Eagle AXS Pod Ultimate, 12s

Casette

Sram XS-1299, 10-52T, T-Type, 12s

Weight

11,4 kg
