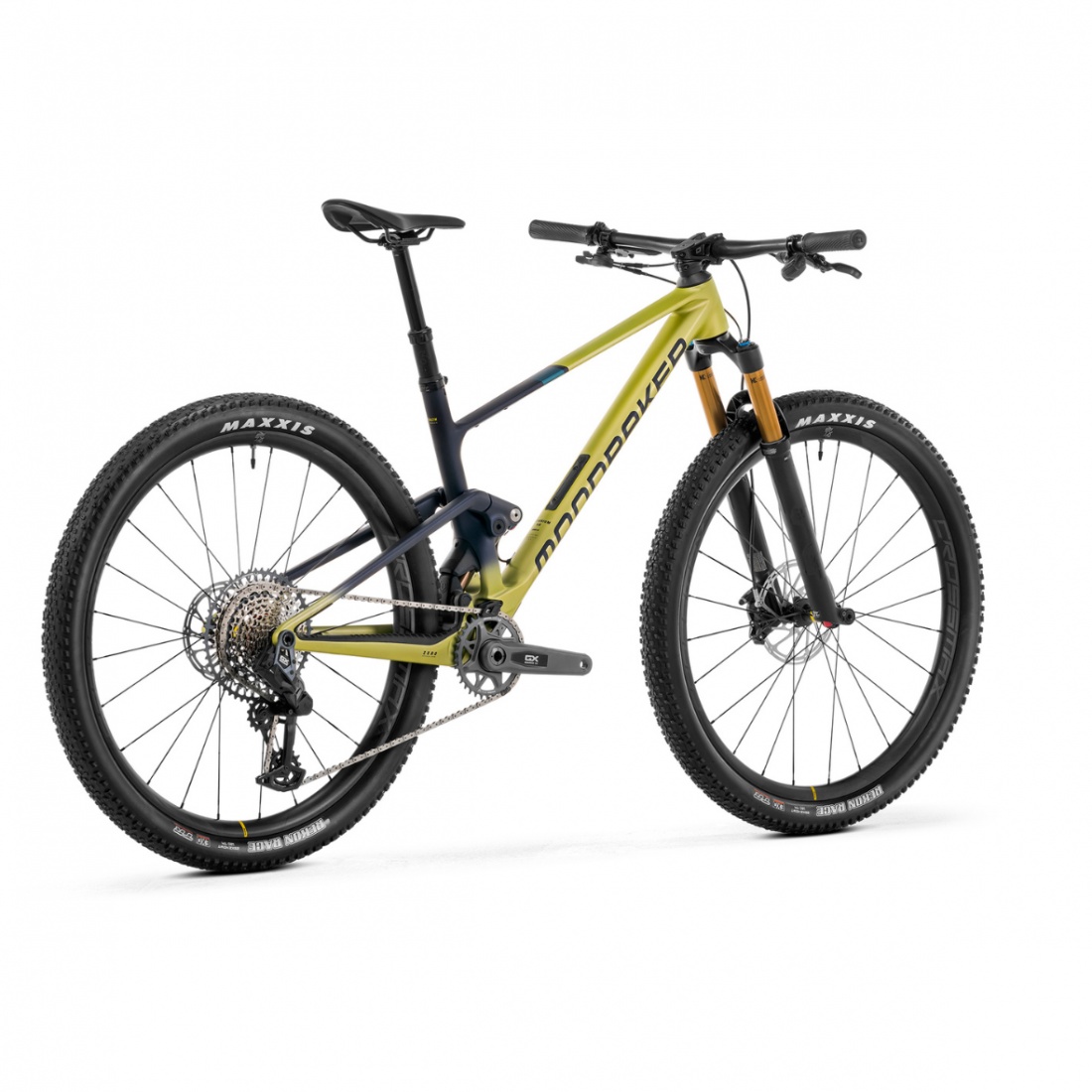

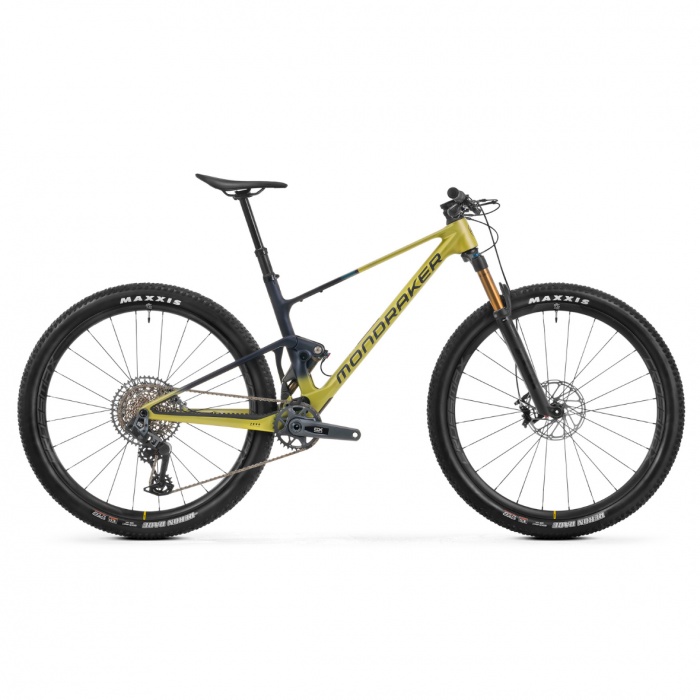

MONDRAKER F-PODIUM RR 2025

Frame

F-Podium 29 Stealth Air Full Carbon, XCO Optimized Zero Suspension System, 110mm, XC Forward Geometry, Carbon Monoblock upper link, BSA bottom bracket, tapered head tube, HHG internal cable routing, dedicated 1X drivetrain design, Boost 12x148mm rear axle, shock mudguard, postmount rear brake mount.

Sizes

S: 410mm / M: 440mm / L: 470mm / XL: 500mm

Rear shock

Fox Float SL Factory Kashima SV EVOL, 165x45mm. Settings: 3 position remote compression (open/medium/lock), low-speed rebound, air preload. Trunnion top mount, 30x8mm bottom bushings

Shock settings

BC002 compression, Medium rebound, CMF

Fork

Fox 34 Step Cast Float SL Factory Kashima, GRIP SL, 120mm, tapered steerer tube,15x110mm Boost Kabolt axle, offset 44mm. Settings: remote 3pos Push to lock, compression micro-adjustment at low-speed, rebound, air preload

Fork remote

Fox 3 position dual pull push to lock

Headset

Acros custom IS52/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs with blocklock

Stem

Onoff S6 6061 T6 Alloy + CNC, 31.8mm barbore, rise: -7º, length: S size: 50mm, M size: 50mm, L size: 60mm, XL size: 70mm

Handlebar

Onoff S6 Carbon 0.2, rise: 5mm, width: 760mm, 8º backsweep, 4º upsweep, 31.8mm barbore

Grips

Onoff Foam lightweight 135mm

Seatpost

Onoff Pija dropper internal, diameter 31.6mm, 2-BY Remote lever with bearing, S size: 140-115mm (388-235mm), M size: 160-135mm (428-255mm), L size: 180-155mm (468-275mm), XL size: 210-185mm (528-305mm)

Saddle

Fizik Vento Argo X5

Front brake

Sram Level Silver 4P Stealth, 2 piece caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pad

Rear brake

Sram Level Silver 4P Stealth, flatmount 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad

Brake lever

Sram Level Silver, tools-free reach adjust, lever pivot bearings

Rims

Mavic CrossMax Carbon XL R, 29 Boost 30mm internal width, hookless, tubeless ready, 24 spokes

Spokes

Mavic 24 straight-pull double butted spokes

Front hub

Mavic Infinity hub, Boost 15x110mm, IS 6 bolts

Rear hub

Mavic Infinity hub, ID360 freewheel technology, Boost 12x148mm, IS 6 bolts, XD freehub

Front tire

Maxxis Rekon Race 29x2.4, EXO protection, tubeless ready, 120TPI, folding bead

Rear tire

Maxxis Rekon Race 29x2.4, EXO protection, tubeless ready, 120TPI, folding bead

Crankset

Sram GX Eagle T-Type, Boost, DUB axle, Direct mount chain ring, S size: 170mm M size: 170mm L size: 175mm XL size: 175mm, CL 55

Rings

34T, CNC-machined alloy, T-Type

Bottom bracket

Sram DUB BSA, sealed bearings, 73mm

Chain

Sram GX Eagle, 12s, Powerlock

Rear derrailleur

Sram GX Eagle AXS T-Type,12s

Shift levers

Sram Eagle AXS Pod Ultimate, 12s

Casette

Sram XS-1275, 10-52T, 12s

Weight

11,8 kg
