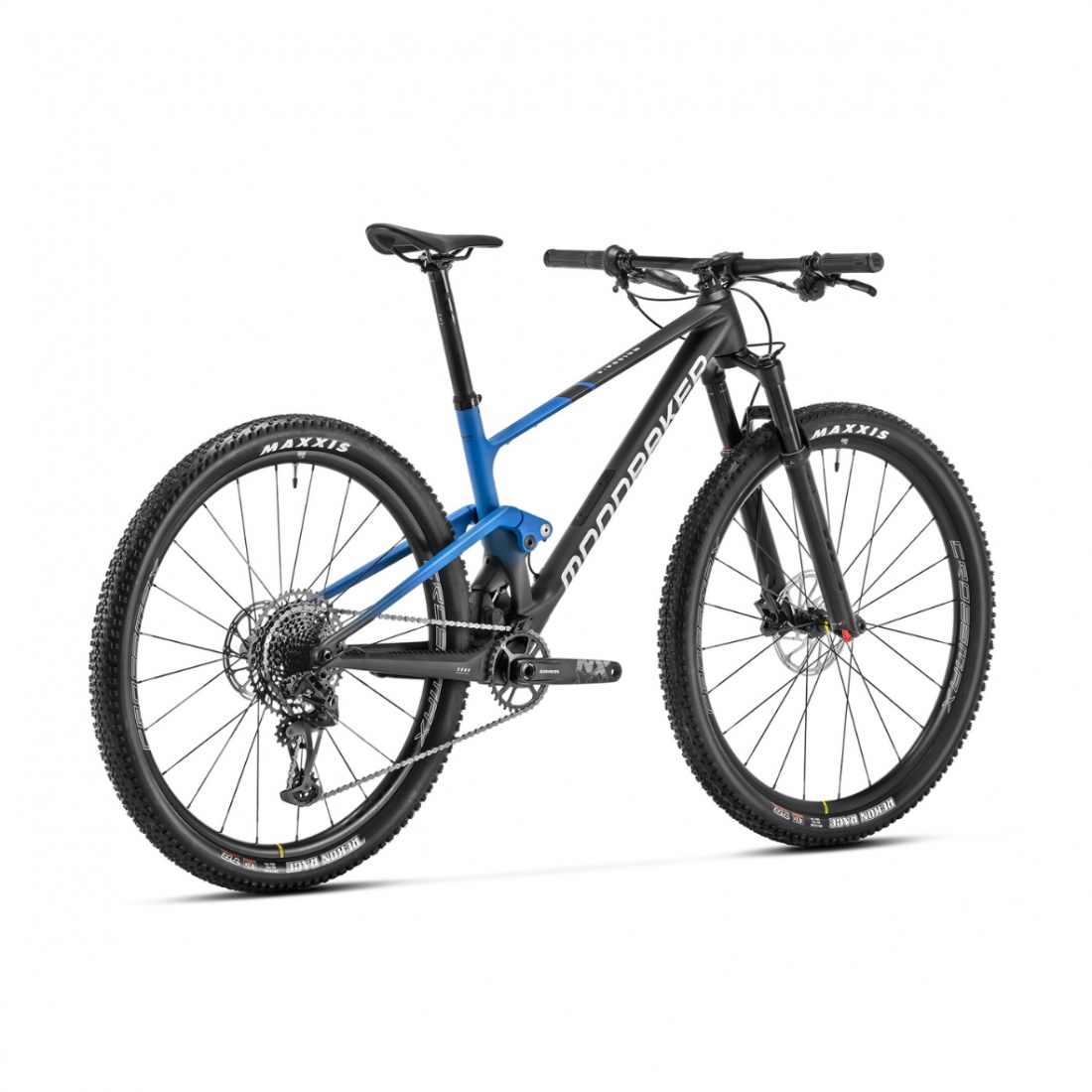

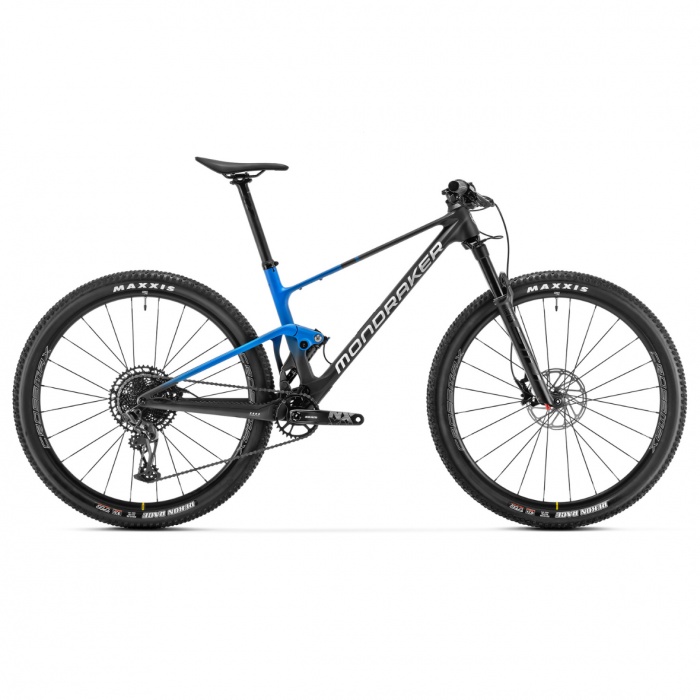

MONDRAKER F-PODIUM 2025

Frame

F-Podium 29 Stealth Air Full Carbon, XCO Optimized Zero Suspension System, 110mm, XC Forward Geometry, Carbon Monoblock upper link, BSA bottom bracket, tapered head tube, HHG internal cable routing, dedicated 1X drivetrain design, Boost 12x148mm rear axle, shock mudguard, postmount rear brake mount.

Sizes

S: 410mm / M: 440mm / L: 470mm / XL: 500mm

Rear shock

Rockshox SID Luxe 3P Remote in Pull DebonAir, 165x45mm. Settings: 3 position remote,, low-speed rebound, air preload. Trunnion top mount, 30x8mm bottom bushings

Shock settings

Medium compression, medium rebound, Lockout 430, 1 Token

Fork

Rockshox SID Base 3P Remote 29, 120mm, DebonAir, tapered steerer tube, Boost 15x110mm axle, 35mm tapered aluminum stanchions, offset 44mm. Settings: 3 position remote, Low-speed rebound, air preload

Fork remote

RockShox TwistLoc Base FullSprint 125 B1 3 Position (7mm + 7mm), Twist to lock, Twist to unlock

Headset

Acros custom for 1-1/2" head tube, angular contact bearings 40x52x7, Internal cable routing

Stem

MDK, 6061 T6 Alloy, 31.8mm barbore, rise: +/-5º, length: S size: 50mm, M size: 50mm, L size: 60mm, XL size: 70mm

Handlebar

Onoff Sulfur 0.2, double butted 6061 alloy, rise: 4.8mm, width: 760mm, 9º backsweep, 0º upsweep, 31.8mm barbore

Grips

Rock Shox Twistloc grips

Seatpost

Onoff Sulfur 0-R, 6061 T6 Alloy, 3D forged, diameter 31.6mm, length 400mm

Saddle

Fizik Vento Argo X5

Front brake

Sram Level T, 2 piece caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pad

Rear brake

Sram Level T, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad

Brake lever

Sram Level T, Direct Link actuation, tooled reach adjust, lever pivot bushings

Rims

Mavic CrossMax 29, 25mm internal width, welded rim, hookless, tubeless ready, 24 spokes

Spokes

Mavic straight-pull double butted, contactless lacing

Front hub

Mavic, Boost 15x110mm, IS 6 bolts

Rear hub

Mavic, Boost 12x148mm, ID360 Ratchet system, IS 6 bolts, HG freehub

Front tire

Maxxis Rekon Race 29x2.35, EXO protection, tubeless ready, 120TPI, folding bead

Rear tire

Maxxis Rekon Race 29x2.35, EXO protection, tubeless ready, 120TPI, folding bead

Crankset

Sram NX Eagle, 12s, Boost, DUB axle, Direct Mount chain ring, S size: 170mm M size: 175mm L size: 175mm XL size: 175mm, CL 55

Rings

34T, steel, X-Sync 2

Bottom bracket

Sram DUB BSA, sealed bearings, 73mm

Chain

Sram SX Eagle, 12s, Powerlock

Rear derrailleur

Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1

Shift levers

Sram Trigger SX Eagle, 12s, X-Actuation 1:1

Casette

Sram PG-1230, 11-50T, 12s

Derailleur hanger

Sram UDH

Weight

12,2 kg
