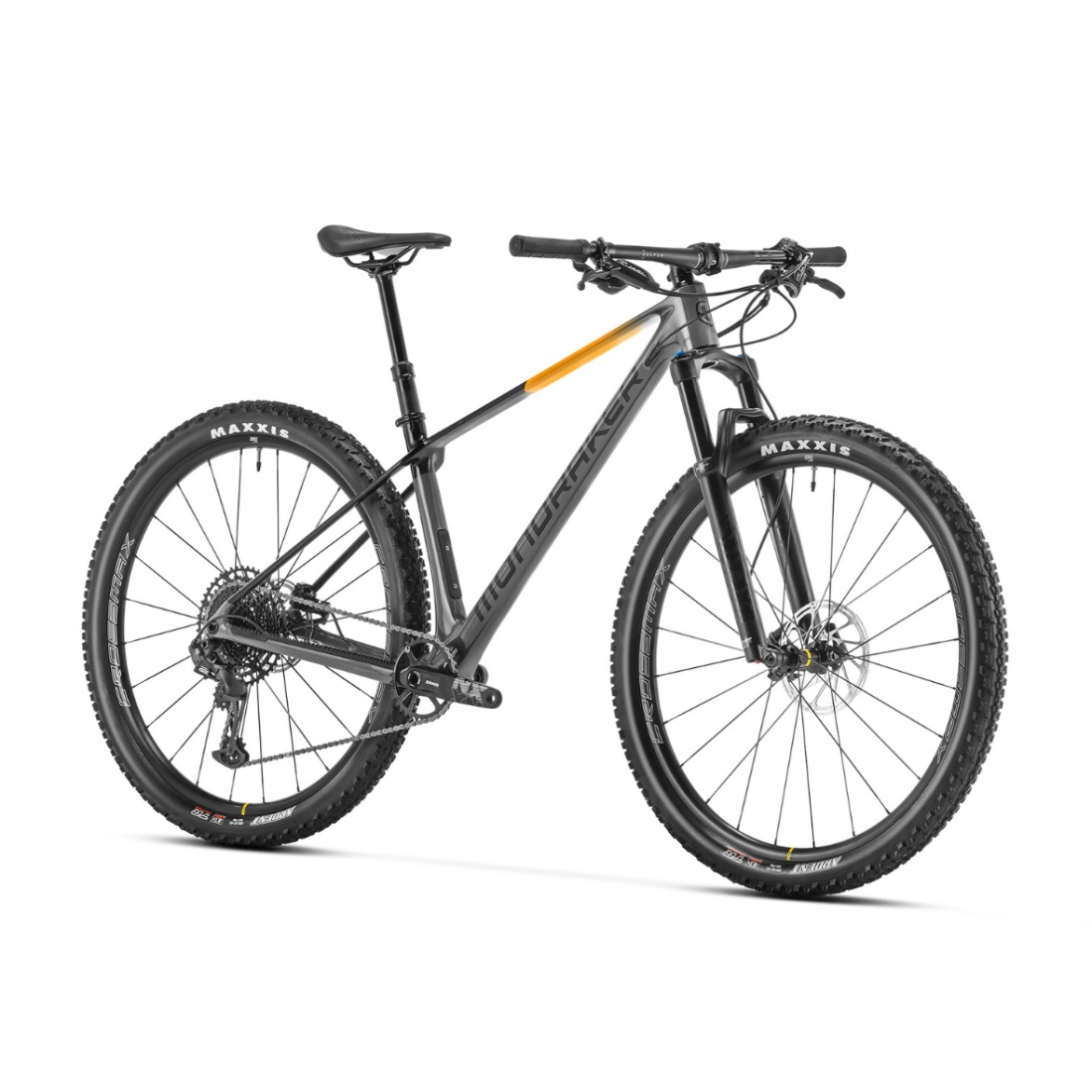

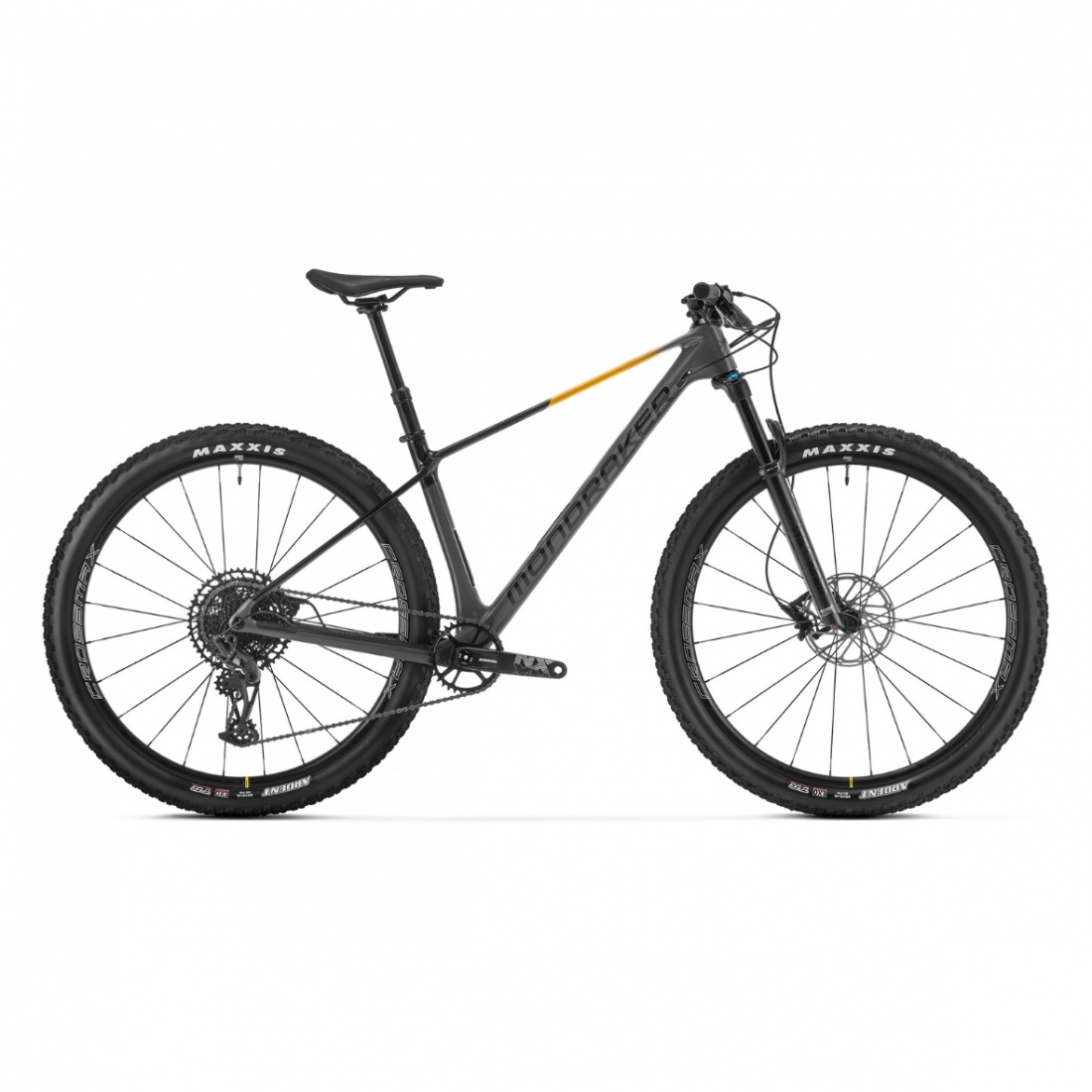

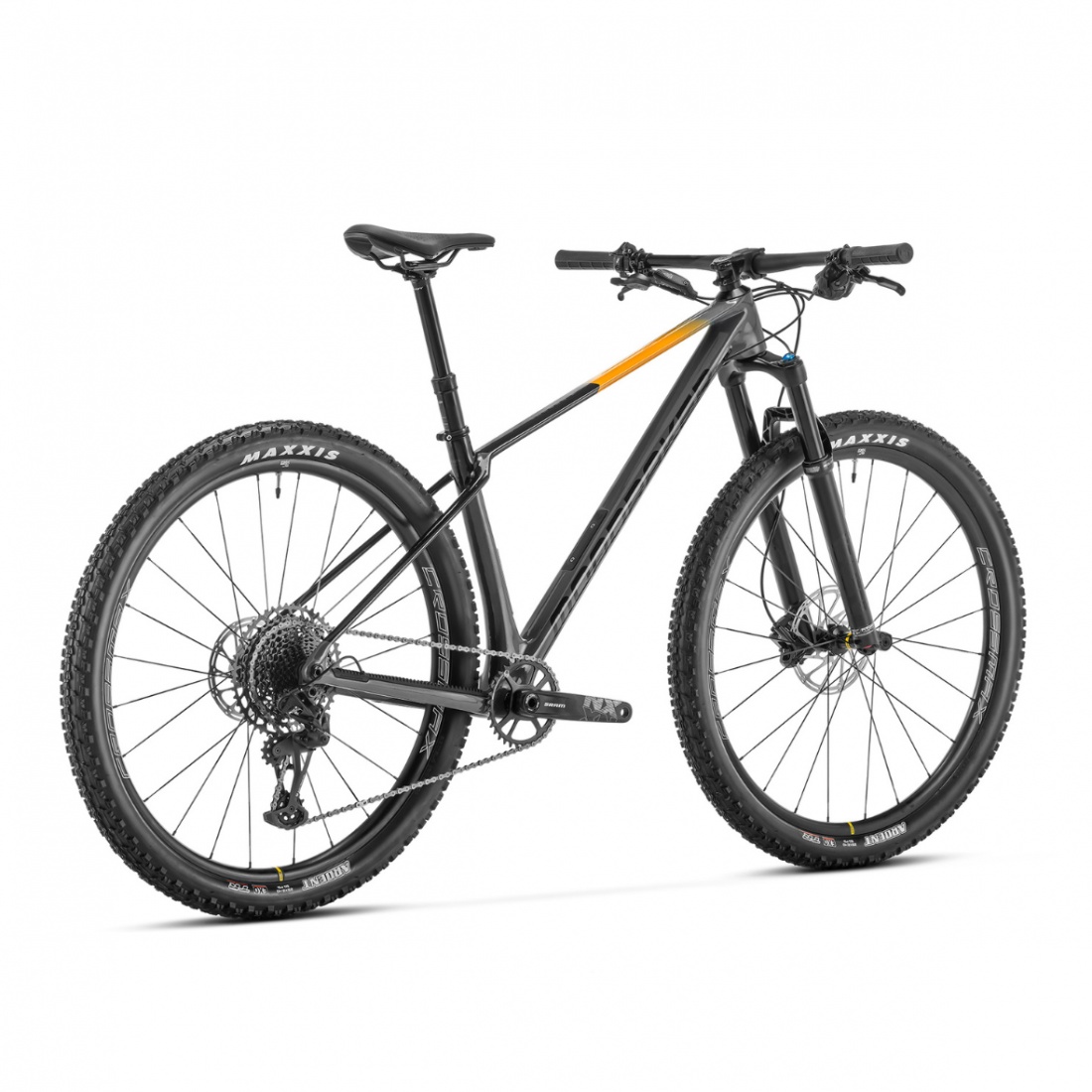

MONDRAKER CHRONO CARBON DC R 2025

Frame

Chrono 29 Stealth full Carbon, XC Forward Geometry, 73mm BSA bottom bracket, tapered head tube, HHG Internal Cable routing, Boost 12x148mm rear axle, dedicated 1X drivetrain design, Flatmount brake compatible,

Sizes

S: 395mm / M: 430mm / L: 470mm / XL: 520mm

Fork

Fox 32 29 Float GRIP EVOL Rhythm, 120mm, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: remote 2pos Push-to-unlock, low-speed rebound, air preload

Fork remote

Fox single pull

Headset

Onoff internal IS52 1-1/2 head tube, ACB sealed bearings, top 51,8x40 45°x45°, bottom 51,8x40 36°x45°

Stem

MDK, 6061 T6 Alloy, 31.8mm barbore, rise: +/-5º, length: S size: 50mm, M size: 50mm, L size: 60mm, XL size: 70mm

Handlebar

Onoff Sulfur 0.2, double butted 6061 alloy, rise: 4.8mm, width: 760mm, 9º backsweep, 0º upsweep, 31.8mm barbore

Grips

Onoff Twin, 1lock-on, 135mm

Seatpost

Onoff Pija dropper internal, diameter 31.6mm, Universal lever, S size: 405x95-125mm, M size: 458x120-150mm, L size: 498x140-170mm, XL size: 498x140-170mm

Saddle

Mondraker MDK Series, SRX, steel rail

Front brake

Sram Level T, 2 piece caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pad

Rear brake

Sram Level T, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad

Brake lever

Sram Level T, Direct Link actuation, tooled reach adjust, lever pivot bushings

Rims

Mavic CrossMax 29, 25mm internal width, welded rim, hookless, tubeless ready, 24 spokes

Spokes

Mavic straight-pull double butted, contactless lacing

Front hub

Mavic, Boost 15x110mm, IS 6 bolts

Rear hub

Mavic, Boost 12x148mm, ID360 Ratchet system, IS 6 bolts, HG freehub

Front tire

Maxxis Ardent 29x2.40, Dual compound, EXO, tubeless ready, 60TPI, folding bead

Rear tire

Maxxis Ardent 29x2.40, Dual compound, EXO, tubeless ready, 60TPI, folding bead

Crankset

Sram NX Eagle, 12s, Boost, DUB axle, Direct Mount chain ring, S size: 170mm M size: 175mm L size: 175mm XL size: 175mm, CL 55

Rings

34T, steel, X-Sync 2

Bottom bracket

Sram DUB BSA, sealed bearings, 73mm

Chain

Sram SX Eagle, 12s, Powerlock

Rear derrailleur

Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1

Shift levers

Sram Trigger NX Eagle, 12s, X-Actuation 1:1

Casette

Sram PG-1230, 11-50T, 12s

Derailleur hanger

Sram UDH

Weight

12,1 kg
