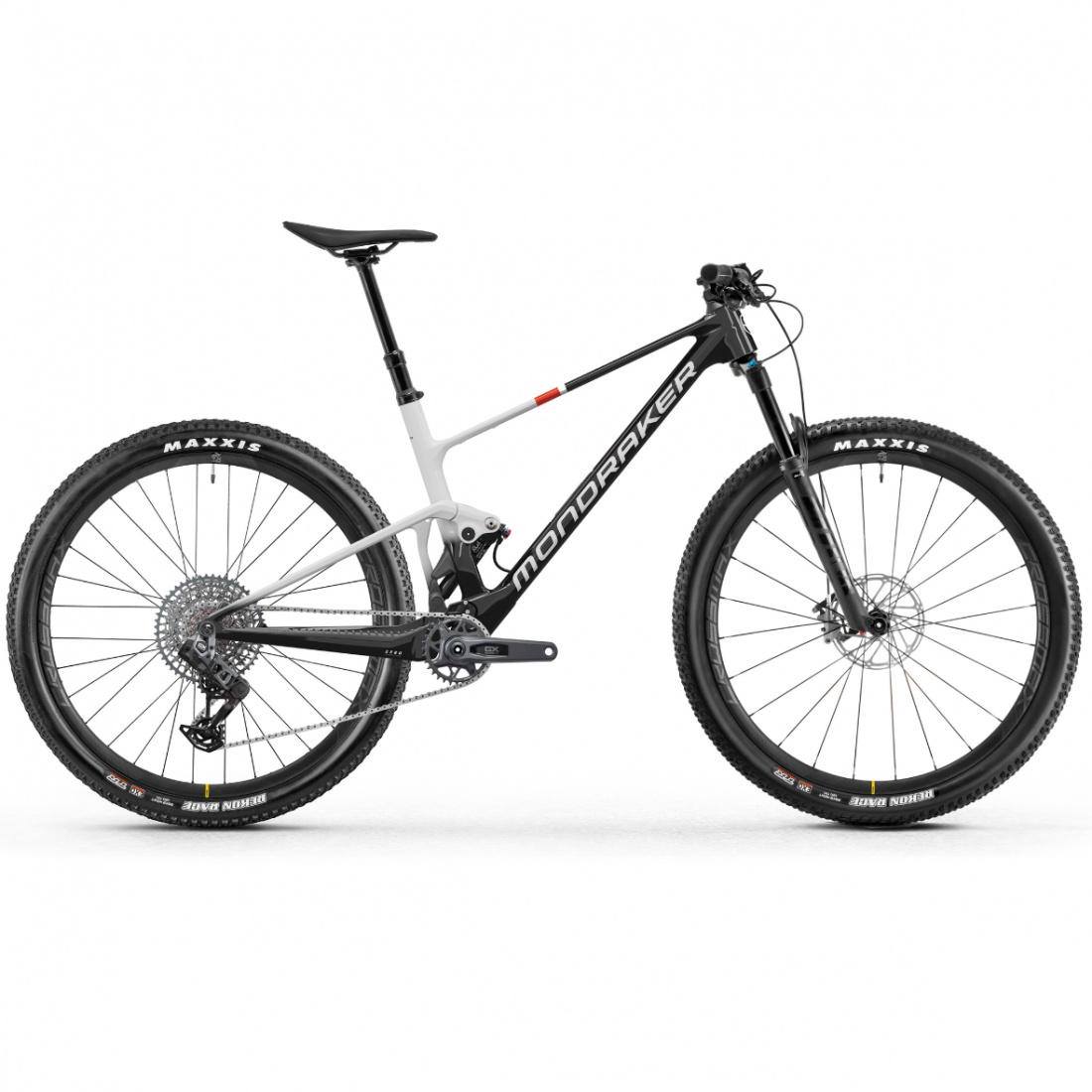

MONDRAKER F-PODIUM RS 2024

Frame

F-Podium 29 Stealth Air Full Carbon, XCO Optimized Zero Suspension System, 110mm, XC Forward Geometry, Carbon Monoblock upper link, BSA bottom bracket, tapered head tube, HHG internal cable routing, dedicated 1X drivetrain design, Boost 12x148mm rear axle, shock mudguard, postmount rear brake mount.

Sizes

S: 410mm / M: 440mm / L: 470mm / XL: 500mm

Rear shock

Fox Float SL Performance SV EVOL, 165x45mm. Settings: 3 position remote compression (open/medium/lock), low-speed rebound, air preload. Trunnion top mount, 30x8mm bottom bushings

Shock settings

Medium compression, medium rebound, air volume spacer 0.4

Fork

Fox 34 Step Cast Float Grip EVOL Performance, 120mm, tapered steerer tube,15x110mm Boost Kabolt axle, offset 44mm. Settings: remote 3pos Push to lock, rebound, air preload

Fork remote

Fox 3 position dual pull push to lock

Headset

Acros custom for 1-1/2" head tube, angular contact bearings 40x52x7, Internal cable routing

Stem

MDK, 6061 T6 Alloy, 31.8mm barbore, rise: +/-5º, length: S size: 50mm, M size: 50mm, L size: 60mm, XL size: 70mm

Handlebar

Onoff Sulfur 0.2, double butted 6061 alloy, rise: 4.8mm, width: 760mm, 9º backsweep, 0º upsweep, 31.8mm barbore

Grips

Onoff Twin, 1lock-on, 135mm

Seatpost

Onoff Pija dropper internal, diameter 31.6mm, Universal lever, S size: 405x95-125mm, M size: 458x120-150mm, L size: 498x140-170mm, XL size: 498x140-170mm

Saddle

Fizik Vento Argo X5

Front brake

Sram Level Bronze 2P Stealth, 2 piece caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pad

Rear brake

Sram Level Bronze 2P Stealth, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad

Brake lever

Sram Level Bronze, tools-free reach adjust, lever pivot bushings

Rims

Mavic CrossMax XL R, 29 Boost 30mm internal width, hookless, tubeless ready, 24 spokes

Spokes

Mavic 24 straight-pull double butted spokes

Front hub

Mavic Infinity hub, Boost 15x110mm, IS 6 bolts

Rear hub

Mavic Infinity hub, ID360 freewheel technology, Boost 12x148mm, IS 6 bolts, XD freehub

Front tire

Maxxis Rekon Race 29x2.4, EXO protection, tubeless ready, 120TPI, folding bead

Rear tire

Maxxis Rekon Race 29x2.4, EXO protection, tubeless ready, 120TPI, folding bead

Crankset

SramGX Eagle T-Type, Boost, DUB axle, Direct Mount chain ring, S size: 170mm M size: 175mm L size: 175mm XL size: 175mm, CL 55

Rings

34T, CNC-machined alloy, X-SYNC 2

Bottom bracket

Sram DUB BSA, sealed bearings, 73mm

Chain

Sram GX T-TYPE, 12s, Powerlock

Rear derrailleur

Sram GX Eagle AXS, T-Type roller bearing clutch, cage lock, 1x12s

Shift levers

Sram Eagle AXS Pod, 12s

Casette

Sram XS-1275, 10-52T, 12s

Derailleur hanger

Sram UDH

Weight

11,9 kg
