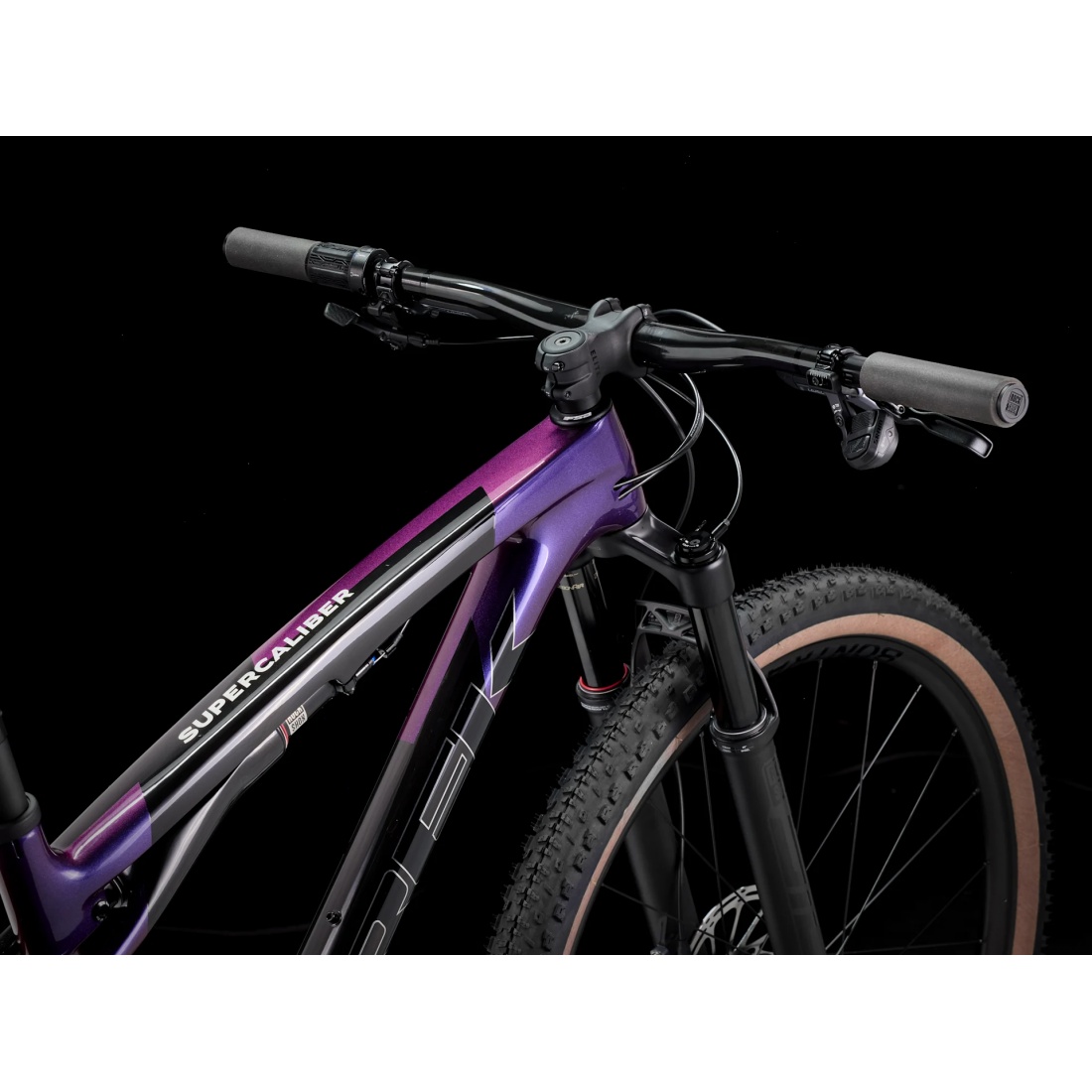

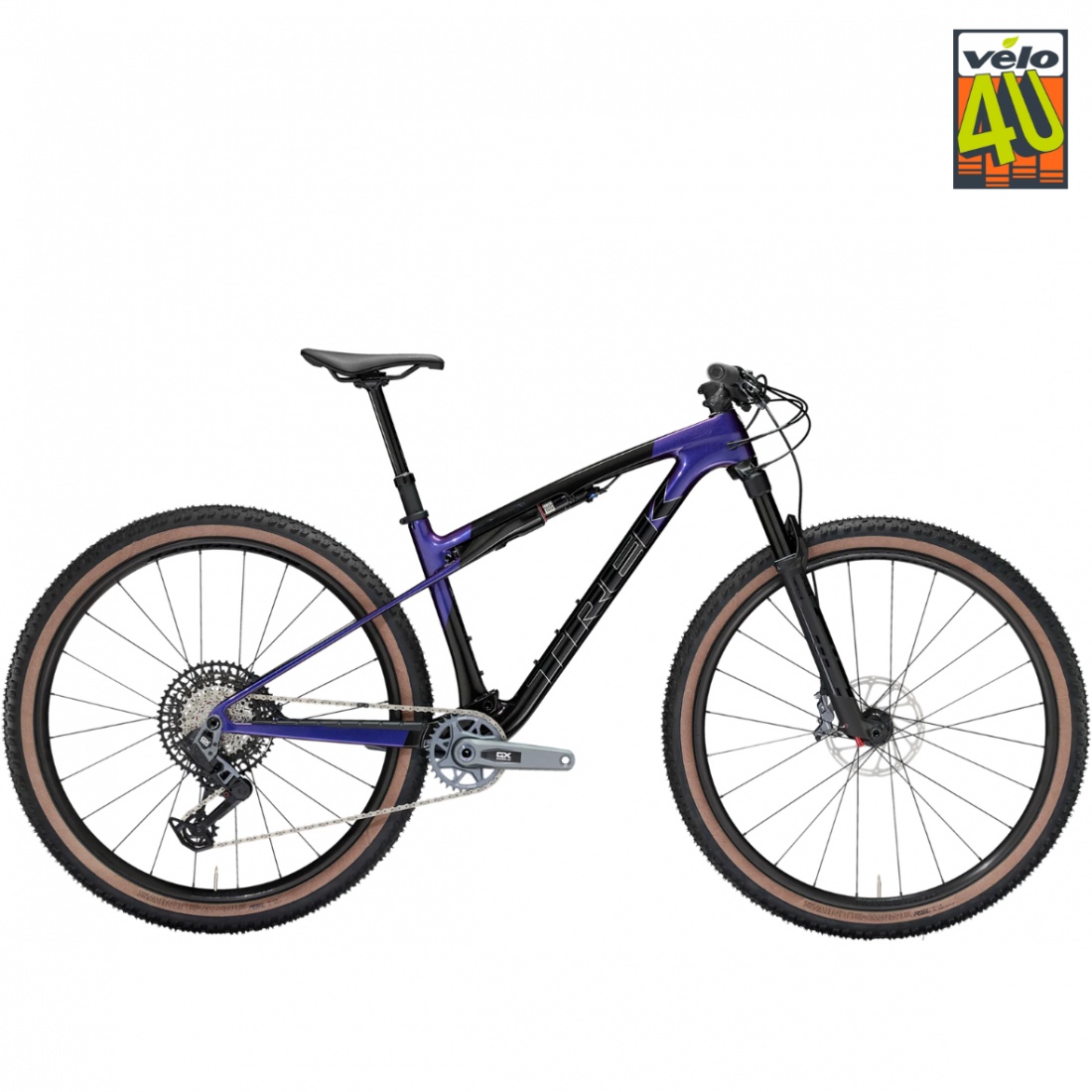

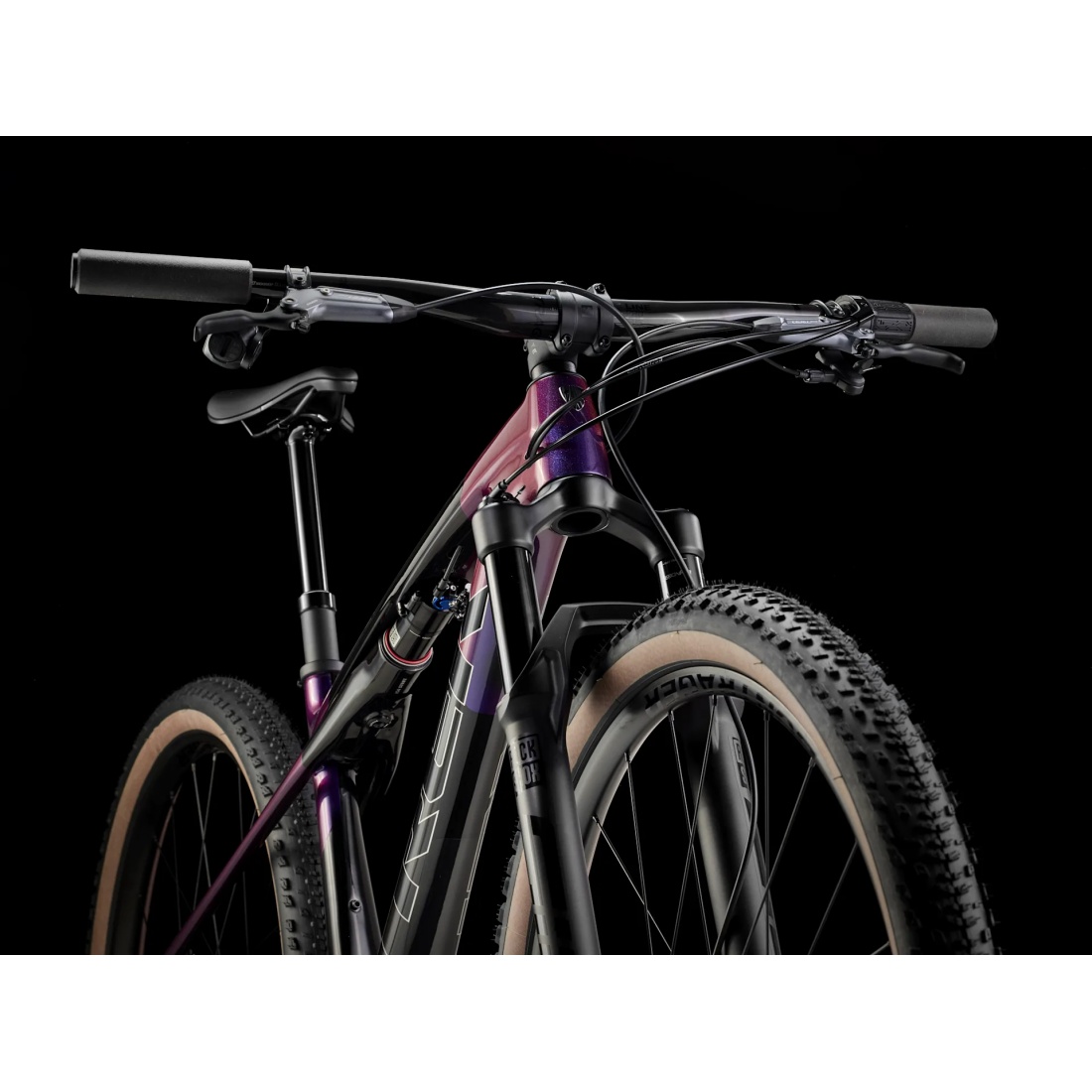

TREK SUPERCALIBER SL 9.7 GX AXS T-TYPE 2025

Frame:

• SL OCLV Mountain Carbon, IsoStrut, universal derailleur hanger, 80 mm of travel

Fork:

• RockShox SID, DebonAir spring, Rush RL damper, handlebar lockout, tapered steerer, 44 mm offset, Boost110, Maxle Stealth 15 mm, 110 mm of travel
• Maximum compatible fork travel: 120 mm, minimum 100 mm

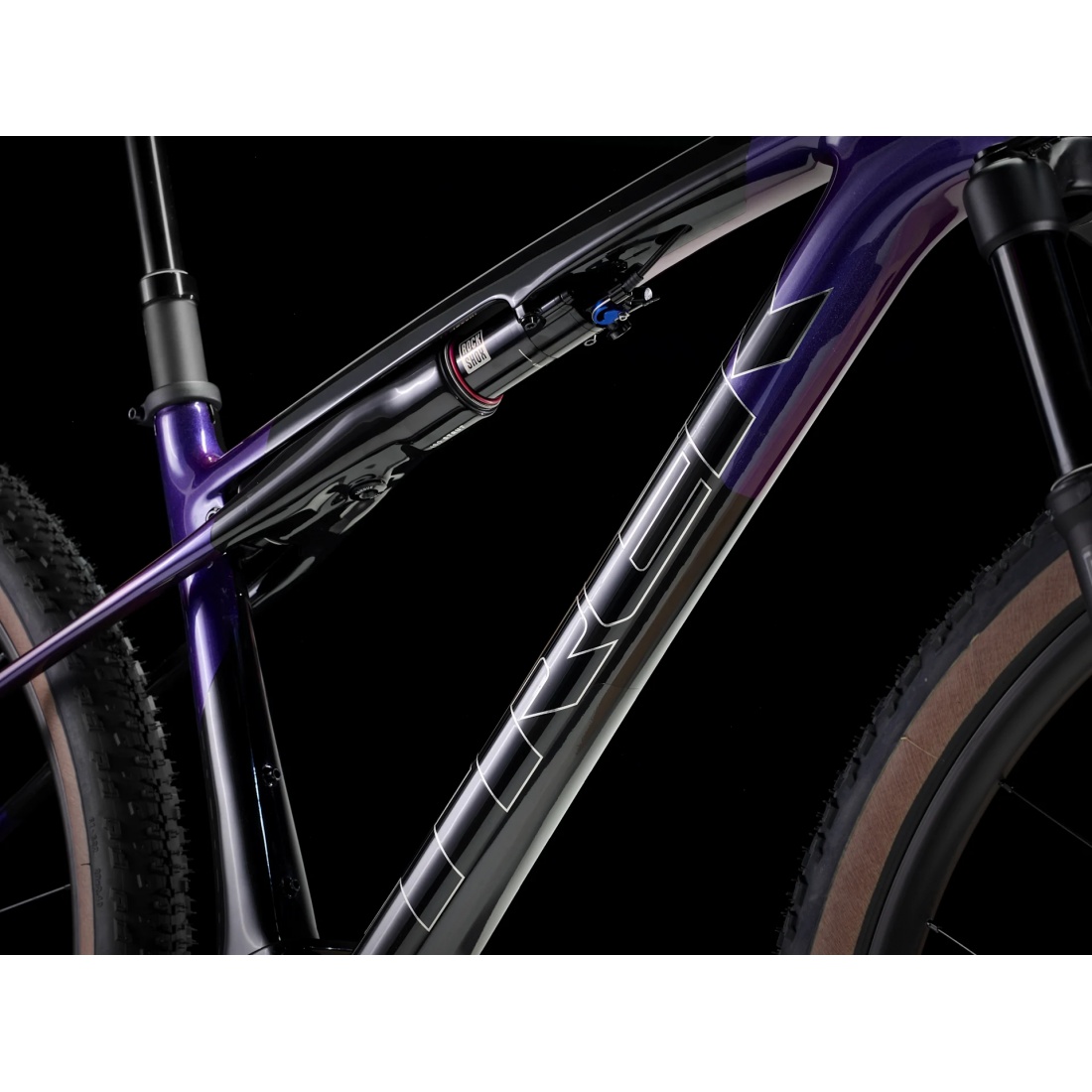

Shock:

• Trek IsoStrut, RockShox SIDLuxe, 2-position damper

Front Wheel:

• Bontrager Kovee Comp 25, Tubeless Ready, 6 holes, Boost110, 15 mm thru-axle, 29 inches

Rear Wheel:

• Bontrager Kovee Comp 25, Tubeless Ready, Rapid Drive 108, Boost148, 12 mm thru-axle, 29 inches

Tires:

• Size: S, M, ML, L, XL
  • Bontrager Sainte-Anne RSL XR, tubeless-ready, dual compound, Aramid bead, 220 tpi, 29x2.40”

Tire Sealant:

• Bontrager TLR Sealant, 177 ml

Max Tire Size:

• Frame: 29x2.40 inches
• Fork: check the fork manufacturer's specs

Battery:

• SRAM eTap Battery (with charger)

Shifter:

• SRAM AXS POD

Rear Derailleur:

• SRAM GX Eagle AXS, Type T

Crankset:

• Size: S, M, ML
  • SRAM GX Eagle, DUB axle, Type T, 34T, 55 mm chainline, 170 mm length
• Size: L, XL
  • SRAM GX Eagle, DUB axle, Type T, 34T, 55 mm chainline, 175 mm length

Bottom Bracket:

• SRAM DUB, 92 mm, PressFit

Cassette:

• SRAM Eagle XS-1275, Type T, 10-52, 12-speed

Chain:

• SRAM GX Eagle, Type T, 12-speed

Max Chainring Size (1x):

• 38T, min 30T

Saddle:

• Verse Short Elite, magnesium hollow rails, 145 mm width

Dropper Post:

• Size: S
  • Bontrager Line Dropper, 100 mm travel, MaxFlow, internal routing, 31.6 mm, 310 mm length
• Size: M, ML, L
  • Bontrager Line Dropper, 150 mm travel, MaxFlow, internal routing, 31.6 mm, 410 mm length
• Size: XL
  • Bontrager Line Dropper, 170 mm travel, MaxFlow, internal routing, 31.6 mm, 450 mm length

Handlebar:

• Size: S
  • Bontrager Kovee Pro, OCLV Carbon, 35 mm, 5 mm rise, 720 mm width
• Size: M, ML, L, XL
  • Bontrager Line Pro, OCLV Carbon, 35 mm, 15 mm rise, 750 mm width

Stem:

• Size: S, M
  • Bontrager Elite, 35 mm, 13-degree rise, 60 mm length
• Size: ML
  • Bontrager Elite, 35 mm, 13-degree rise, 70 mm length
• Size: L
  • Bontrager Elite, 35 mm, 13-degree rise, 80 mm length
• Size: XL
  • Bontrager Elite, 35 mm, 0-degree rise, 90 mm length

Headset:

• FSA IS-2, 1.125 inches top, 1.5 inches bottom

Brakes:

• SRAM Level Bronze hydraulic, 4-piston disc

Brake Discs:

• Size: S, M, ML, L, XL
  • SRAM CenterLine, 6 holes, rounded edge, 160 mm
• Size: S, M, ML, L, XL
  • SRAM CenterLine, 6 holes,
