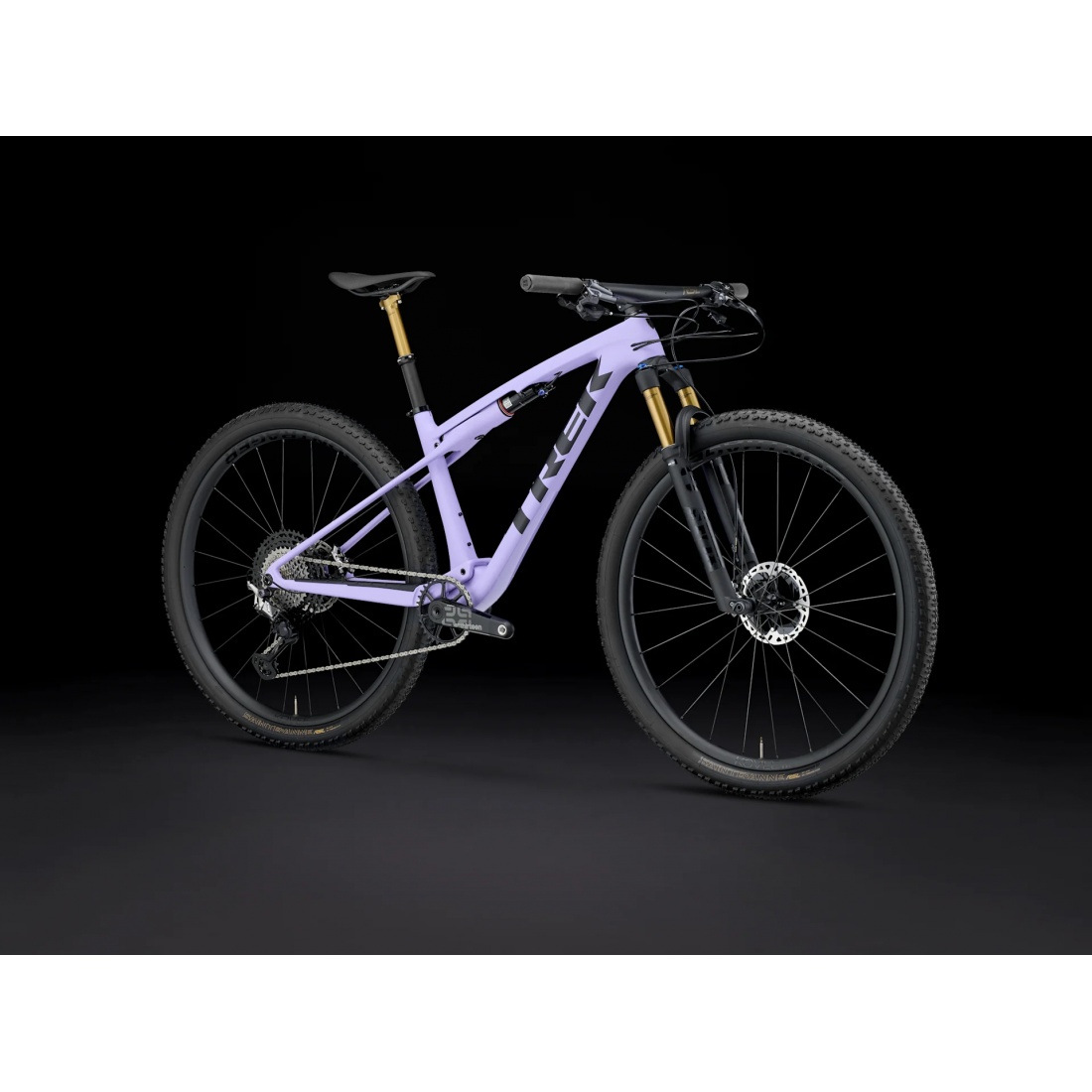

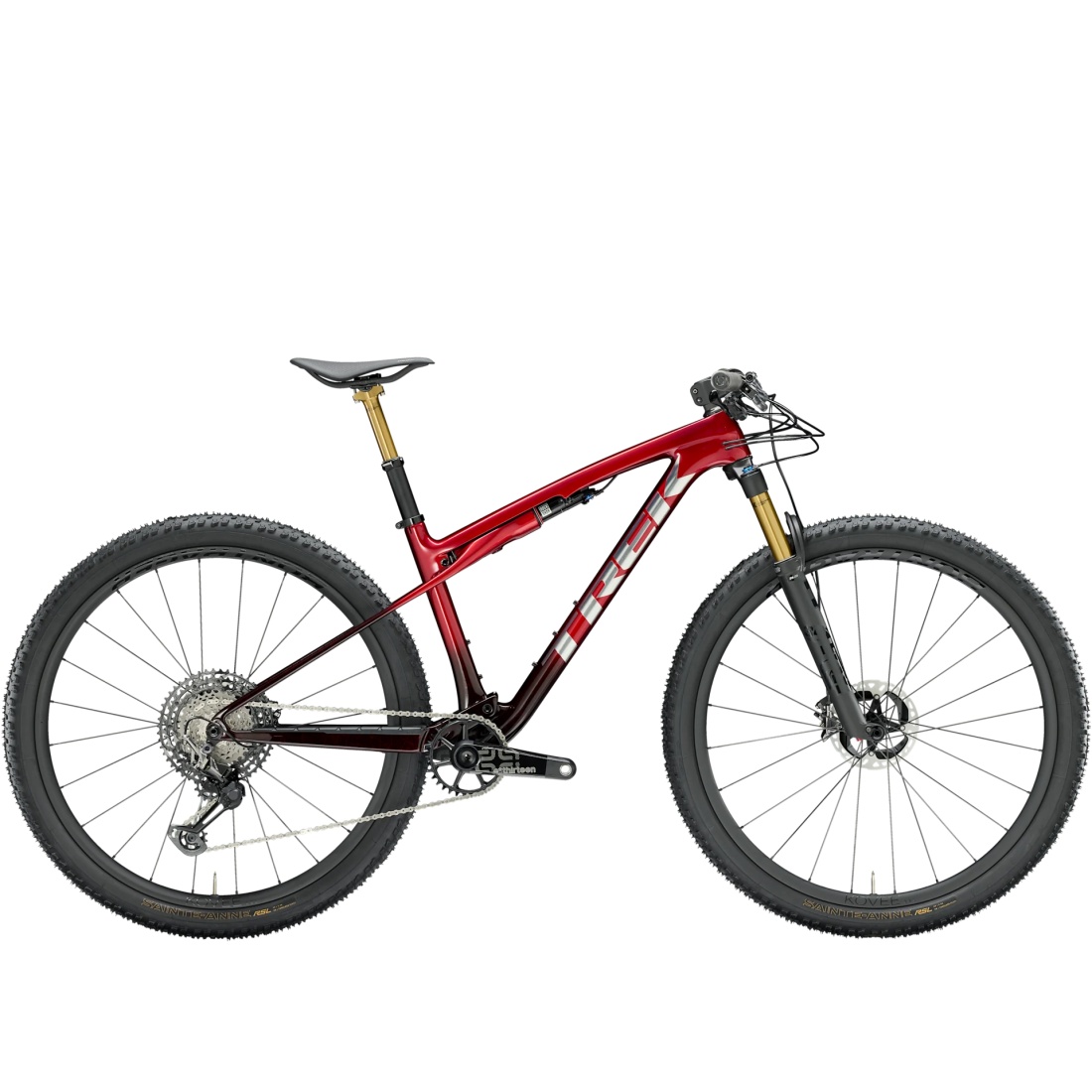

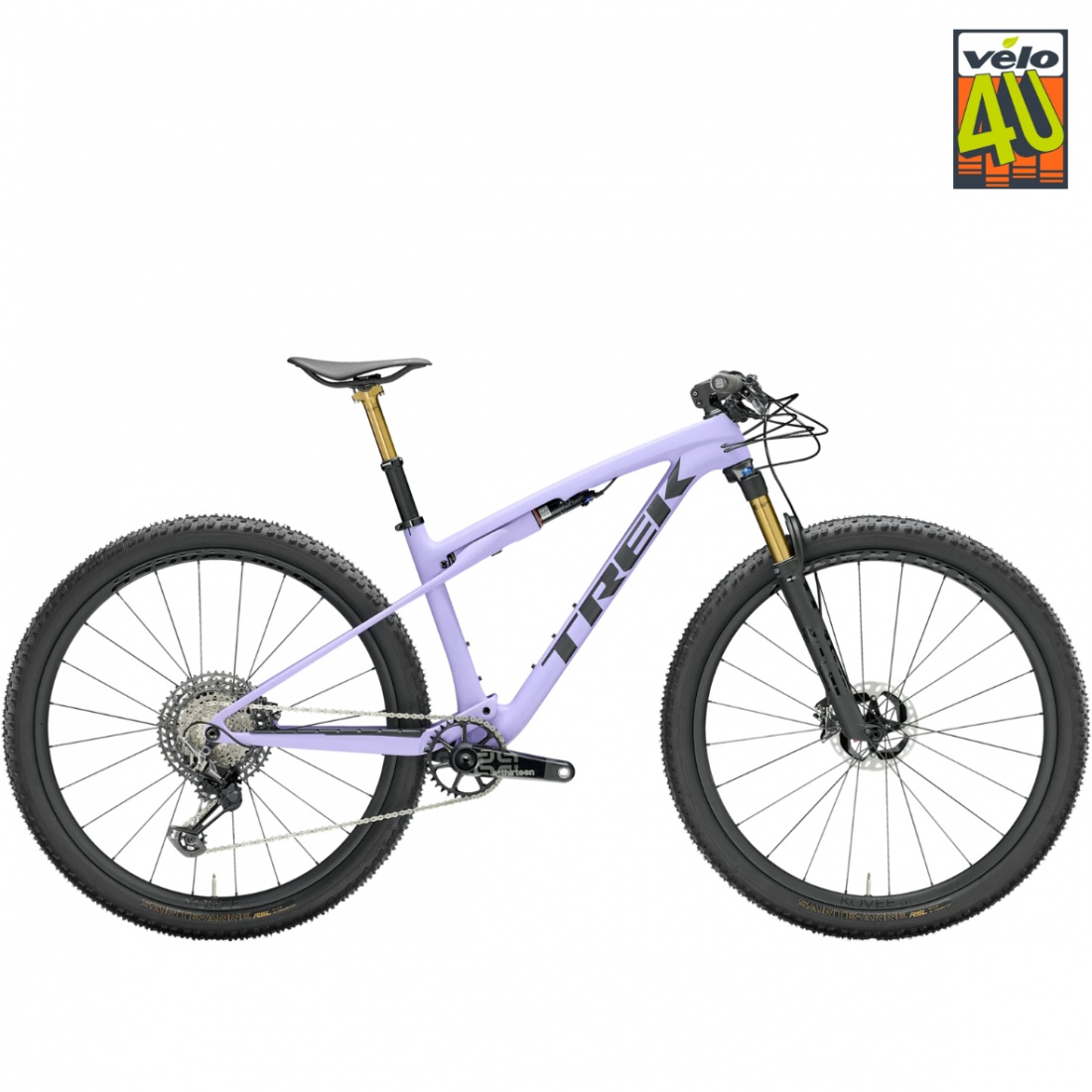

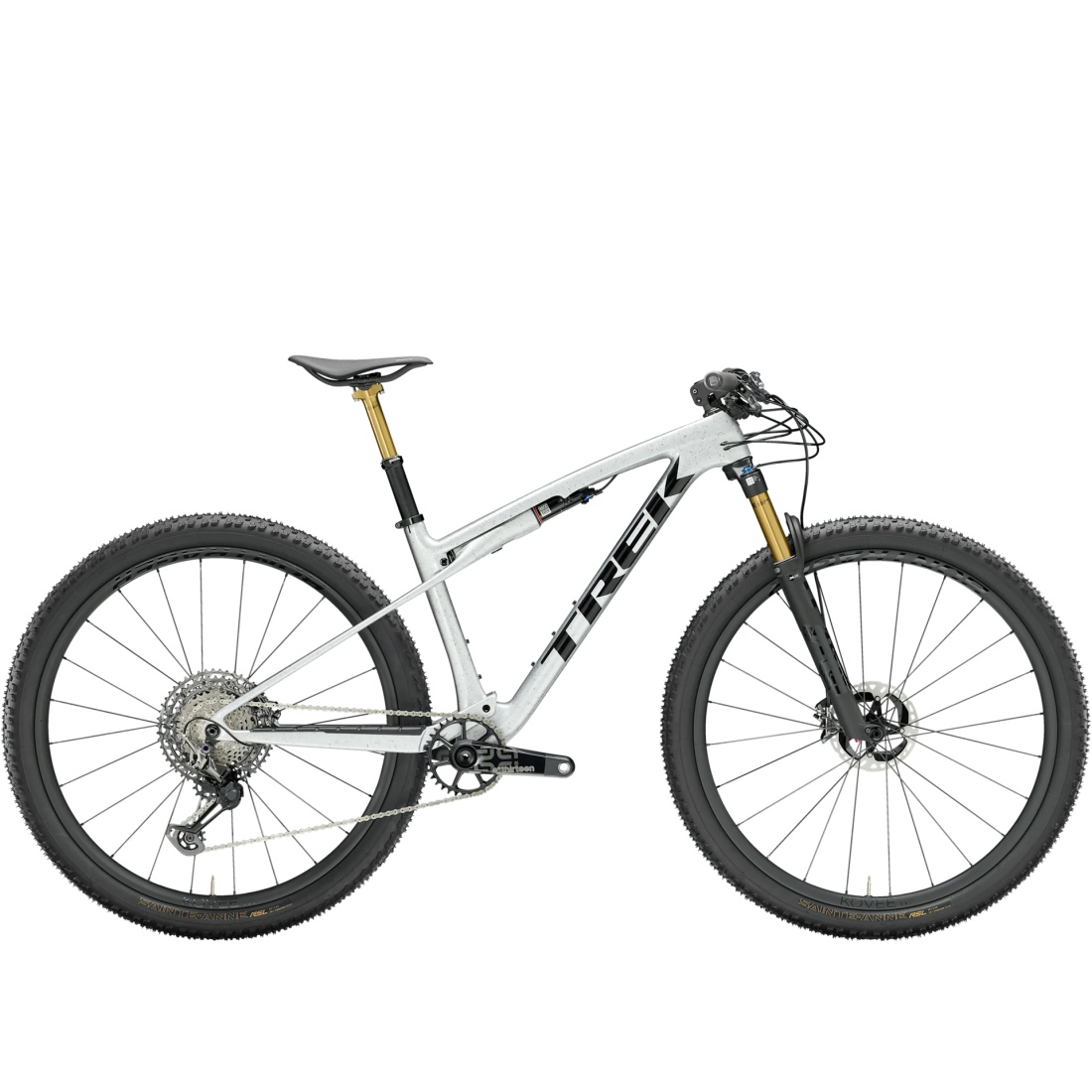

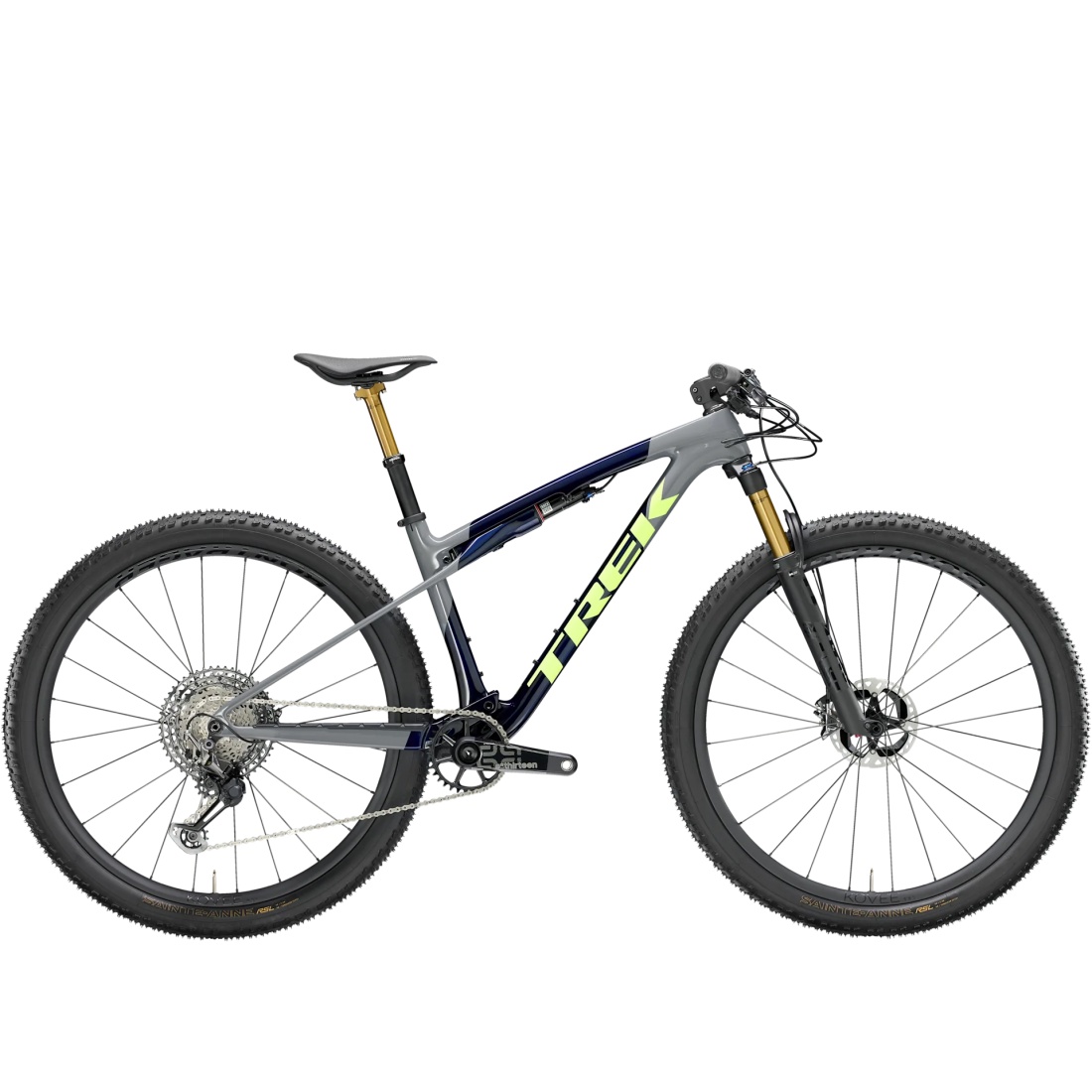

TREK SUPERCALIBER SLR 9.9 XTR 2025

Frame:

• SLR OCLV Mountain Carbon, IsoStrut, universal derailleur hanger, 80 mm travel

Fork:

• Fox Factory 34 Step-Cast, Float EVOL air spring, FIT4 2-position damper, dual lockout, tapered steerer, 44 mm offset, Kashima coating, Boost110, 15 mm Kabolt axle, 110 mm travel
• Maximum compatible travel: 120 mm, minimum 100 mm

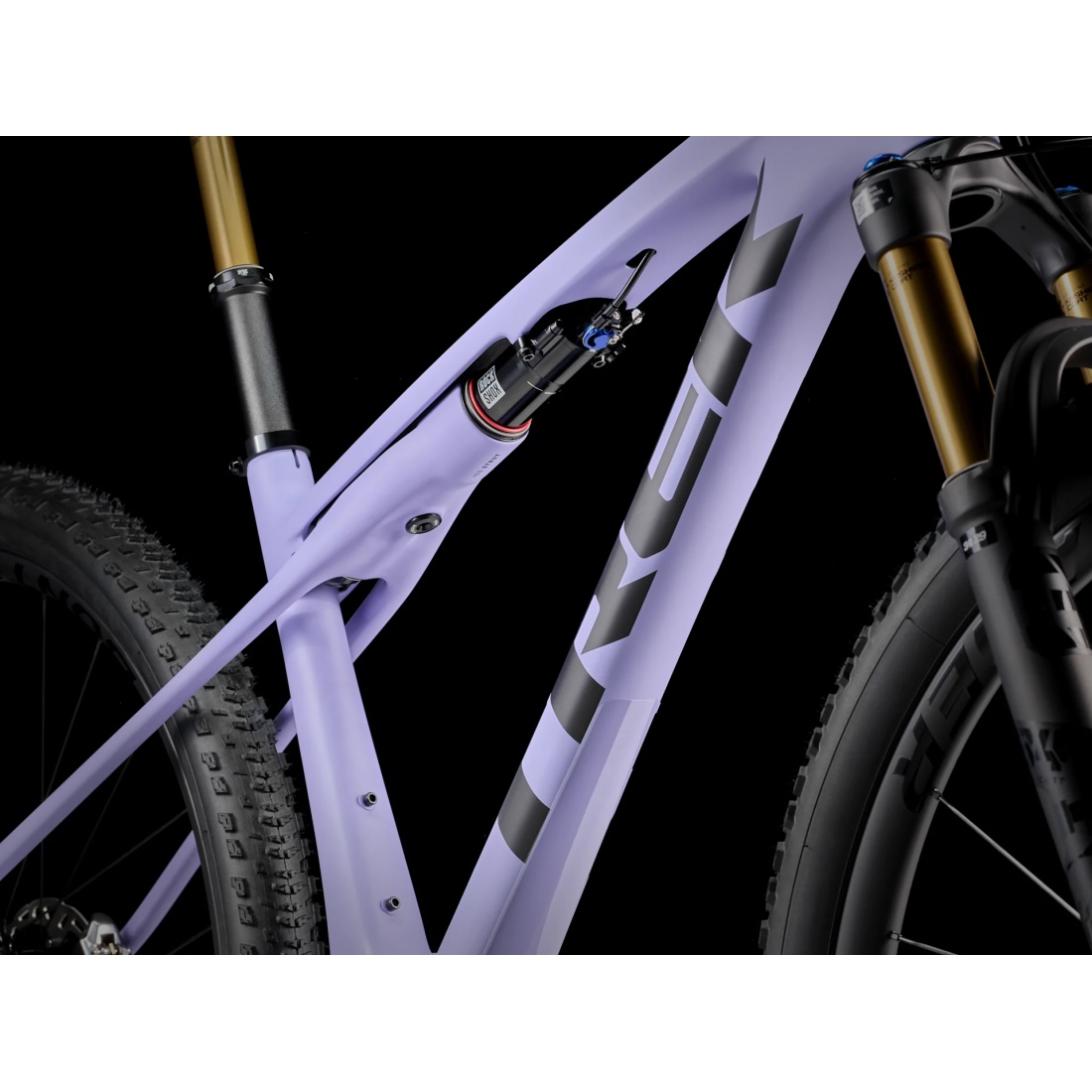

Shock:

• Trek IsoStrut, RockShox SIDLuxe, 2-position damper

Wheels:

• Front: Bontrager Kovee RSL, OCLV Mountain Carbon, Tubeless Ready, CenterLock, Boost110, 15 mm thru-axle, 29 inches
• Rear: Bontrager Kovee RSL, OCLV Mountain Carbon, Tubeless Ready, CenterLock, Boost148, 12 mm thru-axle, 29 inches
  • Locking: Bontrager Switch thru-axle, removable lever

Tires:

• Pirelli Scorpion XC RC, Tubeless Ready, Team Edition Pro Wall, aramid bead, 120 TPI, 29x2.40 inches

Tire Accessories:

• Bontrager TLR Sealant, 177 ml
• Bontrager TLR Rim Tape

Max Tire Size:

• Frame: 29x2.40 inches
• Fork: See manufacturer

Drivetrain:

• Shifters: Shimano XTR M9100, 12-speed
• Rear Derailleur: Shimano XTR M9100, Shadow Plus, long cage, max 51T sprocket
• Crankset:
  • Size S, M: E*thirteen TRS Race Carbon, 30 mm axle, Alu 34T ring, 55 mm chainline, 170 mm length
  • Size ML, L, XL: E*thirteen TRS Race Carbon, 30 mm axle, Alu 34T ring, 55 mm chainline, 175 mm length
• Bottom Bracket: E*thirteen BB20-92
• Cassette: Shimano XTR M9100, 10-51, 12-speed
• Chain: Shimano Dura-Ace/XTR M9100, 12-speed
• Max Chainring Size (1x): 38T, min 30T

Saddle:

• Aeolus RSL, carbon rails, 145 mm width

Dropper Seatpost:

• Size S, M: Fox Transfer SL, 100 mm travel, internal routing, 31.6 mm
• Size ML, L: Fox Transfer SL, 125 mm travel, internal routing, 31.6 mm
• Size XL: Fox Transfer SL, 150 mm travel, internal routing, 31.6 mm

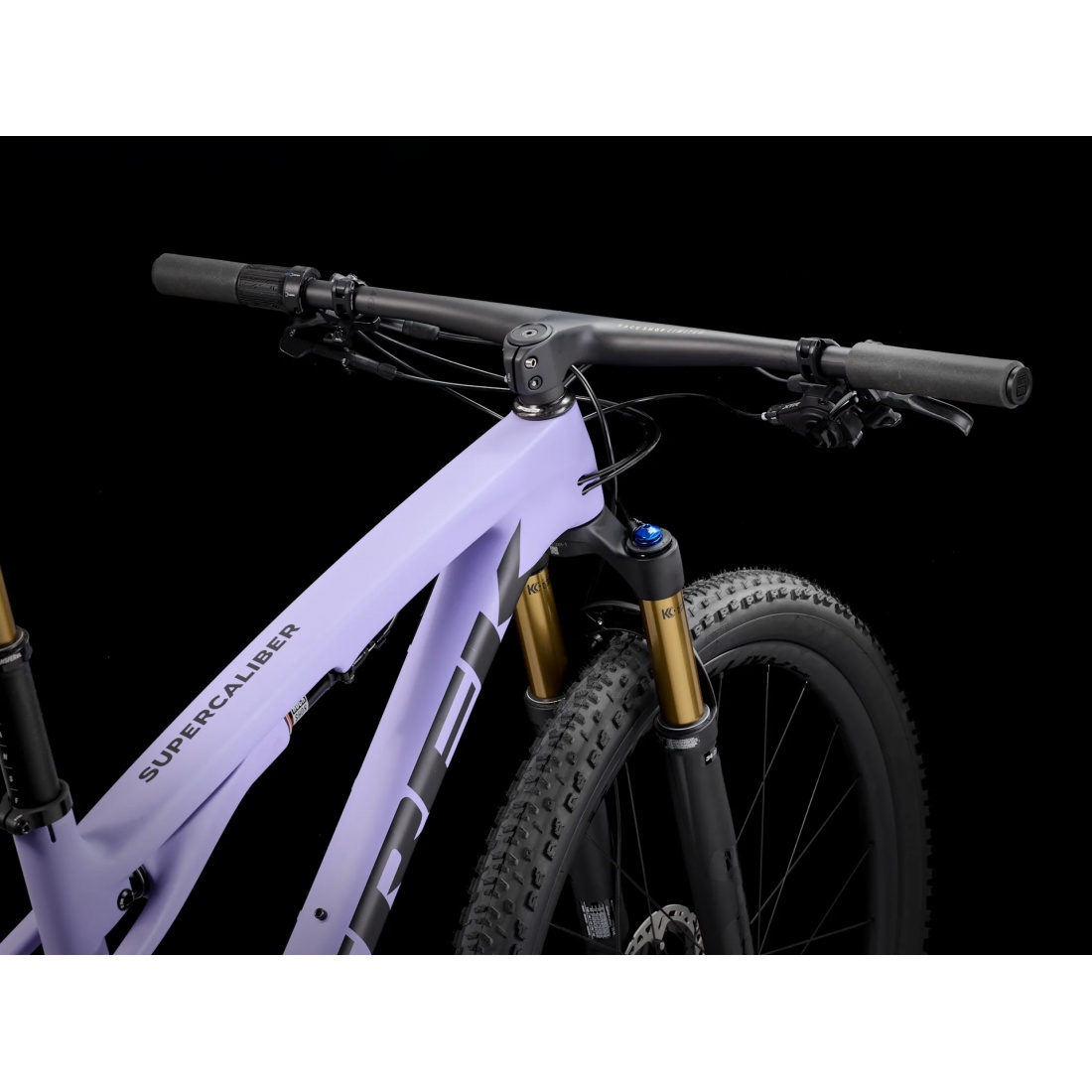

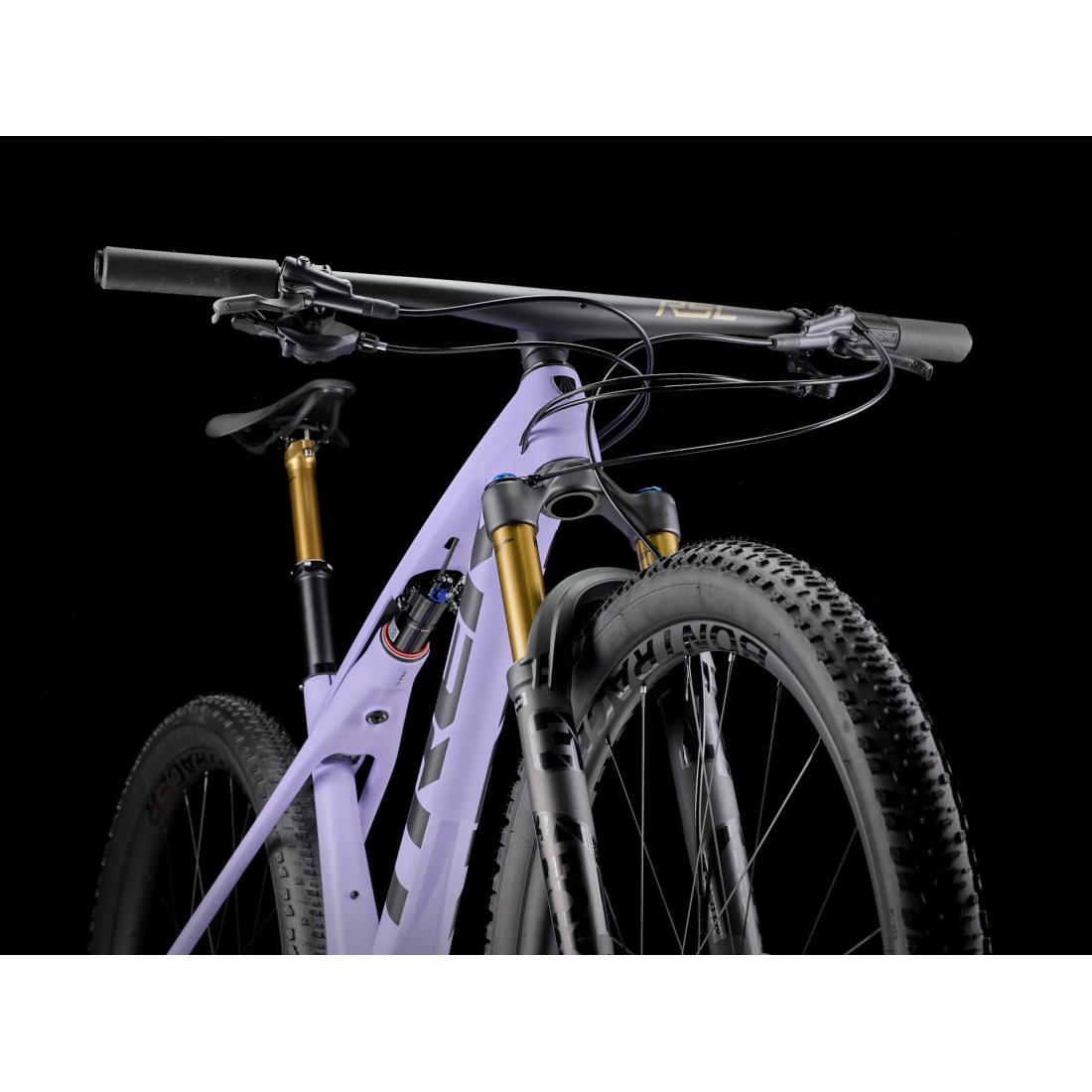

Integrated Bar/Stem:

• Size S, M, ML: Bontrager RSL integrated, OCLV Carbon, 0 mm rise, 750 mm width, -13° stem angle, 70 mm length
• Size L: Bontrager RSL integrated, OCLV Carbon, 0 mm rise, 750 mm width, -13° stem angle, 80 mm length
• Size XL: Bontrager RSL integrated, OCLV Carbon, 0 mm rise, 750 mm width, -13° stem angle, 90 mm length

Brakes:

• Shimano XTR M9100 hydraulic discs
• Rotors: Shimano MT900, centerlock, 160 mm
  • Maximum rotor size: Frame 160 mm, fork: see manufacturer

Headset:

• FSA IS-2, 1.125 inches top, 1.5 inches bottom

Weight:

• Size M: 9.96 kg / 21.96 lbs (with TLR sealant, tubeless setup)

Maximum Weight Limit:

• 136 kg (300 lbs) (bike + rider + cargo)
