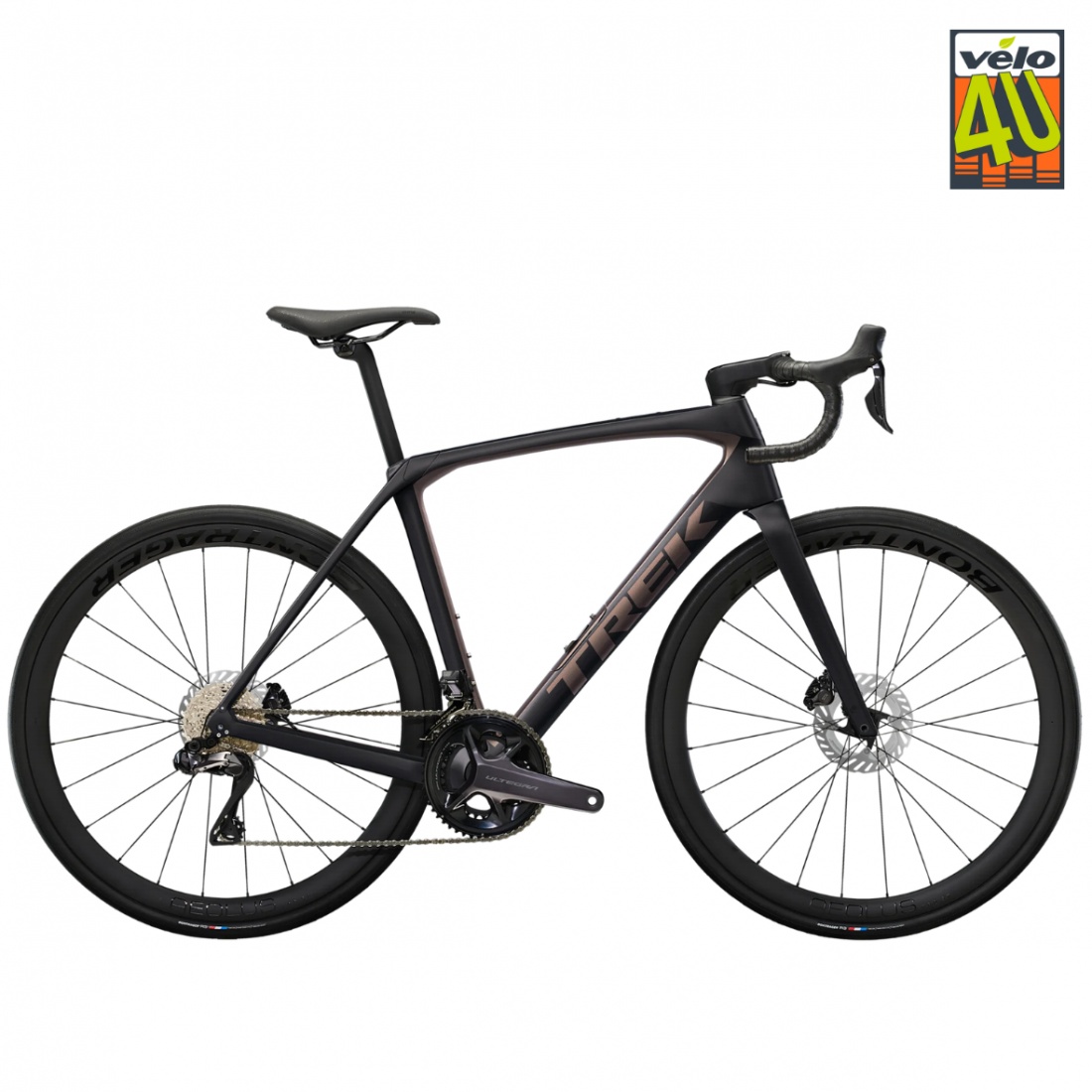

TREK DOMANE SL 7 2025

Frame:

• 500 Series OCLV Carbon
• IsoSpeed
• Internal storage
• Tapered head tube
• Internal cable routing
• 3S chain keeper
• Fender mounts
• Flat-Mount disc brakes
• 142x12 mm thru-axle

Fork:

• Domane SL carbon
• Tapered carbon steerer
• Internal brake cable routing
• Fender mounts
• Flat-Mount disc brakes
• 12x100 mm thru-axle

Maximum Weight:

• Maximum total weight limit (bike, rider, luggage): 125 kg (275 lbs)

Shifters:

• Shimano Ultegra R8170 Di2, 12-speed

Front Derailleur:

• Shimano Ultegra R8150 Di2, braze-on, down swing

Rear Derailleur:

• Shimano Ultegra R8150 Di2, max 34-tooth cog

Crankset:

• Size 44, 47: Shimano Ultegra R8100, 50/34, 165 mm length
• Size 50, 52: Shimano Ultegra R8100, 50/34, 170 mm length
• Size 54, 56: Shimano Ultegra R8100, 50/34, 172.5 mm length
• Size 58, 60, 62: Shimano Ultegra R8100, 50/34, 175 mm length

Bottom Bracket:

• Praxis, T47 threaded, internal bearings

Cassette:

• Shimano Ultegra R8101, 11-34, 12-speed

Chain:

• Shimano XT M8100, 12-speed

Max Chainring Size:

• 1x: 48-tooth, 2x: 52/36

Front Wheel:

• Bontrager Aeolus Pro 37, OCLV Carbon, Tubeless Ready, 37 mm rim depth, 12x100 mm thru-axle

Rear Wheel:

• Bontrager Aeolus Pro 37, OCLV Carbon, Tubeless Ready, 37 mm rim depth, Shimano 11-speed freehub, 12x142 mm thru-axle

Front Thru-Axle:

• Bontrager Switch thru-axle, removable lever

Rear Thru-Axle:

• Bontrager Switch thru-axle, removable lever

Tires:

• Bontrager R3 Hard-Case Lite, tubeless-ready, aramid bead, 120 tpi, 700x32 mm

Sealant:

• Bontrager TLR Sealant, 177 ml

Rim Strip:

• Bontrager TLR

Max Tire Size:

• 38 mm without fenders, 35 mm with fenders

Saddle:

• Size 44, 47, 50, 52: Verse Short Comp, steel rails, 155 mm width
• Size 54, 56, 58, 60, 62: Verse Short Comp, steel rails, 145 mm width

Seatpost:

• Size 44, 47, 50, 52, 54, 56: KVF aerodynamic carbon seatpost, 20 mm offset, 280 mm length
• Size 58, 60, 62: KVF aerodynamic carbon seatpost, 20 mm offset, 320 mm length

Handlebar:

• Size 44, 47: Bontrager Elite IsoZone VR-SF, alloy, 31.8 mm, Di2 internal routing, 75 mm reach, 128 mm drop, 36 cm width
• Size 50: Bontrager Elite IsoZone VR-SF, alloy, 31.8 mm, 75 mm reach, 128 mm drop, 38 cm width
• Size 52: Bontrager Elite IsoZone VR-SF, alloy, 31.8 mm, 75 mm reach, 128 mm drop, 40 cm width
• Size 54, 56: Bontrager Elite IsoZone VR-SF, alloy, 31.8 mm, 75 mm reach, 128 mm drop, 42 cm width
• Size 58, 60, 62: Bontrager Elite IsoZone VR-SF, alloy, 31.8 mm, 75 mm reach, 128 mm drop, 44 cm width

Bar Tape:

• Bontrager Supertack Perf

Stem:

• Size 44: Trek RCS Pro, -7 degrees, 60 mm length
• Size 47: Trek RCS Pro, -7 degrees, 70 mm length
• Size 50: Trek RCS Pro, -7 degrees, 80 mm length
• Size 52, 54: Trek RCS Pro, -7 degrees, 90 mm length
• Size 56, 58: Trek RCS Pro, -7 degrees, 100 mm length
• Size 60, 62: Trek RCS Pro, -7 degrees, 110 mm length

Brakes:

• Shimano CL800, centerlock, 160 mm

Brake Rotor Specs:

• Maximum brake rotor size: 160 mm front and rear
